 Posted: Sun Jun 15, 2025 3:11 pm Post subject: A/C Industries disc rotor wonky |
 |
|

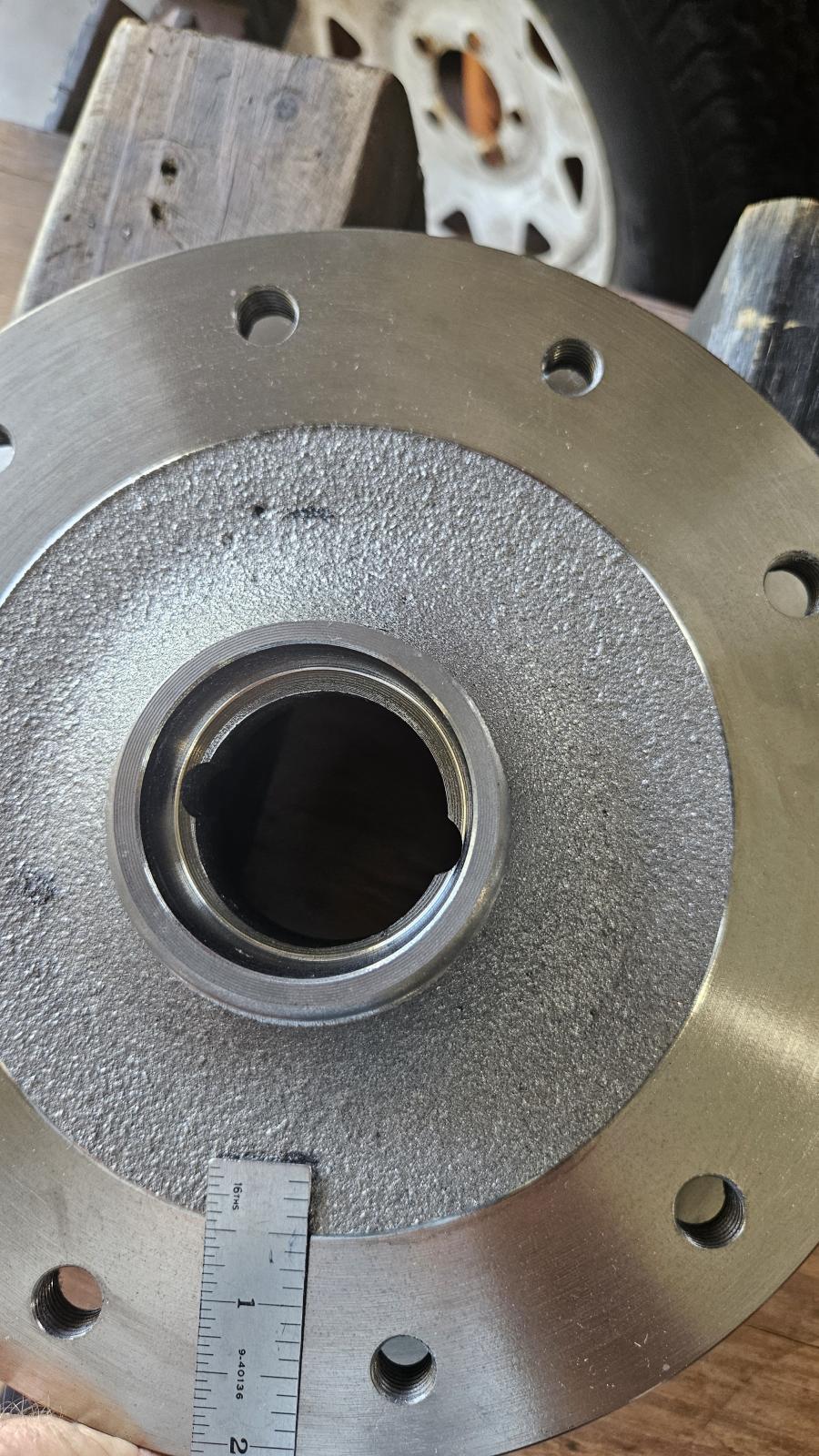

So...getting ready to paint my rotors so they don't rust and noticed with my bare eye and thought...Man looks like the center hub is off center. I did some measuring and checked radius.
Everything is off, even if it wasn't I'm running an open stock style wheel where you see the center.
An yes the caliper bracket didn't line up either, but that's known.
[
Last edited by volksnut on Sun Jun 15, 2025 3:22 pm; edited 1 time in total |
|
| Back to top |
|
 |
volksnut
Samba Member
Joined: November 16, 2002
Posts: 407
Location: winter park, florida
|
| Posted: Sun Jun 15, 2025 3:15 pm Post subject: Re: A/C Industries disc rotor wonky |
|
|

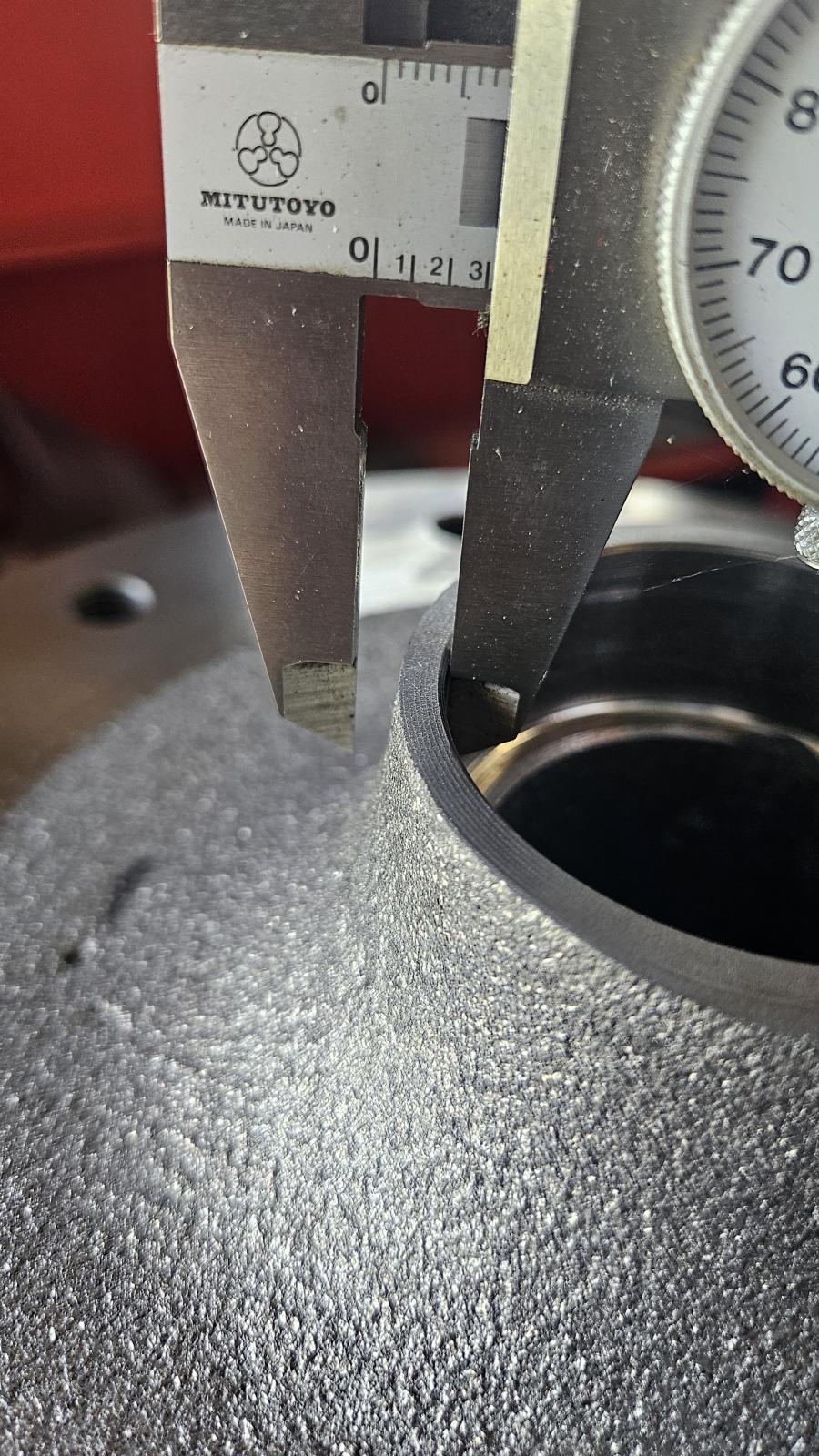

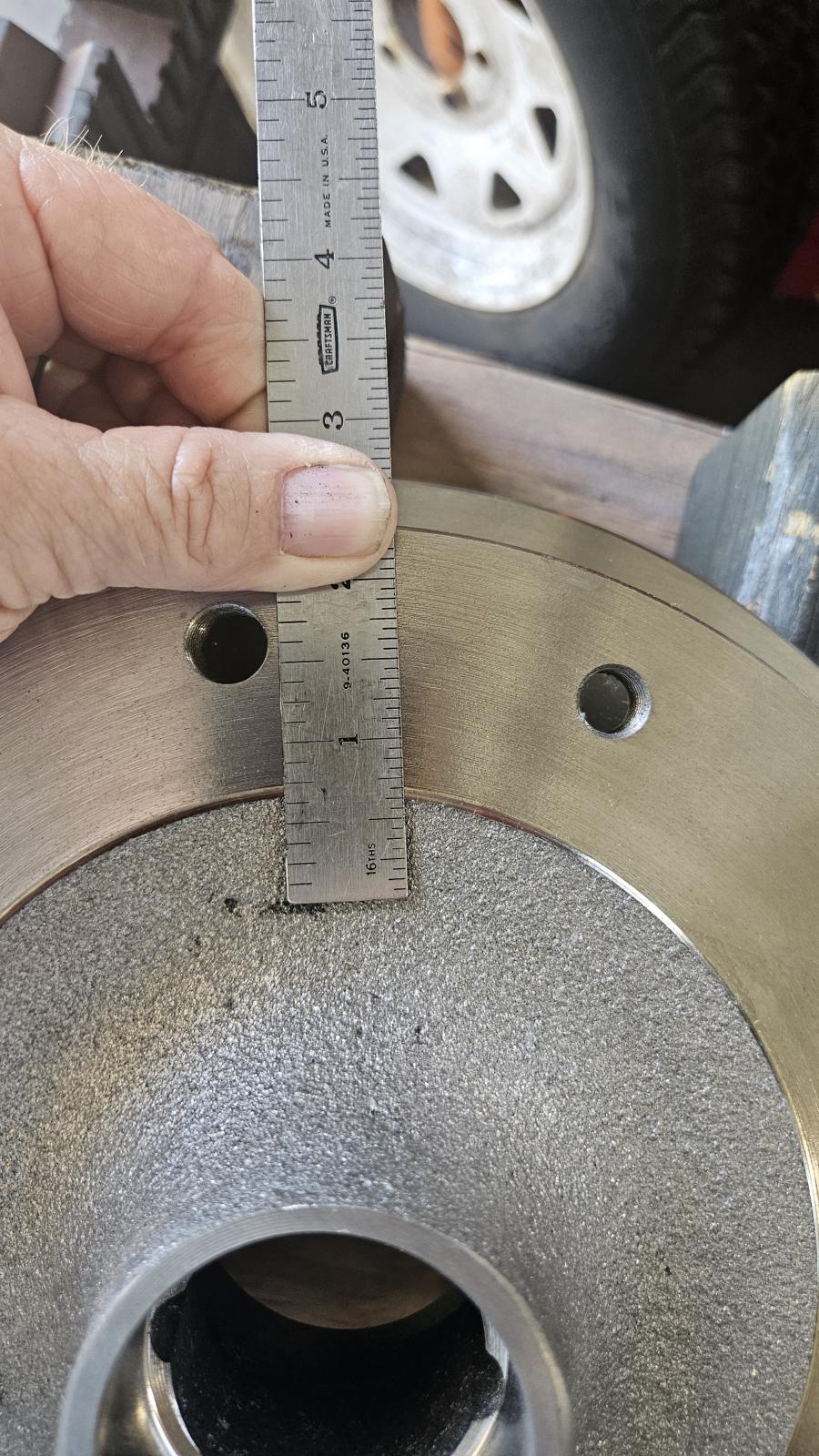

Then I checked the radius of the angle to the center cap, both sides are the same but the distance from the wheel surface is off, 1/2" on one side 3/4" on the other.
I'm waiting to install the races and see if the wheel rotor is indeed wonky.
Must have been a Friday when they machined this one.
Last edited by volksnut on Sun Jun 15, 2025 7:01 pm; edited 2 times in total |
|
| Back to top |
|
|
esde
Samba Member
Joined: October 20, 2007
Posts: 6323
Location: central rust belt
|
| Posted: Sun Jun 15, 2025 3:16 pm Post subject: Re: A/C Industries disc rotor wonkey |
|
|
Looks like the rough casting didn't get centered before it was clamped to be machined. Might even be fine but certainly not balanced..
I've had very good customer service from them, we had an issue with some caliper hardware a few years ago. The owner was great and took care of us, hopefully they will do the same for you.
_________________
modok wrote:
Bent cranks are silent but gather no moss. I mean, ah, something like that. |
|
| Back to top |
|
|
scrivyscriv
Samba Electrician
Joined: October 04, 2011
Posts: 3342
Location: Memphis
|
| Posted: Sun Jun 15, 2025 9:42 pm Post subject: Re: A/C Industries disc rotor wonky |
|
|
You can't really measure the rough casting for much info other than general observations.
Yes, yours is machined off the center of the casting, but that does not necessarily mean the drum is out of round or out of balance.
You can check runout with the drum mounted on the wheel spindle, taking your measurement from the inner machined surface. I have a brake lathe I use to check drum runout - same principle, just using a machine made for it.
_________________
Robert in Memphis
Dünkelgrügen 1967 Java Green bug thread
Engine rebuild thread
If you're ever in the Memphis area, you are welcome to stop by for advice and help. |
|
| Back to top |
|
|
volksnut
Samba Member
Joined: November 16, 2002
Posts: 407
Location: winter park, florida
|
| Posted: Mon Jun 16, 2025 3:49 am Post subject: Re: A/C Industries disc rotor wonky |
|
|
| scrivyscriv wrote: |
You can't really measure the rough casting for much info other than general observations.
Yes, yours is machined off the center of the casting, but that does not necessarily mean the drum is out of round or out of balance.
You can check runout with the drum mounted on the wheel spindle, taking your measurement from the inner machined surface. I have a brake lathe I use to check drum runout - same principle, just using a machine made for it.
|
Yes indeed that's my next plan, first need to ask vendor if I install races and if they are truly out of round will they except return. |
|
| Back to top |
|
|
volksnut
Samba Member
Joined: November 16, 2002
Posts: 407
Location: winter park, florida
|
| Posted: Mon Jun 16, 2025 3:26 pm Post subject: Re: A/C Industries disc rotor wonky |
|
|
Installed races...So....i have stockish styled aluminum wheels with open centers, no im not gonna look at this wobbler.
Link
|
|
| Back to top |
|
|
67rustavenger
Samba Member
Joined: February 24, 2015
Posts: 11038
Location: Oregon
|
| Posted: Mon Jun 16, 2025 3:59 pm Post subject: Re: A/C Industries disc rotor wonky |
|
|
| volksnut wrote: |
Installed races...So....i have stockish styled aluminum wheels with open centers, no im not gonna look at this wobbler.
Link
|
Send that video to AC.
Then send the rotors back to them for a good set of replacement rotors.
To me, it appears that the rotor was removed from the mold to early and one side cooled to quickly, causing it to shrink on one side of the rotor.
As can be seen in the video the rotors run true but, the hub section does not. It sucks and needs a quality replacement.
I have a set of the CB disc's on one of my 67's and they are a quality item.
Unlike what you are experiencing.
_________________
I have learned over the years.
Cheap parts are gonna disappoint you.
Buy Once, Cry Once!
There's never enough time to do it right the first time. But there's always enough time to do it thrice.
GFY's Xevin and VW_Jimbo!
2003 Astrovan? GFYS again, Xevin!
Don't let your bad ideas remain, ideas! |
|
| Back to top |
|
|
volksnut
Samba Member
Joined: November 16, 2002
Posts: 407
Location: winter park, florida
|
| Posted: Mon Jun 16, 2025 7:37 pm Post subject: Re: A/C Industries disc rotor wonky |
|
|
Here's another problem I see, how is this gonna balance out, its definitely heavier on one side. Am I right?
Link
|
|
| Back to top |
|
|
mukluk
Samba Member
Joined: October 18, 2012
Posts: 7452
Location: Clyde, TX
|
| Posted: Mon Jun 16, 2025 8:59 pm Post subject: Re: A/C Industries disc rotor wonky |
|
|
That definitely has a decent heavy spot, pretty much guaranteed to cause a shimmy or vibration at highway speed.
_________________
1960 Ragtop w/Semaphores "Inga" |
|
