| Author |
Message |
Bill Baynes
Samba Member
Joined: January 12, 2013
Posts: 7
|
 Posted: Sun Aug 28, 2016 5:50 pm Post subject: Single cab rear window |
 |
|

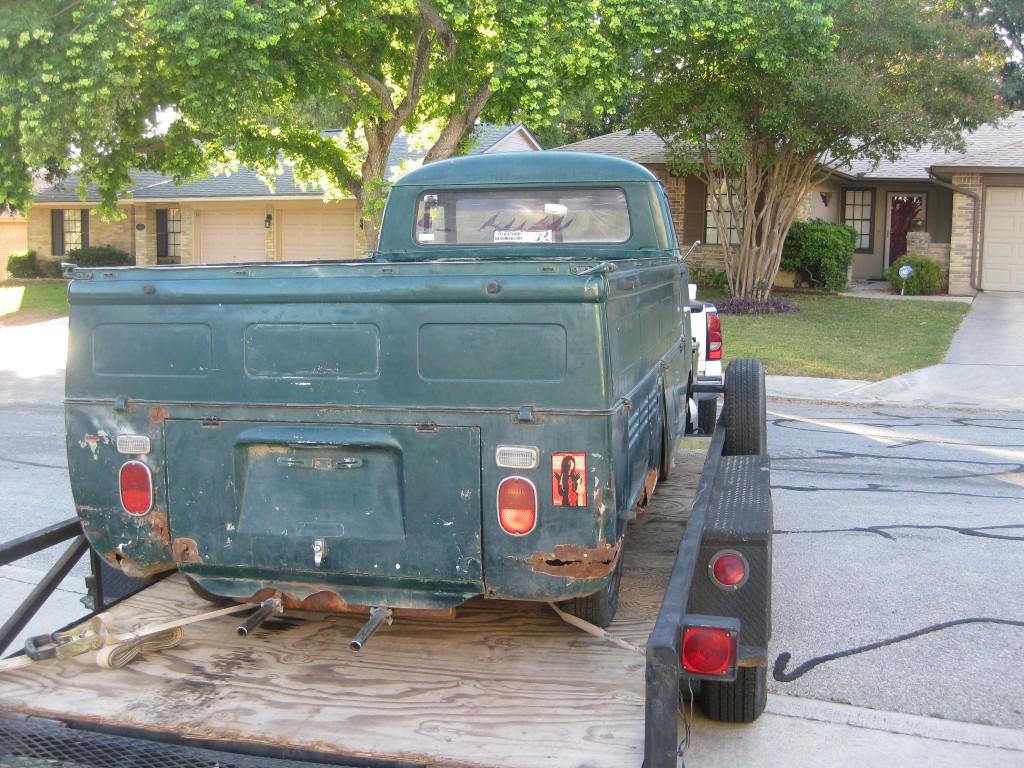

| Does anyone know if they changed the size of the rear window(made slightly bigger) on a 66-67 single cab. I"ve installed both windshields no problem but the rear window that I got just doesn't want to go in! The glass is a Sekirit D-02 AS2 Measures 11" tall and 26-3/4 at the longest point of the lower corners. My unit is a 65 SC. Bill B |
|
| Back to top |
|
 |
hitest
Samba Member
Joined: September 30, 2008
Posts: 10326
Location: Prime Meridian, ID
|
| Posted: Sun Aug 28, 2016 8:02 pm Post subject: Re: single cab rear window |
|
|
If it helps with your deduction process, your window is identical in size and markings to the one from my early '65 double cab. They are supposed to be identical from SC to DC. The openings are identical as are the seals.
As far as it should go- the window sizes jumped up considerably in late '65 for both trucks- so the difference is not slight by any means.
_________________
| EverettB wrote: |
I wonder what the nut looks like.
|
'62 L390 151, '62 L469 117, '63 L380 113, '64 L87 311, '65 L512 265, '65 L31 SO-42, '66 L360 251, '68 L30k 141, '71 L12 113, '74 ORG 181
FU#5 |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71703
Location: Phoenix 602
|
|
| Back to top |
|
|
Bill Baynes
Samba Member
Joined: January 12, 2013
Posts: 7
|
| Posted: Tue Aug 30, 2016 6:17 am Post subject: Re: Single cab rear window |
|
|
| Thanks for the feedback, I'm going to give it yet another try, More soap, aggressive helpers,??This should fit somehow |
|
| Back to top |
|
|
BulliBill
Samba Member
Joined: July 09, 2004
Posts: 4790
Location: St Charles, MO
|
| Posted: Tue Aug 30, 2016 7:28 am Post subject: Re: Single cab rear window |
|
|

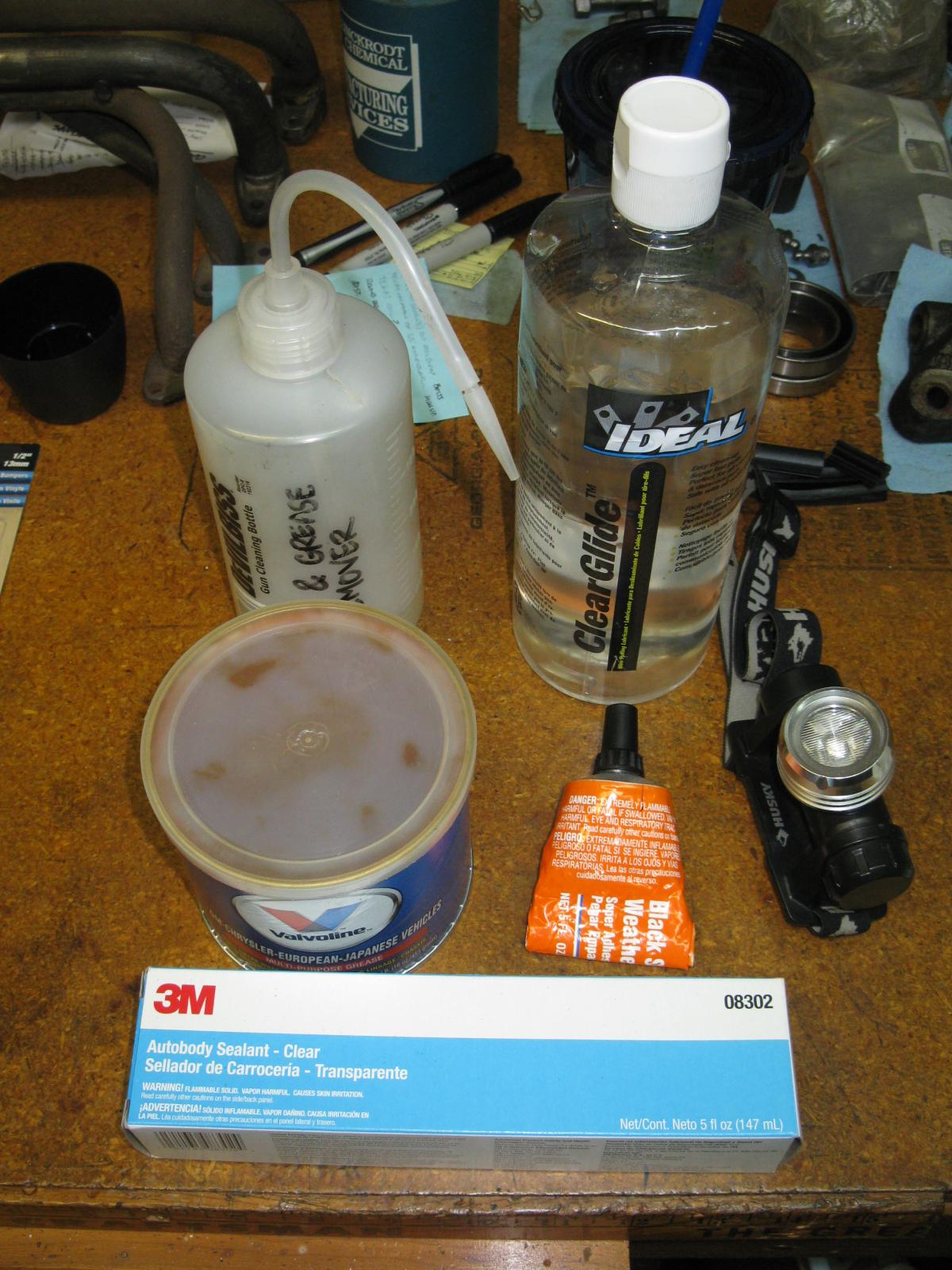

See my build thread on my '59 Double-Cab ( http://www.thesamba.com/vw/forum/viewtopic.php?t=5...;start=680 ). We used a product called "Clear Guide" by Ideal that I bought at Home Depot in the electrical section that is made to assist in fishing wires into and through conduit.
https://www.thesamba.com/vw/gallery/pix/1370759.jpg
It is a clear gel that is water soluble, slipperier than snot, and really helps in the installation of Type 2 windows! Easy cleanup, just wipe area with a wet towel. You'll love it!
Bill
_________________
I'm looking for these license plate frames for my fleet:
Coeur D'Alene - Lake Shore Volkswagen
Mission VW - San Fernando
Thornton VW - Stockton
Thanks for any help! |
|
| Back to top |
|
|
Bill Baynes
Samba Member
Joined: January 12, 2013
Posts: 7
|
| Posted: Fri Sep 02, 2016 8:19 am Post subject: Re: Single cab rear window |
|
|
Bill, I'm familiar with that product although I have only fished wires with it. I'm gonna give it another try using this product, who knew, multi purpose.
By the way my Bentley shop manual lists this window as 10.4" X 26" in sec A -65 page 1. When I saw that I figured it must be the size of the exposed glass. With WW rubber for that window part #211 845 521... Bus 55-65,( it does have a R-9 on the same sticker) my exposed glass size is still 10-5/8 X 26-3/16.???The total thickness of this rubber weather stripping is only 3/4 of an inch. If I did get this piece in (IF) that will leave quite a bit of metal exposed.
I'll check out your build( Again ) and see if there is a clear shot of the finished rear glass in place. Awesome job, thanks for the tip. Bill Baynes |
|
| Back to top |
|
|
Bill Baynes
Samba Member
Joined: January 12, 2013
Posts: 7
|
| Posted: Fri Sep 02, 2016 8:29 am Post subject: Re: Single cab rear window |
|
|
| Bill That electrical wire juice did the job , Tightest one ever. Not sure it is the right rubber for the job, but it did go in with my wife and son pushing it into the opening.Done!! On to the cab door sliding glass installations. Thanks for the product recommendation (Home Depot-Klein tools-Clear wire lubricant)Bill Baynes |
|
| Back to top |
|
|
|
