PostPosted: Sat Sep 03, 2016 6:24 am    Post subject: Ground Locations - 1.9L Reply with quote

I saw a write up on grounds for the 2.1 and was not able to find one for the 1.9. Can someone point me to that?

I want to find every ground on the van really and clean them up.
_________________
1985 Westfalia. Project 2017.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Westified
Samba Member


Joined: May 01, 2012
Posts: 400
Location: Miami, FL
Westified is offline

PostPosted: Sat Sep 03, 2016 8:56 am    Post subject: Re: Comprehensive 1.9 engine grounds Reply with quote

Do you have a Bentley manual? If not you really need to get one. Not great but the best we have. See page 97.60. A list of 12 ground locations for 1985 vanagon.

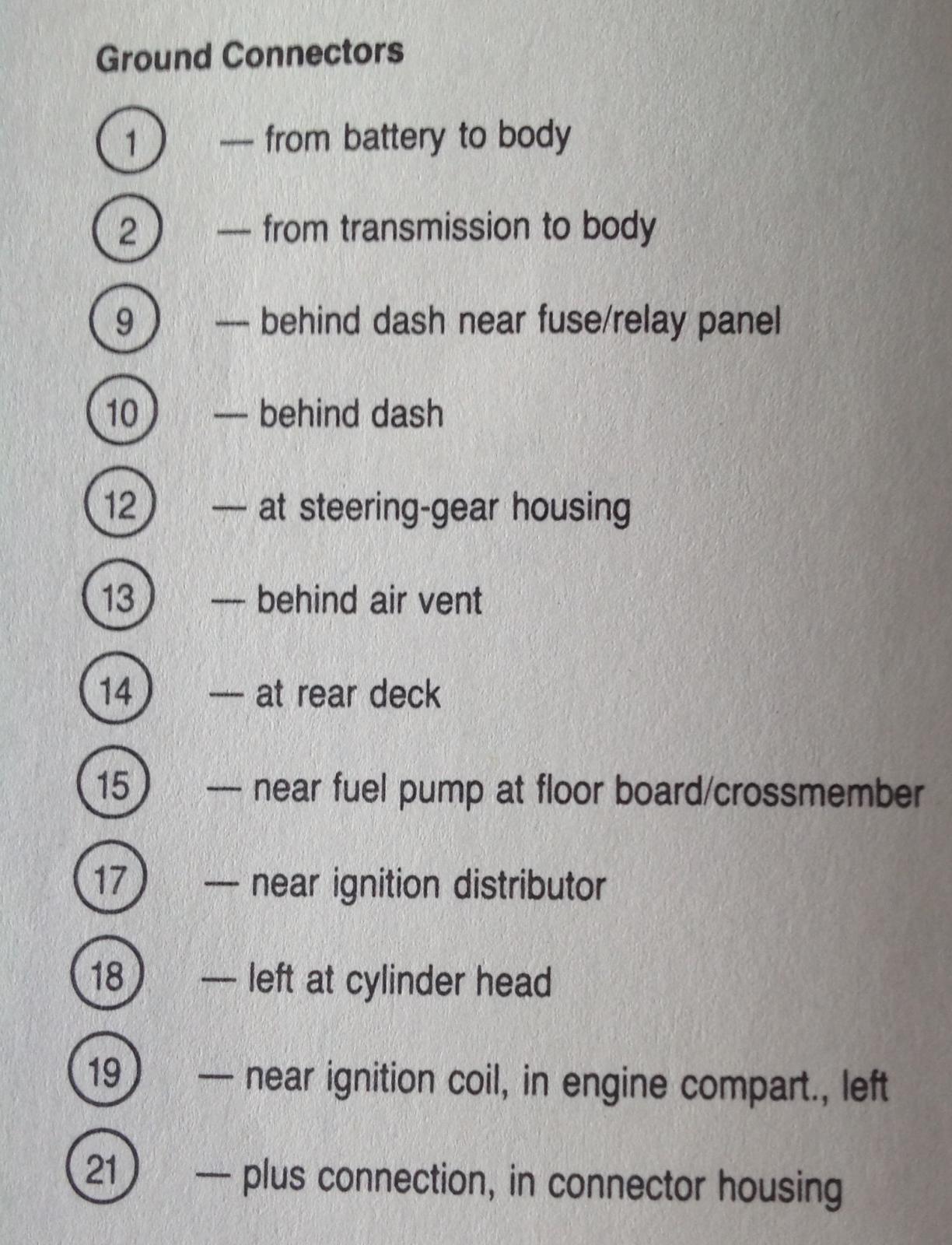

Edit: 1985 grounds from Bentley:

Image may have been reduced in size. Click image to view fullscreen.

_________________
1984 Westy Wolfsburg, owned since 1987. FAS 2.0 NA engine conversion in 2022.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Merian
Samba Member


Joined: January 04, 2014
Posts: 5212
Location: Orygun
Merian is offline

PostPosted: Sat Sep 03, 2016 1:00 pm    Post subject: Re: Comprehensive 1.9 engine grounds Reply with quote

the 2.1L thread has pics; you can run down the list and make pics, then post them here for others

if your threads gets enough hits then people will shower you with beer and pizza at future Vanagettogethers...
_________________
....
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Stephenmarklay
Samba Member


Joined: August 10, 2016
Posts: 526
Location: Spokane
Stephenmarklay is offline

PostPosted: Sat Sep 03, 2016 1:14 pm    Post subject: Re: Comprehensive 1.9 engine grounds Reply with quote

Merian wrote:
the 2.1L thread has pics; you can run down the list and make pics, then post them here for others

if your threads gets enough hits then people will shower you with beer and pizza at future Vanagettogethers...


Well Sh&t I am in Smile
_________________
1985 Westfalia. Project 2017.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Stephenmarklay
Samba Member


Joined: August 10, 2016
Posts: 526
Location: Spokane
Stephenmarklay is offline

PostPosted: Mon Sep 05, 2016 4:20 pm    Post subject: Re: Comprehensive 1.9 engine grounds Reply with quote

I am missing one or two perhaps behind the dash. I am not 100% sure.

Here are most:

[Moderator edit 3/2018: These have been numbered according to Bentley's list and put into numerical order.]

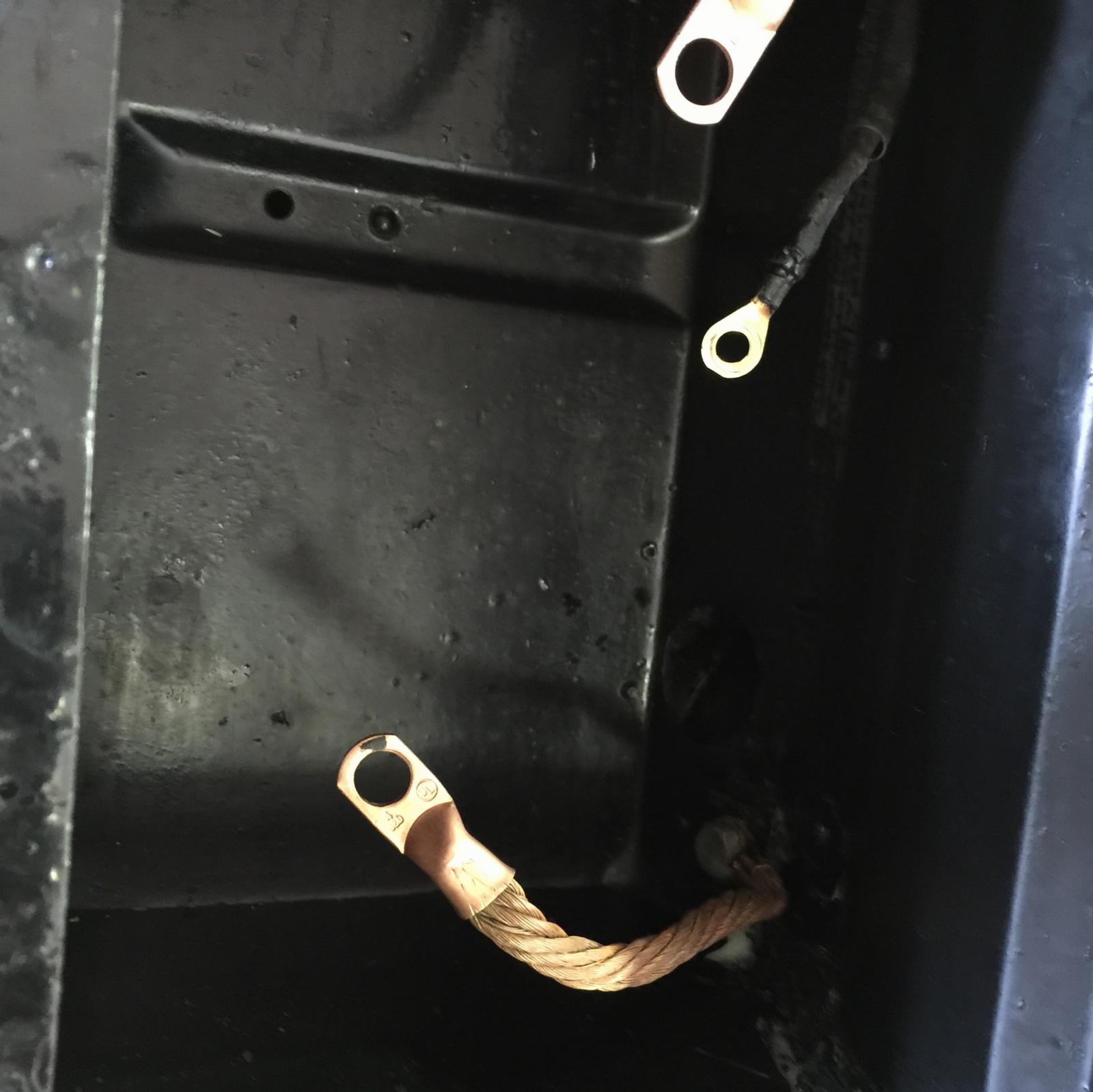

#1, PASSENGER SIDE BATTERY BOX:
Image may have been reduced in size. Click image to view fullscreen.

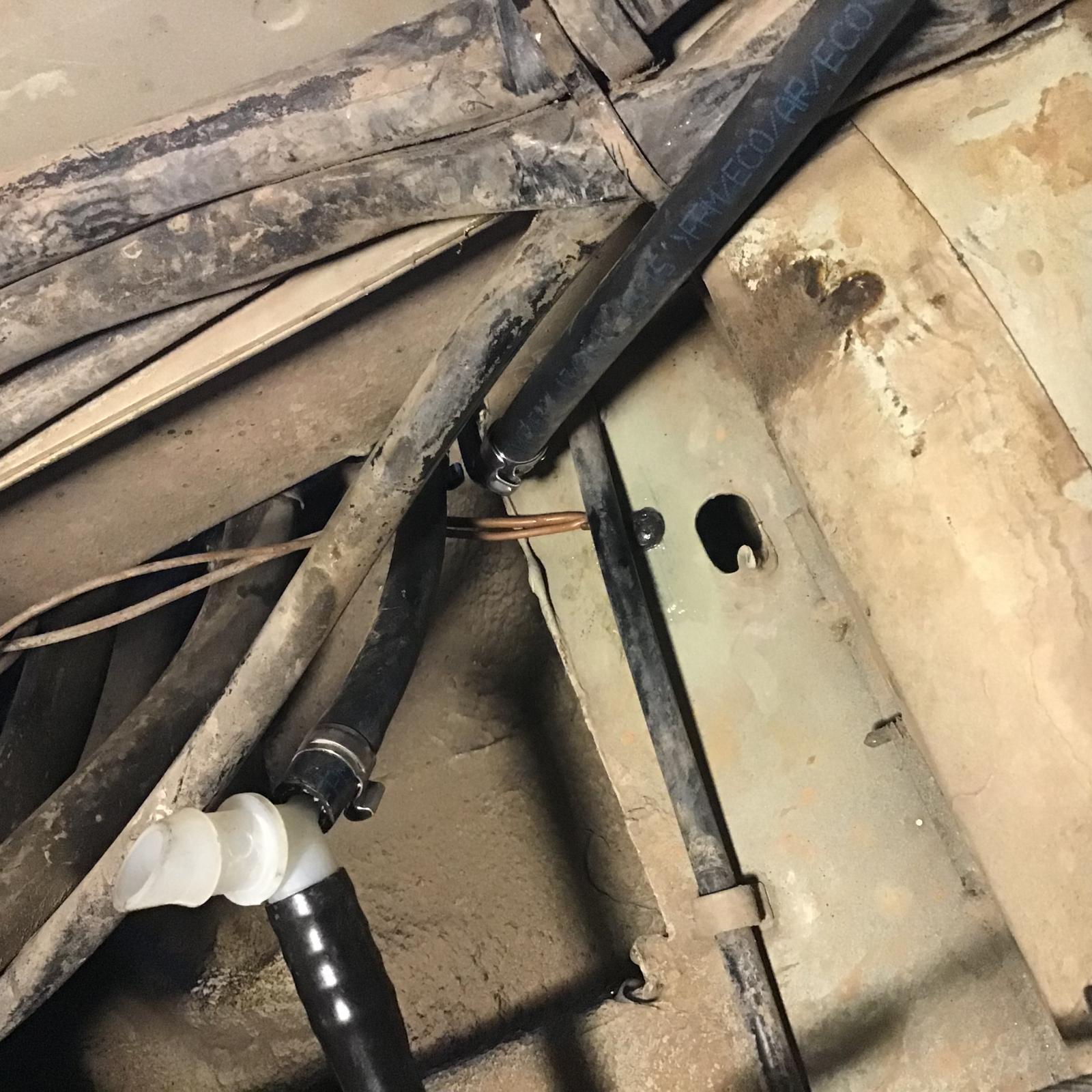

#2, JUST FORWARD OF THE TRANSMISSION (UNDER THE VAN.) THIS MAY BE UNDERCOATED AND HARD TO LOCATE:
Image may have been reduced in size. Click image to view fullscreen.

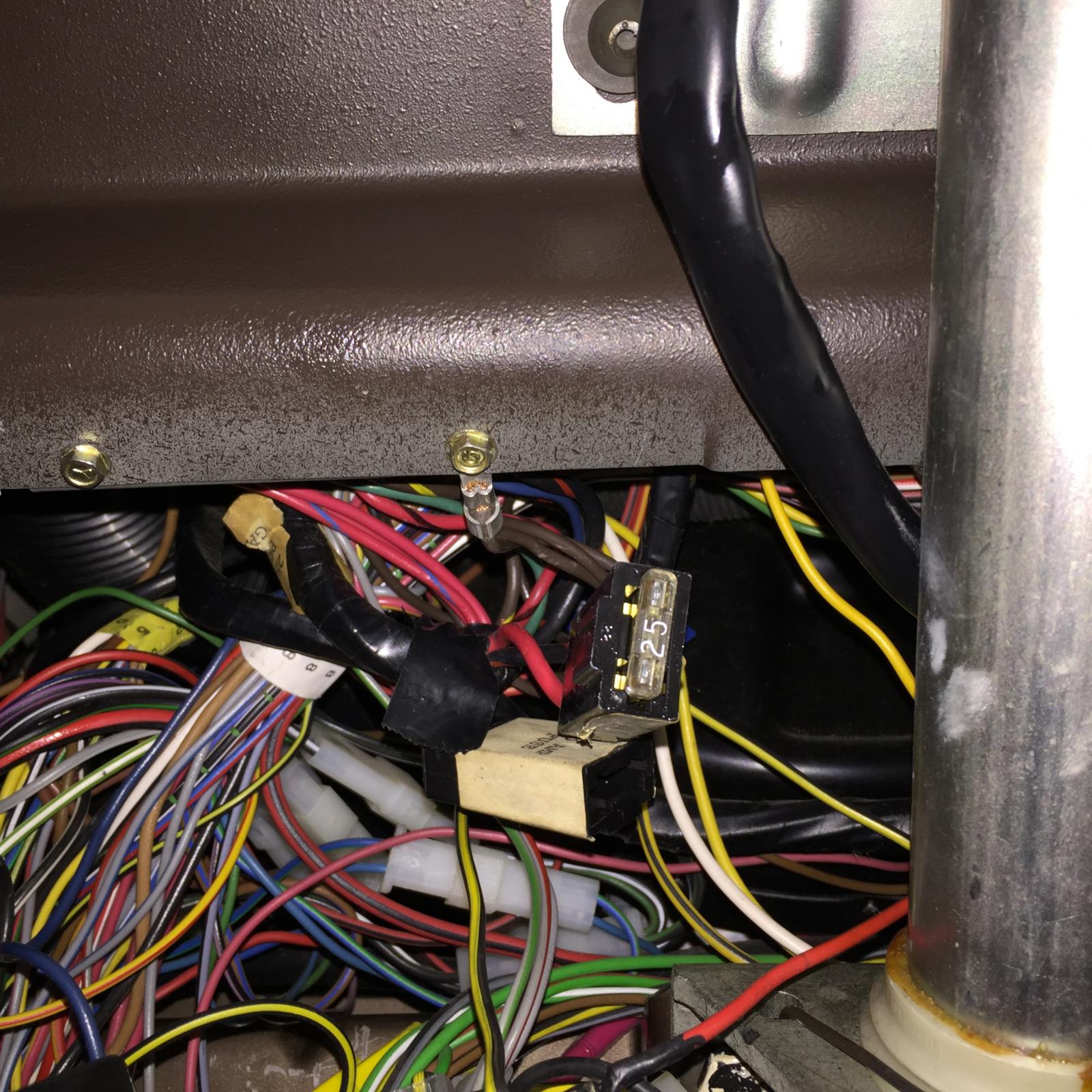

#10 & #16, ON THE DRIVER'S SIDE WALL BEHIND THE FUSE BOX:
Image may have been reduced in size. Click image to view fullscreen.


#12, THIS GROUND IS ON THE STEERING COLUMN:
Image may have been reduced in size. Click image to view fullscreen.


#14, GROUND AT THE HATCH ON BOTH SIDES NEAR THE TOP:
Image may have been reduced in size. Click image to view fullscreen.


#15, AT THE FUEL PUMP UNDER SLIDING DOOR ON PASSENGER SIDE:
Image may have been reduced in size. Click image to view fullscreen.

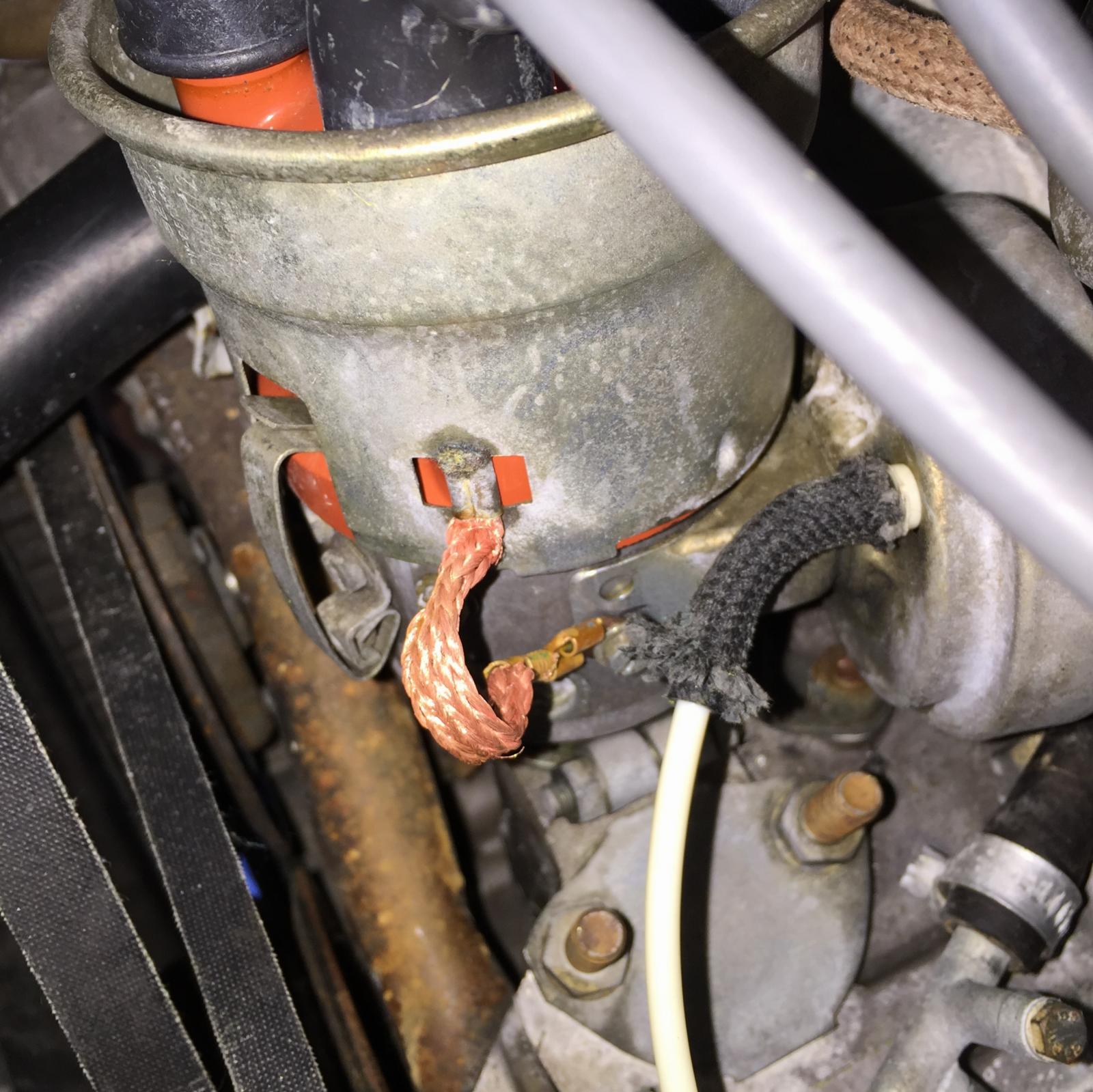

#17, AT THE DISTRIBUTOR:
Image may have been reduced in size. Click image to view fullscreen.

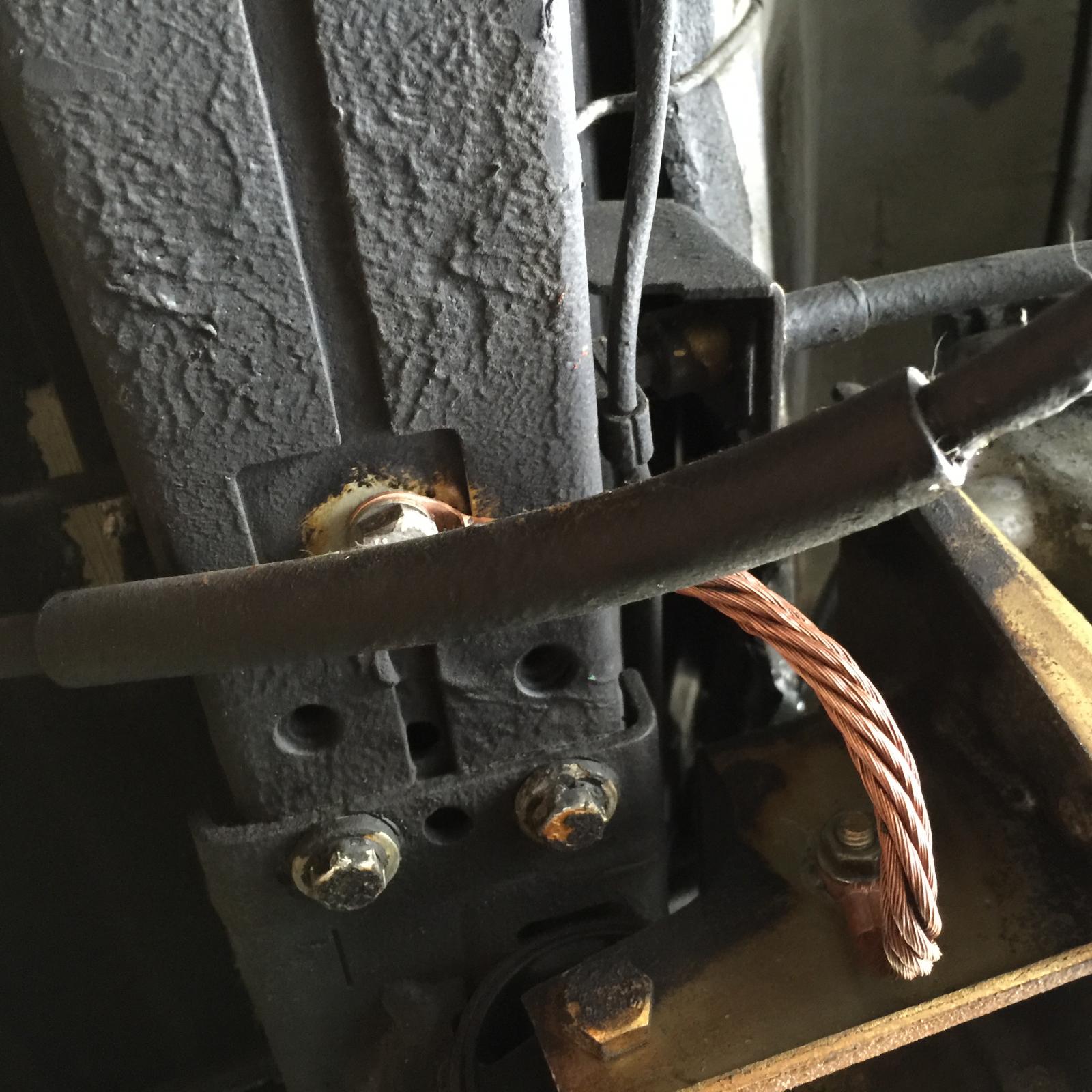

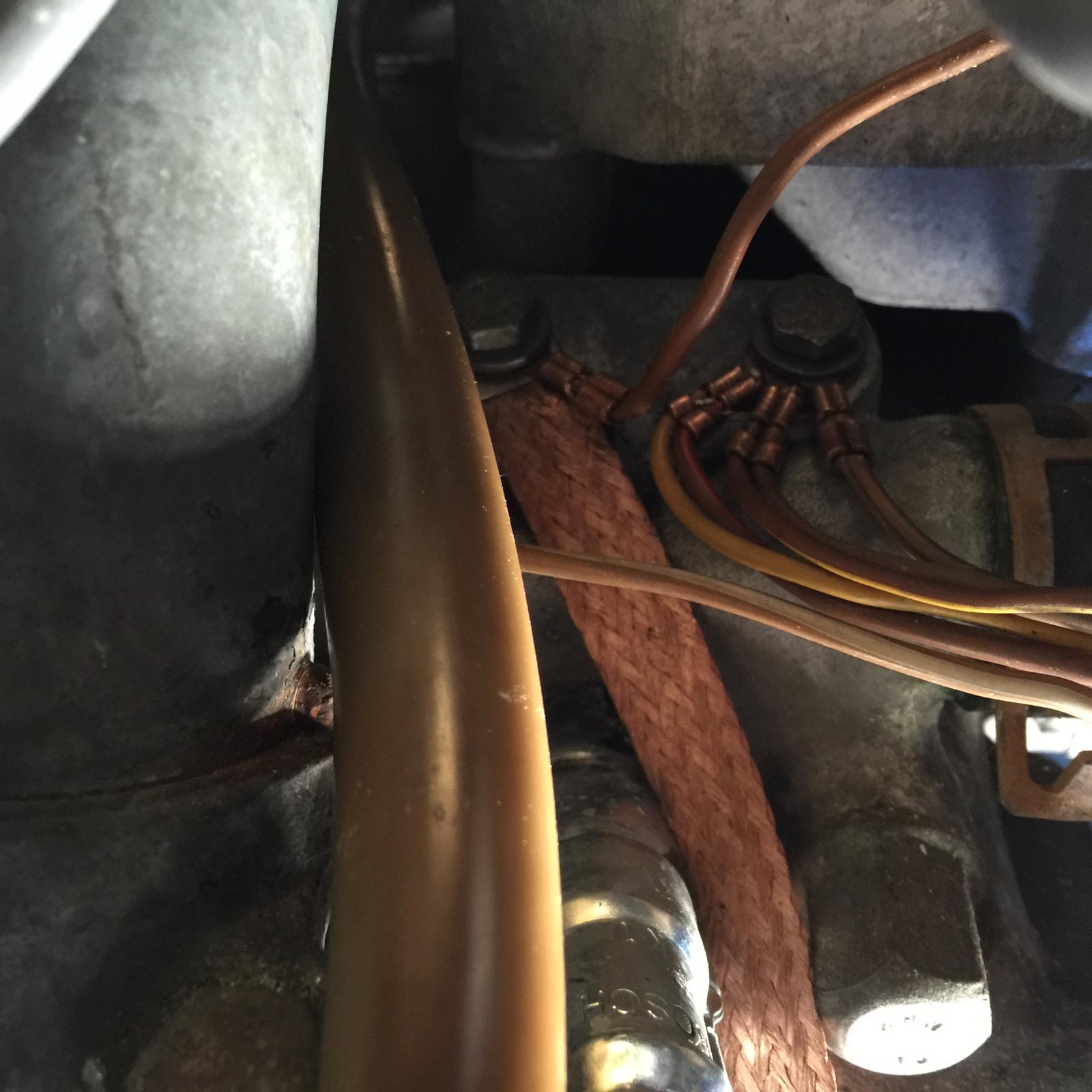

#18, LEFT SIDE ENGINE COMPARTMENT LOOKING DOWN FOLLOWING THE GROUND STRAP FROM THE COIL AREA. THIS WOULD BE UNDER YOUR A/C COMPRESSOR IF YOU HAD ONE:
Image may have been reduced in size. Click image to view fullscreen.

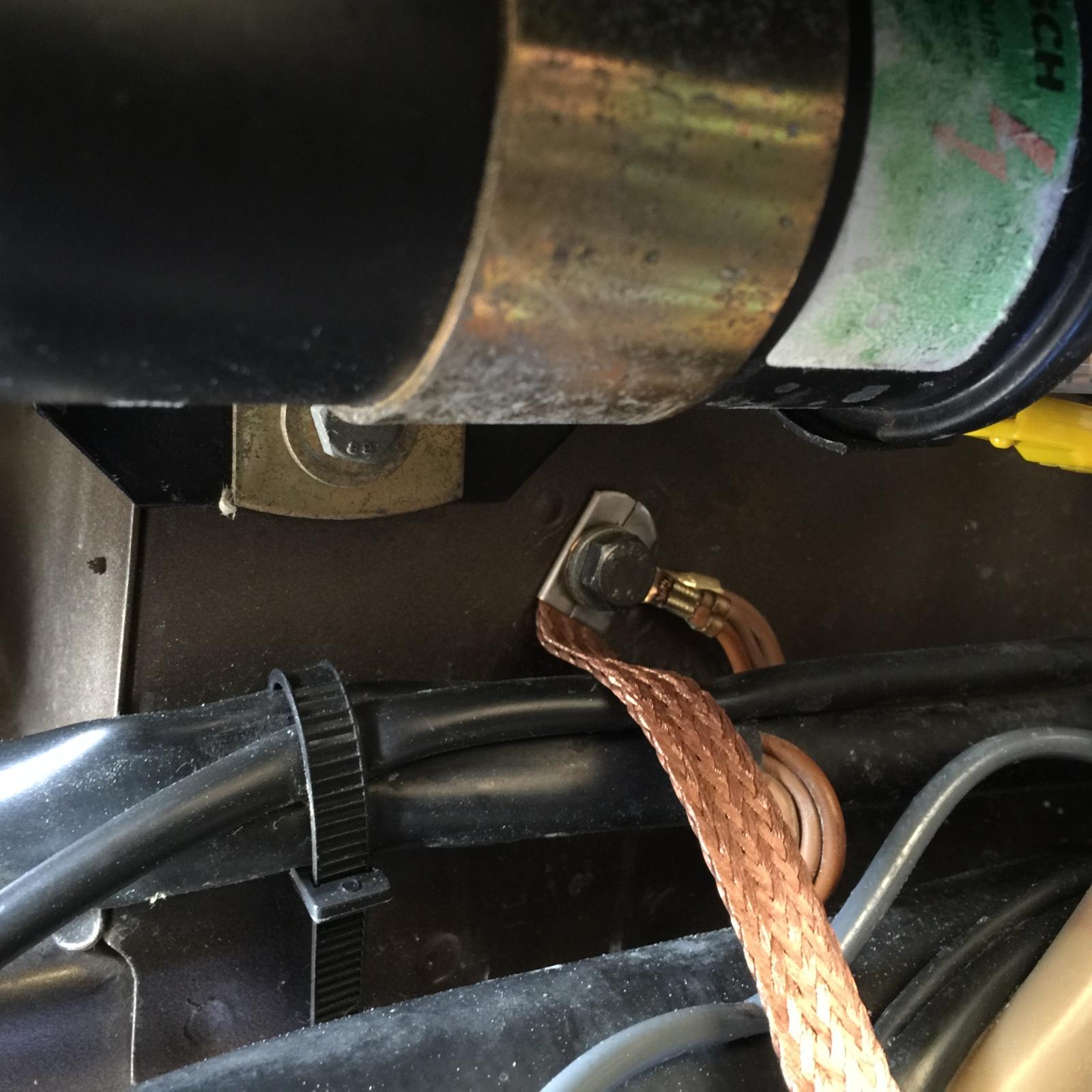

#19, LEFT SIDE ENGINE COMPARTMENT UNDER THE COIL:
Image may have been reduced in size. Click image to view fullscreen.


THIS ONE IS BEHIND THE GLOVE BOX:
Image may have been reduced in size. Click image to view fullscreen.


I FOUND THIS GROUND JUST AT THE EDGE OF THE DASH UNDER THE STEERING WHEEL AREA. IT MAY BE FOR A/C AS THE BOLT HAD WAS 1/4 INCH:
Image may have been reduced in size. Click image to view fullscreen.


I am not sure of the one in the Bentley "Behind Vent" or "Behind Dash"; the glove box location may be one of these, however.
_________________
1985 Westfalia. Project 2017.


Last edited by Stephenmarklay on Mon Sep 05, 2016 4:26 pm; edited 3 times in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Stephenmarklay
Samba Member


Joined: August 10, 2016
Posts: 526
Location: Spokane
Stephenmarklay is offline

PostPosted: Mon Sep 05, 2016 4:21 pm    Post subject: Re: Comprehensive 1.9 engine grounds Reply with quote

Please pm me corrections that are needed and I will make changes to make it easier for folks to weed through it all.
_________________
1985 Westfalia. Project 2017.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Merian
Samba Member


Joined: January 04, 2014
Posts: 5212
Location: Orygun
Merian is offline

PostPosted: Mon Sep 05, 2016 5:18 pm    Post subject: Re: Comprehensive 1.9 engine grounds Reply with quote

you might want 2 threads - one for this title (engine grounds)

and another for other grounds
_________________
....
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kamzcab86
Samba Moderator


Joined: July 26, 2008
Posts: 7877
Location: Arizona
kamzcab86 is offline

PostPosted: Mon Sep 05, 2016 5:25 pm    Post subject: 1.9L grounds Reply with quote

Merian wrote:
you might want 2 threads - one for this title (engine grounds)

and another for other grounds


No. Grounds are grounds; keep 'em all in one place. Topic title changed to be like that of the 2.1, and as been added to the FAQ.
_________________
~Kamz Anxious
1986 Cabriolet: www.Cabby-Info.com
Blue Vanagon 1990 Vanagon Westfalia: Old Blue's Blog
2016 Golf GTI S
"Real knowledge is to know the extent of one's ignorance." - 孔子
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
takeiteasy
Samba Member


Joined: August 11, 2016
Posts: 169
Location: New York, NY
takeiteasy is offline

PostPosted: Fri Apr 07, 2017 9:58 am    Post subject: Re: Ground Locations - 1.9L Reply with quote

Thanks for this thread ! Very Happy
_________________
'85 Weekender 1.9L

"With your past and your future precisely divided.
Am I at that moment? I haven't decided."
Back to top
View user's profile Send private message Gallery Classifieds Feedback
lucianosanchez
Samba Member


Joined: May 04, 2016
Posts: 212
Location: Ventura County
lucianosanchez is offline

PostPosted: Fri Apr 07, 2017 1:58 pm    Post subject: Re: Comprehensive 1.9 engine grounds Reply with quote

Stephenmarklay wrote:
I am missing one or two perhaps behind the dash. I am not 100% sure.


That is one of the cleanest wiring I've seen, it's disgusting. I wish mine looked half that good. You's looks brand new.
_________________
1983.5 Aussan Brown Westfalia | 2016 to 2020
1983.5 Beige Westfalia | 2019 to Current
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
Steve M.
Samba Member


Joined: July 30, 2013
Posts: 6777
Location: Fort Lauderdale, Fl.
Steve M. is offline

PostPosted: Sat Apr 08, 2017 6:31 am    Post subject: Re: Ground Locations - 1.9L Reply with quote

great pictures.

now what is the thread size for the bolt on the engine ground above #4 Cylinder under the air intake.
Working on a friends and it has a different bolt for the Aux. Air Valve and the ground bolt. Thought they would be the same size.
_________________
This free advice is worth exactly what you paid for it.

There are seven days in a week. Someday is not one of them.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
snatchcat
Samba Member


Joined: July 27, 2013
Posts: 4
Location: Lakehood, CO
snatchcat is offline

PostPosted: Wed Mar 21, 2018 9:43 pm    Post subject: Re: Ground Locations - 1.9L Reply with quote

Mr Markley,
If ever you find yourself in the Denver area, you have an IPA or 6 waiting.

I have two questions which came up while I was going through my (re-routed to odd spots by a PO) grounds and the Bentley:

1. Where is #12 "-at steering-gear housing" located? Is this the one pictured 9th down b/n the hatch pic and the dizzy pic?

and;

2. In the Bentley diagrams for our unique '85 there is a #16 ground which I can't find referenced anywhere else. It looks to be one of the stars up front behind the fuse box based on what's wired to it, but I'm a total newbie with electrical and haven't yet spent, nor had, the time to figure it out.
The picture above by Westified is the same I see in my Bentley on p. 97.60 and there is no 16 listed, yet it has several wires to it in the actual diagram. Any elucidation is welcome...

OK, so I realized I have a third question and that the above was not really a question, but anyway:
The #17 ground "-near ignition distributor" is, I'm assuming, the one going from sheath to shaft of the distributor in the above pics. I don't have said 'shaft' around my dizzy and therefore no ground here. Is my van suffering for this lack?

Thank you TheSamba, you make vanlife livable!

Back to top
View user's profile Send private message Gallery Classifieds Feedback
kamzcab86
Samba Moderator


Joined: July 26, 2008
Posts: 7877
Location: Arizona
kamzcab86 is offline

PostPosted: Thu Mar 22, 2018 1:15 pm    Post subject: Re: Ground Locations - 1.9L Reply with quote

snatchcat wrote:
1. Where is #12 "-at steering-gear housing" located? Is this the one pictured 9th down b/n the hatch pic and the dizzy pic?


It is on the steering column. Remove the plastic lower cover and you should see it. Wink

snatchcat wrote:
2. In the Bentley diagrams for our unique '85 there is a #16 ground which I can't find referenced anywhere else. It looks to be one of the stars up front behind the fuse box based on what's wired to it, but I'm a total newbie with electrical and haven't yet spent, nor had, the time to figure it out.


Based on later year diagrams, I would surmise that #16 was inadvertently left off the list and that #10 and #9 were potentially mixed up. In other words, #10 and #16 ground points are "behind dash near fuse/relay panel". To confirm where #9 actually is, someone with an '85 will need to trace the e-brake light switch ground.

I've numbered most of Markley's ground points and put them in numerical order so that they line up with the initially-posted Bentley list. If anyone can confirm the 9, 10, 16 and "behind dash/vent" locations, I'll edit/change them accordingly. Smile

snatchcat wrote:
The #17 ground "-near ignition distributor" is, I'm assuming, the one going from sheath to shaft of the distributor in the above pics. I don't have said 'shaft' around my dizzy and therefore no ground here. Is my van suffering for this lack?


Does the orange distributor cap have the black grounding cap on it? If so, no, your van isn't suffering.
_________________
~Kamz Anxious
1986 Cabriolet: www.Cabby-Info.com
Blue Vanagon 1990 Vanagon Westfalia: Old Blue's Blog
2016 Golf GTI S
"Real knowledge is to know the extent of one's ignorance." - 孔子
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
colbysmith28
Samba Member


Joined: February 12, 2018
Posts: 54
Location: Sacramento
colbysmith28 is offline

PostPosted: Sat Jan 25, 2020 10:37 am    Post subject: Re: Ground Locations - 1.9L Reply with quote

on the subject of grounds, does anybody happen to know the size and thread pitch of the bolt for the transmission ground strap that attaches to the frame? I've lost mine and none of the bolts in my "bolt bin" fit.... hoping to go to the store to pick one up soon Thanks in advance
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Sodo
Samba Member


Joined: July 06, 2007
Posts: 9489
Location: Western WA
Sodo is offline

PostPosted: Sat Jan 25, 2020 11:08 am    Post subject: Re: Ground Locations - 1.9L Reply with quote

It's an M8 x 1.25.

OFF-TOPIC,,, sorta....
....you should delete that short ground strap from the trans nose to the chassis anyway.

To ensure proper ground path (across the five or six 35-year old magnesium transaxle case 'connections') is not contributing to starter problems, it's advisable to replace it with a new cable coming directly from the starter bolt to the chassis.

A new cable is a small price to pay to remove the ground path from frustrating phantom starter gremlins.
The van is old, and the ground may be high-resistance (under high amperage).
Better to renew it and employ a direct ground path at this time.

Here it is on Amazon, but probably available at your local FLAPS for a similar price. $20?

00 Gauge 2/0 AWG Battery Cable - USA Made All Copper Flexible Stranding - Black - 30 inch with 5/16 & 3/8 Anti Corrosion Copper Ring Terminal Lugs
https://www.amazon.com/dp/B0767MYTJR/ref=cm_sw_em_r_mt_dp_U_TNilEb86MXNRN

It's about 28 inches from your 10mm (= 3/8") starter mounting bolt to the original M8x1.25 chassis ground bolt (=5/16").

It's feasible and could be better to use a shorter cable from the starter to a closer location on chassis, if you are able to do so. But the 30 inches of new copper is definitely more certain than the "five or six resistance-additive transaxle case 'connections' that have been in the outdoors, un-inspected and un-inspectable for 35 years.
_________________


'90 Westy EJ25, 2Peloquins, 3knobs, pressure-oiled GT mainshaft, filtered, cooled gearbox
'87 Tintop w 47k 53k, '12 SmallCar EJ25, cooled filtered gearbox
....KTMs, GasGas, SPOT mtb
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Jake de Villiers
Samba Member


Joined: October 24, 2007
Posts: 5911
Location: Tsawwassen, BC
Jake de Villiers is offline

PostPosted: Sat Jan 25, 2020 3:05 pm    Post subject: Re: Ground Locations - 1.9L Reply with quote

That's a good suggestion, Sodo. I might try replacing the two transaxle nose grounds with a starter bolt ground and see what happens.
_________________
'84 Vanagon GL 1.9 WBX
'86 Westy Weekender Poptop/2.5 Subaru/5 Speed Posi/Audi Front Brakes/16 x 7 Mercedes Wheels - answers to 'Dixie'
@jakedevilliersmusic1
http://sites.google.com/site/subyjake/mydixiedarlin%27
www.crescentbeachguitar.com
www.thebassspa.com
Back to top
View user's profile Send private message Send e-mail Visit poster's website Instagram Gallery Classifieds Feedback
HORIZONSRB
Samba Member


Joined: June 24, 2020
Posts: 4
Location: Brossard, Québec
HORIZONSRB is offline

PostPosted: Thu Jul 23, 2020 4:49 pm    Post subject: Re: Ground Locations - 1.9L Reply with quote

Bently 1985 water cooled electrical diagram shows a no. 16 ground which is not listed in the list of grounds. Any idea where this one is?

Circuit 36, right-most ground on bottom.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ahwahnee
Samba Member


Joined: June 05, 2010
Posts: 9770
Location: Mt Lemmon, AZ
Ahwahnee is online now

PostPosted: Thu Jul 23, 2020 6:21 pm    Post subject: Re: Ground Locations - 1.9L Reply with quote

I don't see it on the 1984 diagram so perhaps a clue is that it may be something that different between those two years (not much difference there).

What does the diagram show is being grounded?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
SSWesty
Samba Member


Joined: August 20, 2008
Posts: 732
Location: Bellevue
SSWesty is offline

PostPosted: Fri Jul 24, 2020 11:02 pm    Post subject: Re: Ground Locations - 1.9L Reply with quote

Wow the OP created a helpful thread with pictures, used this thread today to find the grounds by the fuse panel.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
brickster
Samba Member


Joined: January 05, 2004
Posts: 500
Location: CO, USA
brickster is offline

PostPosted: Sun Jul 04, 2021 10:03 pm    Post subject: Re: Ground Locations - 1.9L Reply with quote

Bump to add one that I found above the fuel tank with 2 wires going to it. I was doing all of the fuel lines, etc and was surprised to find it.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
