Backup light wire route - which hole?

[b15605]

I know there are two wires involved inthe backup light circuit. One from coil to transmission cone and a second from transmission cone to a splitter behind the tarboard. My question is do both wires route through the front breastplate engine tin hole on the right side or would the return wire go through the firewall hole pictured below:

I have read multiple threads on this and cant seem to find this little detail. Would help a ton of somebody could clarify which hole/holes the two wires route through.

Thanks

[TK-CS]

Normally these two wires are merged to a wire harness and are routed together to the transmission switch. These wires go throuh a grommet in the front engine tin.

_________________
AC:
'71 1600LE (Type 3 Notchback FI/AT) Sunroof
'75 1303 (Super Beetle) 1600DP, Sunroof
WC:
'77 Audi NSU Ro80
'88 GTI 16V
'91 Corrado G60
Daily:
'04 Passat Wagon 2.0TDI
'13 Passat Wagon 2.0TSI

[Cusser]

Through a grommet in the small hole. Was that larger hole made by a previous owner???
_________________
1970 VW (owned since 1972) and 1971 VW Convertible (owned since 1976), second owner of each. The '71 now has the 1835 engine, swapped from the '70. Second owner of each. 1988 Mazda B2200 truck, 1998 Frontier, 2014 Yukon, 2004 Frontier King Cab. All manual transmission except for the Yukon. http://www.thesamba.com/vw/forum/album_page.php?pic_id=335294 http://www.thesamba.com/vw/forum/album_page.php?pic_id=335297

[b15605]

I assumed that hole was factory - is it not the same on all 73 supers?

[b15605]

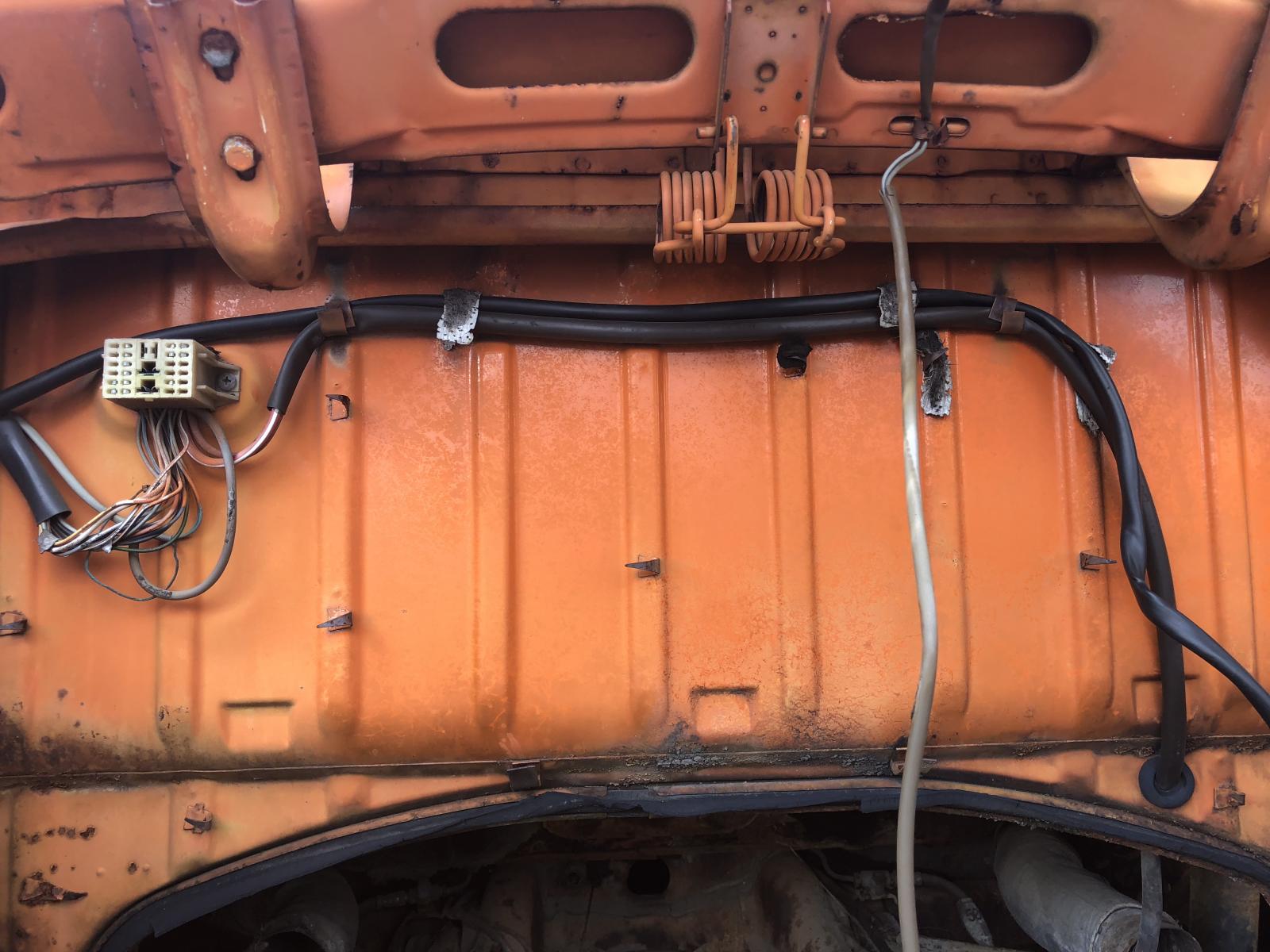

Found an answer to my own question and thought I would share. Went by a vw graveyard we have near here and looked in a few engine bays. Turns out the firewall hole is for a cable that went to the diagnostic port from under the car (couldnt get a good view underneath). Here is a pic:

So both backup light wires go through the engine tin as several of yall suggested. Since I will not be rewiring the diagnostic port I will simply plug that hole. Thanks for the help folks.

[jasonrg169]

I have a 69. I can’t find where the backup light switch is on the Transmission

[Cusser]
