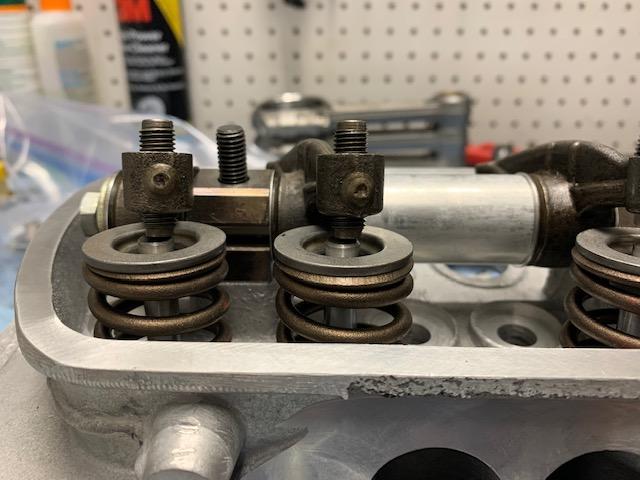

How far off center is too far? I set up the one rocker arm that has no more room for adjustment without grinding down the side, and shimmed the rest to match as close as possible. I want them off center to help rotate the valve, I just want to be sure they aren't TOO far off center. I'll probably get them a little closer to even with each other once I start tightening everything down and set the final gap. But for now, how does this look?
|
|
| Back to top |
|
 |
ZEKE65
Samba Member
Joined: December 16, 2018
Posts: 349
Location: Right Coast, Florida
|
| Posted: Thu Nov 04, 2021 1:01 pm Post subject: Re: Rocker Arm Shimming |
|
|
Some look pretty good, and others not. I would try to get the ones off closer to center. If I remember right, you are supposed to aim for 1mm ( .040" ) offset between the adjuster and the valve centerlines.
