Tcash
Samba Member
Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
|
|
| Back to top |
|
 |
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
|
 Posted: Sat Sep 09, 2017 1:57 pm Post subject: 1968-71 T2 Turn signal switch |
 |
|

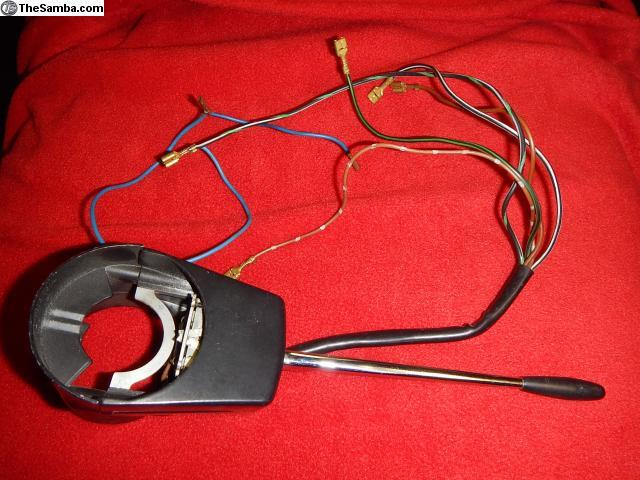

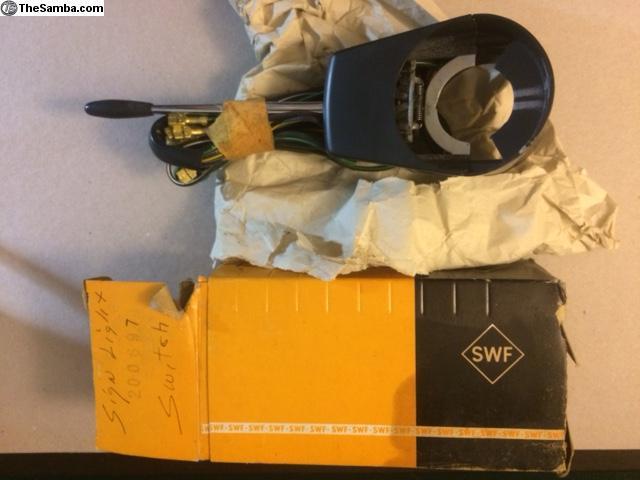

211 953 513 G / SWF HLS 66 SAE Q 67 / 68-71 Turn Signal Switch 8 wire USA/Canada
211 953 513 F > 513 H > 211 953 513 G =
? 211 953 531 C 8 wire turn signal switch?
Wiring diagrams
https://www.thesamba.com/vw/archives/info/wiringt2.php
Click on pics or Right click and open in another tab
1970 Turn signal Highlight
1971 Turn signal Highlight
Early bay turn signal switch wiring

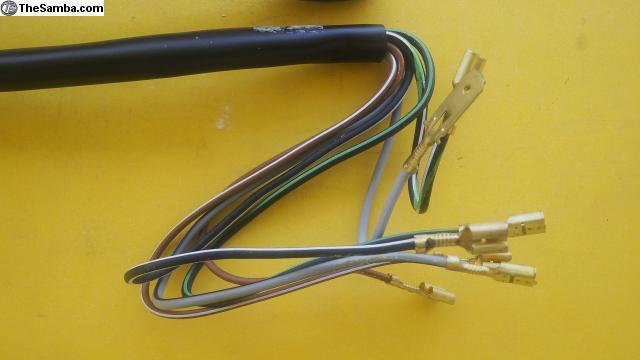

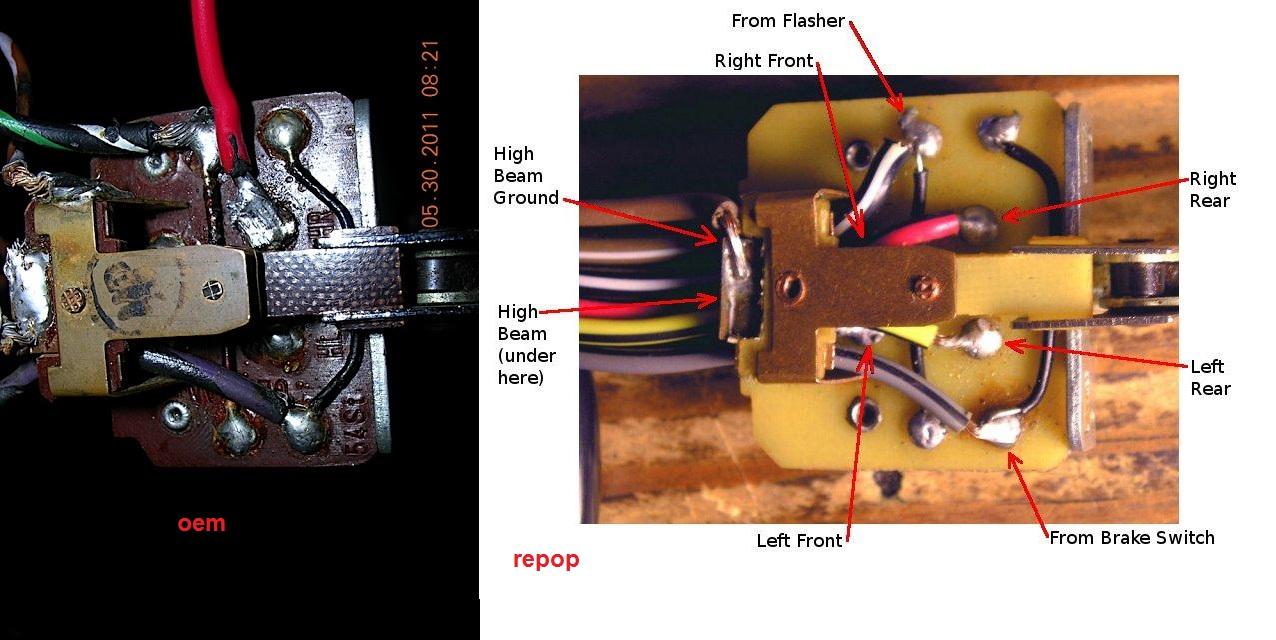

Aftermarket switch wiring. So you got a new switch. But the colors don't match.

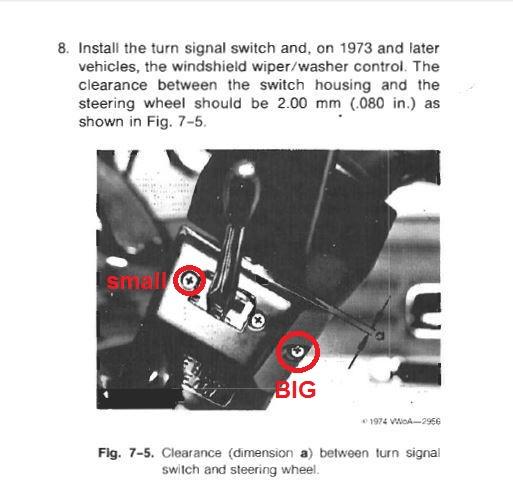

Turn signal switch clearance

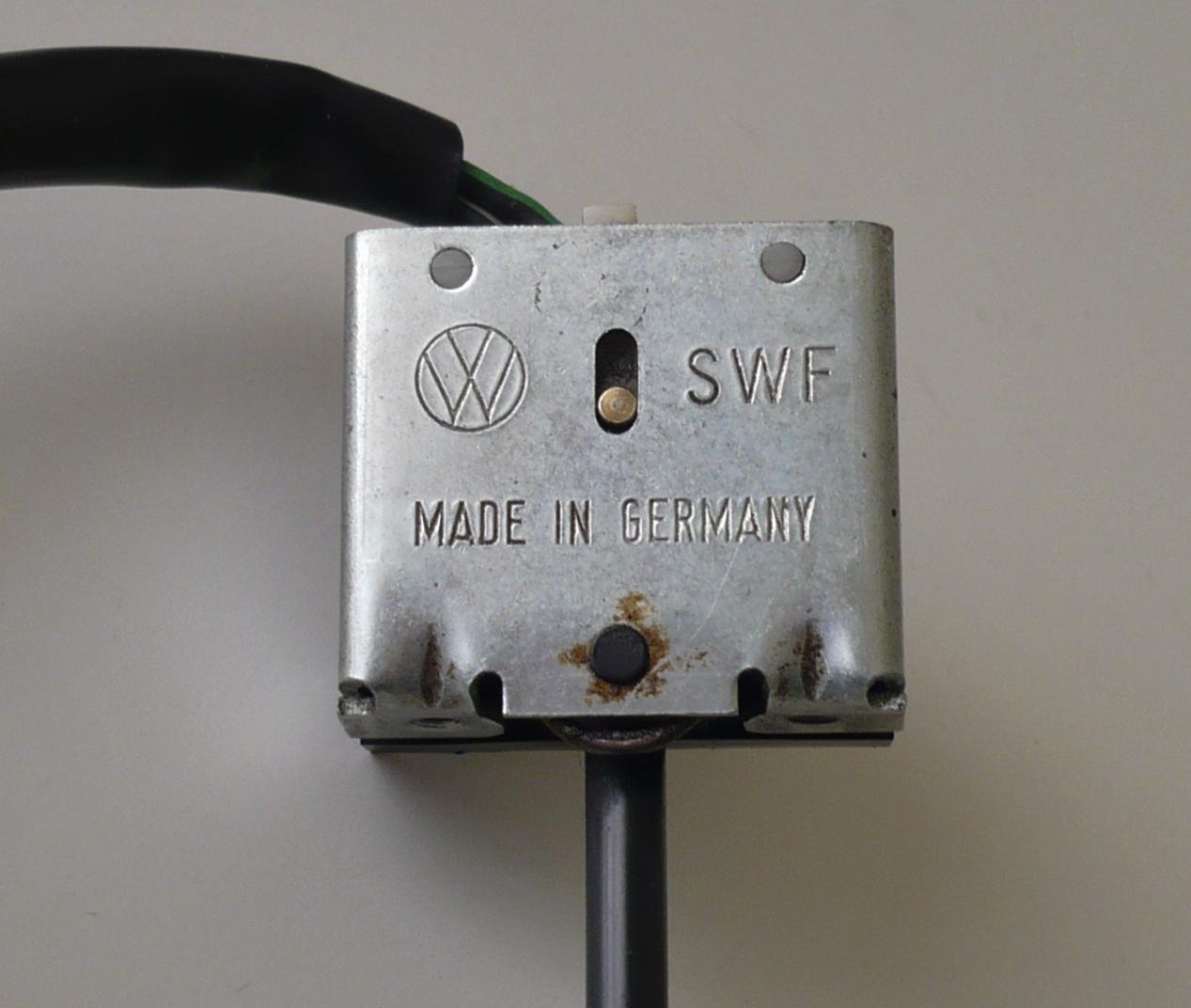

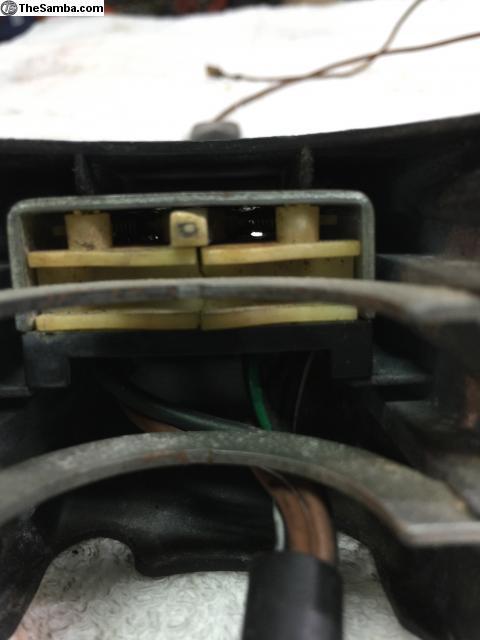

Headlight Dip (dimmer) switch contact points.
When you pull up on the lever, this set of contact points close and switch the headlight Dip relay from Low<-->High beam and vise versa with each pull of the lever.

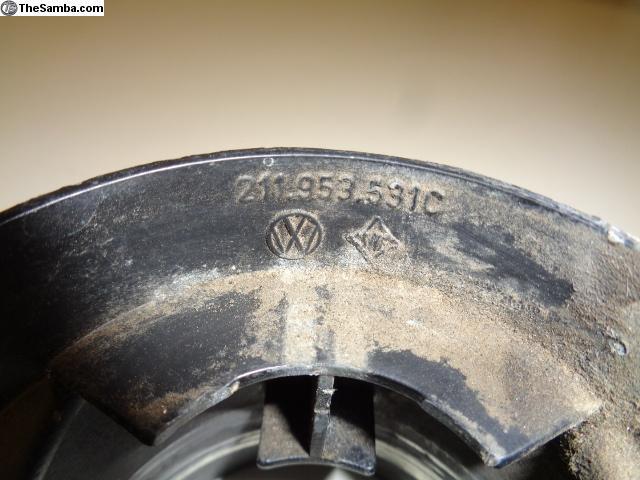

211 953 531 C 8 wire: This switch has showed up in 68-71s. But I was unable to find any information in the parts manuals or internet at the time of writing

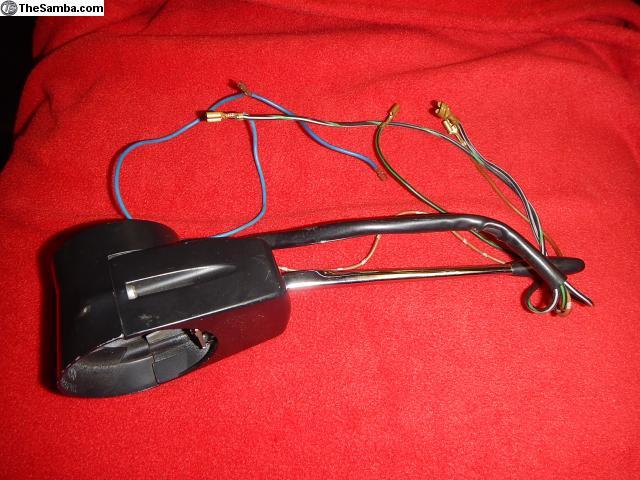

Special Models 211 953 531 D 5 wire: This switch was used on Special models.
https://www.thesamba.com/vw/gallery/pix/1405620.jpg
5 wire Special model wiring diagram
https://www.thesamba.com/vw/archives/info/wiring/8_67_bus_special_models_key.jpg
Last edited by Tcash on Sat Sep 09, 2017 2:33 pm; edited 3 times in total |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
|
| Posted: Sat Sep 09, 2017 2:06 pm Post subject: 1972 T2 Turn signal switch |
|
|

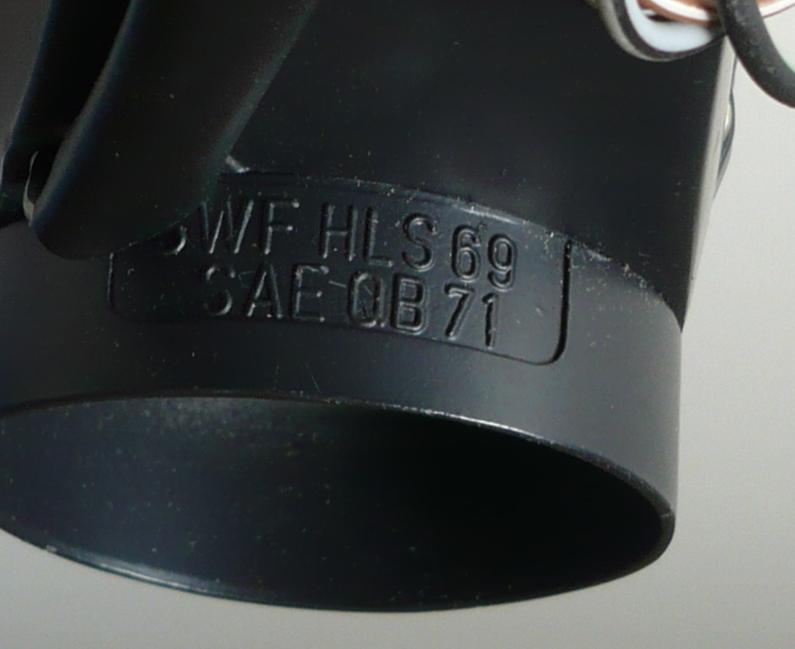

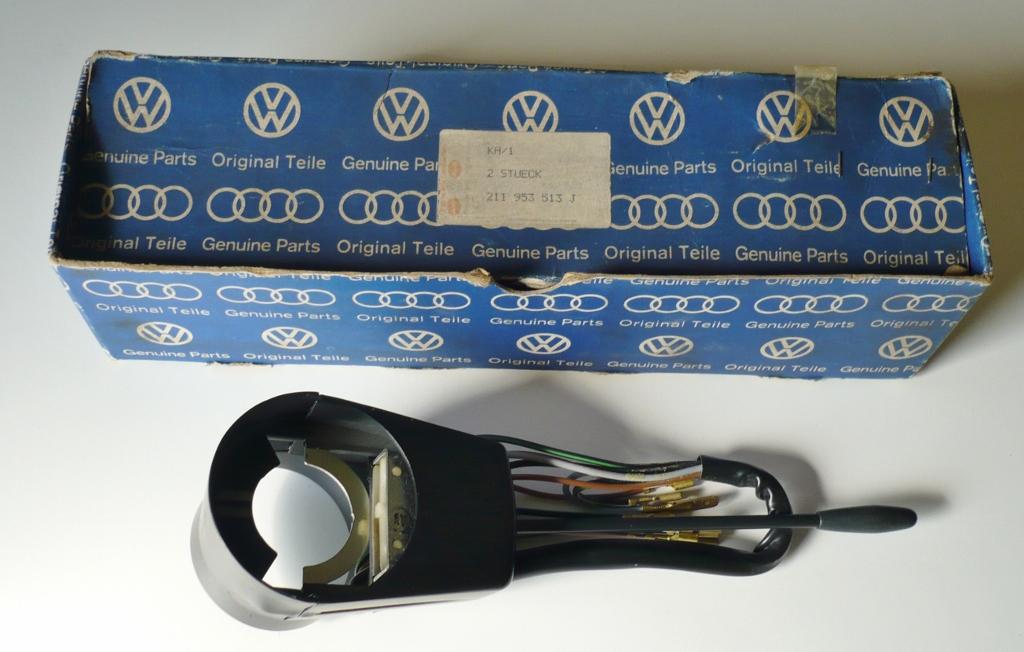

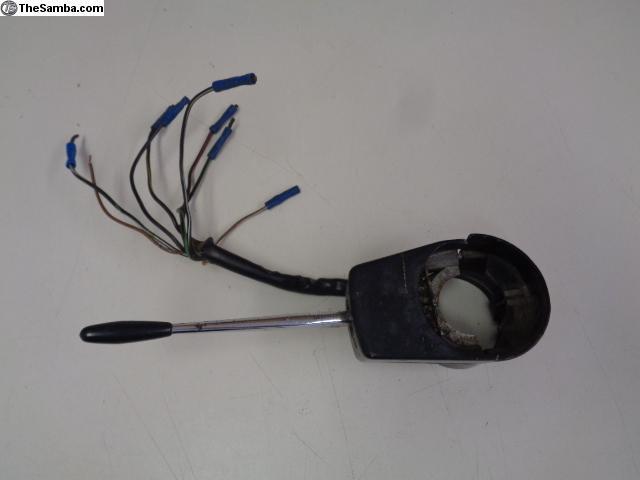

211 953 513 J / SWF HLS 69 SAE QB 71 / 72 Turn Signal Switch 7 wires
1972-Only
This switch was used with the introduction of the separate turn signal bulb on 1972 models.
Turn signals Headlight Wiring highlight
Click on pic or Right click and open link in a new tab
Prior to 1972. This switch was used for 1970-71 Export markets with M-code 24.
M24 = Sealed beam head lamps side flashing indicators and back up lamps.
Last edited by Tcash on Sat Sep 09, 2017 2:32 pm; edited 5 times in total |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
|
| Posted: Sat Sep 09, 2017 2:10 pm Post subject: 1973-M74 T2 Turn signal switch |
|
|
211 953 509 H / SWF HLS 201 096 / 73-M74 Turn signal indicator switch 5 wire.
1973 to ch. no. 164 059 1974
Production dates From August '72 to April '74.

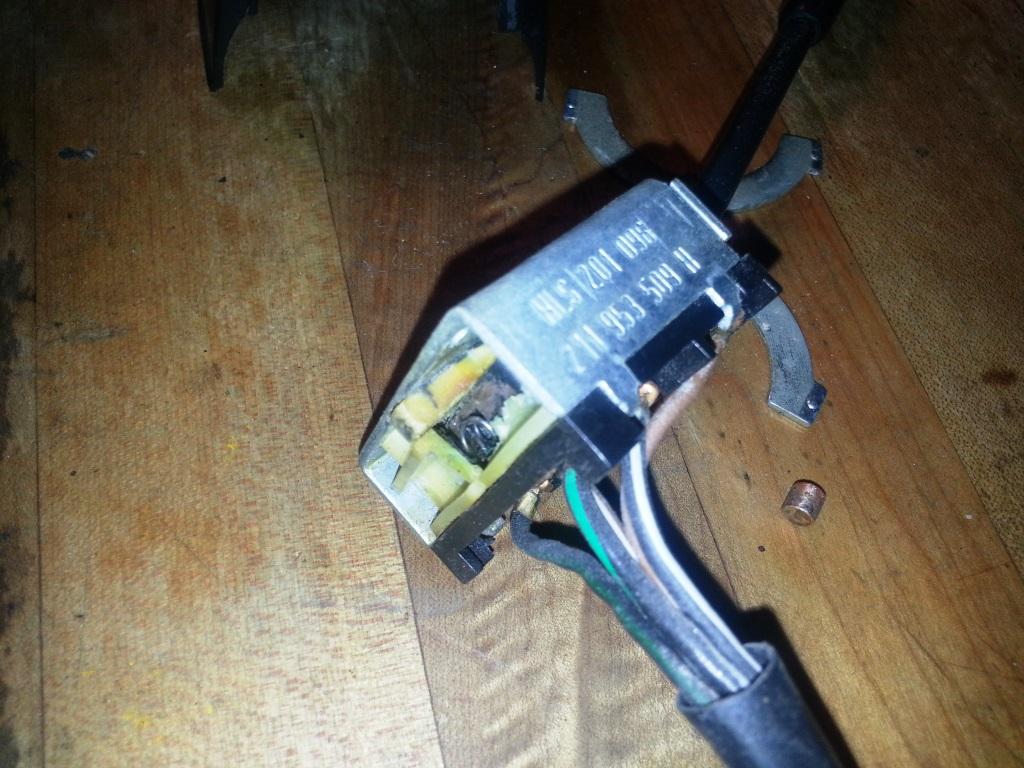

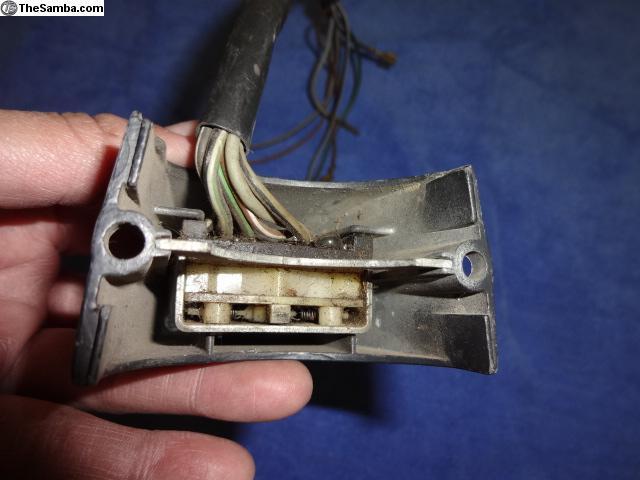

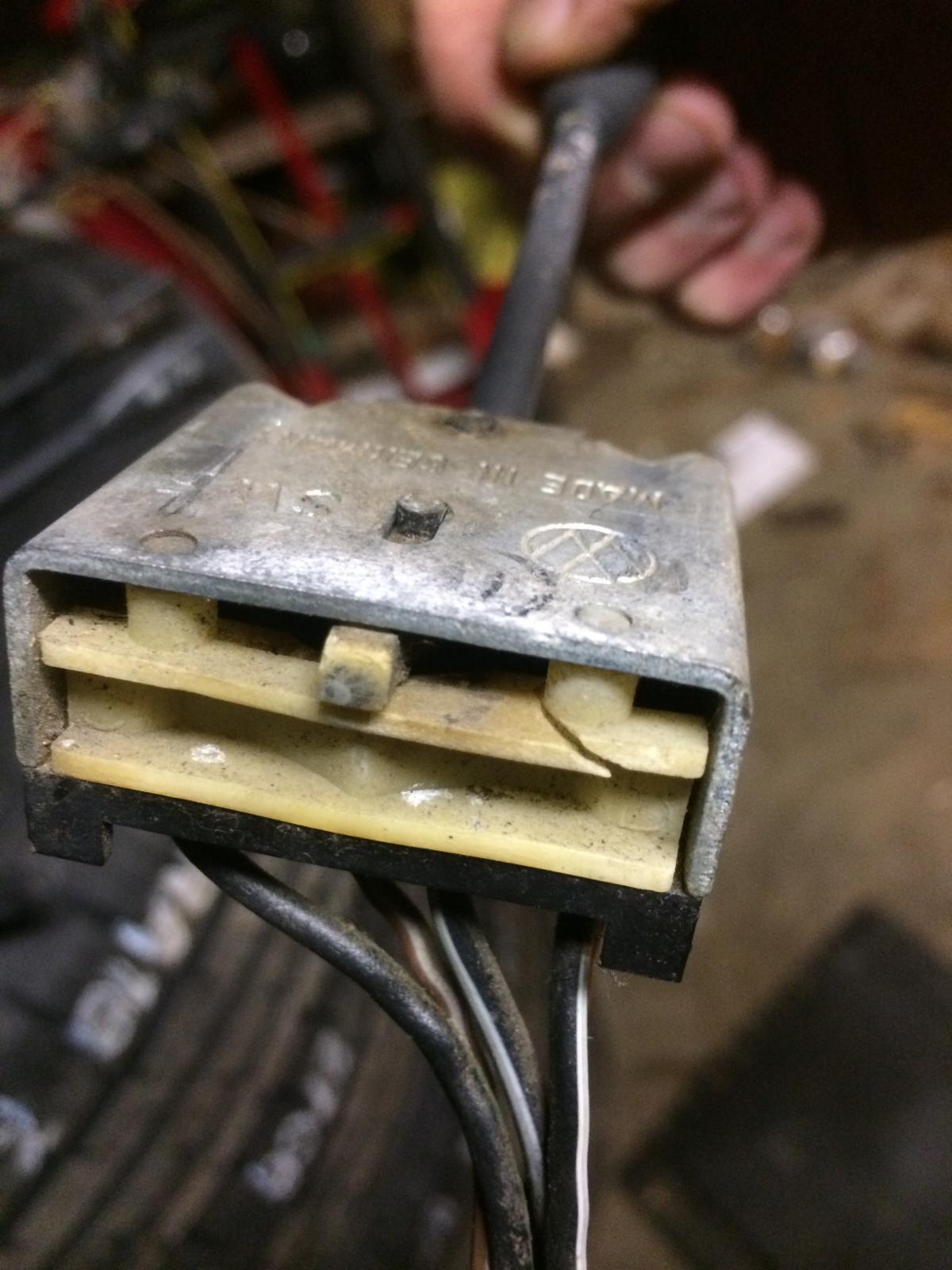

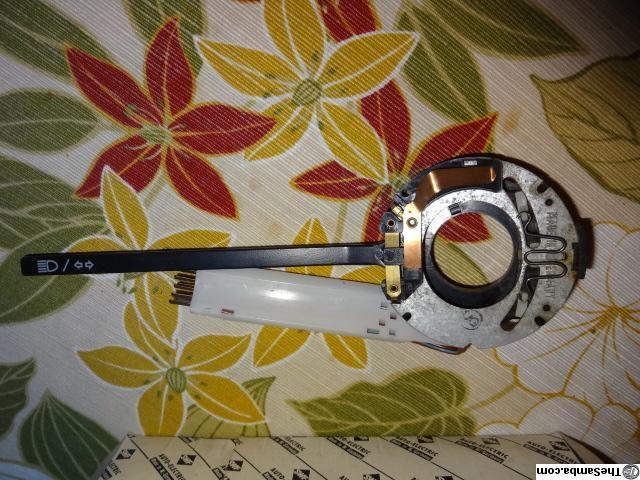

The plastic piece is known to break.
Note crack in the center of the white plastic piece.
Wiring diagrams
https://www.thesamba.com/vw/archives/info/wiringt2.php
click on pic
Good luck
Tcash
Last edited by Tcash on Sat Sep 09, 2017 2:32 pm; edited 4 times in total |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
|
| Posted: Sat Sep 09, 2017 2:13 pm Post subject: L74-79 T2 Turn signal switch |
|
|

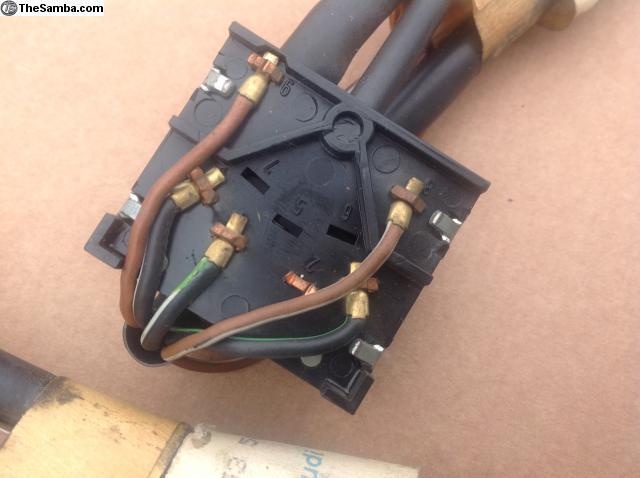

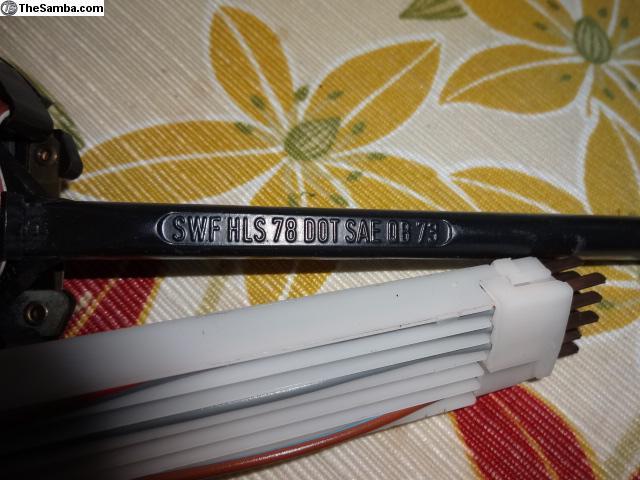

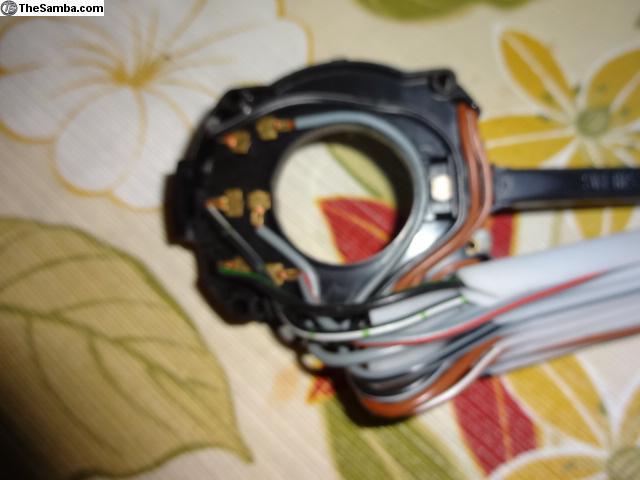

211 953 513 K / SWF HLS 78 DOT SAE QB 73 / L74-79 Turn signal Switch
1974 from ch. no. 164 060 to 1979

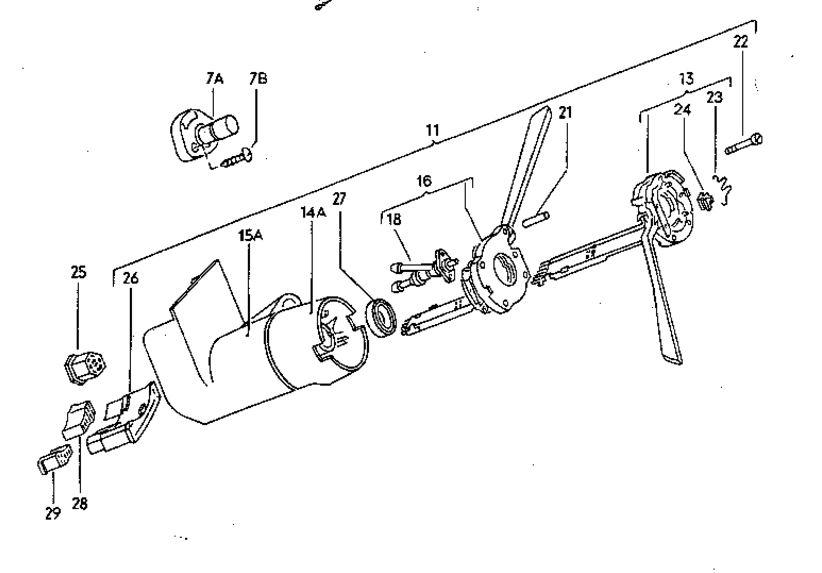

#13 thnx mayor ratwell
Wiring Diagrams
https://www.thesamba.com/vw/archives/info/wiringt2.php
click on pic
|
|
