Posted: Sun Oct 22, 2017 12:12 pm Post subject: First Syncro Common Rail CJAA 2.0 TDi Conversion |
|
|
Alright guys,
It's been almost exactly a year since Otis, my westy hightop syncro broke down and I moved into the GoWesty parking lot, last fall. After talking to a lot of people and hearing nothing but good things about the common rail engine, I find myself out in Nashville, Tennessee, hanging out with SyncroGreg of boxeer.com (the guy behind the infamous Subaru Diesel build).
Moving on from the Pumpe Duse was a tough call as I had already dumped a good amount of money into it, but the jump in technology, reliability and power between the PD and the CR is significant. Plus.. my old engine was a 2004 from a junkyard with a modest 150k on it, and it had a nasty tenancy to destroy turbos. The engine Greg has supplied, on the other hand, is a 2014 with only 500 miles on its clock. Yep, fresh. Plus, after meeting Greg and his wife Katie for the first time down in Ecuador while we were both on our respective North to South American overlanding adventures, the two of us have always talked about working together on a build.
It should be noted that when we met, I was living in apartment in Ecuador because my engine (which I installed) had blown, while Greg's engine (which he installed) ran flawlessly his whole trip, down to the bottom of South America and back. And while true, that was the Subaru diesel and not the VW Common Rail, it made it clear to me that Greg knows his stuff, and knows what a trip like that would take.

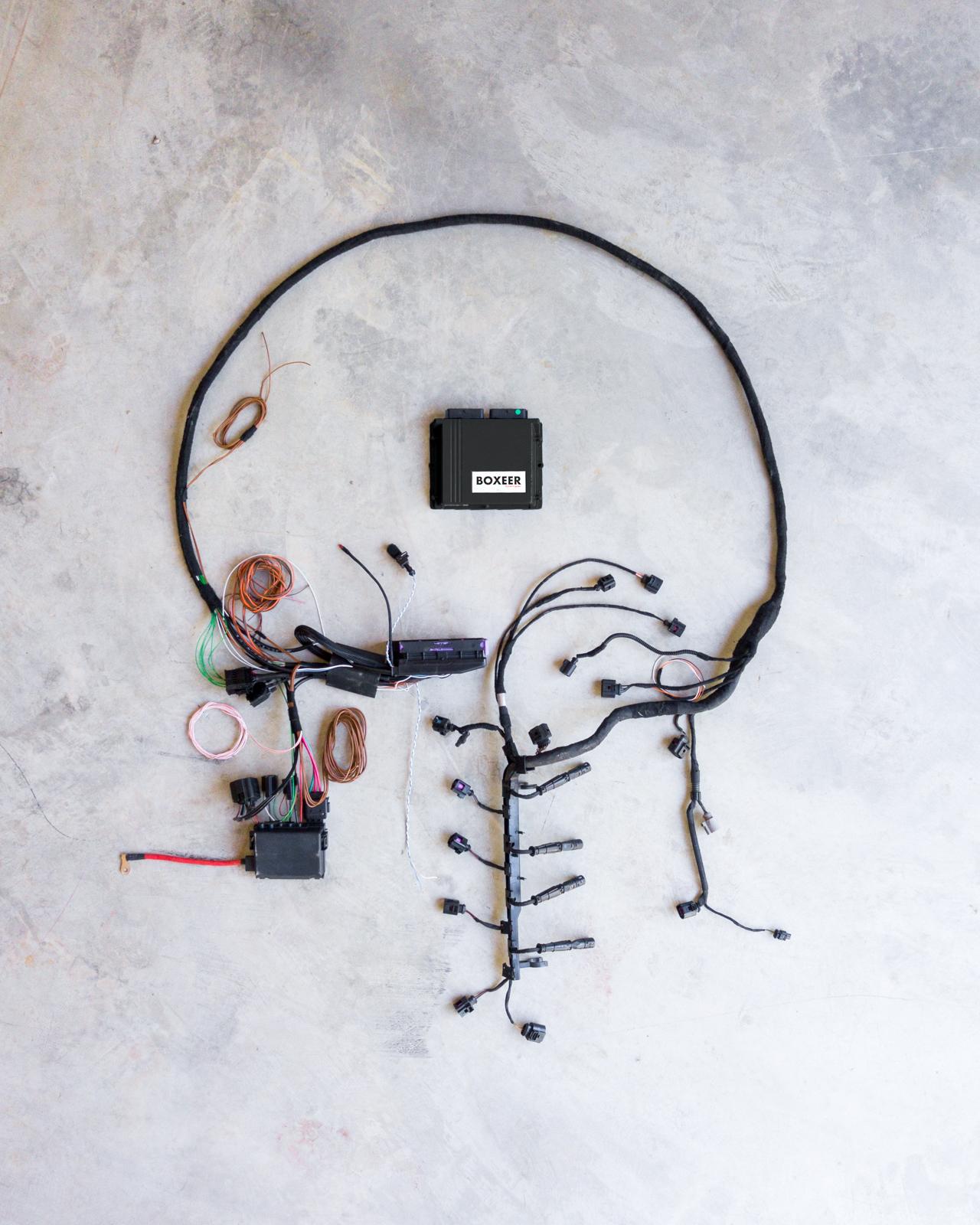

So I shipped Otis (my van) over to Greg’s shop / 100 acre-syncro-playground just outside of Nashville and over the last few days we’ve dressed the engine with a brand new wiring harness (by Greg), new turbo, new clutch, sensors, etc. The way he has it, it’s actually pretty minimal when it comes to electronics, making it seem like a cool halfstep between an etdi and an mtdi, but with a commonrail fuel delivery system.
He also has it setup so that the user can switch between customizable power modes at the dash, ranging anywhere from 100hp on the low end and 240hp on the high end. SO, if I’m stuck in the sand or in the mud and my wheels are just spinning, I’ll be able to pop it into a higher power mode to help get out.
The CR block has the same mounting positions as the PD, so we’ll be reusing my old (15 degree) PD mounts, making the install that much easier.
Loking forward to seeing this bad boy sitting in Otis! And even more so, feeling it. It’s been a year now since the last turbo blew and I decided to stop fighting that ridiculous battle, and I’m more than ready to get back out there.
I’ll be posting updates over the next few weeks as we continue to make progress on this.
First Vanagon with the new 2.0 Common Rail TDi, baby! Wahoooooooooooooooooo.
Last edited by AidanLK on Thu Nov 09, 2017 8:33 am; edited 2 times in total |
|
Back to top |
|
|
pedrokrusher Samba Member
Joined: July 11, 2011 Posts: 654 Location: Montreal, Quebec, Canada
|
|
Back to top |
|
|
erste Samba Member
Joined: March 29, 2013 Posts: 1110 Location: San Francisco
|
Posted: Sun Oct 22, 2017 6:31 pm Post subject: Re: Otis the Syncro's PD BEW 1.9 to Common Rail CJAA 2.0 Conversion |
|
|
NICE!
Can't wait to see where this goes. |
|
Back to top |
|
|
deutschewerks Samba Member
Joined: November 29, 2011 Posts: 68 Location: Syracuse, NY
|
Posted: Sun Oct 22, 2017 7:59 pm Post subject: Re: Otis the Syncro's PD BEW 1.9 to Common Rail CJAA 2.0 Conversion |
|
|
Few questions-
Adapter plate? Still the same Kennedy style as what you had before?
DPF? As much as they contribute to emissions reduction, they are also the Achilles heel of this engine. They crack internally allowing soot to bypass into the EGR filter and cooler, causing the most common ECU fault, EGR Flow insufficient.
I'm assuming that if you do a DPF delete, the tune you are suing will also get rid of the exhaust flap.
What are you doing about the immobilizer? This engine used a rolling code setup, not exactly the nicest thing to play with. Retaining the reader coil, cluster, key, and push button start if the donor had it?
Retaining the fuel lift pump?
Other common annoyances: Sometimes the exhaust pressure and temp sensors fail. Then there are intake flap issues. Most of the time, the stop in the motor wears out and allows the arm to go further than it is supposed to. Dieselgeek makes a nice little repair piece for it, but I have seen where that didn't solve the issue completely.
Other than that, the CR is a great engine and I lament the whole death of VW diesel due to everything that surrounded them. My fiance has a 2011 Golf TDI and we love it. Hers has been fairly problem free.
The PD is probably my least favorite TDI. I have a VE TDI but work on PDs often. The ones that develop severe issues are pretty difficult to get to 100% again. Why VW didn't just naturally evolve from the VE to CR TDis is beyond me.
You should go all in and flip a 7spd Audi DSG box behind that thing! _________________ 1985 Vanagon Westfalia 1.8t "Buelah"
1994 Golf GL 1.8t 350+hp monster
1999 Golf GL TDI
2000 Golf GL Race car
1993 Eurovan GL |
|
Back to top |
|
|
Gnarlodious Samba Member
Joined: September 28, 2013 Posts: 2319 Location: Adobe Jungle USA
|
Posted: Sun Oct 22, 2017 8:02 pm Post subject: Re: Otis the Syncro's PD BEW 1.9 to Common Rail CJAA 2.0 Conversion |
|
|
A beefier gearbox may be indicated... _________________ Vanagon ’83 diesel AAZ w/Giles injection, 5spd 4.57R&P+TBD and a '78 diesel Rabbit |
|
Back to top |
|
|
AidanLK Samba Member
Joined: August 11, 2013 Posts: 50 Location: Bozeman
|
Posted: Thu Nov 09, 2017 8:27 am Post subject: Re: Otis the Syncro's Common Rail CJAA 2.0 TDi Conversion |
|
|
Time to put er in!
|
|
Back to top |
|
|
jamin307 Samba Member
Joined: October 16, 2015 Posts: 82 Location: Denver, Colorado
|
Posted: Thu Nov 09, 2017 8:31 am Post subject: Re: Otis the Syncro's Common Rail CJAA 2.0 TDi Conversion |
|
|
Oh man, that's a beautiful thing. Can't wait to see Otis on the move again. |
|
Back to top |
|
|
AidanLK Samba Member
Joined: August 11, 2013 Posts: 50 Location: Bozeman
|
Posted: Tue Nov 14, 2017 5:28 pm Post subject: Re: First Syncro Common Rail CJAA 2.0 TDi Conversion |
|
|

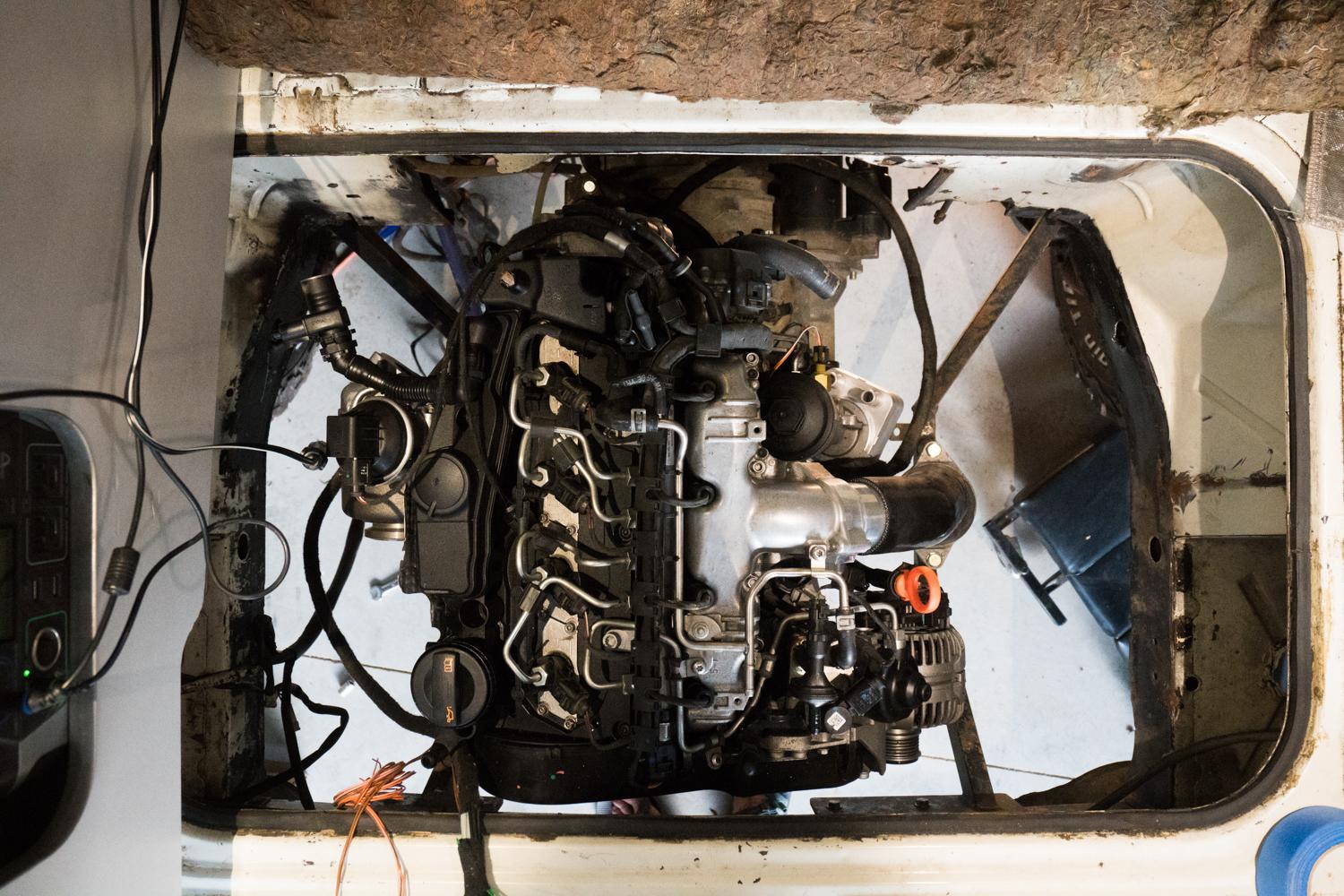

Engine's in using my old 1.9 mounts! Now time for some plumbing...
|
|
Back to top |
|
|
the_last1 Samba Member
Joined: March 10, 2015 Posts: 130 Location: Bay Area CA
|
Posted: Wed Nov 22, 2017 10:30 am Post subject: Re: First Syncro Common Rail CJAA 2.0 TDi Conversion |
|
|
GOOD LORD!
This is what my syncro doka needs! $16.5k for the kit is a little steep. Plus the tranny regearing. Can't wait to see how it looks in the engine bay. I noticed some of the photos have the intercooler setup in the rear. did you find a solution for its placement? _________________ 1991 Multivan
1990 Syncro Doka
The shallow end of the pool..is where the turds float |
|
Back to top |
|
|
AidanLK Samba Member
Joined: August 11, 2013 Posts: 50 Location: Bozeman
|
Posted: Wed Nov 22, 2017 7:14 pm Post subject: Re: First Syncro Common Rail CJAA 2.0 TDi Conversion |
|
|
the_last1 wrote: |
GOOD LORD!
This is what my syncro doka needs! $16.5k for the kit is a little steep. Plus the tranny regearing. Can't wait to see how it looks in the engine bay. I noticed some of the photos have the intercooler setup in the rear. did you find a solution for its placement? |
It's a chunk of money forsure, but you're getting what you pay for with Greg. I've (unfortunately) been in and out of a handful of shops and have had experience with a number of conversions and I can honestly say this one is next level. Plus, compared to other plug and play gas kits out there, that price is pretty competitive, and its a TDi, which we all know is WAY cooler.
As for the intercooler, here's a more recent shot with it in place! Starting this badboy up for the first time in the van TODAY!
|
|
Back to top |
|
|
the_last1 Samba Member
Joined: March 10, 2015 Posts: 130 Location: Bay Area CA
|
Posted: Mon Nov 27, 2017 11:53 am Post subject: Re: First Syncro Common Rail CJAA 2.0 TDi Conversion |
|
|
SOOO!
How did the fire up start? very curious about this kit! keep posting vids and photos! _________________ 1991 Multivan
1990 Syncro Doka
The shallow end of the pool..is where the turds float |
|
Back to top |
|
|
AidanLK Samba Member
Joined: August 11, 2013 Posts: 50 Location: Bozeman
|
Posted: Thu Jan 04, 2018 9:44 am Post subject: Re: First Syncro Common Rail CJAA 2.0 TDi Conversion |
|
|
the_last1 wrote: |
SOOO!
How did the fire up start? very curious about this kit! keep posting vids and photos! |
Started up great! Such a nice sounding engine... Full build video coming soon.
With winter here and time on our hands, I decided to pull the trans and do some regearing and 'beefing up' using GT Gears' new stuff (3rd, 4th, slider hub) and new German R&P and main shaft--so things are on hold for a little while.
Greg is also adding in a trans temp sensor wired into the ECU that will trigger a slight cut in power when oil temps get too high, cooling things down and keeping the trans happy.
We'll be back at it soon though and I'll be posting updates as they occur.
SO CLOSE!
Here's a pic from the night I spent outside the shop, before pulling the trans
|
|
Back to top |
|
|
AidanLK Samba Member
Joined: August 11, 2013 Posts: 50 Location: Bozeman
|
Posted: Thu Jan 04, 2018 9:46 am Post subject: Re: First Syncro Common Rail CJAA 2.0 TDi Conversion |
|
|
Oh, also, Greg updated his site with some more info on the engine/kit for anyone who's interested: www.boxeer.com |
|
Back to top |
|
|
westyventures Samba Member
Joined: December 29, 2004 Posts: 2306 Location: Oregon Outback
|
Posted: Thu Jan 04, 2018 6:20 pm Post subject: Re: First Syncro Common Rail CJAA 2.0 TDi Conversion |
|
|
What about the clutch?! |
|
Back to top |
|
|
AidanLK Samba Member
Joined: August 11, 2013 Posts: 50 Location: Bozeman
|
Posted: Thu Jan 04, 2018 6:27 pm Post subject: Re: First Syncro Common Rail CJAA 2.0 TDi Conversion |
|
|
westyventures wrote: |
What about the clutch?! |
Karl! I went with the Kennedy Stage II pressure plate and stock vanagon 228mm disc. You were right about my flywheel depth so I'm sticking with the one I have as I wasn't able to get a clear answer from anyone about the depth of the VR6 flywheel depth. Mine should be A-Ok after having it resurfaced.
Thanks for helping me sort it all out |
|
Back to top |
|
|
the_last1 Samba Member
Joined: March 10, 2015 Posts: 130 Location: Bay Area CA
|
Posted: Wed Jan 10, 2018 7:47 pm Post subject: Re: First Syncro Common Rail CJAA 2.0 TDi Conversion |
|
|
So has anyone Purchased the vanagon kit?! I'm curious to see how easy it is to do on your own. Haven't seen the installation instructions. I'm also curious how it works with so many different transmission ratios out there. I keep seeing it and am so tempted, but the lack of info and customer reviews is maddening. I know there are others out there that have done it! _________________ 1991 Multivan
1990 Syncro Doka
The shallow end of the pool..is where the turds float |
|
Back to top |
|
|
Steve M. Samba Member
Joined: July 30, 2013 Posts: 6829 Location: Fort Lauderdale, Fl.
|
Posted: Wed Jan 10, 2018 9:24 pm Post subject: Re: First Syncro Common Rail CJAA 2.0 TDi Conversion |
|
|
Seeing what Greg accomplished with his Subaru diesel and roadtrip I can only anticipate 1st class results. _________________ This free advice is worth exactly what you paid for it.
There are seven days in a week. Someday is not one of them. |
|
Back to top |
|
|
erste Samba Member
Joined: March 29, 2013 Posts: 1110 Location: San Francisco
|
Posted: Mon Mar 05, 2018 9:30 pm Post subject: Re: First Syncro Common Rail CJAA 2.0 TDi Conversion |
|
|
Any updates?
|
|
Back to top |
|
|
AidanLK Samba Member
Joined: August 11, 2013 Posts: 50 Location: Bozeman
|
Posted: Wed Mar 07, 2018 8:02 am Post subject: Re: First Syncro Common Rail CJAA 2.0 TDi Conversion |
|
|
erste wrote: |
Any updates?
|
I had a photo job dropped in my lap that I couldn’t pass up... heading back in a few weeks!
Last edited by AidanLK on Thu Mar 08, 2018 2:05 pm; edited 1 time in total |
|
Back to top |
|
|
WestyWanter Samba Member
Joined: February 15, 2017 Posts: 459 Location: San Diego
|
Posted: Wed Mar 07, 2018 8:11 am Post subject: Re: First Syncro Common Rail CJAA 2.0 TDi Conversion |
|
|
Can I just say this is a dream build lol?
Oh... syncros... how I dream to never have the chance to buy one because I'd be forever poor |
|
