Poly Fuel Tank Venting Issue
Forum Index -> Kit Car/Fiberglass Buggy/356 Replica Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Bkhansen93
Samba Member


Joined: July 14, 2018
Posts: 202
Location: Coal City, Il USA
Bkhansen93 is offline

PostPosted: Mon Aug 05, 2019 9:22 am    Post subject: Poly Fuel Tank Venting Issue Reply with quote

Hey guys, I have a poly tank in by buggy that is not vented. To provide the tank with the necessary venting I tried using a vented cap. This provided the venting but also allows fuel to splash out of the vents and out of the tank. The tank is only about 1/2 full and it is still doing it. I imagine this is because the tank is just a cylindrical fuel cell with no baffles or real filler neck of any kind. the cap sits about 3/4 of an inch from the fuel line when the tank is full. I am looking for a non vented cap that is one piece that I can attach a hose barb to and run a hose for venting like on many dirt bikes and four wheelers. Any other solutions? I thought maybe a screen filter at the fill nozzle would cut down on some splashing but am having trouble finding one to fit the 3.5" wide filler hole. The other option I have come up with is to tap the tank like I would the cap and vent with a hose from there and just use a non-vented cap. The only real problem with this is that I'd rather not have to cut into my only gas tank. Any ideas?

The tank I am using is one of these:https://www2.cip1.com/ProductDetails.asp?ProductCode=C26%2DTKPS1030BK
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jspbtown
Samba Member


Joined: January 27, 2004
Posts: 4551

jspbtown is offline

PostPosted: Mon Aug 05, 2019 12:56 pm    Post subject: Re: Poly Fuel Tank Venting Issue Reply with quote

drill the cap. Install a barbed fitting and install a rubber hose to allow vapors fuel splash to drain?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Bkhansen93
Samba Member


Joined: July 14, 2018
Posts: 202
Location: Coal City, Il USA
Bkhansen93 is offline

PostPosted: Mon Aug 05, 2019 7:22 pm    Post subject: Re: Poly Fuel Tank Venting Issue Reply with quote

Thats the ideal scenario. I bought a couple different caps that will fit. Finding on that has some meat on it to tap is the issue. Most john deere riding mower caps are the same size.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
slalombuggy
Samba Member


Joined: July 17, 2010
Posts: 7694
Location: Canada 306
slalombuggy is offline

PostPosted: Tue Aug 06, 2019 9:31 am    Post subject: Re: Poly Fuel Tank Venting Issue Reply with quote

Go to a hydraulic shop tell them what you're doing and ask for a barbed bulkhead fitting. See if they make one with a reversion valve in it, then you won't need to thread the cap. And with the reversion valve you won't have to worry about fuel pouring out of the vent in a rollover.

brad
_________________
Parts for sale: https://www.thesamba.com/vw/classifieds/search.php?username=slalombuggy

Lucky Monkey Landspeed Racing
1962 Canadian Buggy 121.253mph - Bonneville 2012
1957 Beetle 118.642mph - Bonneville 2014
1957 LSR Buggy 130.583mph - Bonneville 2018
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Bkhansen93
Samba Member


Joined: July 14, 2018
Posts: 202
Location: Coal City, Il USA
Bkhansen93 is offline

PostPosted: Tue Aug 06, 2019 9:57 am    Post subject: Re: Poly Fuel Tank Venting Issue Reply with quote

Awesome. Didn't even know those existed. Thanks alot.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Dale M.
Samba Member


Joined: April 12, 2006
Posts: 18582
Location: Just a tiny bit west of Yosemite Valley
Dale M. is offline

PostPosted: Tue Aug 06, 2019 3:53 pm    Post subject: Re: Poly Fuel Tank Venting Issue Reply with quote

Another option I have used is metal valve stem....

Image may have been reduced in size. Click image to view fullscreen.


Ditch the schrade valve and use as barbed fitting...

Does no have to be mounted in cap IF you are willing to drill tank...

Though Slalom Buggy idea seems best...

Dale
_________________
“Fear The Government That Wants To Take Your Guns" - Thomas Jefferson.

"Kellison Sand Piper Roadster" For Street & Show.
============================================================
All suggestions and advice are purely my own opinion. You are free to ignore them if you wish ...
Back to top
View user's profile Send private message Gallery Classifieds Feedback
andk5591 Premium Member
Samba Member


Joined: August 29, 2005
Posts: 15748
Location: State College, PA
andk5591 is offline

PostPosted: Wed Aug 07, 2019 5:06 pm    Post subject: Re: Poly Fuel Tank Venting Issue Reply with quote

One more thing - run your vent hose up and put a loop in it if not using the check valve...
_________________
D-Dubya Manx clone - 63 Short pan,1914.
Rosie 65 bug - My mostly stock daily driver.
Woodie 69 VW woodie (Hot VWs 7/12).
"John's car" 64 VW woodie - The first ever
Maxine 61 Cal-look bug - Cindy's daily driver.
Max - 73 standard Beetle hearse project
66 bug project - Real patina & Suby conversion
There's more, but not keeping them...
Back to top
View user's profile Send private message Send e-mail AIM Address Gallery Classifieds Feedback
Bkhansen93
Samba Member


Joined: July 14, 2018
Posts: 202
Location: Coal City, Il USA
Bkhansen93 is offline

PostPosted: Fri Aug 09, 2019 8:57 am    Post subject: Re: Poly Fuel Tank Venting Issue Reply with quote

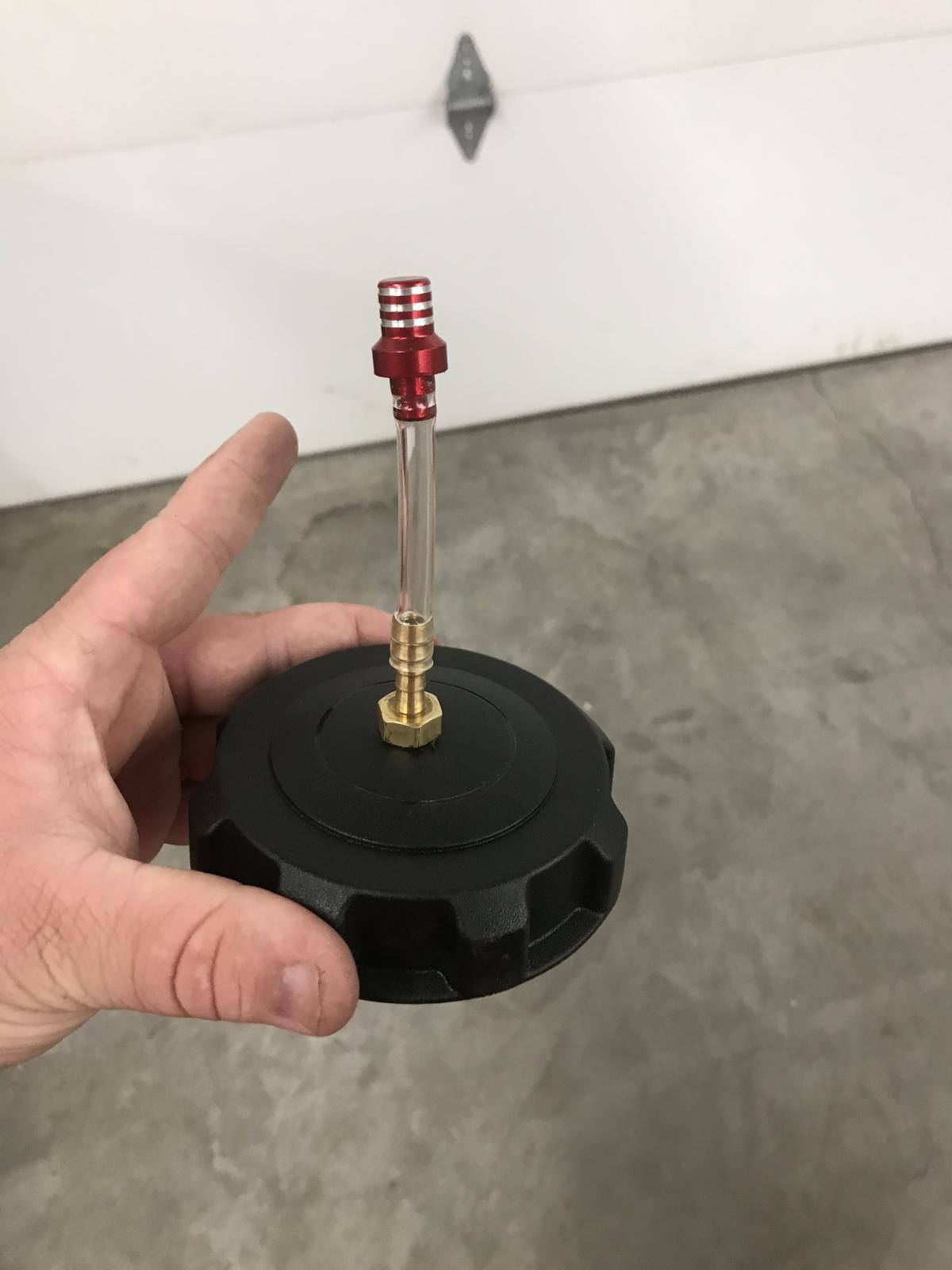

So this is my 1st iteration of the cap to vent and prevent spillage. Some may be familiar with this. It is a valve commonly used on dirt bike gas tanks to prevent spillage while upside-down. I later found that I only have about 1.5-2” of room from the top of the tank to the trunk lid so this hose has been shortened. Will go hit some bumps on my lunch break to see how it does.
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
slalombuggy
Samba Member


Joined: July 17, 2010
Posts: 7694
Location: Canada 306
slalombuggy is offline

PostPosted: Fri Aug 09, 2019 9:10 am    Post subject: Re: Poly Fuel Tank Venting Issue Reply with quote

You could trim the brass barb back a bit also. Makes it less obtrusive when taking the cap off the tank.

brad
_________________
Parts for sale: https://www.thesamba.com/vw/classifieds/search.php?username=slalombuggy

Lucky Monkey Landspeed Racing
1962 Canadian Buggy 121.253mph - Bonneville 2012
1957 Beetle 118.642mph - Bonneville 2014
1957 LSR Buggy 130.583mph - Bonneville 2018
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Bkhansen93
Samba Member


Joined: July 14, 2018
Posts: 202
Location: Coal City, Il USA
Bkhansen93 is offline

PostPosted: Sat Aug 10, 2019 5:52 am    Post subject: Re: Poly Fuel Tank Venting Issue Reply with quote

I was considering it. I may do it. Should onlt take a minute or two
