PostPosted: Sun Nov 12, 2017 9:34 pm    Post subject: Plastidip the ugly away Reply with quote

Our van has been getting crustier and crustier, worse each winter. There's been some repaint that's failed and some damage to the right rear fender lip. Here's some pics of the ugly
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Time to do something,
Paint? So expensive to do right and that rust on the kitchen seam is real, with the flanges eaten away real body work will be needed. I did like the job a poster here had done in Tijuana, but it seemed key to that was to have a place in socal to disassemble and reasessemble. Maybe later.

Bedliner? Super tough but limits future choices. Maybe later.

I went with rust converter and aerosol plastidip. I figure it will buy some time and I can peel off the coating later and see what is happening underneath with the rust and decide then how to proceed.

One more pic for now, these are my test patches that were on for a few months. The chunks from the tan patch were intentionally picked at by me.
Image may have been reduced in size. Click image to view fullscreen.

_________________
84 westie 2.178 w/ digijet, AT
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Fracas
Samba Member


Joined: October 01, 2015
Posts: 54
Location: Calgary
Fracas is offline

PostPosted: Sun Nov 12, 2017 9:58 pm    Post subject: Re: Plastidip the ugly away, Reply with quote

I am considering dip myself but knowing what I know about Rust I would fix before dipping.
Back to top
View user's profile Send private message Classifieds Feedback
Zeitgeist 13
Samba Member


Joined: March 05, 2009
Posts: 10504
Location: Port Manteau
Zeitgeist 13 is offline

PostPosted: Sun Nov 12, 2017 10:08 pm    Post subject: Re: Plastidip the ugly away, Reply with quote

The rust in those seams and window perimeters needs to be dealt with prior to any coating. Period.
_________________
Casey--
Volkswagens powered by Volkswagen
'89 Bluestar ALH w/12mm Waldo pump, PP764 and GT2052
'01 Weekender VR6 -->2.5 TDI?
Oly Bulli
'87 300TD OM606 7mm Myna pump and HX30
Back to top
View user's profile Send private message Gallery Classifieds Feedback
heimlich Premium Member
VWNOS.com


Joined: November 20, 2016
Posts: 4535
Location: Houston, Texas
heimlich is online now

PostPosted: Sun Nov 12, 2017 10:33 pm    Post subject: Re: Plastidip the ugly away, Reply with quote

If you dip it with rust you will just be covering the rust. The rust will continue to expand but now with a covering that will trap moisture.
_________________
www.vwnos.com
New NOS OEM Parts. Classic Brands. Classic Quality
Not all parts are made the same. We are a supplier of NOS OEM parts made mainly in West Germany, Early Germany, and Early Brazil. These locations are where VW early on produced the best quality parts and best fitting products.
5% Off your order with coupon code: 5%OFF
Aluminum and Cast Iron Restored Distributors Available (<--Click here)
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
jimf909 Premium Member
Samba Member


Joined: April 03, 2014
Posts: 4811
Location: Seattle
jimf909 is offline

PostPosted: Sun Nov 12, 2017 10:36 pm    Post subject: Re: Plastidip the ugly away, Reply with quote

Well done.

Don't worry about the rust worriers. They'd have every Vanagon on the planet stripped, cut and welded before applying a $15K paint job and parking it in the garage. These vans are every bit as fun with a bit of rust covered with lipstick (or not) as they are after a $15K restorative paint job.

And the rust advances very slowly on the west coast so the restoration job five years down the road isn't much worse than doing it today. In the meantime you get to sit on a bunch of cash (or time) and use the van for what it's designed to do, play in the hills.

If there's one thing the samba over-worries it's seam rust. It's not hurting anyone (under carriage rust is a different story but it's a different bird and far less of an issue in the west).
_________________
Current: 1990 Westy Camper - Bostig RG4, 2wd, manual trans w/Peloquin, NAHT high-top, Flash Silver, seam rust, bondo, etc., etc.

Past: 1985 Westy Camper - 1.9 wbx, 2wd, manual trans, Merian Brown, (sold after 17 years to Northwesty who converted it to a Syncro).
Back to top
View user's profile Send private message Gallery Classifieds Feedback
heimlich Premium Member
VWNOS.com


Joined: November 20, 2016
Posts: 4535
Location: Houston, Texas
heimlich is online now

PostPosted: Sun Nov 12, 2017 11:04 pm    Post subject: Re: Plastidip the ugly away, Reply with quote

You should be able to get a good paint job for a few K. I found someone to paint my box and fix some spots on it for 1.5k Find someone reputable that works out of his/her garage.
_________________
www.vwnos.com
New NOS OEM Parts. Classic Brands. Classic Quality
Not all parts are made the same. We are a supplier of NOS OEM parts made mainly in West Germany, Early Germany, and Early Brazil. These locations are where VW early on produced the best quality parts and best fitting products.
5% Off your order with coupon code: 5%OFF
Aluminum and Cast Iron Restored Distributors Available (<--Click here)
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
whafalia
Samba Member


Joined: January 28, 2009
Posts: 626
Location: San Francisco
whafalia is offline

PostPosted: Mon Nov 13, 2017 8:06 am    Post subject: Re: Plastidip the ugly away, Reply with quote

Thanks for the responses, I think the range got covered pretty well!

Meet my body workers, 10:30 at night in a gas station in Morgan Hill, used a porta-power and some hammer and dollie and shaped the fender lip for a hundred dollars, as well as pushing and pulling a couple of dents in the door.
Image may have been reduced in size. Click image to view fullscreen.

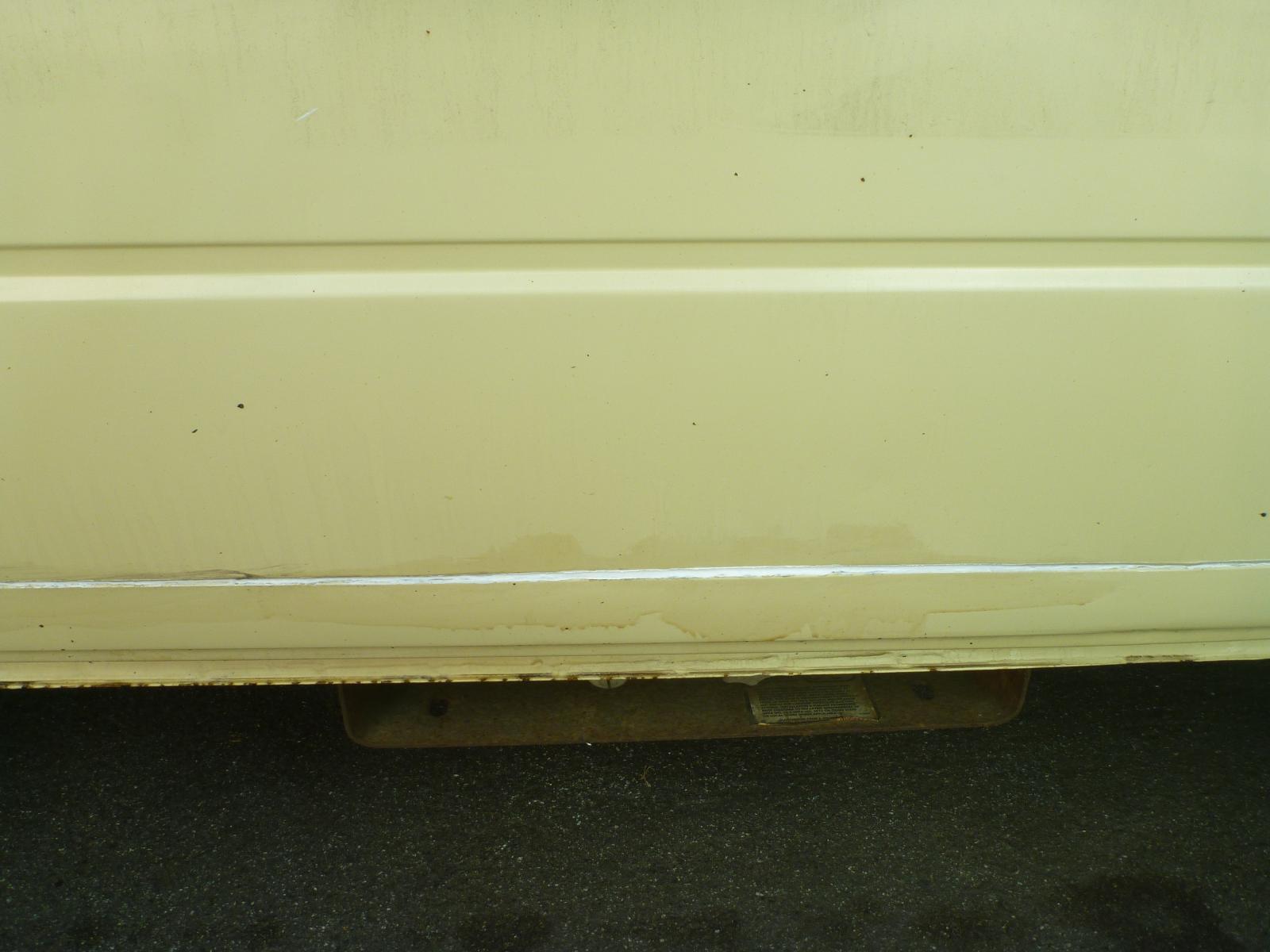

So I picked the ugly out of the seams and applied plastidip brand rust converter,
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

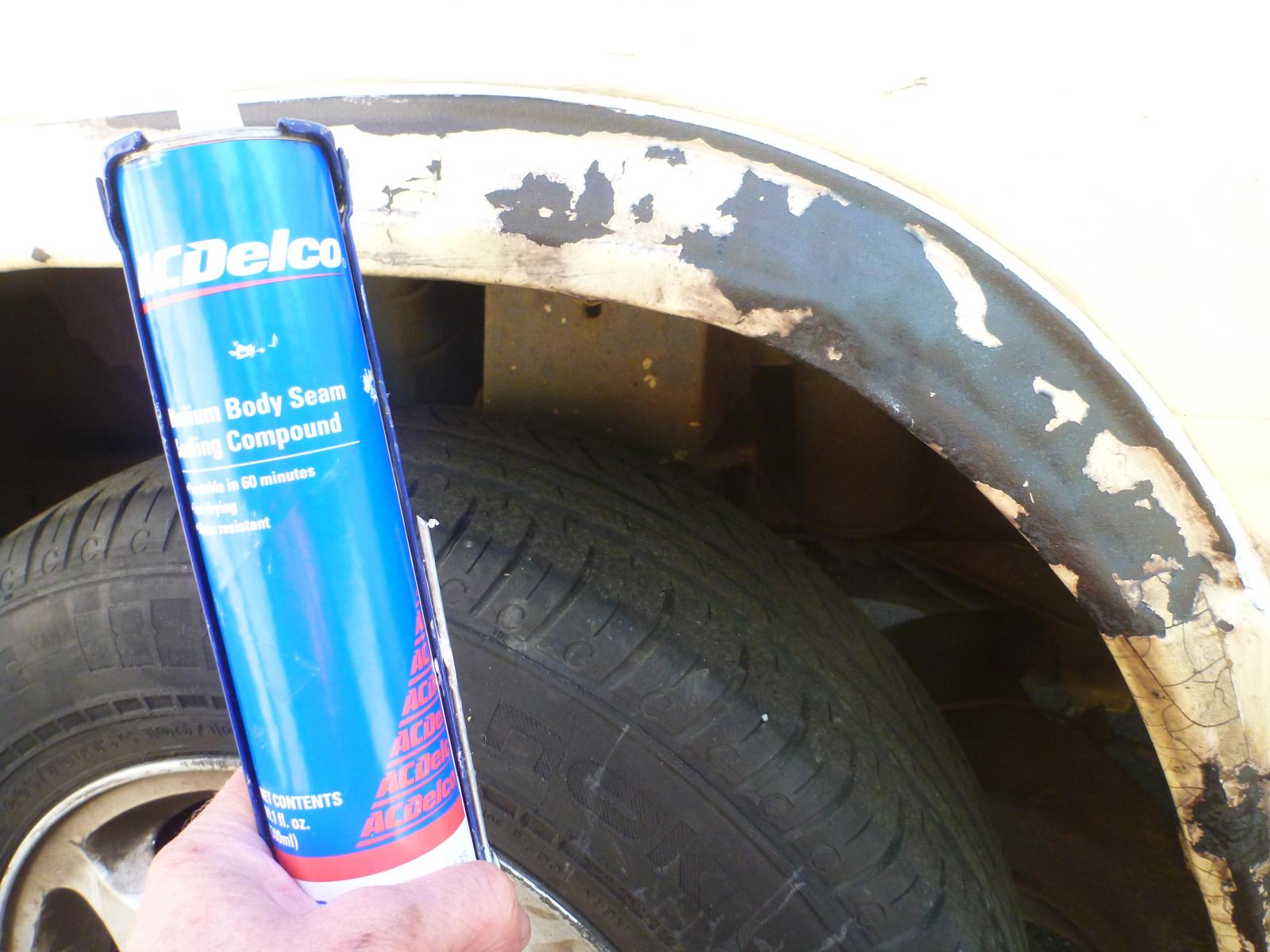

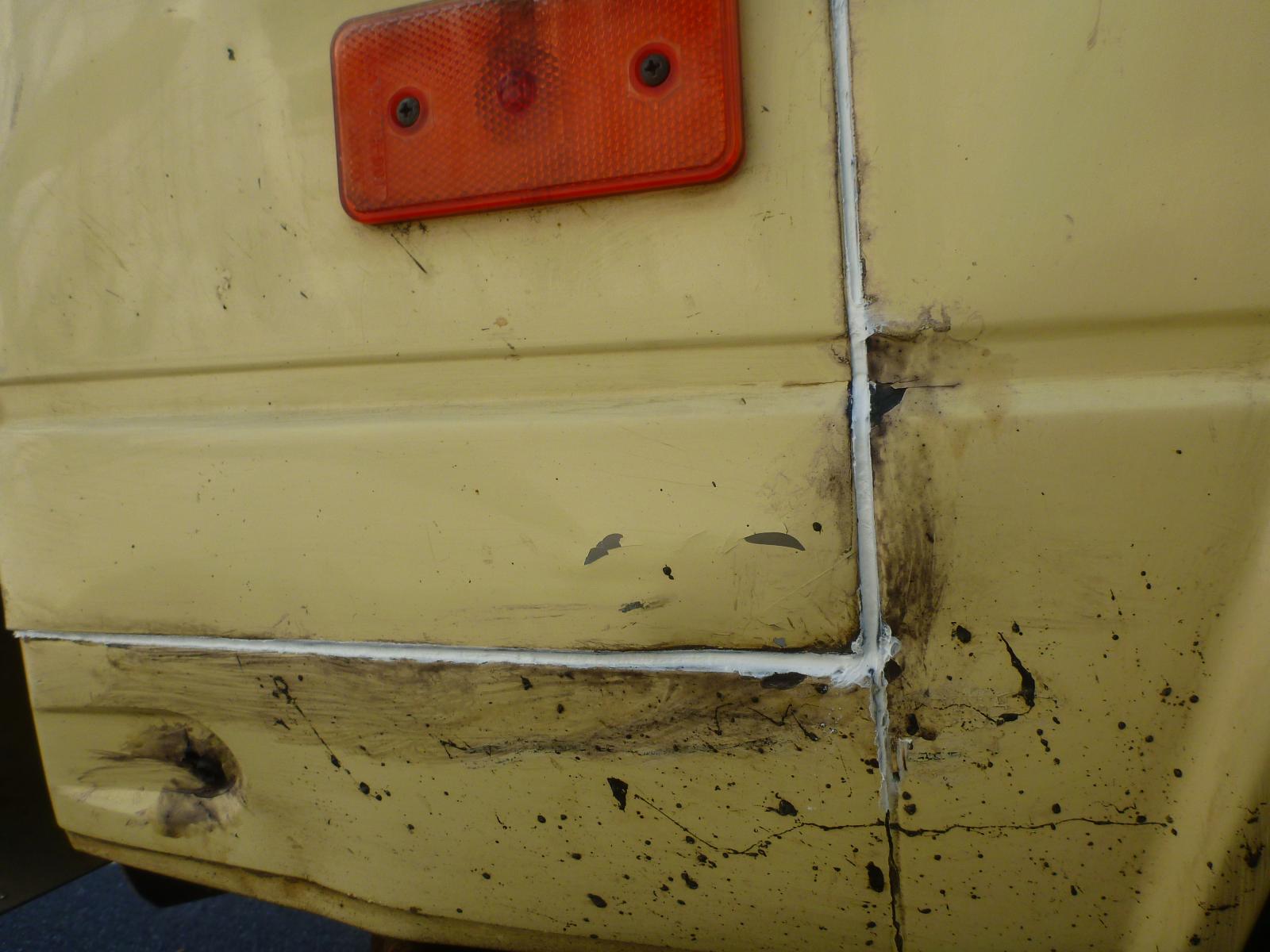

Some seam sealer, reputable brand, single stage,
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
84 westie 2.178 w/ digijet, AT
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bokonon42
Samba Member


Joined: December 20, 2016
Posts: 104
Location: Bay Area, CA
bokonon42 is offline

PostPosted: Mon Nov 13, 2017 8:14 am    Post subject: Re: Plastidip the ugly away, Reply with quote

Looks good. I need one of my fender lips reshaped as well before I monstaliner mine. If you dig their work, mine sharing their contact info??
thanks
-terry
_________________
Terry
88 Vanagon Wolfsburg Carat - https://www.thesamba.com/vw/forum/viewtopic.php?t=671319
97 Porsche 993
03 BMW M5
Back to top
View user's profile Send private message Gallery Classifieds Feedback
whafalia
Samba Member


Joined: January 28, 2009
Posts: 626
Location: San Francisco
whafalia is offline

PostPosted: Mon Nov 13, 2017 8:16 am    Post subject: Re: Plastidip the ugly away, Reply with quote

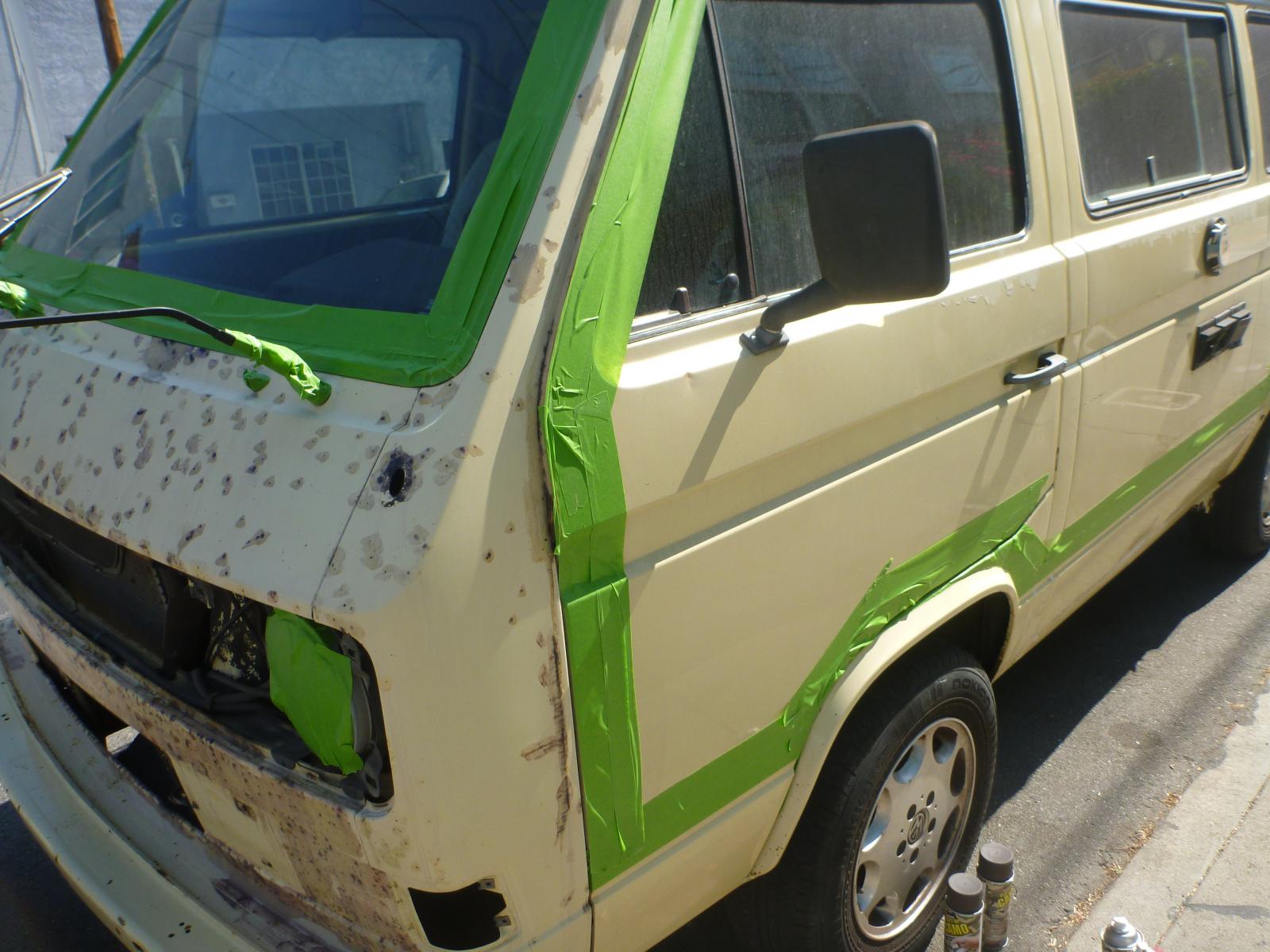

Wipe down with acetone, mask and start spraying. The weather was marvelous these 2 days I sprayed, 20 minutes between coats was plenty,
Image may have been reduced in size. Click image to view fullscreen.

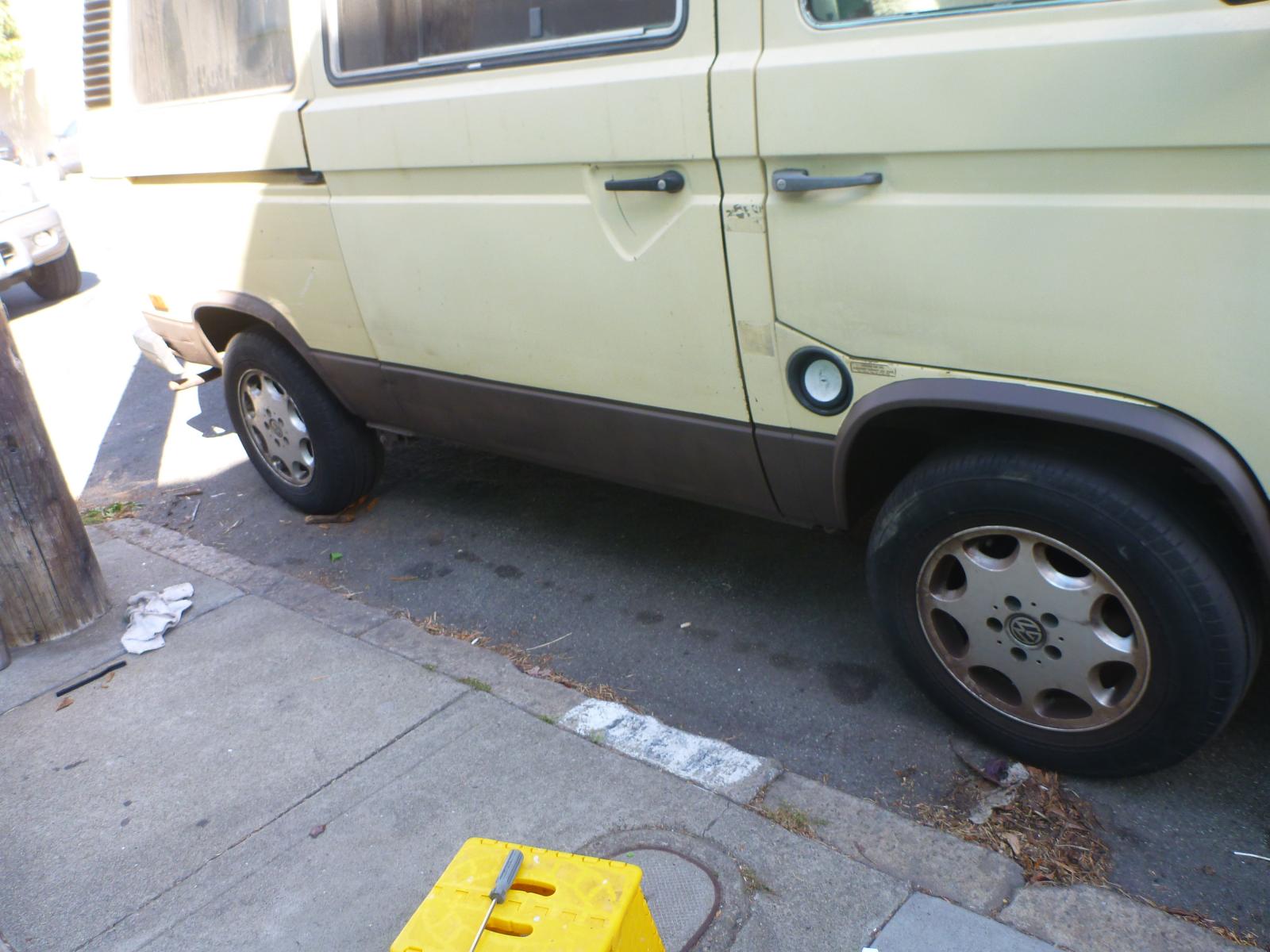

The bit under the front door is the 1st coat, recommended to be very thin,

some more coats, I think 5 or 6 in all,
Image may have been reduced in size. Click image to view fullscreen.

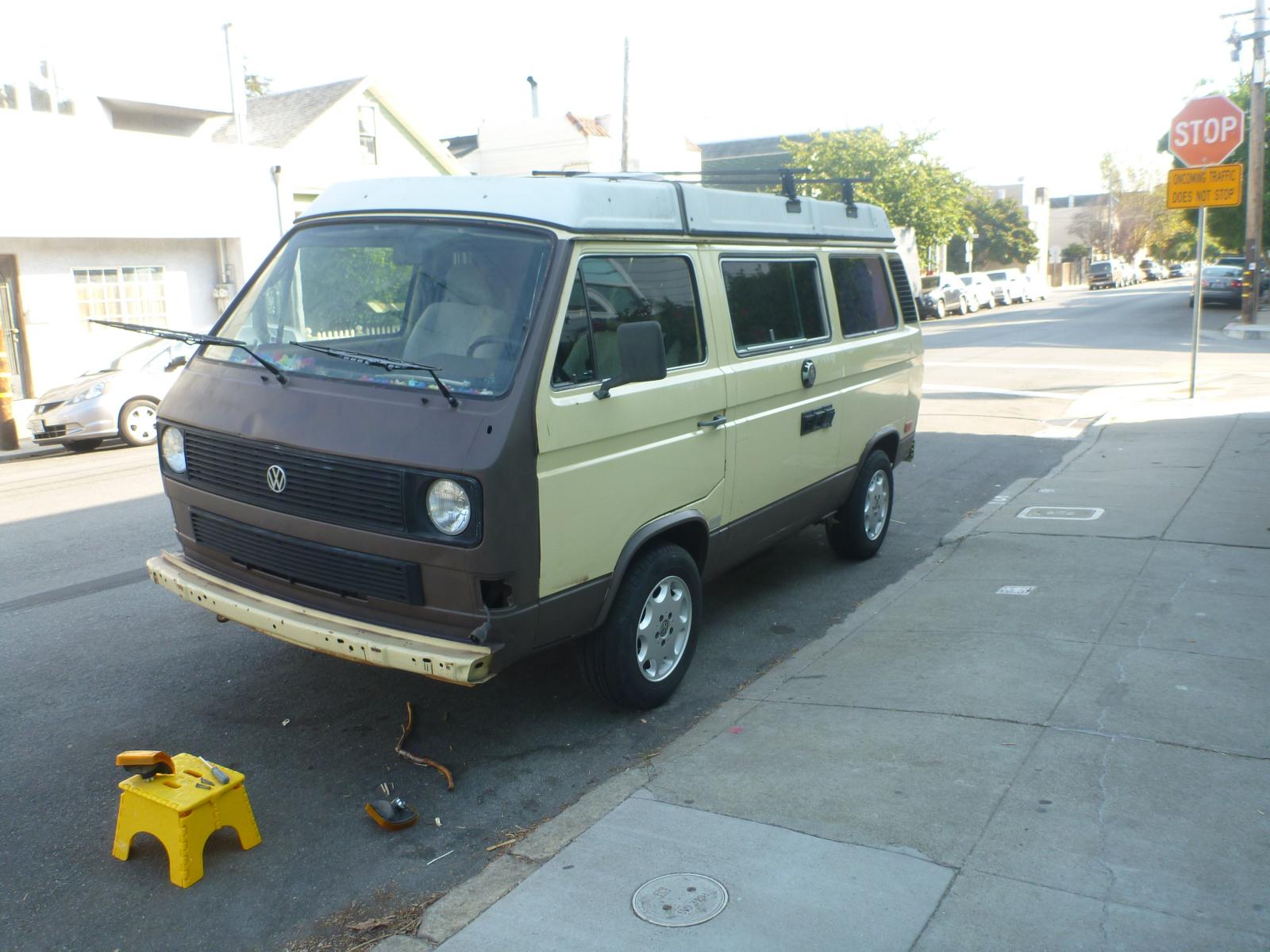

I've always envied the two-tone paint jobs,

Skipping ahead to the other side here's the kitchen seam treated and gooped, sure to elicit some criticism,
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
84 westie 2.178 w/ digijet, AT
Back to top
View user's profile Send private message Gallery Classifieds Feedback
whafalia
Samba Member


Joined: January 28, 2009
Posts: 626
Location: San Francisco
whafalia is offline

PostPosted: Mon Nov 13, 2017 8:20 am    Post subject: Re: Plastidip the ugly away, Reply with quote

bokonon42 wrote:
Looks good. I need one of my fender lips reshaped as well before I monstaliner mine. If you dig their work, mine sharing their contact info??
thanks
-terry


Pump #3 at the northernmost Chevron in Morgan Hill! Very Happy
_________________
84 westie 2.178 w/ digijet, AT
Back to top
View user's profile Send private message Gallery Classifieds Feedback
joetiger Premium Member
Samba Member


Joined: January 27, 2005
Posts: 4048
Location: denver
joetiger is offline

PostPosted: Mon Nov 13, 2017 8:21 am    Post subject: Re: Plastidip the ugly away, Reply with quote

While the full restoration threads are fantastic, I also really enjoy seeing this kind of work! It just goes to show that there's more than one way to skin a cat (or Vanagon, as the case may be.) Can't wait to see how it turns out.
_________________
Joe T.

'86 NAHT Vanagon GL Syncro/ supercharged ABA 2.0
'85 928S
'19 Golf R
'02 Beetle GLS

"get metaphysical with it. if it's simply a means to get to and from places, it will let you down. if it becomes your zen, it can't fail you." -dabaron

"Still, it's good to be afield."--VWagabond
Back to top
View user's profile Send private message Visit poster's website Instagram Gallery Classifieds Feedback
whafalia
Samba Member


Joined: January 28, 2009
Posts: 626
Location: San Francisco
whafalia is offline

PostPosted: Mon Nov 13, 2017 8:34 am    Post subject: Re: Plastidip the ugly away, Reply with quote

So on to the ugly front, Yes the desirable thing would be to remove the windshield, cut out the offended metal and weld in donor lip. If I hold myself to that standard nothing will happen and the van will be even uglier next spring,
maybe a pic repeat,
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


The rust converter instructions say not to apply to paint but that's not practical across this expanse,
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


On the paint the converter leaves a little opaque residue that will wipe off with acetone and some rubbing. On the front I left the residue, we'll see,
_________________
84 westie 2.178 w/ digijet, AT
Back to top
View user's profile Send private message Gallery Classifieds Feedback
whafalia
Samba Member


Joined: January 28, 2009
Posts: 626
Location: San Francisco
whafalia is offline

PostPosted: Mon Nov 13, 2017 8:42 am    Post subject: Re: Plastidip the ugly away, Reply with quote

Looks like I tried to upload too many pics at once and time to get ready for work, one more for now and I'll show the final later,
Image may have been reduced in size. Click image to view fullscreen.


Overspray removes easily with a little acetone, the trick to getting a clean edge is peeling the tape just after the final spray almost simultaneous as the last coat melts the prior and the tape will lift off while the dip is wet,
_________________
84 westie 2.178 w/ digijet, AT
Back to top
View user's profile Send private message Gallery Classifieds Feedback
shagginwagon83
Samba Member


Joined: February 07, 2016
Posts: 2777
Location: VA/TN
shagginwagon83 is offline

PostPosted: Mon Nov 13, 2017 8:47 am    Post subject: Re: Plastidip the ugly away, Reply with quote

whafalia wrote:


Meet my body workers, 10:30 at night in a gas station in Morgan Hill, used a porta-power and some hammer and dollie and shaped the fender lip for a hundred dollars, as well as pushing and pulling a couple of dents in the door.
Image may have been reduced in size. Click image to view fullscreen.


That's wild Laughing
_________________
Brandon
"Jo Ann" - 1983.5 Ivory Westfalia 1.9L 2wd
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
16CVs Premium Member
Samba Member


Joined: February 22, 2004
Posts: 3225
Location: Redwood City, California
16CVs is offline

PostPosted: Mon Nov 13, 2017 9:01 am    Post subject: Re: Plastidip the ugly away, Reply with quote

I'm sure the people in the Gas Station really appreciate it as well.

Stacy
_________________
1987 Syncro Westfalia Triple knob (bastard)
1989 Syncro Tristar Triple knob "Swedish"
2013 Jetta Hybrid a true "Zwitter"
Samba member # 14980
Call anytime number 650 722 4914 .
Keep Your van running and upkept tastefully for the love of the hobby.
Don't let your van end up in an "abortions" thread.
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address Gallery Classifieds Feedback
whafalia
Samba Member


Joined: January 28, 2009
Posts: 626
Location: San Francisco
whafalia is offline

PostPosted: Mon Nov 13, 2017 9:32 am    Post subject: Re: Plastidip the ugly away, Reply with quote

16CV's wrote:
I'm sure the people in the Gas Station really appreciate it as well.

Stacy


Didn't see any reaction around us, the wife and kid sleeping in the van were surprised though! We were on our way to Baja, I had a pocketful of cash, so what the heck. Funny was he said $100 to fix the fender, then he got into the slider and did some paintless manipulation on a couple of dents and says $200. I smiled and said $100 is enough, and he says $100 is enough. About 15 minutes,
_________________
84 westie 2.178 w/ digijet, AT
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bobbyblack Premium Member
Samba Member


Joined: May 21, 2015
Posts: 2794
Location: United States, Iowa
bobbyblack is offline

PostPosted: Mon Nov 13, 2017 9:34 am    Post subject: Re: Plastidip the ugly away, Reply with quote

16CV's wrote:
I'm sure the people in the Gas Station really appreciate it as well.


I had been guessing that it IS the people in the gas station...
_________________
'87 Westy 'Flossie','83.5 Vanagon L 'ZoomBus','74 Karmann Ghia, '63 Notch
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
whafalia
Samba Member


Joined: January 28, 2009
Posts: 626
Location: San Francisco
whafalia is offline

PostPosted: Mon Nov 13, 2017 9:44 am    Post subject: Re: Plastidip the ugly away, Reply with quote

I thought I had a pic of where I worked rust converter under the windshield gasket but don't see it. It turns into a black oxide that looks and feels stable.
Without further ado,
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Kicking the can down the road, I can peel the dip off in a year or 2 and see what's going on. If rust is slowed at all I don't think there will be much more work to repair than if I were to do it right now. I had one can of the camo brown and bought 6 more and ended up with a can left over. 6-pack of cans was about $50, seam sealer about $10. Acetone and masking tape were on hand.

I dinged it up a bit installing a new antennae, I just held a piece of paper up to mask the antennae and spritzed a bit on the repair. It melts into itself and doesn't show at all. Overspray wipes off easily with acetone.

For bonus points I razor bladed peeling clear coat and put in new utility boxes. It's not an embarrassment at this point, we'll see what it looks like next spring and beyond!
_________________
84 westie 2.178 w/ digijet, AT
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Sodo
Samba Member


Joined: July 06, 2007
Posts: 6184
Location: Western WA
Sodo is offline

PostPosted: Mon Nov 13, 2017 8:07 pm    Post subject: Re: Plastidip the ugly away, Reply with quote

Much better!

Now use a "cleaner wax" on the rest of the paint to remove the chalky oxidation layer, it will shine up more. And a cleaner on the white top and I'd say you have another 5 years looking good.
_________________


EJ25, Peloquin diff, locker, transaxle oil cooler/filtration system
....KTMs, GasGas, and a Stumpjumper
Gear oil is like underwear.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jimf909 Premium Member
Samba Member


Joined: April 03, 2014
Posts: 4811
Location: Seattle
jimf909 is offline

PostPosted: Tue Nov 14, 2017 12:31 am    Post subject: Re: Plastidip the ugly away, Reply with quote

Thisíll never work.





Very Happy Very Happy Very Happy
_________________
Current: 1990 Westy Camper - Bostig RG4, 2wd, manual trans w/Peloquin, NAHT high-top, Flash Silver, seam rust, bondo, etc., etc.

Past: 1985 Westy Camper - 1.9 wbx, 2wd, manual trans, Merian Brown, (sold after 17 years to Northwesty who converted it to a Syncro).
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
