 Posted: Fri May 17, 2019 8:55 pm Post subject: Engine Case Splitter |
 |
|

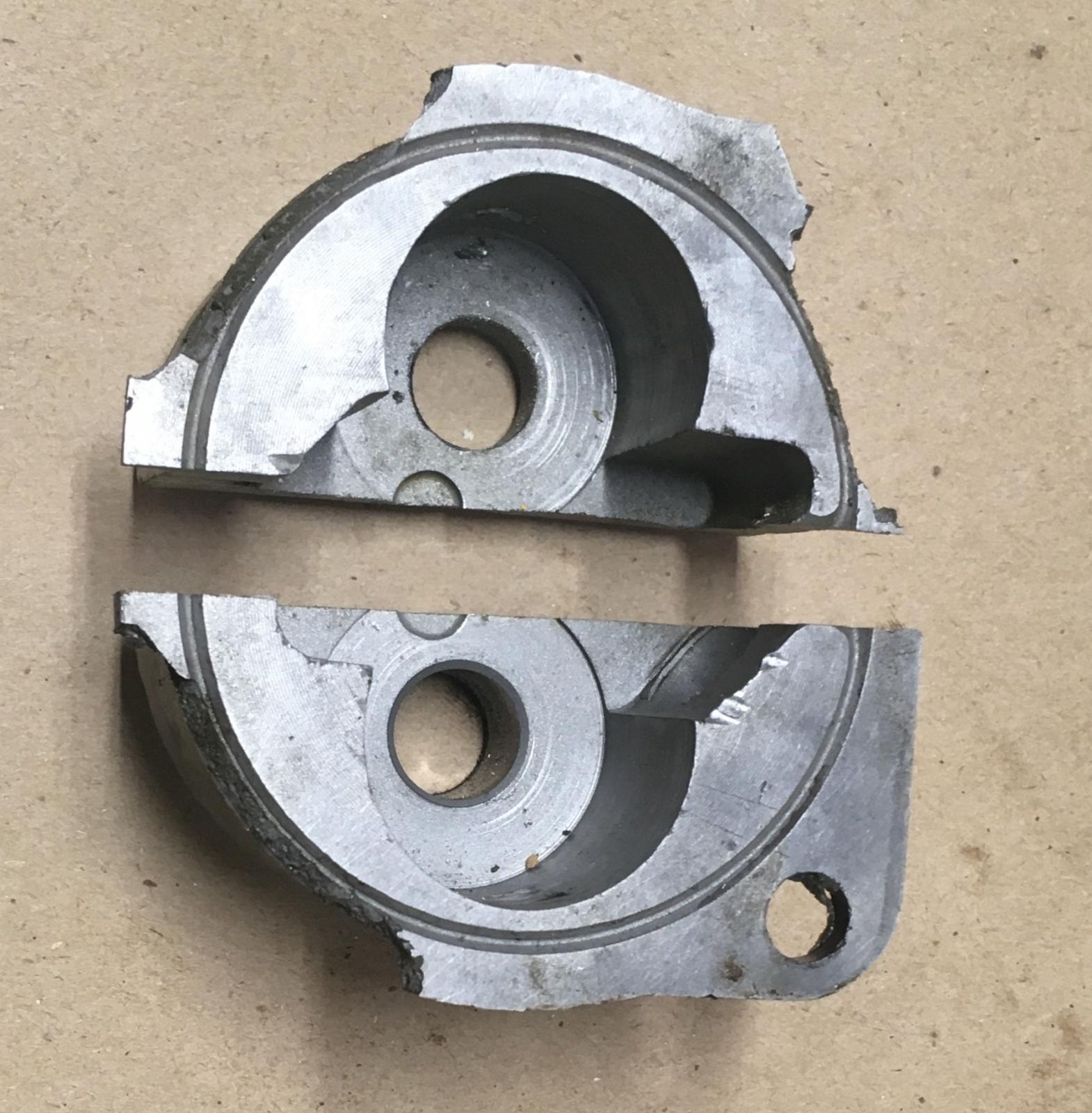

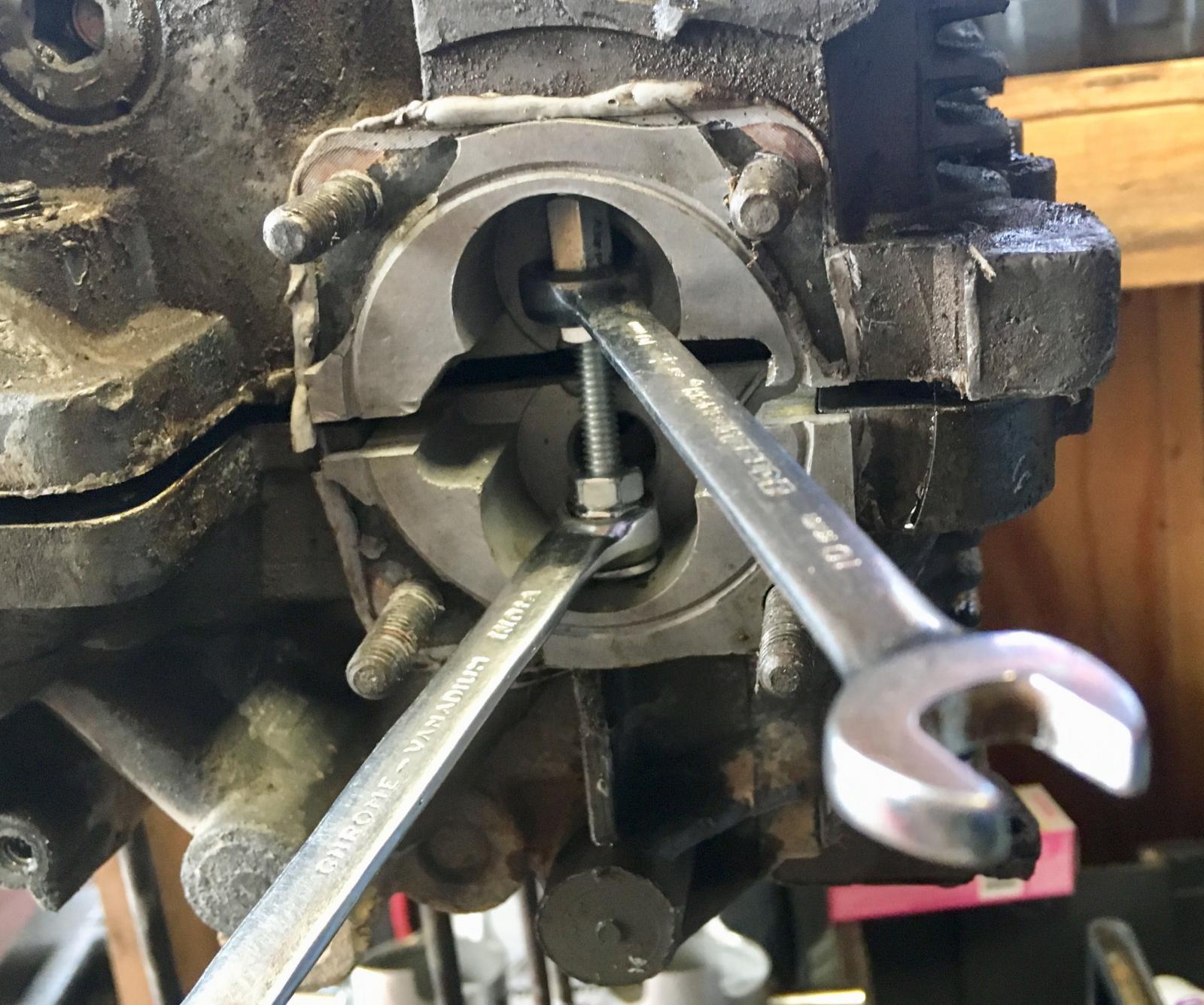

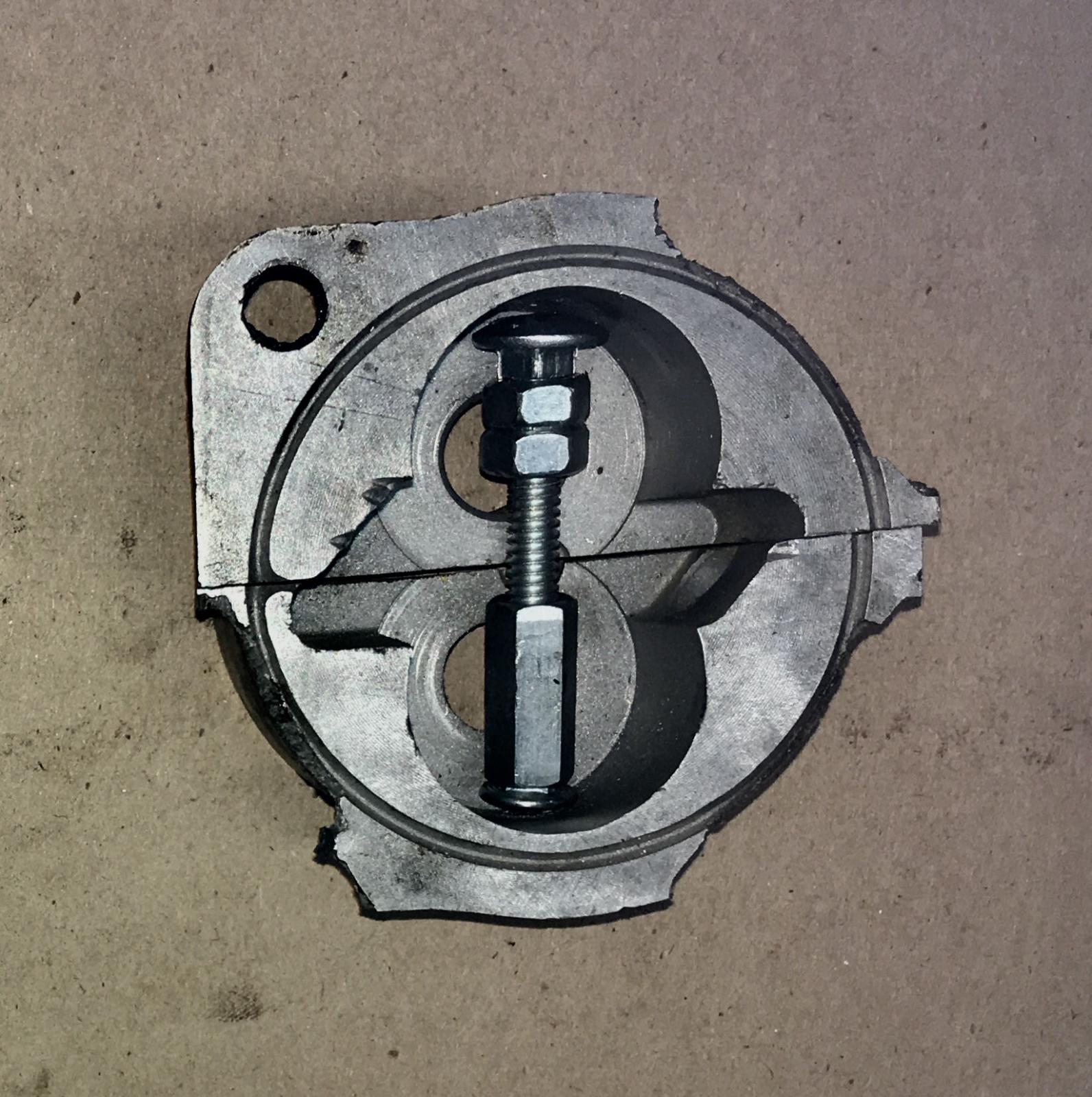

I had to split my case to replace the Crank and made myself a Case splitter from an old oil pump. Parts cost me less than $1.00
_________________
Mike
81 Vanagon Westy
74 Thing Currently under a pan off restoration
73 Standard Beetle that we tow behind our Motorhome & use for sightseeing.
Click to view image |
|
| Back to top |
|
 |
glutamodo
The Android
Joined: July 13, 2004
Posts: 26609
Location: Douglas, WY
|
| Posted: Fri May 17, 2019 11:59 pm Post subject: Re: Engine Case Splitter |
|
|
If it works and doesn't hurt anything, seems good to me.
I'm sure all manner of home-brewed leverage devices have been created over the years. Me, I long ago got pretty good at delivering well-placed smacks with a dead-blow rubber mallet to get case halves apart.
_________________
Andy T.
"What is Glutamodo, Horror of Toyko, besides total, fiendish, quality-a-you brain!" |
|
| Back to top |
|
|
viiking
Samba Member
Joined: May 10, 2013
Posts: 3402
Location: Sydney Australia
|
| Posted: Sat May 18, 2019 12:39 am Post subject: Re: Engine Case Splitter |
|
|
Well done. The simplest (and cheapest) home made solutions are usually the best, and you get free shipping, good customer service and full instructions on their use  !
_________________
1968 1500 RHD Lotus White Beetle since birth. In the hospital for major surgery
1966 Lancia Flavia Pininfarina Coupe - in the waiting room
Discharged: 1983 Vanagon, 1974 1800 Microbus,1968 Low Light,1968 Type 3 |
|
| Back to top |
|
|
modok
Samba Member
Joined: October 30, 2009
Posts: 27747
Location: Colorado Springs
|
|
| Back to top |
|
|
Zundfolge1432
Samba Member
Joined: June 13, 2004
Posts: 12583
|
| Posted: Sat May 18, 2019 10:36 am Post subject: Re: Engine Case Splitter |
|
|
| 40+ years never needed one but have seen more than one case damaged when excessive force was applied and they forgot the two hidden nuts behind and below cylinder #1. Have seen them used to advantage on cases that were shuffle pinned. |
|
