Recommended distributor for a 36hp motor
Page: 1, 2  Next
Forum Index -> Beetle - 1958-1967 Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Glenn Collier
Samba Member


Joined: September 12, 2015
Posts: 7
Location: AUSTRALIA
Glenn Collier is offline

PostPosted: Sat Jul 22, 2017 8:32 pm    Post subject: Recommended distributor for a 36hp motor Reply with quote

Hello samba world,
I'm wondering if somebody can help in recommending a good distributor for a 36hp beetle motor? Thank you
Back to top
View user's profile Send private message Classifieds Feedback
Glenn
Mr. 010


Joined: December 25, 2001
Posts: 73823
Location: Sneaking up behind you
Glenn is offline

PostPosted: Sat Jul 22, 2017 8:38 pm    Post subject: Re: Recommended distributor for a 36hp motor Reply with quote

VJU4BR8, that's what came with it from the factory (assuming it has the stock carb).

Image may have been reduced in size. Click image to view fullscreen.

_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Glenn Collier
Samba Member


Joined: September 12, 2015
Posts: 7
Location: AUSTRALIA
Glenn Collier is offline

PostPosted: Sat Jul 22, 2017 8:44 pm    Post subject: Re: Recommended distributor for a 36hp motor Reply with quote

Thank you
Back to top
View user's profile Send private message Classifieds Feedback
txoval
Samba Member


Joined: January 23, 2004
Posts: 3220
Location: The Woodlands, TX
txoval is offline

PostPosted: Sun Jul 23, 2017 4:55 am    Post subject: Re: Recommended distributor for a 36hp motor Reply with quote

Another would be the VJ4 BR8, which is what I use for my 36hp (bought from Glenn)

It is a mechanical advance only and has the same advance curve as the Bosch 019
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
EverettB Premium Member
Administrator


Joined: April 11, 2000
Posts: 67990
Location: Phoenix, AZ
EverettB is offline

PostPosted: Sun Jul 23, 2017 9:19 am    Post subject: Re: Recommended distributor for a 36hp motor Reply with quote

It should be VERY easy to find that stock Beetle 36hp distributor too, although I don't know availability in Australia.

In the USA you can find one at any show.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Instagram Gallery Classifieds Feedback
Zundfolge1432 Premium Member
Samba Member


Joined: June 13, 2004
Posts: 12167

Zundfolge1432 is offline

PostPosted: Sun Jul 23, 2017 10:22 am    Post subject: Re: Recommended distributor for a 36hp motor Reply with quote

Of course it's sacrilege here, I ran a German 009 for years with no problem.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
wcfvw69 Premium Member
Samba Purist


Joined: June 10, 2004
Posts: 13139
Location: Arizona
wcfvw69 is offline

PostPosted: Sun Jul 23, 2017 2:26 pm    Post subject: Re: Recommended distributor for a 36hp motor Reply with quote

Zundfolge1432 wrote:
Of course it's sacrilege here, I ran a German 009 for years with no problem.


Image may have been reduced in size. Click image to view fullscreen.


You did WWWHHHAAATTTT!?!?!?! Very Happy
_________________
Contact me at [email protected]
Decades of VW and VW parts restoration experience.
The Samba member since 2004.


**Restored German Bosch distributors for sale or I can restore yours**
**Restored German Pierburg fuel pumps for sale or I can restore yours**
**Restored Porsche fuel pumps or I can restore yours**
**Restored Porsche distributors or I can restore yours**



1970 Westfalia Bus
1969 Convertible Bug
1967 Standard Bug
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
tasb
The Distributor Distributor


Joined: April 27, 2002
Posts: 6367
Location: in transition to northwest Michigan
tasb is offline

PostPosted: Wed Jul 26, 2017 5:25 pm    Post subject: Re: Recommended distributor for a 36hp motor Reply with quote

There are even VJU 4 BR 8's that were made in Austrailia! They have a little kangaroo stamped into the housing.
_________________
Roads Scholar & distributor restorations
1956 oval third owner 36 hp- slow drag Champion 2012, 2014, 2015, 2017 sold to a good new home

1957 Kombi low mileage 36 hp governor equipped M 178 Slow Drag Winner 2014, 2015, 2018
1960 sunroof beetle owned since 1991 36 hp moved on after 32 years of stewardship.

1965 hardtop Deluxe Microbus owned since 1990 M 620 factory 12 v 1500cc
1961 (October)Single Cab- Road Trip Workhorse
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Glenn Collier
Samba Member


Joined: September 12, 2015
Posts: 7
Location: AUSTRALIA
Glenn Collier is offline

PostPosted: Wed Jul 26, 2017 5:50 pm    Post subject: Re: Recommended distributor for a 36hp motor Reply with quote

Thank you all for the help
Back to top
View user's profile Send private message Classifieds Feedback
heimlich Premium Member
VWNOS.com


Joined: November 20, 2016
Posts: 5238
Location: Houston, Texas
heimlich is offline

PostPosted: Wed Jul 26, 2017 8:11 pm    Post subject: Re: Recommended distributor for a 36hp motor Reply with quote

tasb wrote:
There are even VJU 4 BR 8's that were made in Austrailia! They have a little kangaroo stamped into the housing.


Why not a Koala bear?
_________________
www.vwnos.com [email protected]
Classic Brands. Classic Quality.
Not all parts are made the same. NOS OEM parts made mainly in West Germany, Early Germany, and Early Brazil are where VW produced the best quality parts and best fitting products.
5% Off your order with coupon code: 5%OFF
Restored Distributors Available (<--Click here)
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Glenn
Mr. 010


Joined: December 25, 2001
Posts: 73823
Location: Sneaking up behind you
Glenn is offline

PostPosted: Thu Jul 27, 2017 5:31 am    Post subject: Re: Recommended distributor for a 36hp motor Reply with quote

kawfee wrote:
tasb wrote:
There are even VJU 4 BR 8's that were made in Austrailia! They have a little kangaroo stamped into the housing.


Why not a Koala bear?


Image may have been reduced in size. Click image to view fullscreen.

_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Glenn Collier
Samba Member


Joined: September 12, 2015
Posts: 7
Location: AUSTRALIA
Glenn Collier is offline

PostPosted: Fri Jul 28, 2017 1:04 am    Post subject: Re: Recommended distributor for a 36hp motor Reply with quote

No Koala bears. Kangaroos taste better
Back to top
View user's profile Send private message Classifieds Feedback
Helfen
Samba Member


Joined: January 19, 2009
Posts: 3440
Location: Vulcania
Helfen is offline

PostPosted: Sun Jul 30, 2017 2:02 pm    Post subject: Re: Recommended distributor for a 36hp motor Reply with quote

Glenn wrote:
VJU4BR8, that's what came with it from the factory (assuming it has the stock carb).

Image may have been reduced in size. Click image to view fullscreen.


Depends what year 36hp you have.
This 36hp didn't come with that distributor;
https://i132.photobucket.com/albums/q16/threespoke/standardkafer/literature/LIT265brocengine.jpg
Back to top
View user's profile Send private message Classifieds Feedback
Glenn
Mr. 010


Joined: December 25, 2001
Posts: 73823
Location: Sneaking up behind you
Glenn is offline

PostPosted: Sun Jul 30, 2017 3:21 pm    Post subject: Re: Recommended distributor for a 36hp motor Reply with quote

Helfen wrote:
Depends what year 36hp you have.
This 36hp didn't come with that distributor;
https://i132.photobucket.com/albums/q16/threespoke/standardkafer/literature/LIT265brocengine.jpg

That's a Garbe Lahmeyer and used on some of the last 36hp and into the 40hp.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
tasb
The Distributor Distributor


Joined: April 27, 2002
Posts: 6367
Location: in transition to northwest Michigan
tasb is offline

PostPosted: Sun Jul 30, 2017 5:05 pm    Post subject: Re: Recommended distributor for a 36hp motor Reply with quote

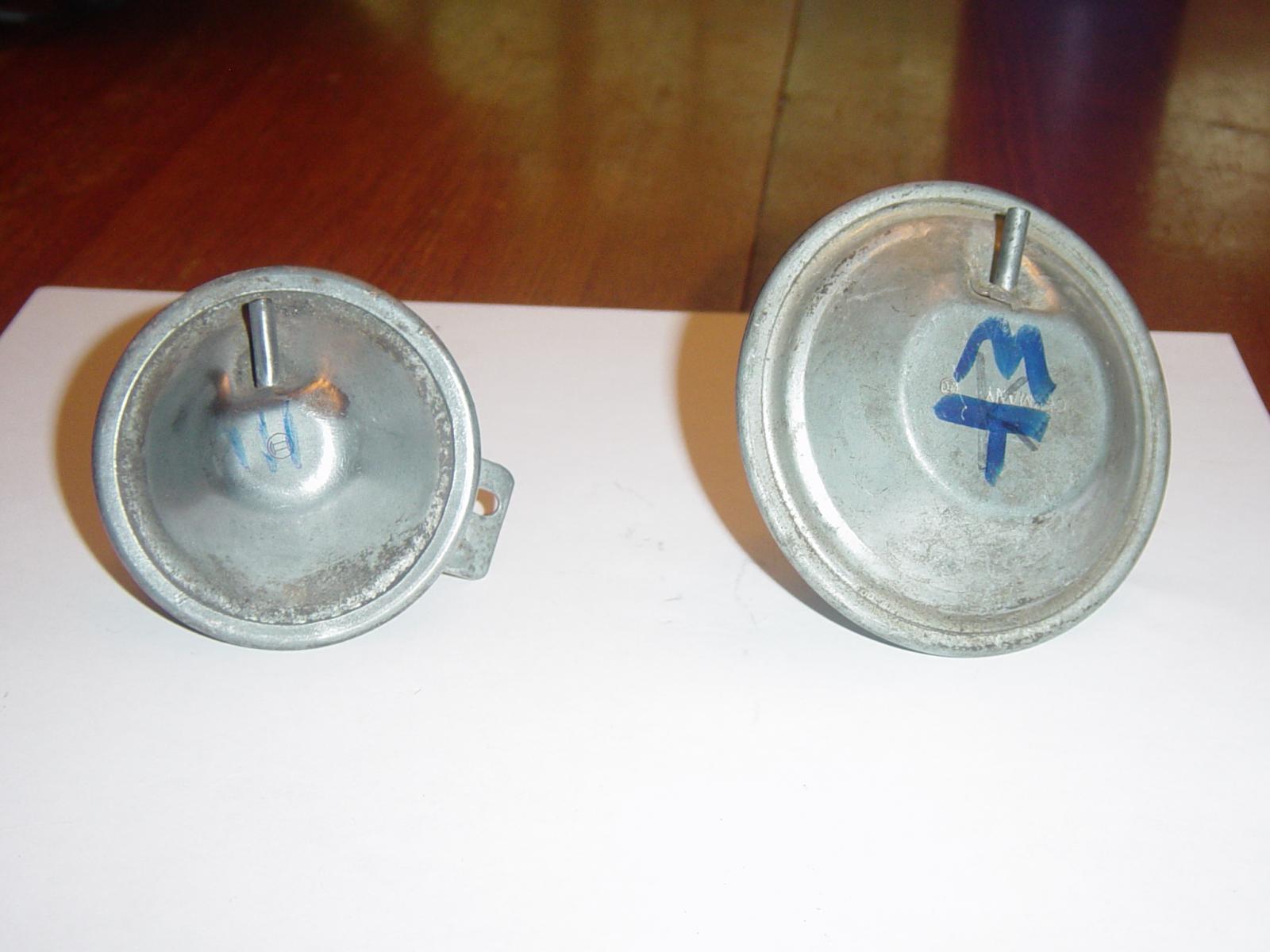

Based on the shape of the vacuum canister I'd have to say 111 series Bosch 40 hp. The GL distributors were painted black like the early 36 hp Bosch. Either way that picture is a mish mash of parts.
_________________
Roads Scholar & distributor restorations
1956 oval third owner 36 hp- slow drag Champion 2012, 2014, 2015, 2017 sold to a good new home

1957 Kombi low mileage 36 hp governor equipped M 178 Slow Drag Winner 2014, 2015, 2018
1960 sunroof beetle owned since 1991 36 hp moved on after 32 years of stewardship.

1965 hardtop Deluxe Microbus owned since 1990 M 620 factory 12 v 1500cc
1961 (October)Single Cab- Road Trip Workhorse
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Helfen
Samba Member


Joined: January 19, 2009
Posts: 3440
Location: Vulcania
Helfen is offline

PostPosted: Sun Jul 30, 2017 5:24 pm    Post subject: Re: Recommended distributor for a 36hp motor Reply with quote

Glenn wrote:
Helfen wrote:
Depends what year 36hp you have.
This 36hp didn't come with that distributor;
https://i132.photobucket.com/albums/q16/threespoke/standardkafer/literature/LIT265brocengine.jpg

That's a Garbe Lahmeyer and used on some of the last 36hp and into the 40hp.


Is that what I have on my 65 36hp? BTW everything is matching numbers car. Original Engine, carb, fuel pump, distributor, coil, generator etc.
https://www.thesamba.com/vw/gallery/pix/516081.jpg
Back to top
View user's profile Send private message Classifieds Feedback
Glenn
Mr. 010


Joined: December 25, 2001
Posts: 73823
Location: Sneaking up behind you
Glenn is offline

PostPosted: Sun Jul 30, 2017 5:48 pm    Post subject: Re: Recommended distributor for a 36hp motor Reply with quote

Looks like a Bosch 205K.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
tasb
The Distributor Distributor


Joined: April 27, 2002
Posts: 6367
Location: in transition to northwest Michigan
tasb is offline

PostPosted: Sun Jul 30, 2017 6:33 pm    Post subject: Re: Recommended distributor for a 36hp motor Reply with quote

[quote="Helfen"]
Glenn wrote:
Helfen wrote:
Depends what year 36hp you have.
This 36hp didn't come with that distributor;
https://i132.photobucket.com/albums/q16/threespoke/standardkafer/literature/LIT265brocengine.jpg

That's a Garbe Lahmeyer and used on some of the last 36hp and into the 40hp.


Is that what I have on my 65 36hp? BTW everything is matching numbers car. Original Engine, carb, fuel pump, distributor, coil, generator etc.
https://www.thesamba.com/vw/gallery/pix/516081.jpg[/quote


That carburetor and distributor are definitely not a factory match even for a late 36 domestic engine. The distributor is from 1966-1969 era, sorry. The fuel pump also appears to be a very early version.
_________________
Roads Scholar & distributor restorations
1956 oval third owner 36 hp- slow drag Champion 2012, 2014, 2015, 2017 sold to a good new home

1957 Kombi low mileage 36 hp governor equipped M 178 Slow Drag Winner 2014, 2015, 2018
1960 sunroof beetle owned since 1991 36 hp moved on after 32 years of stewardship.

1965 hardtop Deluxe Microbus owned since 1990 M 620 factory 12 v 1500cc
1961 (October)Single Cab- Road Trip Workhorse
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
wcfvw69 Premium Member
Samba Purist


Joined: June 10, 2004
Posts: 13139
Location: Arizona
wcfvw69 is offline

PostPosted: Sun Jul 30, 2017 6:42 pm    Post subject: Re: Recommended distributor for a 36hp motor Reply with quote

Helfen wrote:
Glenn wrote:
Helfen wrote:
Depends what year 36hp you have.
This 36hp didn't come with that distributor;
https://i132.photobucket.com/albums/q16/threespoke/standardkafer/literature/LIT265brocengine.jpg

That's a Garbe Lahmeyer and used on some of the last 36hp and into the 40hp.


Is that what I have on my 65 36hp? BTW everything is matching numbers car. Original Engine, carb, fuel pump, distributor, coil, generator etc.
https://www.thesamba.com/vw/gallery/pix/516081.jpg


It looks like a 111905205L or M based on the vacuum can style. That would be a year correct distributor for a 65. You can get a mirror or yank it out to read the number
_________________
Contact me at [email protected]
Decades of VW and VW parts restoration experience.
The Samba member since 2004.


**Restored German Bosch distributors for sale or I can restore yours**
**Restored German Pierburg fuel pumps for sale or I can restore yours**
**Restored Porsche fuel pumps or I can restore yours**
**Restored Porsche distributors or I can restore yours**



1970 Westfalia Bus
1969 Convertible Bug
1967 Standard Bug
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
tasb
The Distributor Distributor


Joined: April 27, 2002
Posts: 6367
Location: in transition to northwest Michigan
tasb is offline

PostPosted: Sun Jul 30, 2017 6:47 pm    Post subject: Re: Recommended distributor for a 36hp motor Reply with quote

Vacuum canister comparison. On the left the 111 series used with ZV/JU 4 R 3(L) and the 111 905 205 M and N. On the right the 113 series canister used with the 113 905 205 K, M, T and a few others.

Image may have been reduced in size. Click image to view fullscreen.


Helfen, please post your pics to the Samba gallery so that they will stick around for awhile.
_________________
Roads Scholar & distributor restorations
1956 oval third owner 36 hp- slow drag Champion 2012, 2014, 2015, 2017 sold to a good new home

1957 Kombi low mileage 36 hp governor equipped M 178 Slow Drag Winner 2014, 2015, 2018
1960 sunroof beetle owned since 1991 36 hp moved on after 32 years of stewardship.

1965 hardtop Deluxe Microbus owned since 1990 M 620 factory 12 v 1500cc
1961 (October)Single Cab- Road Trip Workhorse


Last edited by tasb on Wed Aug 02, 2017 7:01 am; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Beetle - 1958-1967 All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
