PostPosted: Mon Oct 07, 2024 8:34 pm    Post subject: Ghia Seat and seatbelt sensors- E Brake contact Switch Reply with quote

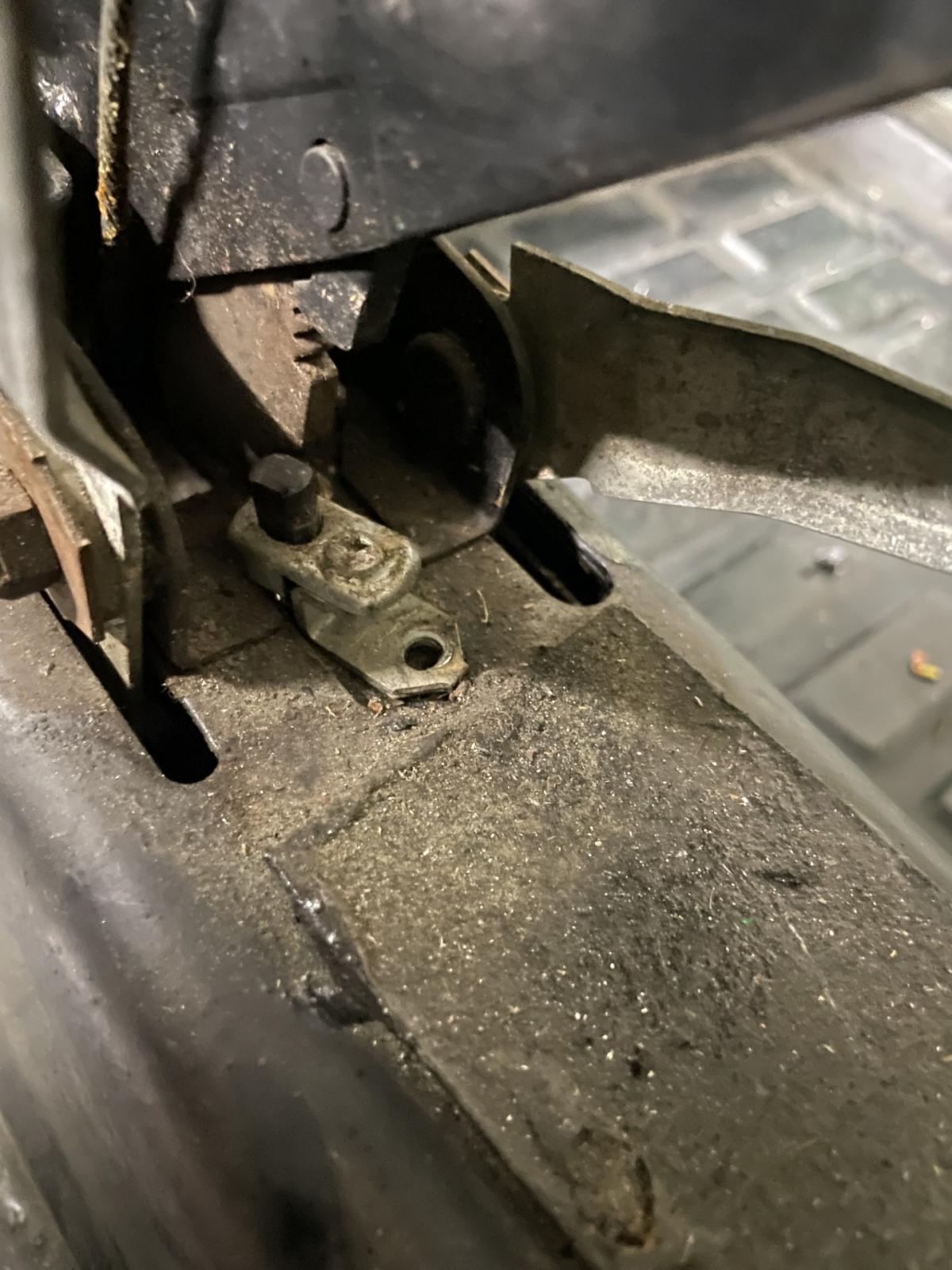

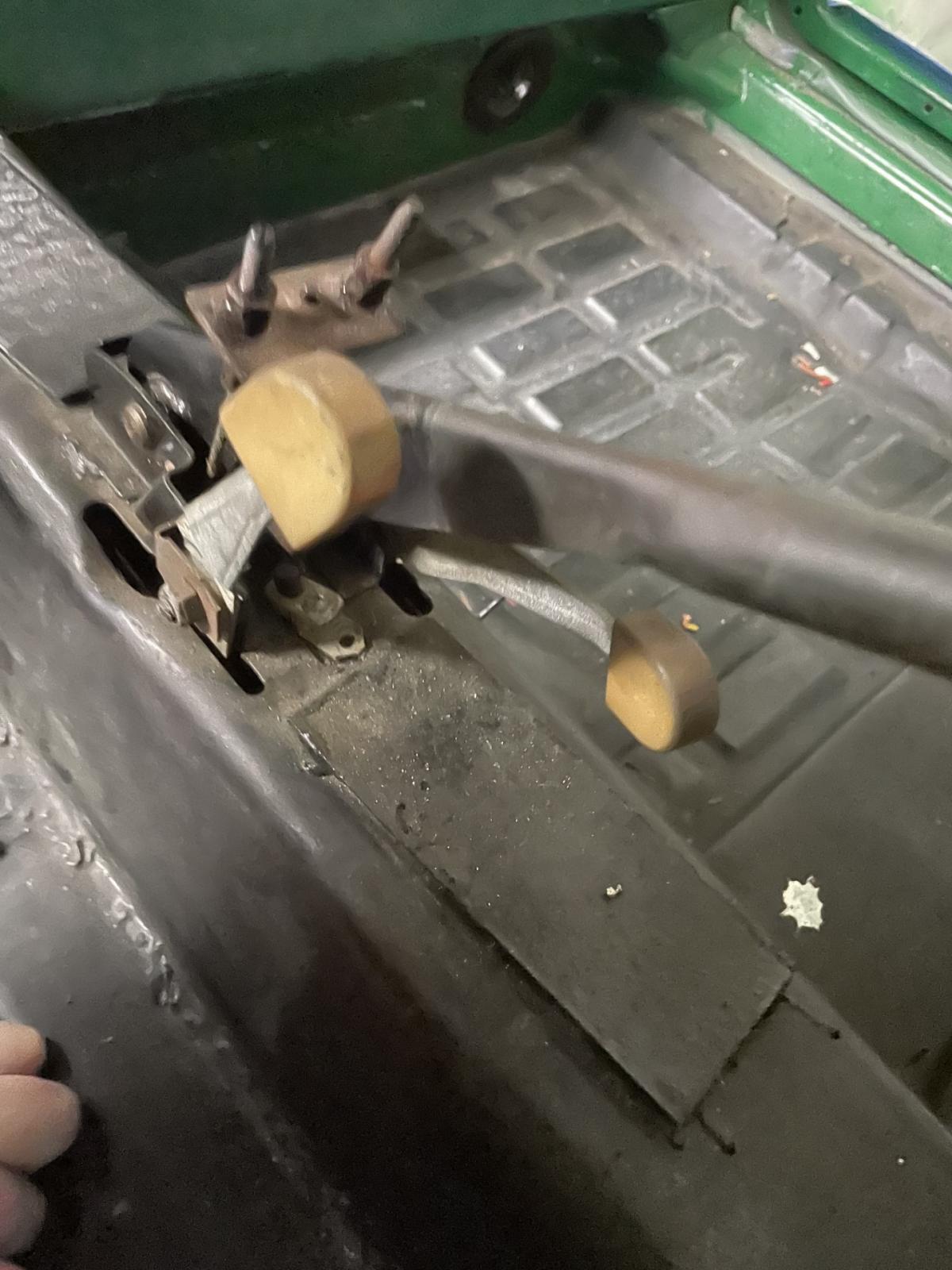

1st the easy question (see pic). rebuilding 74 Ghia. just started on wiring and I noticed that the E-Brake has a door type contact switch. I removed it and there's just a broken black wire. Any help on what goes there?

(there is a disconnected GREEN wire but I can't find anywhere to confirm a green wire goes there)

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

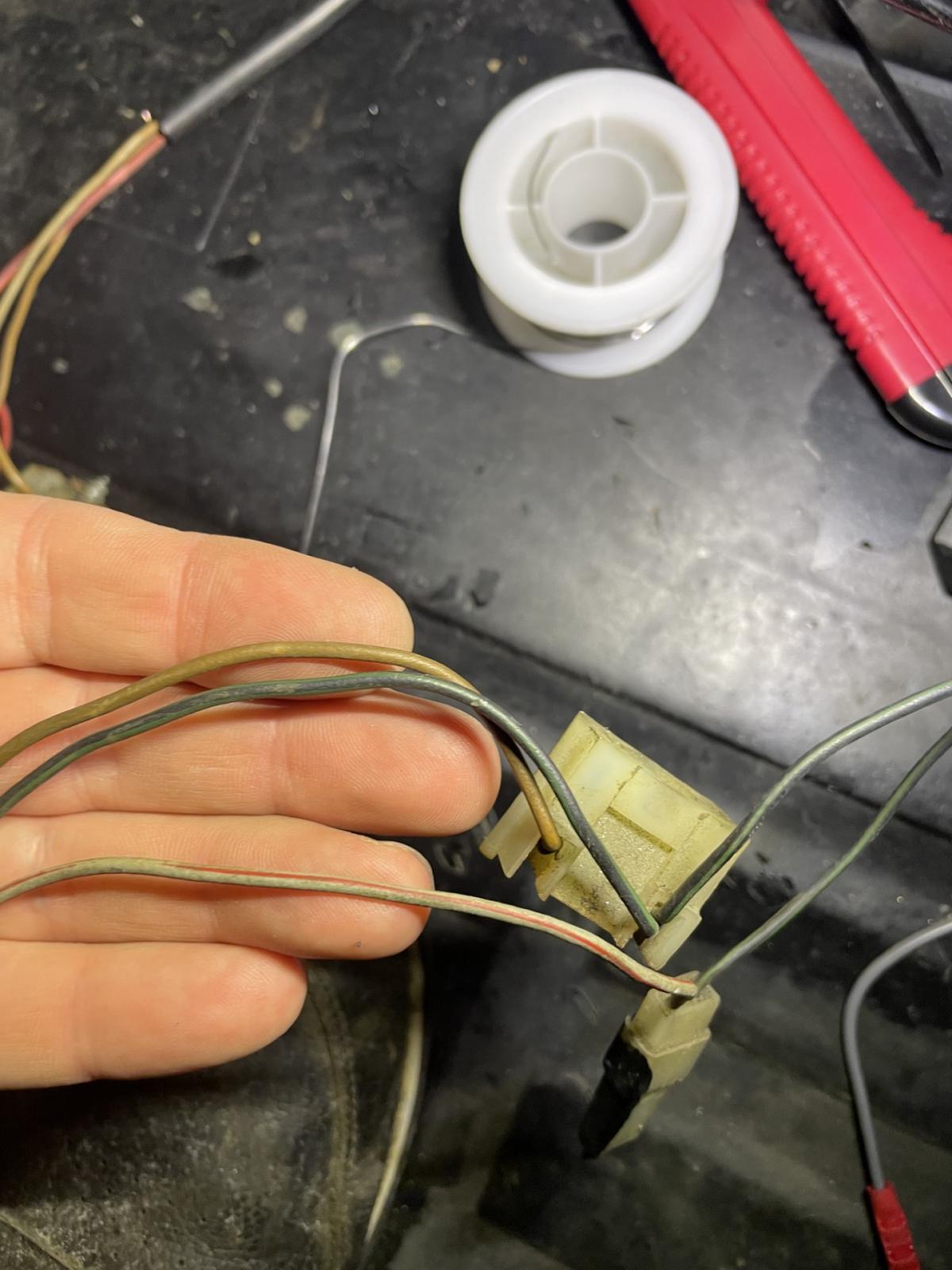

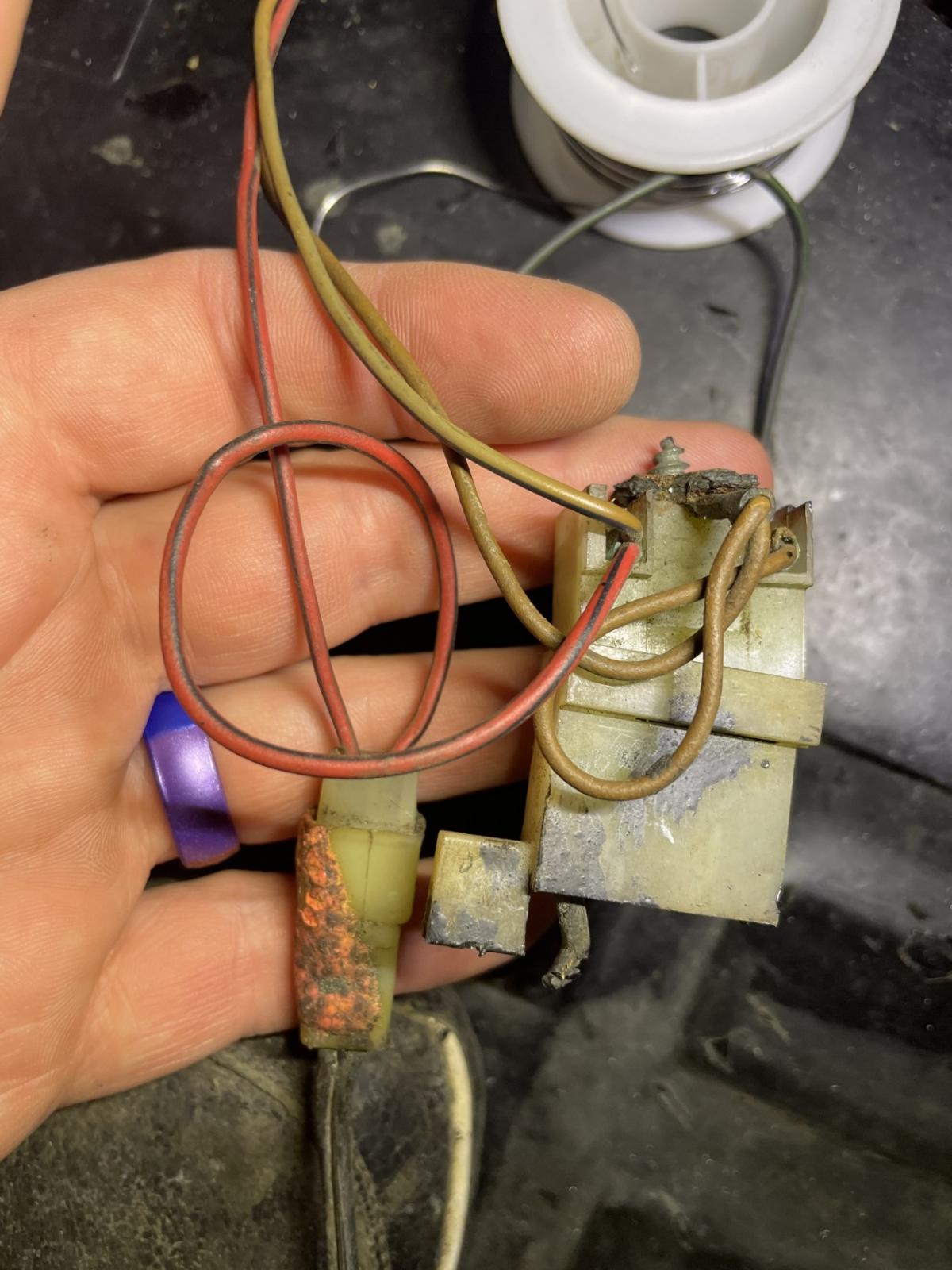

2nd-There is pictures of the driver and passenger side seat/seatbelt sensors. Yes, I hate this idea too and I'm going to disable them, but also I want to leave them under the seats so the wiring can stay close to stock as possible and yes the weird Emergency sensor relay IS installed and wired to stock specs.

I just want to leave these sensors under the seat but not hook them up. So, I guess what I'm asking is the best way to wire them, so the relay thinks there
working right but there only wired to "by-pass" the sensors cutoffs.


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
runamoc Premium Member
Samba Member


Joined: June 19, 2006
Posts: 6313
Location: 37.5N 77.1W
runamoc is offline

PostPosted: Tue Oct 08, 2024 10:29 am    Post subject: Re: Ghia Seat and seatbelt sensors- E Brake contact Switch Reply with quote

The seat belt contacts are Normally Closed switches. Leaving them disconnected at the plug will do what you want. The emergency brake switch is a Normally Closed switch. Leaving it disconnected will do what you want.
_________________
Daily driver: '69 Baja owned 45 yrs - Plan B: '72 Ghia
Yard Art: 2 Sandrails
Outback: '69 Ghia - '68,'69,'70,'72 Beetle - '84 Scirocco, GTI - Pair of '02 Golfs- '80 Rabbit Diesel
VW Wiring = It's just wires
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dennispower
Samba Member


Joined: April 25, 2024
Posts: 19
Location: Nashville TN
dennispower is offline

PostPosted: Tue Oct 08, 2024 6:11 pm    Post subject: Re: Ghia Seat and seatbelt sensors- E Brake contact Switch Reply with quote

runamoc wrote:
The seat belt contacts are Normally Closed switches. Leaving them disconnected at the plug will do what you want. The emergency brake switch is a Normally Closed switch. Leaving it disconnected will do what you want.


Thank you sir!!!!!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
PolarBearVW
Samba Member


Joined: June 26, 2013
Posts: 316

PolarBearVW is offline

PostPosted: Sat Oct 12, 2024 7:43 am    Post subject: Re: Ghia Seat and seatbelt sensors- E Brake contact Switch Reply with quote

Also scan this thread on the wire colors/connectors to that switch:
https://www.thesamba.com/vw/forum/viewtopic.php?t=589643&highlight=
_________________
1974 Ghia Coupe
