Sullair VW air compressor

VWRICK69 · Posted: Fri Aug 17, 2012 5:12 am Post subject: Sullair VW air compressor

Got this new toy, it needs some work and a few parts. I have tried to search and keep coming up empty.

Image may have been reduced in size. Click image to view fullscreen.

_________________
1969 CREWCAB and UHAUL camper

VWRICK69 · Posted: Fri Aug 17, 2012 5:13 am Post subject:

_________________
1969 CREWCAB and UHAUL camper

VWRICK69 · Posted: Fri Aug 17, 2012 5:15 am Post subject:

_________________
1969 CREWCAB and UHAUL camper

VWRICK69 · Posted: Fri Aug 17, 2012 5:17 am Post subject:

Any help greatly appreciated.

_________________
1969 CREWCAB and UHAUL camper

metalchomper · Posted: Fri Aug 17, 2012 5:10 pm Post subject:

Interesting find. Your post didn't say what you are missing. Only thing I see is it appears to be missing linkage from the governor to the carb. Be careful with working with screw compressors. Make sure the regulation system is in good working order and the separator tank is in good condition with the proper oil. If the sep element is bad you could blow all the oil out the air discharge and damage the compressor. There are many other components in the regulation system that can go bad from sitting and could cause airend failure.
_________________
Brett

Devil Dog Dubs

I live vicariously through me

'62 Beetle, "Zombie Mojo"
'68 Manx II "Conundrum"
'72 SB "Luftwaffle", 2270 T4
'75 SB Wizard Rodster "Olympias" (Mrs. Metalchomper's car)

zozo · Posted: Fri Aug 17, 2012 5:20 pm Post subject:

I've got an industrial engine parts manual if you need something looked up. I've got a scan of it as well that I could probably burn a copy of, if you need it.

VWRICK69 · Posted: Sun Aug 26, 2012 5:30 am Post subject:

ZOZO, that would be great,THANKS! The exhaust on #3 is rotted, wrong dist cap, no gov arm, wrong gov belt, and misc. Are you any where near Marion, a great friend of mine lives near there? I am wondering year and specs. I would like to restore this compressor to an original appearance. The compressor makes great air and isn't blowing any oil.
_________________
1969 CREWCAB and UHAUL camper

XXX/Rx/RnR · Posted: Fri Aug 31, 2012 3:04 am Post subject:

I see the Sullair sticker. We have a screw machine at work here. Much bigger. # for sales and service 219-879-5451
_________________
78' westy, 2.4 195hp ecotec, audi turbo a/t, a\c, 2 1/2" lift spindles, index rear, 930 cv's & axles, 225x65x17 BFGs ## 77' hardtop 2.0 T-4 duel 44 weber's, 225x50x17s ## 74' baha bug

kravdog · Posted: Thu Jan 02, 2014 3:39 pm Post subject:

Ok. By way of introduction, I purchased one of these air compressors just a couple of weeks ago. I have searched the internet high & low trying to find out information, but I this little thread is about it! I recognize that this is a VW forum, and appreciate any help in advance!

On to my dumb issues:

#1 - My brother mistook the OIL cap for a gas cap, and filled it with a gallon or so of gas... I decided that the best course of action would be to drain the oil, but actually unscrewed the bolt/spring to the side of the oil drain... I had a lot of fuel pour out... What is this drain called?

#2 --- For the life of us, we can't seem to find the gas tank/cap on this thing... We have tried following the fuel pump, but it gets lost in the sullair pump side of things.. Anyone have an idea where it would be located?

tiger 66 · Posted: Sat Jan 04, 2014 5:00 am Post subject: re indusrial engines

hi ive had a few industrial vw engines over the years this is one i still have and runs very well made in 1966

ratherb-buggin · Posted: Mon Oct 19, 2015 12:00 pm Post subject:

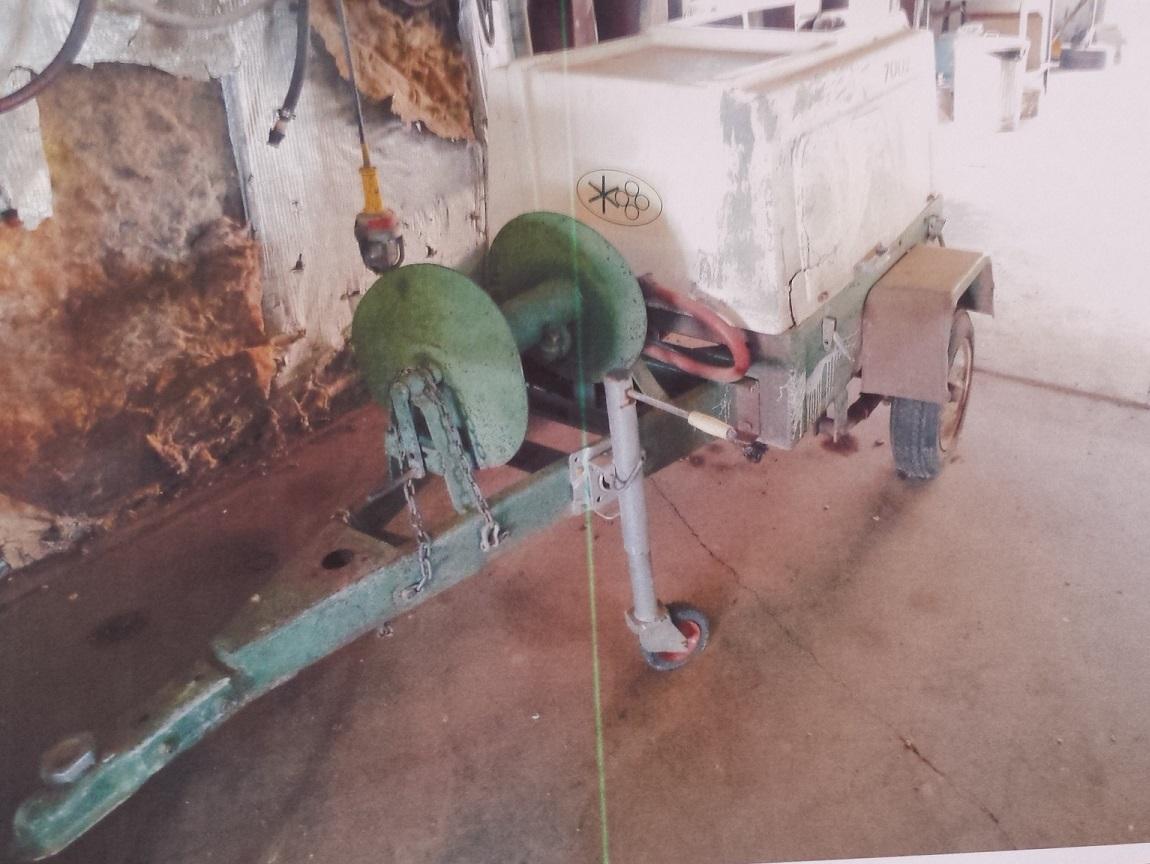

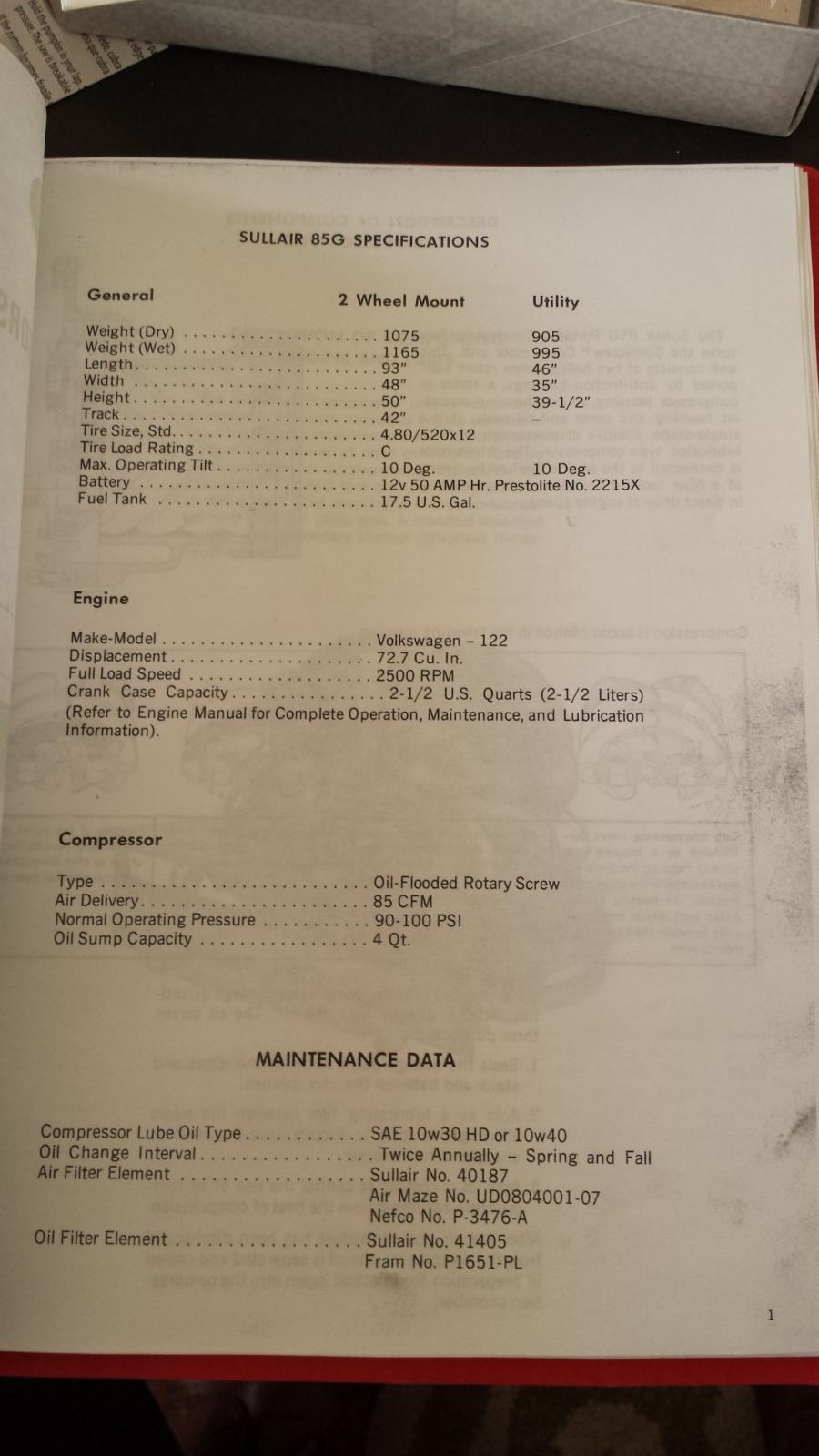

Two weeks into my marriage and I received an amazing birthday gift from my now Father-in-law. He purchased the unit from the local city maintenance tool sale in Eastern Montana. He surprised me by mailing me copies of the manuals and some photos for my birthday letting me know it was mine! Smile

I hope in the next year or two to go pick it up. It's a cool piece of now functional Volkswagen art in my opinion and something I will treasure for a long time!

I will send the manual to Everett to see if he would like to upload them to the site. I can also make copies of everything for you VWRICK69. It looks like we have the same unit, so once I get me hands on this one we can use it for reference; it seems to be well, intact and unmolested.

syncrobuggy1 · Posted: Sun Oct 26, 2025 10:46 pm Post subject: Re: Sullair VW air compressor

Very old thread but how does someone get a copy of that manual?

ratherb-buggin · Posted: Mon Oct 27, 2025 6:19 am Post subject: Re: Sullair VW air compressor

syncrobuggy1 · Posted: Mon Oct 27, 2025 10:59 am Post subject: Re: Sullair VW air compressor

Done. Thank you.
