 Posted: Sun Jul 29, 2018 10:00 am Post subject: Re: Volkswagen T25 (1980) - problem with the brake caliper pistons? |
 |
|
Holy cow, your suspension is completely worn out!
Plain to see how much movement there is in the radius rods in that second video - the rubber bushings are completely done - or maybe the rust has eaten out the centre of the mount...
I would think that if those bushings are that worn, then all the others are, too. Replace the lot: upper and lower control arm bushings, upper and lower ball joints and the radius rod bushings. Check the sterring rod and rod ends for play, too.
When its all done get a good alignment and go forth safely!
_________________
'84 Vanagon GL 1.9 WBX
'86 Westy Weekender Poptop/2.5 Subaru/5 Speed Posi/Audi Front Brakes/16 x 7.5 Mercedes Wheels - answers to 'Dixie'
@jakedevilliersmusic1
http://sites.google.com/site/subyjake/mydixiedarlin%27
www.crescentbeachguitar.com
www.thebassspa.com |
|
| Back to top |
|
|
Ettolitro
Samba Member
Joined: April 20, 2014
Posts: 10
|
| Posted: Sun Jul 29, 2018 12:50 pm Post subject: Re: Volkswagen T25 (1980) - problem with the brake caliper pistons? |
|
|
| Jake de Villiers wrote: |
Holy cow, your suspension is completely worn out!
Plain to see how much movement there is in the radius rods in that second video - the rubber bushings are completely done - or maybe the rust has eaten out the centre of the mount...
I would think that if those bushings are that worn, then all the others are, too. Replace the lot: upper and lower control arm bushings, upper and lower ball joints and the radius rod bushings. Check the sterring rod and rod ends for play, too.
When its all done get a good alignment and go forth safely! |
where can I buy a complete kit with all the bushings. to replace? Thank you for your time. |
|
| Back to top |
|
|
Mellow Yellow 74
Samba Member
Joined: October 14, 2014
Posts: 1615
Location: Sydney, Australia
|
| Posted: Sun Jul 29, 2018 2:24 pm Post subject: Re: Volkswagen T25 (1980) - problem with the brake caliper pistons? |
|
|
It looks like your sway bar is missing and steering rack boots torn too.
For parts, assuming you are in Europe try Brickwerks in the UK.
Also you might want to update the thread title to refer to front suspension rather than brake calipers
_________________
1962 Karmann Ghia
1974 Deluxe Microbus
1985 Caravelle (Vanagon) |
|
| Back to top |
|
|
levi
Samba Member
Joined: February 11, 2005
Posts: 5522
Location: Las Vegas
|
| Posted: Sun Jul 29, 2018 6:37 pm Post subject: Re: Volkswagen T25 (1980) - problem with the brake caliper pistons? |
|
|
The YouTube video labeled "Front brake noise 1" shows the squeak coinciding with the radius rod movement.
I wonder if the hole that the radius rod passes through has been damaged enough that the metal sleeve is rubbing, metal on metal.
It's not too unusual to see that hole double the original size.
_________________
One of these days I'm gonna settle down,
but till I do I won't be hangin round.
Going down that long lonesome highway,
gonna see life my way
https://youtu.be/cSrL0BXsO40 |
|
| Back to top |
|
|
MsTaboo
Samba Member
Joined: June 02, 2006
Posts: 4612
Location: East Kootenay, British Columbia
|
| Posted: Sun Jul 29, 2018 9:48 pm Post subject: Re: Volkswagen T25 (1980) - problem with the brake caliper pistons? |
|
|
| levi wrote: |
The YouTube video labeled "Front brake noise 1" shows the squeak coinciding with the radius rod movement.
I wonder if the hole that the radius rod passes through has been damaged enough that the metal sleeve is rubbing, metal on metal.
It's not too unusual to see that hole double the original size. |

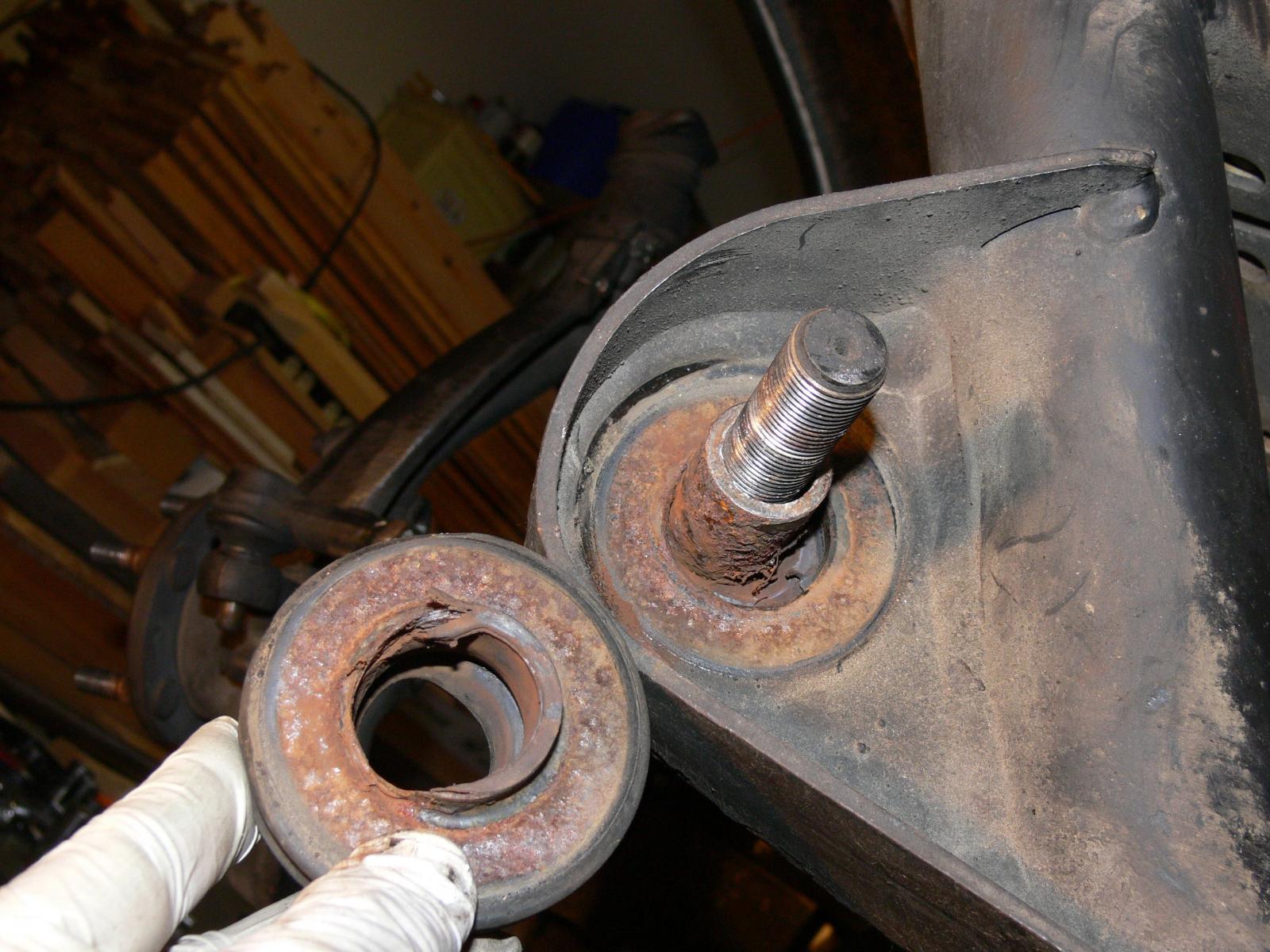

This is the wear levi is describing, on this one it's just starting to wear through the inner sleeve but if left too long the rod will start eating the frame.
(the portion that's missing is steel not rubber)

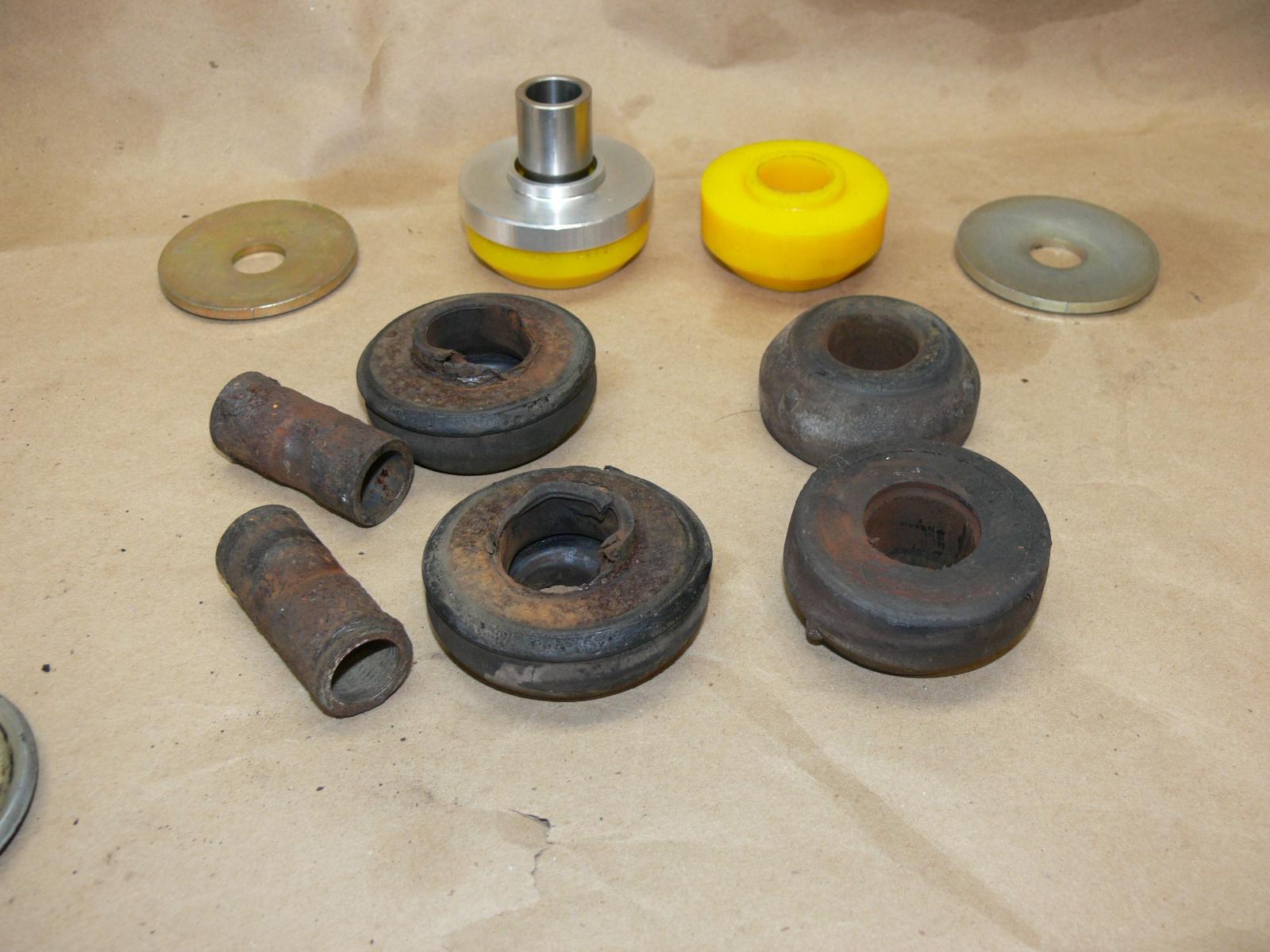

And the worn out bushings/sleeves with Powerflex replacements in the rear.
_________________
Currently:
'90 Syncro Westy 3 knob w/Zetec
The information age has morphed into the age of disinformation and willful ignorance. Agnotology!
When you stir up shit you're bound to get some on yourself.
Resist Kleptocratic Oligarchy (and Idiocracy)! |
|
| Back to top |
|
|
Ettolitro
Samba Member
Joined: April 20, 2014
Posts: 10
|
| Posted: Sun Jul 29, 2018 9:56 pm Post subject: Re: Volkswagen T25 (1980) - problem with the brake caliper pistons? |
|
|
| levi wrote: |
The YouTube video labeled "Front brake noise 1" shows the squeak coinciding with the radius rod movement.
I wonder if the hole that the radius rod passes through has been damaged enough that the metal sleeve is rubbing, metal on metal.
It's not too unusual to see that hole double the original size. |
are you talking about this auction? thank you for your precious time
Photo 1 or photo 2 ?
1 :
2:
Thank!
[/img] |
|
| Back to top |
|
|
Mellow Yellow 74
Samba Member
Joined: October 14, 2014
Posts: 1615
Location: Sydney, Australia
|
| Posted: Mon Jul 30, 2018 12:36 am Post subject: Re: Volkswagen T25 (1980) - problem with the brake caliper pistons? |
|
|

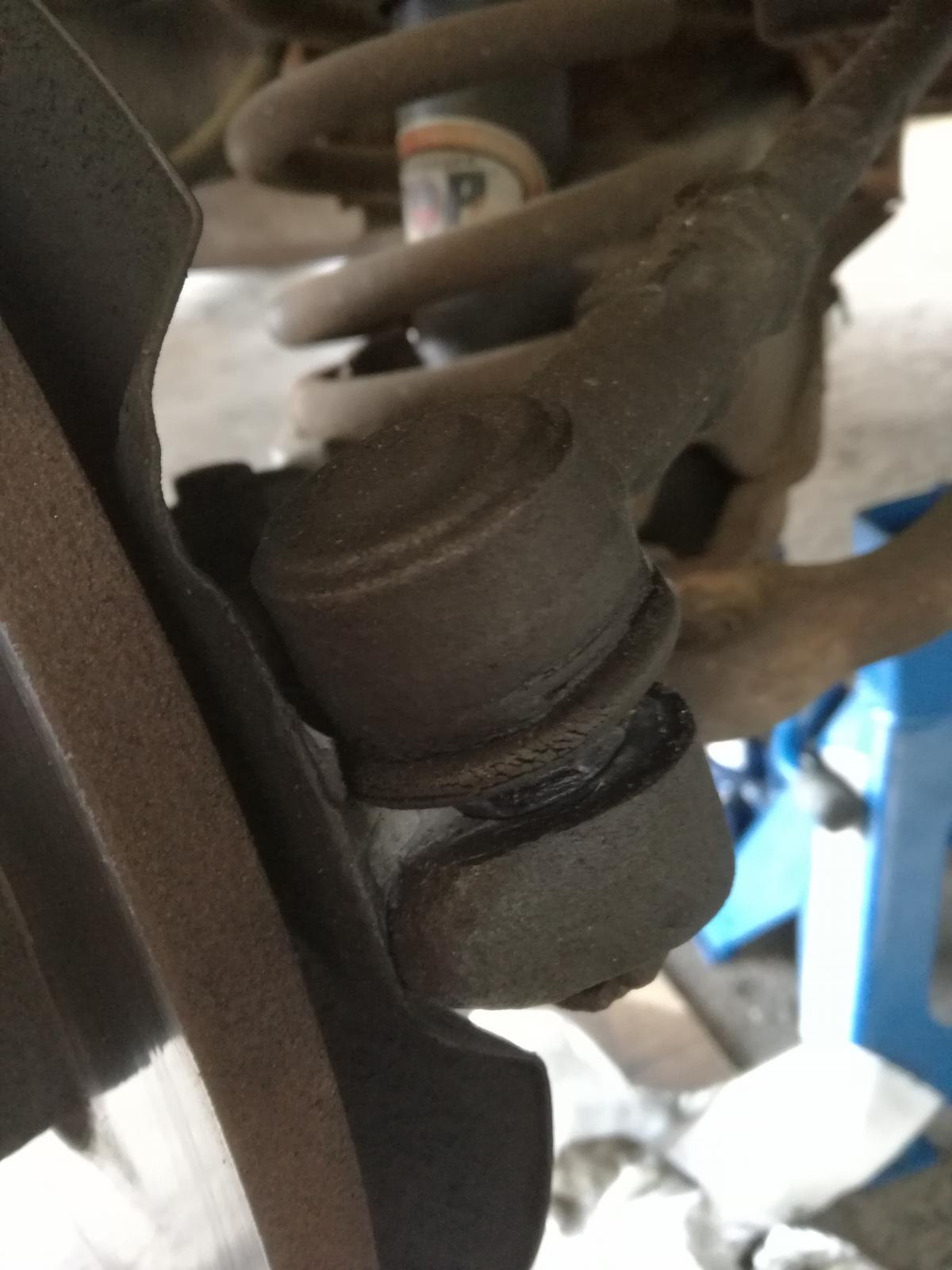

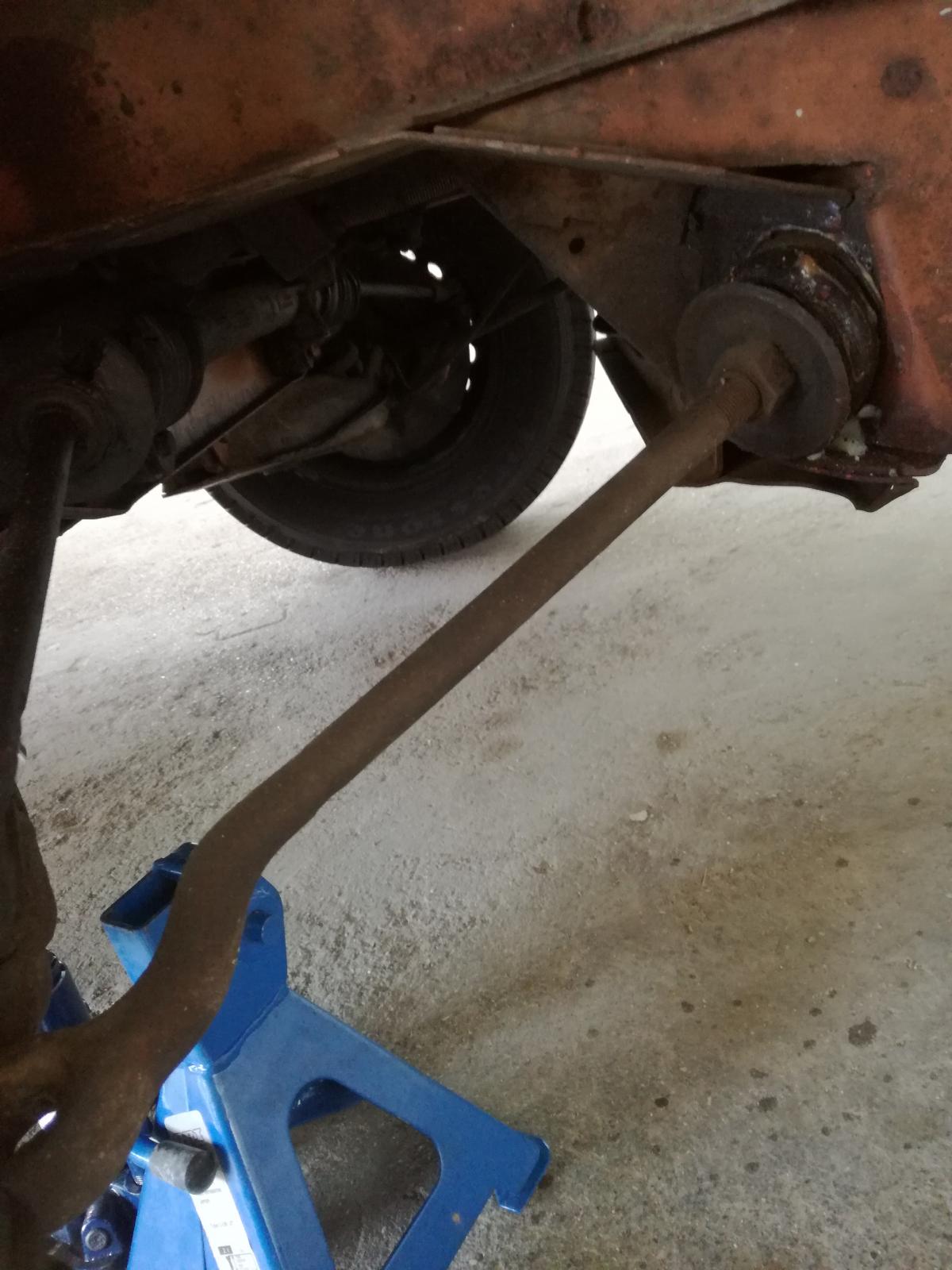

It is the right had end of the radius rod in photo 1, the hole in the left hand end is where the drop link for the sway bar is meant to go. Photo 2 is the tie rod end.
_________________
1962 Karmann Ghia
1974 Deluxe Microbus
1985 Caravelle (Vanagon) |
|
| Back to top |
|
|
levi
Samba Member
Joined: February 11, 2005
Posts: 5522
Location: Las Vegas
|
| Posted: Mon Jul 30, 2018 4:51 am Post subject: Re: Volkswagen T25 (1980) - problem with the brake caliper pistons? |
|
|
This video
_________________
One of these days I'm gonna settle down,
but till I do I won't be hangin round.
Going down that long lonesome highway,
gonna see life my way
https://youtu.be/cSrL0BXsO40 |
|
| Back to top |
|
|
MsTaboo
Samba Member
Joined: June 02, 2006
Posts: 4612
Location: East Kootenay, British Columbia
|
| Posted: Mon Jul 30, 2018 8:13 am Post subject: Re: Volkswagen T25 (1980) - problem with the brake caliper pistons? |
|
|
Sorry. Should have pointed out the picture I posted is of a Syncro's radius rod end, so it looks a bit different than yours but same idea.
_________________
Currently:
'90 Syncro Westy 3 knob w/Zetec
The information age has morphed into the age of disinformation and willful ignorance. Agnotology!
When you stir up shit you're bound to get some on yourself.
Resist Kleptocratic Oligarchy (and Idiocracy)! |
|
| Back to top |
|
|
Jake de Villiers
Samba Member
Joined: October 24, 2007
Posts: 5938
Location: Tsawwassen, BC
|
| Posted: Mon Jul 30, 2018 9:42 am Post subject: Re: Volkswagen T25 (1980) - problem with the brake caliper pistons? |
|
|
As Mellow Yellow said, if you're in Europe get in touch with Brickwerks, if North America, VanCafe.
Good luck!
_________________
'84 Vanagon GL 1.9 WBX
'86 Westy Weekender Poptop/2.5 Subaru/5 Speed Posi/Audi Front Brakes/16 x 7.5 Mercedes Wheels - answers to 'Dixie'
@jakedevilliersmusic1
http://sites.google.com/site/subyjake/mydixiedarlin%27
www.crescentbeachguitar.com
www.thebassspa.com |
|
| Back to top |
|
|
Ettolitro
Samba Member
Joined: April 20, 2014
Posts: 10
|
|
| Back to top |
|
|
shagginwagon83
Samba Member
Joined: February 07, 2016
Posts: 4393
Location: SWVA
|
|
| Back to top |
|
|
Ettolitro
Samba Member
Joined: April 20, 2014
Posts: 10
|
| Posted: Tue Jul 31, 2018 9:42 pm Post subject: Re: Volkswagen T25 (1980) - problem with the brake caliper pistons? |
|
|

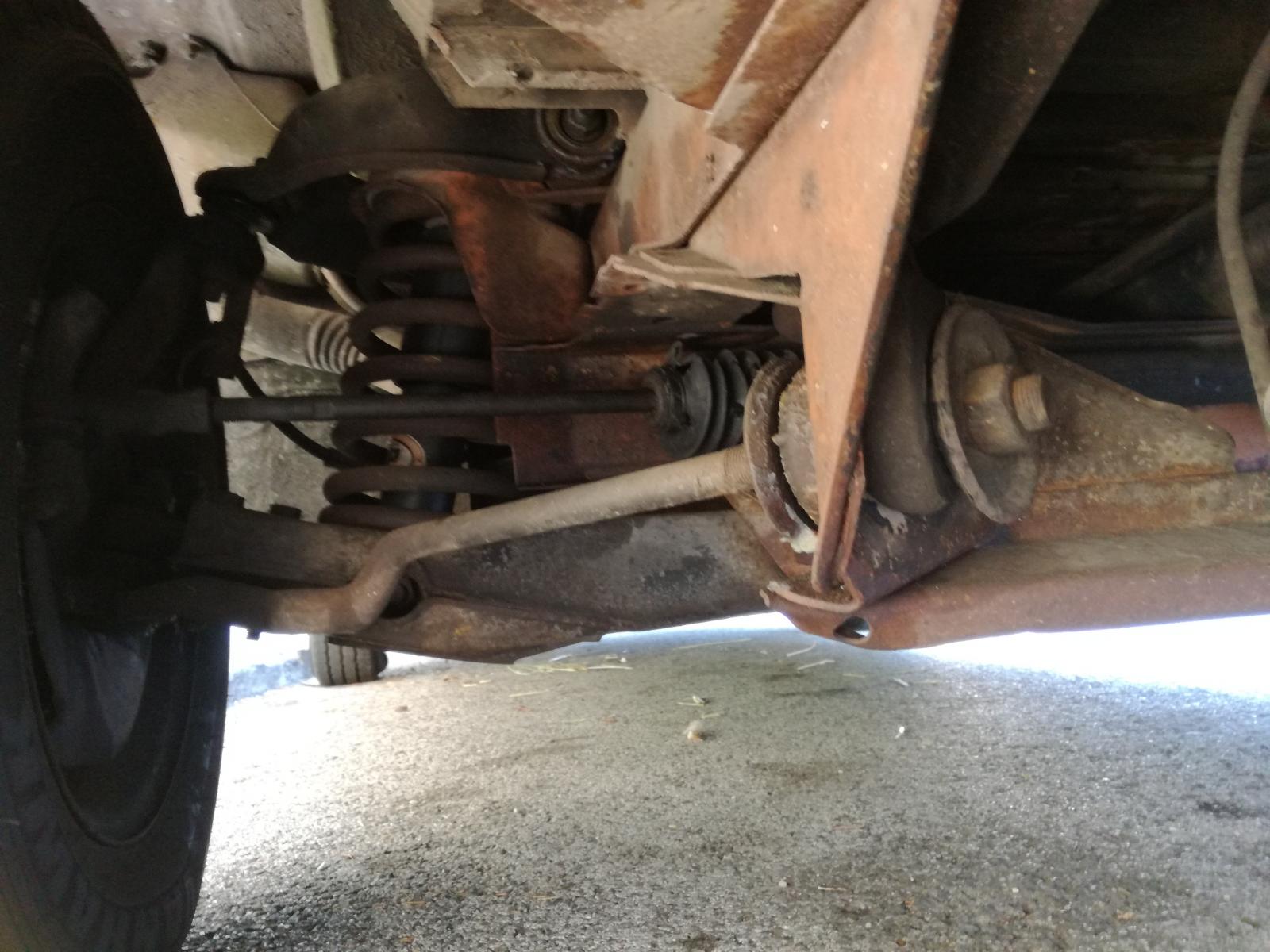

Show my silent...
thanks for the answers and thanks to all the members for the suggestions. I ordered all the silent blocks as soon as I get them up I'll let you know if I solve. |
|
| Back to top |
|
|
Mellow Yellow 74
Samba Member
Joined: October 14, 2014
Posts: 1615
Location: Sydney, Australia
|
| Posted: Tue Jul 31, 2018 11:47 pm Post subject: Re: Volkswagen T25 (1980) - problem with the brake caliper pistons? |
|
|
You should check the procedure on how to charge the radius rod bushes first because you may need to remove the whole lower control arm (not sure on your early style radius rods) so it might be worth having new bushings for these as well.
Also check out getting a sway bar (aka anti roll bar) and associated parts as well.
_________________
1962 Karmann Ghia
1974 Deluxe Microbus
1985 Caravelle (Vanagon) |
|
| Back to top |
|
|
|
that I can not solve. when I brake I hear a squeaking noise. I changed the front brake pads, all the rear braking system but the noise is always present. the noise seems to come from the right front wheel (passenger side). I blew the oil line but the noise remains. I made videos to understand the problem.
