PostPosted: Tue Feb 26, 2019 7:53 pm    Post subject: Building a Custom High-Mounted Center Stop Light Reply with quote

While on a walk, found an apparent accident leftover:

Image may have been reduced in size. Click image to view fullscreen.

When I gave it 12 volts, it lit up so suddenly and brightly that I instantly knew it was finally time for me to build the 3rd brake light I'd been thinking about for decades. It would need a housing, best I could come up with was a used frozen dinner tray. Not having any molding wax, I used a thin smear of petroleum jelly, laid in some medium lite fiberglass cloth (conforms to mold well), polyester resin (with hardener), follow'd by fiberglass mat and more resin. The mat is awfully lite and thin, so I did a couple more layers before letting it harden and popping it out of the "mold":

Image may have been reduced in size. Click image to view fullscreen.

Trim'd down edges and placed L.E.D. within housing sort of where it might end up:

Image may have been reduced in size. Click image to view fullscreen.

Look'd like a fit. Getting excited, I dug out some old funky plastic door edge trim. Got more excited. Made a lens template and ran to closest auto parts store. Of course, nothing was a perfect size, but found one that came pretty close, in a 2-pack:

Image may have been reduced in size. Click image to view fullscreen.

Chromey trim around the bright red, looking so good, it made me notice how badly the housing top was, due to the flimzy microwave tray's weak wavy bottom and especially its emboss'd recycling code. I don't like to use much bondo or spot puddy, but a very thin layer really helps:

Image may have been reduced in size. Click image to view fullscreen.

Made some studs. Bent them to a J shape for strength. Put a jig together to insure the studs would (1) end up parallel to each other and perpendicular to mounting surface, and (2) have the right length outside and a well lodged area for the curved end inside. Then glass'd them in using what I call fiberhash; it's lots of leftover strands that I've collected into a hashtray, and cut up until it becomes fluffy. Using a tiny paint brush, paint on a little resin, press in a pinch of fiberhash, and repeat:

Image may have been reduced in size. Click image to view fullscreen.

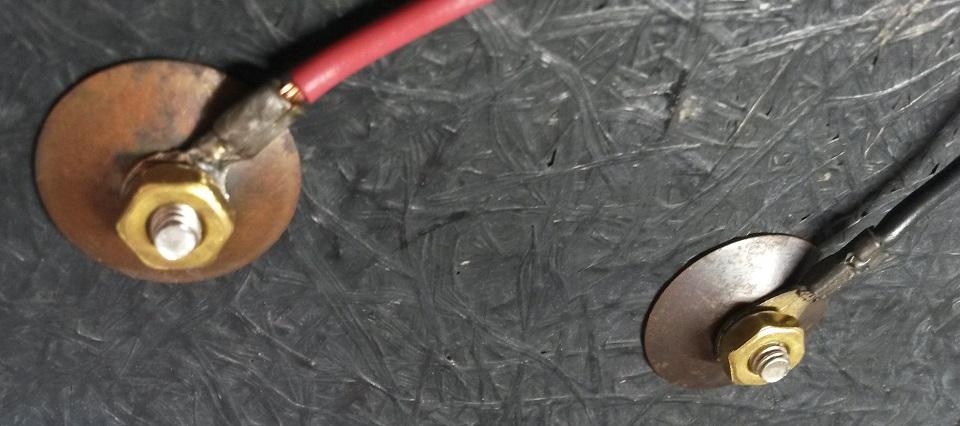

As you may be able to see, I decided to use the studs for electrical contacts as well as for attaching the CHMSL (center high mounted stop light, pronounced "CHIM-sill" according to a GM engineer friend of mine). Here's how it looks from underneath:

Image may have been reduced in size. Click image to view fullscreen.

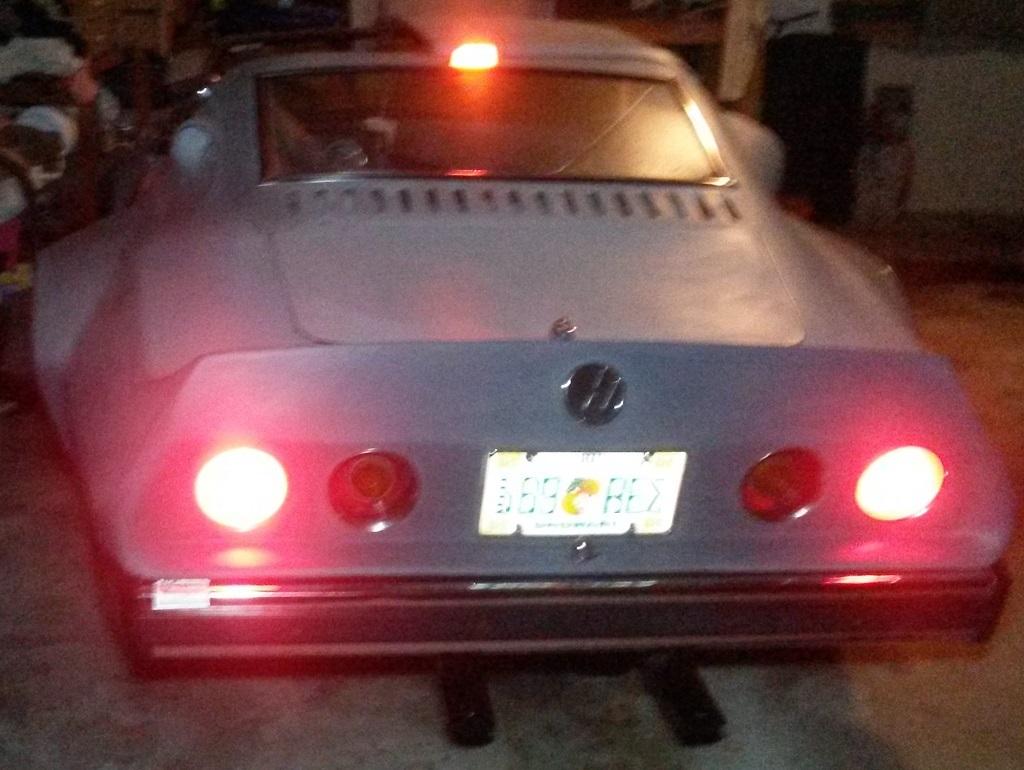

All in all, I'm super happy with it. Only things I had to buy were the lens and 6 brass nuts, less than $5 total. To me, it looks and feels worth a million!

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
calebmelvin Premium Member
Samba Member


Joined: July 19, 2006
Posts: 3133
Location: Seattle, WA
calebmelvin is offline

PostPosted: Tue Feb 26, 2019 9:16 pm    Post subject: Re: Building a Custom High-Mounted Center Stop Light Reply with quote

Turned out nice! They will see you stopping now for sure. Did you paint it?
_________________
Caleb
'68 Tagged Manx | My Wanted Ads
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Instagram Gallery Classifieds Feedback
Letterman7
Samba Member


Joined: March 14, 2004
Posts: 3116
Location: Downingtown, PA
Letterman7 is offline

PostPosted: Wed Feb 27, 2019 6:31 am    Post subject: Re: Building a Custom High-Mounted Center Stop Light Reply with quote

Nice and a creative use of found items. Good job!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
bugvert
Samba Member


Joined: October 26, 2005
Posts: 135
Location: Connecticut
bugvert is offline

PostPosted: Wed Feb 27, 2019 11:09 am    Post subject: Re: Building a Custom High-Mounted Center Stop Light Reply with quote

Nice Job! Applause
Back to top
View user's profile Send private message Gallery Classifieds Feedback
MrGoodtunes
Samba Member


Joined: May 14, 2012
Posts: 480
Location: South Florida
MrGoodtunes is offline

PostPosted: Thu Feb 28, 2019 12:41 pm    Post subject: Re: Building a Custom High-Mounted Center Stop Light Reply with quote

Thanks for the kind comments.

calebmelvin wrote:
... Did you paint it?

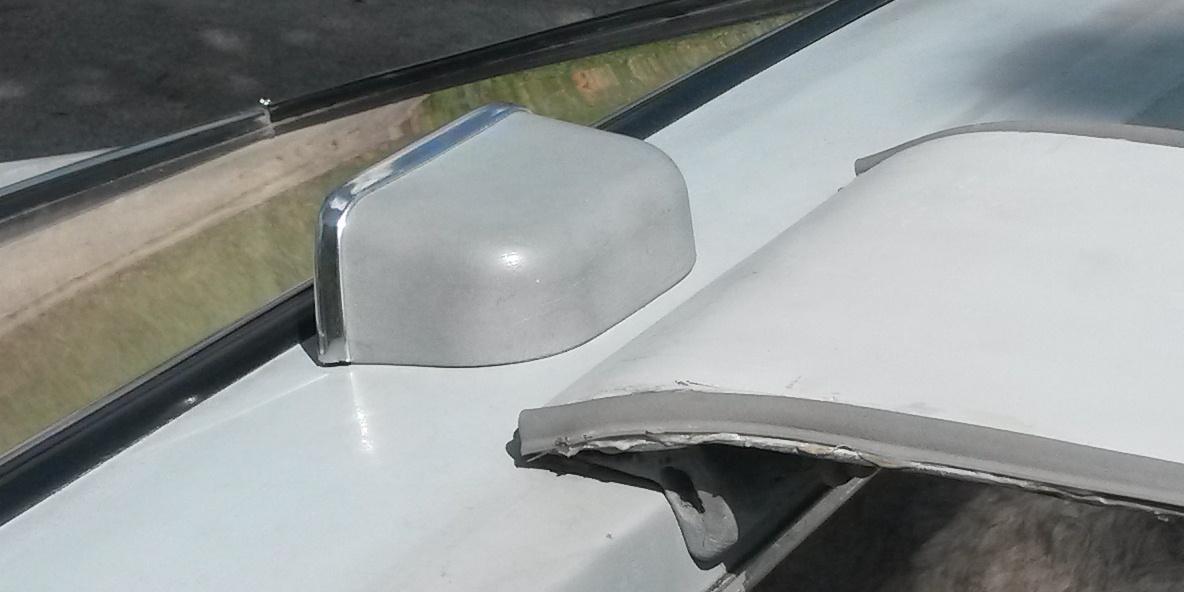

Does gray primer count?

Image may have been reduced in size. Click image to view fullscreen.

BTW @ Caleb, thoroghly enjoying your vintage buggy pics. Thanks for sharing your collection.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Wetstuff
Samba Member


Joined: September 23, 2010
Posts: 700
Location: Maryland
Wetstuff is offline

PostPosted: Thu Feb 28, 2019 1:30 pm    Post subject: Re: Building a Custom High-Mounted Center Stop Light Reply with quote

Nice one, Tunes. ...'special thanks for the instructions.


Jim
_________________
Manx #2614
Back to top
View user's profile Send private message Classifieds Feedback
MrGoodtunes
Samba Member


Joined: May 14, 2012
Posts: 480
Location: South Florida
MrGoodtunes is offline

PostPosted: Mon Aug 31, 2020 11:29 am    Post subject: Re: Building a Custom High-Mounted Center Stop Light Reply with quote

Oops, please ignore (senior moment).
