 Posted: Fri Jul 21, 2017 3:51 pm Post subject: Aftermarket tachometer questions. |
 |
|
Van: 1984, no tach.
Issue: I'm looking to install an aftermarket tach, specifically the Auto Meter 2306. I'm under the impression that vans *with* factory tach installed, are associated with a green wire running from the coil to the dashboard.
Questions:
1) Is the green arrow below pointing to said wire? Or is that headed elsewhere?
2) With regards to the blue arrow, how does one generally make a connection to the coil, given the large plastic connector in place?
As always, thank you!
My coil:
Tach diagram:
|
|
| Back to top |
|
 |
ALIKA T3
Samba Member
Joined: July 30, 2009
Posts: 7300
Location: Honolulu,Hawaii and France
|
| Posted: Fri Jul 21, 2017 9:34 pm Post subject: Re: Aftermarket tachometer questions. |
|
|
| cs44 wrote: |
Van: 1984, no tach.
Issue: I'm looking to install an aftermarket tach, specifically the Auto Meter 2306. I'm under the impression that vans *with* factory tach installed, are associated with a green wire running from the coil to the dashboard.
Questions:
1) Is the green arrow below pointing to said wire? Or is that headed elsewhere?
2) With regards to the blue arrow, how does one generally make a connection to the coil, given the large plastic connector in place?
As always, thank you!
My coil:
Tach diagram:
|
yes green arrow goes to dash for tachometer.
You can unscrew the spade connector from the coil and add another one to make some kind of dual connector with 2 wires.Some coils are equipped like that.
_________________
Silicone Steering Boots and 930 Cv boots for sale in the classifieds.
Syncro transmission upgrade parts in the Classifieds.
Subaru EJ22+UN1 5 speed transmission
http://www.thesamba.com/vw/forum/viewtopic.php?t=416343
Syncro http://www.thesamba.com/vw/forum/viewtopic.php?t=4...num+gadget |
|
| Back to top |
|
|
cs44
Samba Member
Joined: February 04, 2016
Posts: 52
Location: San Francisco, CA
|
| Posted: Sat Jul 22, 2017 7:20 am Post subject: Re: Aftermarket tachometer questions. |
|
|
| ALIKA T3 wrote: |
yes green arrow goes to dash for tachometer.
|
Nice!
I've yet to peek under the dash, any chance you know where I'll find it? |
|
| Back to top |
|
|
shwokagon
Samba Member
Joined: October 26, 2014
Posts: 14
Location: Fraser, MI
|
| Posted: Sat Sep 02, 2017 8:57 am Post subject: Re: Aftermarket tachometer questions. |
|
|
Did you get the tach installed? I have an '84 too and I'd like to do the same
_________________
'84 Vanagon 1.9 7-Passenger
'85 Cabriolet Convertible |
|
| Back to top |
|
|
cs44
Samba Member
Joined: February 04, 2016
Posts: 52
Location: San Francisco, CA
|
| Posted: Wed Apr 03, 2019 8:32 pm Post subject: Re: Aftermarket tachometer questions. |
|
|
| shwokagon wrote: |
| Did you get the tach installed? I have an '84 too and I'd like to do the same |
Heh, a year and a half later -- no.
Never made the time and just stumbling back onto the forums.
Did you get your tach installed? |
|
| Back to top |
|
|
DoubleOSeven
Samba Member
Joined: July 03, 2017
Posts: 3
Location: Reading, UK
|
| Posted: Thu Apr 04, 2019 7:17 am Post subject: Re: Aftermarket tachometer questions. |
|
|

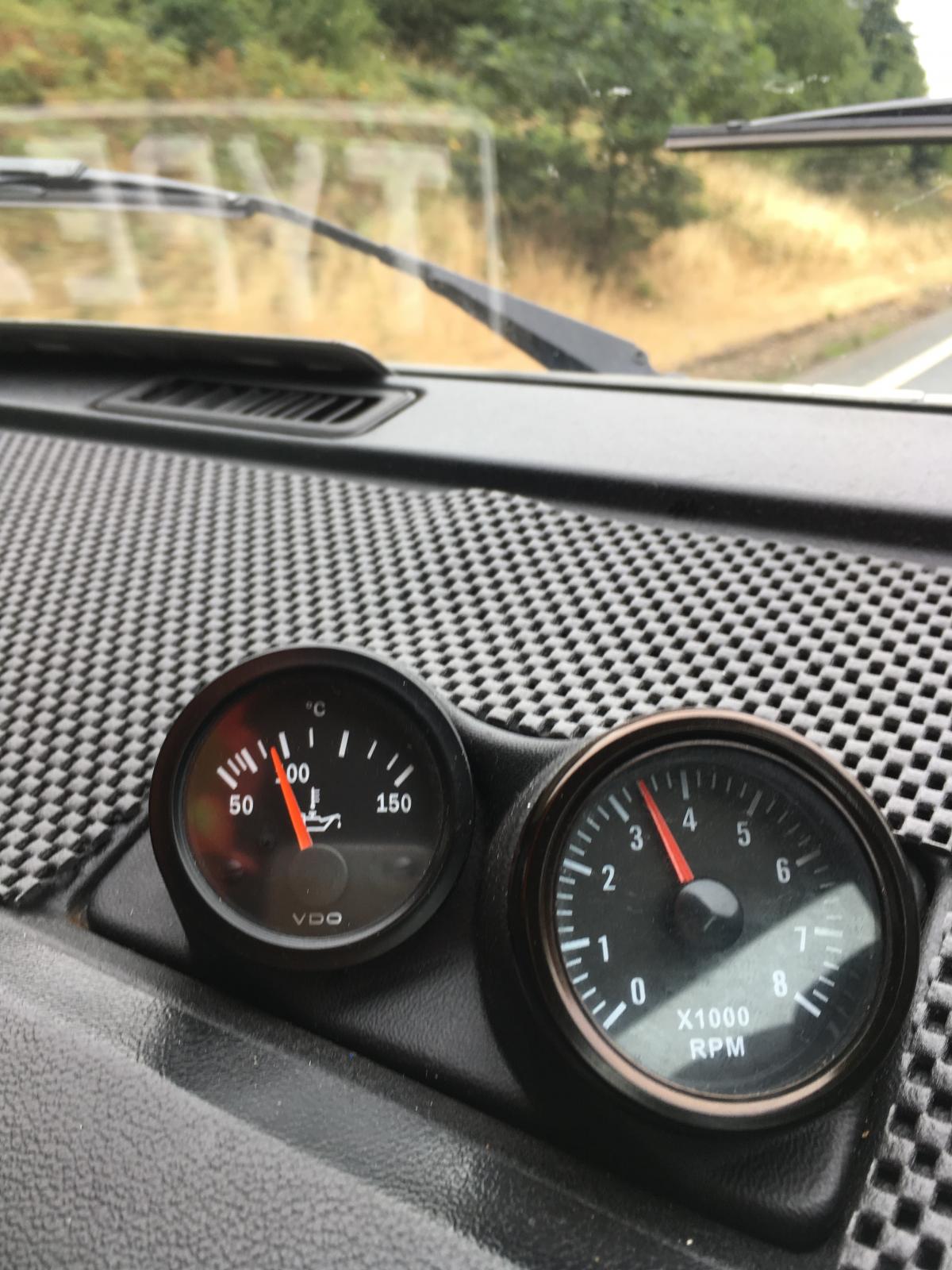

Brickwerks sell these nice pods LHD & RHD for early vans needing rev counters or for any other 52mm gauge for that matter.
Wire up to front from coil neg - |
|
