 Posted: Fri Apr 10, 2020 5:03 am Post subject: 82 mm big bore |
 |
|

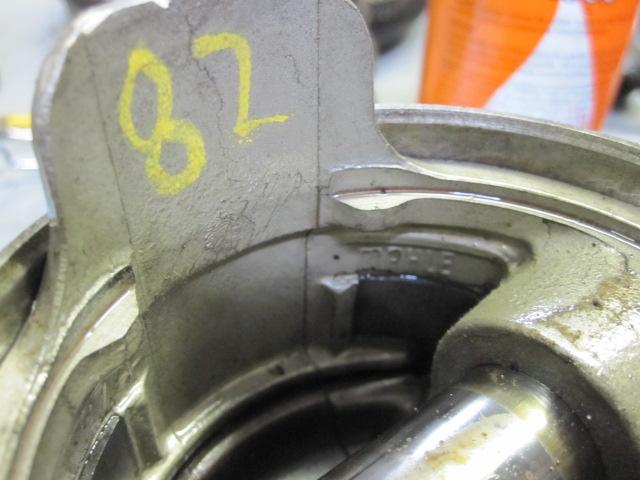

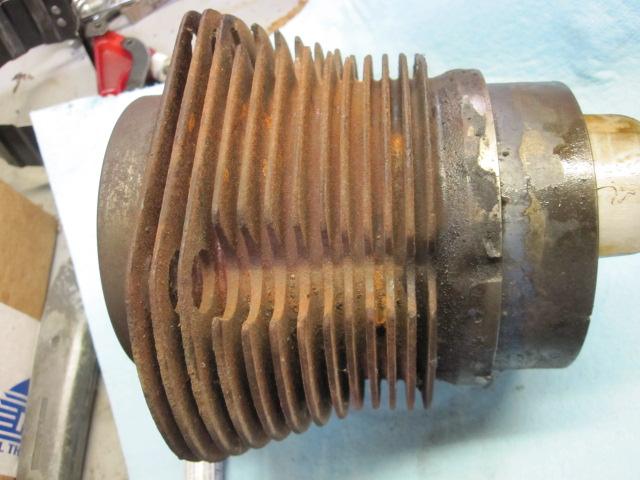

Going thru old stuff in my spare time, and came across some 82 mm big bore, remember tearing down the old engine that came in my 62 delux back in the 80s, my friend had lost a cyl and head so needed repair, put these in it with new rings and and used head, ran great! down and dirty repairs we use to make, got then engine back in trade for something, can't remember much more about them other then the rings were hard to find. Specs, 102 long cyl. 1.5x1.5x4 rings, 20 mm pin, 90mm head dia. 87 case dia, thought the case side dia. was unique!
_________________
73 Type 181
63 Type 113
63 Type 261- 428 071
62 Type 241-378 025 178 530 |
|
| Back to top |
|
 |
fl59bug
Samba Member
Joined: November 23, 2005
Posts: 2065
Location: North Carolina
|
| Posted: Fri Apr 10, 2020 6:27 am Post subject: Re: 82 mm big bore |
|
|
| Nice. Thin rings on those - should wind out pretty good rpm-wise. |
|
| Back to top |
|
|
RWK
Samba Member
Joined: June 24, 2009
Posts: 1610
Location: S.W. MI
|
| Posted: Sat Apr 11, 2020 5:18 am Post subject: Re: 82 mm big bore |
|
|
Ran good for a half ass repair, never see much talk about 82mm here, thought I would post them.
_________________
73 Type 181
63 Type 113
63 Type 261- 428 071
62 Type 241-378 025 178 530 |
|
| Back to top |
|
|
RichardinNZ
Samba Member
Joined: September 16, 2011
Posts: 280
Location: Auckland, New Zealand
|
|
| Back to top |
|
|
Mr. Okrasa
Original Old Speed
Joined: May 20, 2000
Posts: 745
Location: Eastside, Costa Mesa. So. Califas...Loco's ;-)
|
| Posted: Fri Feb 05, 2021 10:52 pm Post subject: Re: 82 mm big bore |
|
|
| RichardinNZ wrote: |
| Nice to see them. Not heard about 82mm before. |
I have a set of EMPI 40hp "BIG BORE" 82mm P/C's. These were made by Mahle back in the 60's. I guess they were the "first"
big bore P/C's made for the 40hp VW engine. I'm thinking Mahle eventually went to 83mm and still maintained a thick cylinder wall.
I've notice that at their cyl. base, they kinda go "inwards". The regular 83mm cylinders just go straight up.
_________________
See my Instagram: https://www.instagram.com/okrasa/
1959 VW Karmann Ghia Coupe / Bamboo-Green / Denzel 1300cc / OG. owner, paint
Denzel engine running. See this link: https://youtu.be/DgUlsQDTXTE
VW www.Okrasa.com |
|
