Hello! Log in or Register   |  Help  |  Donate  |  Buy Shirts New!  See all banner ads | Advertise on TheSamba.com
TheSamba.com

Type 4 exhaust header differences - side specific??
Page: 1, 2, 3  Next
Forum Index -> Bay Window Bus Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Wasted youth
Samba Member


Joined: July 06, 2012
Posts: 4877
Location: California's Hot and Smoggy Central Valley
Wasted youth is offline

PostPosted: Sat Jun 08, 2019 6:21 pm    Post subject: Type 4 exhaust header differences - side specific?? Reply with quote

Go ahead and shit all over me for either not using the Search Engine or not knowing the answer to this question... I did try the Search Engine, and also looked in the Photo Gallery and the Classifieds because those are often good sources of information.

I am probably not using the right keywords. Anyway... what application is exhaust header A meant for?

Header B fits the 2.0 Type 4 engine. By the way, they are both oval port.

Image may have been reduced in size. Click image to view fullscreen.

_________________
1968 Double Cab truck, 1973 Auto trans bus, 1978 Auto trans Sunroof bus with A/C and a 1987 Auto trans Westfalia.


Last edited by Wasted youth on Sat Jun 08, 2019 11:34 pm; edited 2 times in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Hoody
Samba Member


Joined: November 28, 2007
Posts: 1943

Hoody is offline

PostPosted: Sat Jun 08, 2019 7:22 pm    Post subject: Re: Type 4 exhaust headers question Reply with quote

They are both for the 75-78 type 4 exhaust. There is a right and a left side. You cannot use two lefts or two rights. I had a parts seller on here try to tell me he's been doing this for 40 years and this is the first time he had ever heard of such a thing. Rolling Eyes
Back to top
View user's profile Send private message Classifieds Feedback
SGKent Premium Member
Samba Member


Joined: October 30, 2007
Posts: 35398
Location: Retired so can be anywhere now - NorCal
SGKent is offline

PostPosted: Sat Jun 08, 2019 7:39 pm    Post subject: Re: Type 4 exhaust headers question Reply with quote

What Bob said.

one left one right, look at the flanges. Oval port with tin. Scarce with tin. I have one NOS one and looking for the other side. Probably none exist anywhere in the world - been looking for 11 years.
_________________
American Standard Snorkeling Terrier
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Wasted youth
Samba Member


Joined: July 06, 2012
Posts: 4877
Location: California's Hot and Smoggy Central Valley
Wasted youth is offline

PostPosted: Sat Jun 08, 2019 8:10 pm    Post subject: Re: Type 4 exhaust headers question Reply with quote

Thanks. It’s all coming back to me now. Absolutely... a left and a right side. The long side is on the Passenger side of the engine.

But... what if you moved the heads around. Or matched up two heads that used just one style. I imagine the exhaust nomenclature would be crooked.
_________________
1968 Double Cab truck, 1973 Auto trans bus, 1978 Auto trans Sunroof bus with A/C and a 1987 Auto trans Westfalia.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tommu
Samba Member


Joined: November 15, 2011
Posts: 533
Location: L.A.
tommu is offline

PostPosted: Sat Jun 08, 2019 8:44 pm    Post subject: Re: Type 4 exhaust headers question Reply with quote

Yes, the manifolds will fit the heads fine but will not be able to mate to the 'afterburner' u shaped pipes.

I had a lot of trouble with cracked headers. I took a video of leak testing one that looked perfect. I taped up the ports, sprayed washing detergent on the harder and reversed the output of my shopvac to see if they leaked. All the used ones I bought leaked.



Link

_________________
Green Bay Bus Yellow Ghia
Back to top
View user's profile Send private message Gallery Classifieds Feedback
SGKent Premium Member
Samba Member


Joined: October 30, 2007
Posts: 35398
Location: Retired so can be anywhere now - NorCal
SGKent is offline

PostPosted: Sat Jun 08, 2019 9:43 pm    Post subject: Re: Type 4 exhaust header differences - side specific Reply with quote

I have a headache.
_________________
American Standard Snorkeling Terrier
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Hoody
Samba Member


Joined: November 28, 2007
Posts: 1943

Hoody is offline

PostPosted: Sat Jun 08, 2019 9:48 pm    Post subject: Re: Type 4 exhaust header differences - side specific Reply with quote

If I am not mistaken those can be tig welded where they are leaking. That is where the stainless meets the regular steel. They are only junk when the stainless part of the pipe cracks. Because as most people who weld know welding stainless that is cracked is pretty much pointless. I had Scott at GS rebuild my f pipes and u pipes with new laser cut flanges and they are as good as new. Actually better than new because they are also ceramic coated externally as well as internally. No more tins and I am confident the coating of both sides of the pipe will yield less heat than the original asbestos and sheet metal did.
Back to top
View user's profile Send private message Classifieds Feedback
Wasted youth
Samba Member


Joined: July 06, 2012
Posts: 4877
Location: California's Hot and Smoggy Central Valley
Wasted youth is offline

PostPosted: Sat Jun 08, 2019 10:06 pm    Post subject: Re: Type 4 exhaust header differences - side specific Reply with quote

SGKent wrote:
I have a headache.


Ha! Well, don’t get too concerned. I am not advocating any ulterior exhaust header motives. But the comment above about ‘...been doing this for years and never saw such a thing’ may indicate someone figured out how to play games mixing and matching cylinder heads and exhaust headers.

And three bolt flanges that don’t line up simply get cut off, clocked right and welded back up. After all, the three bolt flange gaskets in that neck of the woods are all the same.
_________________
1968 Double Cab truck, 1973 Auto trans bus, 1978 Auto trans Sunroof bus with A/C and a 1987 Auto trans Westfalia.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Xevin
Samba Member


Joined: January 08, 2014
Posts: 5013

Xevin is offline

PostPosted: Sat Jun 08, 2019 10:12 pm    Post subject: Re: Type 4 exhaust headers question Reply with quote

SGKent wrote:
Probably none exist anywhere in the world - been looking for 11 years.


Probably in Notchboy’s garage next to the poo pails and 12v vacuum accessories Very Happy my bad, next to the intermittent wiper assemblies and headlight washers Wink
_________________
Keep on Busin'
67rustavenger wrote:
GFY's Xevin and VW_Jimbo! Very Happy

Clatter wrote:
Damn that Xevin... Very Happy Very Happy Very Happy

Abscate wrote:
I dont hate anyone on the Samba - except for Xevin - who brought me cold coffee in the morning.

[email protected] wrote:
I respect Xevin and he's a turd Razz
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Wasted youth
Samba Member


Joined: July 06, 2012
Posts: 4877
Location: California's Hot and Smoggy Central Valley
Wasted youth is offline

PostPosted: Sat Jun 08, 2019 11:17 pm    Post subject: Re: Type 4 exhaust header differences - side specific Reply with quote

To add to the confusion, take a look at the photos from this ad for a 1977 bus exhaust system (ad dated Jan 24, 2018 and renewed this month) from Chris Morrice; note how BOTH exhaust headers have the deep flange.

https://www.thesamba.com/vw/classifieds/pix/7752937.jpg

https://www.thesamba.com/vw/classifieds/pix/7752939.jpg

https://www.thesamba.com/vw/classifieds/pix/7752939.jpg

And here is another ad from 1584man in the Classifieds showing basically the same thing; both sides have the deep flanges:

https://www.thesamba.com/vw/classifieds/pix/7823834.jpg

https://www.thesamba.com/vw/classifieds/pix/7823846.jpg

Arrow The 2.0 engine I am working on requires one deep flange and one flush flange (left and right side). I do not know the history of this engine, except that is was poorly maintained (gee, no shit, right?) The air box number begins with GD but it has hydraulic cam followers and it's in a model year 1978 and should be a GE engine. Frankenmotor?

The seller bryan wilson advertises this piece as the Right Side for model years 1975-1978:

https://www.thesamba.com/vw/classifieds/pix/7972484.jpg

And he also shows these all for model years 1975-1978 yet there is not a single flush flange in the bunch. All deep flanges:

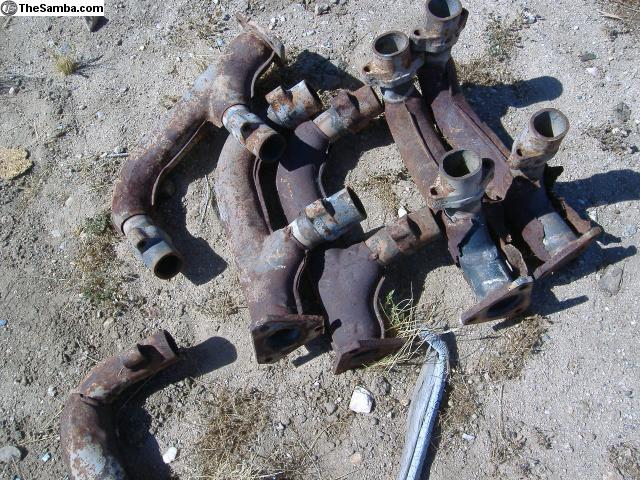

https://www.thesamba.com/vw/classifieds/pix/6833105.jpg

https://www.thesamba.com/vw/classifieds/pix/6833104.jpg

Exclamation Hopefully tomorrow I can post a photo of one each of the different cylinder heads in my stash. I think I have one that is deep and one that is shallow. Both for a 2.0
_________________
1968 Double Cab truck, 1973 Auto trans bus, 1978 Auto trans Sunroof bus with A/C and a 1987 Auto trans Westfalia.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
WhirledTraveller
Samba Member


Joined: January 09, 2008
Posts: 1387
Location: Cambridge, MA
WhirledTraveller is offline

PostPosted: Sun Jun 09, 2019 8:24 am    Post subject: Re: Type 4 exhaust header differences - side specific?? Reply with quote

If you need a flush flange it's because somebody threw a square port head on one side and then cut the ends of the header to fit. Nothing from the VW factory 1978 and prior came that way. Common for disreputable engine builders to build the engine with whatever they have laying around including mix-and-matching oval and square port heads.
_________________
1977 Westy, Automatic. Big Valve heads, CS Cam.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Wasted youth
Samba Member


Joined: July 06, 2012
Posts: 4877
Location: California's Hot and Smoggy Central Valley
Wasted youth is offline

PostPosted: Sun Jun 09, 2019 12:54 pm    Post subject: Re: Type 4 exhaust header differences - side specific?? Reply with quote

WhirledTraveller wrote:
If you need a flush flange it's because somebody threw a square port head on one side and then cut the ends of the header to fit. Nothing from the VW factory 1978 and prior came that way. Common for disreputable engine builders to build the engine with whatever they have laying around including mix-and-matching oval and square port heads.


So no Right and Left headers?
_________________
1968 Double Cab truck, 1973 Auto trans bus, 1978 Auto trans Sunroof bus with A/C and a 1987 Auto trans Westfalia.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
WhirledTraveller
Samba Member


Joined: January 09, 2008
Posts: 1387
Location: Cambridge, MA
WhirledTraveller is offline

PostPosted: Sun Jun 09, 2019 3:16 pm    Post subject: Re: Type 4 exhaust header differences - side specific?? Reply with quote

Wasted youth wrote:


So no Right and Left headers?


The left and right headers are different but they have the same type of flange. They're just bent and angled a little differently so you can't bolt a left header to a right head because it won't fit correctly.
_________________
1977 Westy, Automatic. Big Valve heads, CS Cam.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Hoody
Samba Member


Joined: November 28, 2007
Posts: 1943

Hoody is offline

PostPosted: Sun Jun 09, 2019 7:25 pm    Post subject: Re: Type 4 exhaust header differences - side specific?? Reply with quote

Yes I just realized that top one has been modified. Someone chopped the top of it off as stated to work with a square port head. I did not see that before. Whoops.
Back to top
View user's profile Send private message Classifieds Feedback
Wasted youth
Samba Member


Joined: July 06, 2012
Posts: 4877
Location: California's Hot and Smoggy Central Valley
Wasted youth is offline

PostPosted: Tue Jun 11, 2019 12:03 pm    Post subject: Re: Type 4 exhaust header differences - side specific?? Reply with quote

Confirmed today the oval port head I have requires deeper exhaust header B and the shallow port head I have is square port, so I agree that header A in my picture is a modified oval port exhaust header made to fit the square port cylinder head. Square port exhaust gasket allows oval exhaust header to seal.
_________________
1968 Double Cab truck, 1973 Auto trans bus, 1978 Auto trans Sunroof bus with A/C and a 1987 Auto trans Westfalia.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
notchboy
Samba Member


Joined: April 27, 2002
Posts: 21128
Location: Escondido CA
notchboy is offline

PostPosted: Tue Jun 11, 2019 2:01 pm    Post subject: Re: Type 4 exhaust header differences - side specific?? Reply with quote

Wasted youth wrote:
Confirmed today the oval port head I have requires deeper exhaust header B and the shallow port head I have is square port, so I agree that header A in my picture is a modified oval port exhaust header made to fit the square port cylinder head. Square port exhaust gasket allows oval exhaust header to seal.



Oh the jokes I could have displayed here. Rolling Eyes Alas another day................



Xevin wrote:
SGKent wrote:
Probably none exist anywhere in the world - been looking for 11 years.


Probably in Notchboy’s garage next to the poo pails and 12v vacuum accessories Very Happy my bad, next to the intermittent wiper assemblies and headlight washers Wink

_________________
t3kg wrote:

OK, this thread is over. You win.

Jason "notchboy" Weigel
1964 1500 S
1964 T34 S Convertible
1977 Westfalia Camper pop-top
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Wasted youth
Samba Member


Joined: July 06, 2012
Posts: 4877
Location: California's Hot and Smoggy Central Valley
Wasted youth is offline

PostPosted: Tue Jun 11, 2019 2:14 pm    Post subject: Re: Type 4 exhaust header differences - side specific?? Reply with quote

Oh, I know! All kinds of lead-ins! Razz
_________________
1968 Double Cab truck, 1973 Auto trans bus, 1978 Auto trans Sunroof bus with A/C and a 1987 Auto trans Westfalia.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
SGKent Premium Member
Samba Member


Joined: October 30, 2007
Posts: 35398
Location: Retired so can be anywhere now - NorCal
SGKent is offline

PostPosted: Tue Jun 11, 2019 3:37 pm    Post subject: Re: Type 4 exhaust header differences - side specific?? Reply with quote

If Notchboy or anyone else has a NOS Manifold F-pipe 021-251-551 he should PM me because I have a NOS 021-251-552.
_________________
American Standard Snorkeling Terrier
Back to top
View user's profile Send private message Gallery Classifieds Feedback
notchboy
Samba Member


Joined: April 27, 2002
Posts: 21128
Location: Escondido CA
notchboy is offline

PostPosted: Tue Jun 11, 2019 3:54 pm    Post subject: Re: Type 4 exhaust header differences - side specific?? Reply with quote

SGKent wrote:
If Notchboy or anyone else has a NOS Manifold F-pipe 021-251-551 he should PM me because I have a NOS 021-251-552.



Nope. But I do have a water pump for a 64 bug. Wink Was it Xevin that needed muffler bearings? I have those in a box with my Okrasa engine kits and NOS 1958 Westfalia side tents. Yes tents. I cut back and sold two, now I only have three left. Wink
_________________
t3kg wrote:

OK, this thread is over. You win.

Jason "notchboy" Weigel
1964 1500 S
1964 T34 S Convertible
1977 Westfalia Camper pop-top
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
SGKent Premium Member
Samba Member


Joined: October 30, 2007
Posts: 35398
Location: Retired so can be anywhere now - NorCal
SGKent is offline

PostPosted: Wed Jun 12, 2019 6:52 am    Post subject: Re: Type 4 exhaust header differences - side specific?? Reply with quote

notchboy wrote:
SGKent wrote:
If Notchboy or anyone else has a NOS Manifold F-pipe 021-251-551 he should PM me because I have a NOS 021-251-552.



Nope. But I do have a water pump for a 64 bug. Wink Was it Xevin that needed muffler bearings? I have those in a box with my Okrasa engine kits and NOS 1958 Westfalia side tents. Yes tents. I cut back and sold two, now I only have three left. Wink


That is quite frugal. If you sell the thread separately you might be able to get 4, even 5 more out of what you have left. Wink
_________________
American Standard Snorkeling Terrier
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Bay Window Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3  Next
Page 1 of 3


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
