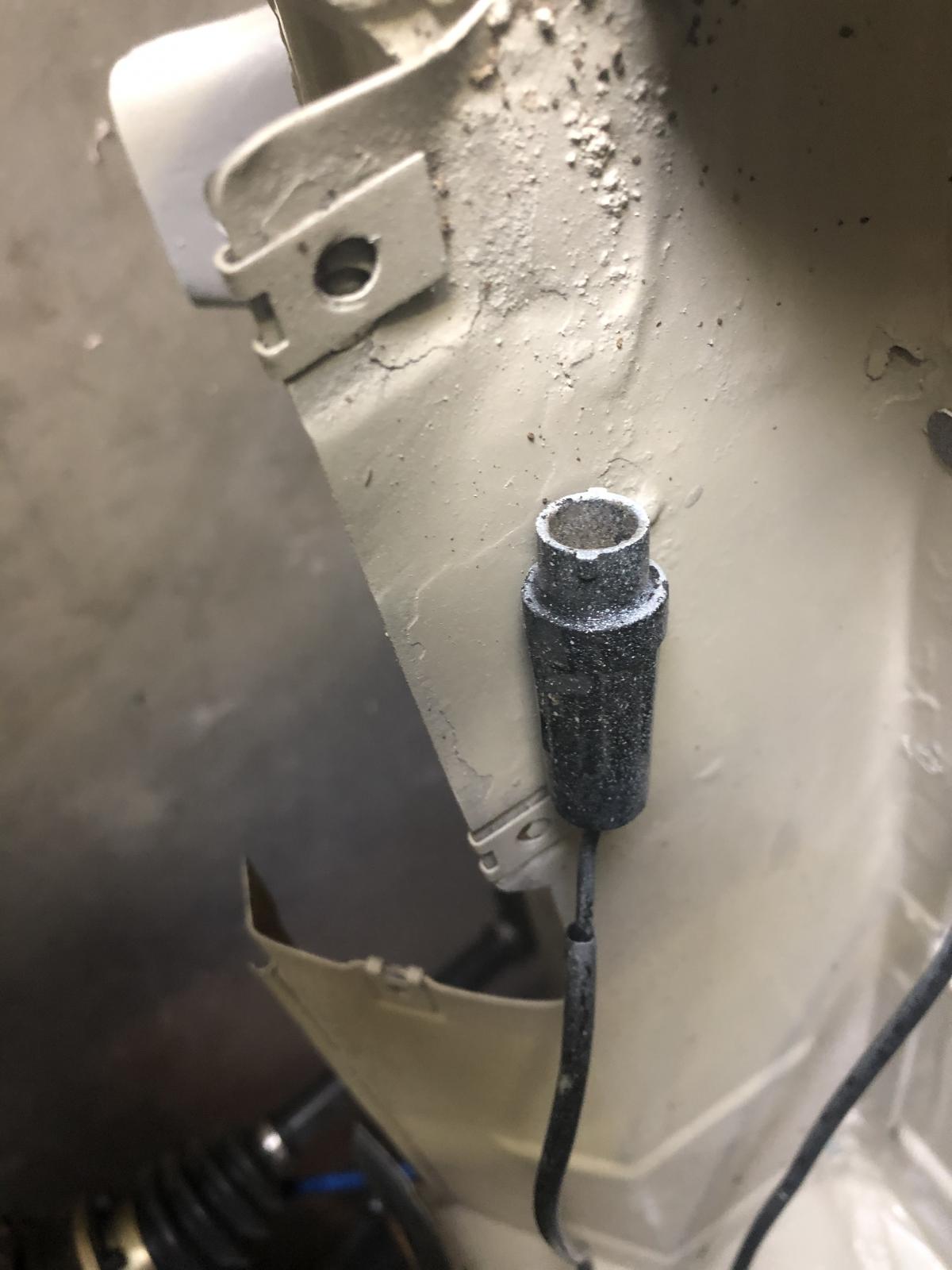

Does anyone know what this is. Engine compartment 1969 bay
|
|
| Back to top |
|
 |
jmstu76
Samba Member
Joined: March 01, 2004
Posts: 1280
Location: Edmond Oklahoma
|
| Posted: Wed Oct 30, 2019 8:24 am Post subject: Re: Wire plug |
|
|
Drivers side?
Can you post a broader picture? so that we have some reference of were the plug is and where the wire it's attached to goes...
It possibly is the power to your reverse lights. The positive power comes off the positive side of the coil.
_________________
James
'76 Deluxe Sage Green Westy
2258 cc GD case 78mm CW crank, 2.0 H-beam rods 5,325” 22mm pin, JE forged pistons with 15cc dish, JE rings, type 11 clearanced oil pump, CB Eagle 2205 Type-2 “Torque Special” hydraulic cam with matched lifters fed by CB Dual Weber 40 IDF MX with 6” foam air filters, currently 55 idle, 130 main, 200 air correction, 32 mm venturis. 27in General Grabber AT2 All Terrains, Berg Shifter, stock '76 exhaust HPC Ceramic Coated. 11/18/2020 |
|
| Back to top |
|
|
pjtaxi
Samba Member
Joined: December 31, 2013
Posts: 121
Location: Yakima Washington
|
| Posted: Wed Oct 30, 2019 8:30 am Post subject: Re: Wire plug |
|
|
| Thanks I’ll check. The other piece of that connection is missing. The lead comes out of a loom on driver side next to wires from backup light switch in trans |
|
| Back to top |
|
|
SamboSamba22
Samba Member
Joined: August 06, 2015
Posts: 2806
Location: Benton, Arkansas
|
| Posted: Wed Oct 30, 2019 8:50 am Post subject: Re: Wire plug |
|
|
The angle of your picture is weird, but that is the fuse connector coming from the transaxle. It is plugged into a two-spaded switch in the side of the transmission that operates your back up lights.
The other half of the connector that is missing helps saddle and contain the fuse, which has a pigtail wire that runs to the ignition coil, hot lead, terminal #15.
_________________
The Bus Barn Ltd. Co.
Oct. ’67 Double Cab (’68 Crew Cab)
[url=http://www.vw-mplate.com/mplate-44412.png]Click to view image[/URL]
March '69 Delivery (Panel Bus)
[url=http://www.vw-mplate.com/mplate-44414.png]Click to view image[/URL] |
|
| Back to top |
|
|
74 Thing
Samba Member
Joined: September 02, 2004
Posts: 7636
|
| Posted: Wed Oct 30, 2019 10:21 am Post subject: Re: Wire plug |
|
|
https://www.thesamba.com/vw/classifieds/detail.php?id=1819837
It is half of the fuse holder for the reverse light switch that is installed in the nosecone of the tranny-line is supposed to connect to the + side of the coil with the fuse inline. |
|
| Back to top |
|
|
pjtaxi
Samba Member
Joined: December 31, 2013
Posts: 121
Location: Yakima Washington
|
| Posted: Wed Oct 30, 2019 10:30 am Post subject: Re: Wire plug |
|
|
| Thanks everyone for all the info. This a great site for vw info. I try to figure things out with the manual and hopefully a little common sense but if that fails you guys bail me out. 👍 |
|
