 Posted: Wed Nov 06, 2019 10:44 am Post subject: Altitude compensating carburetor |
 |
|

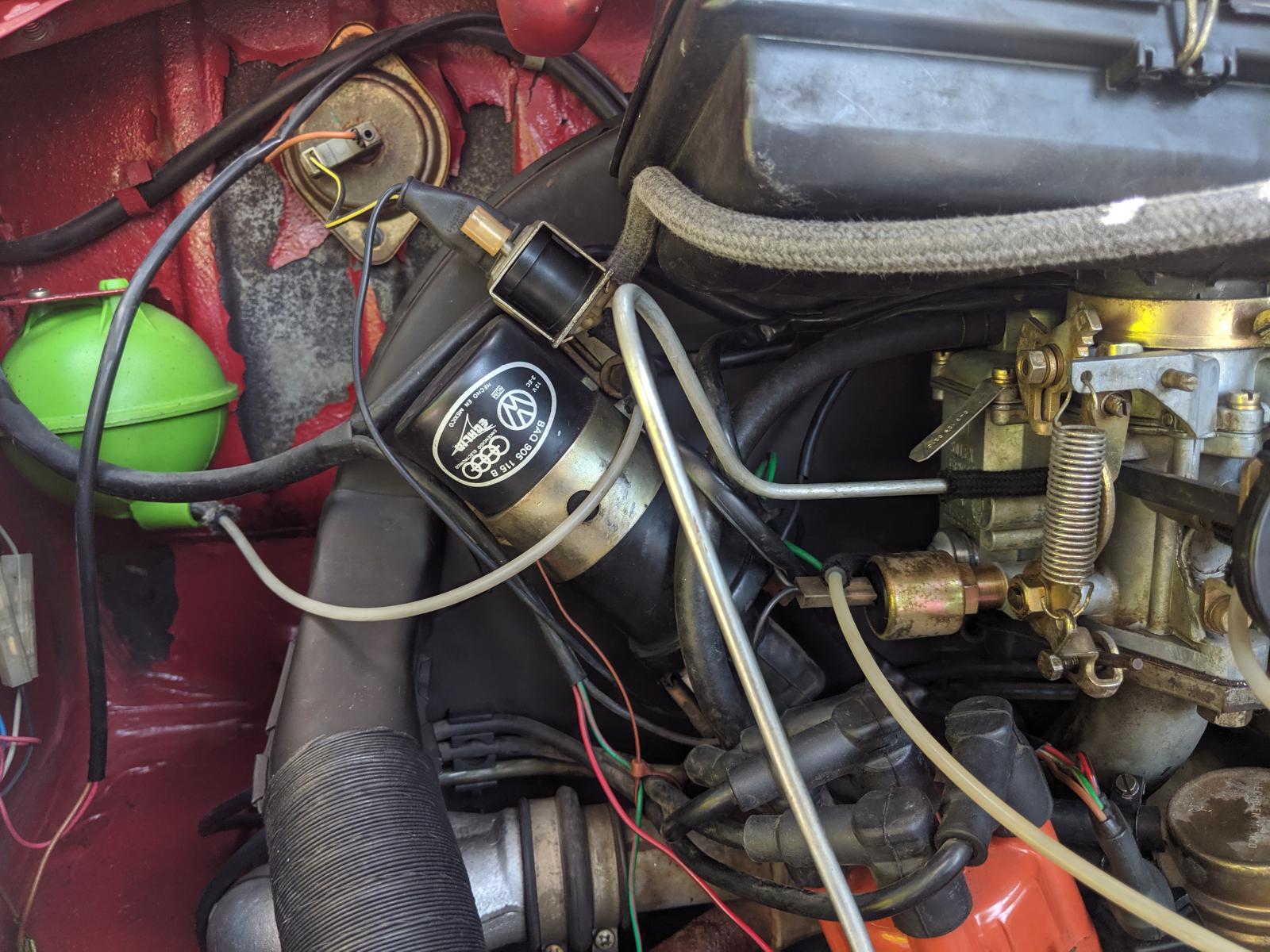

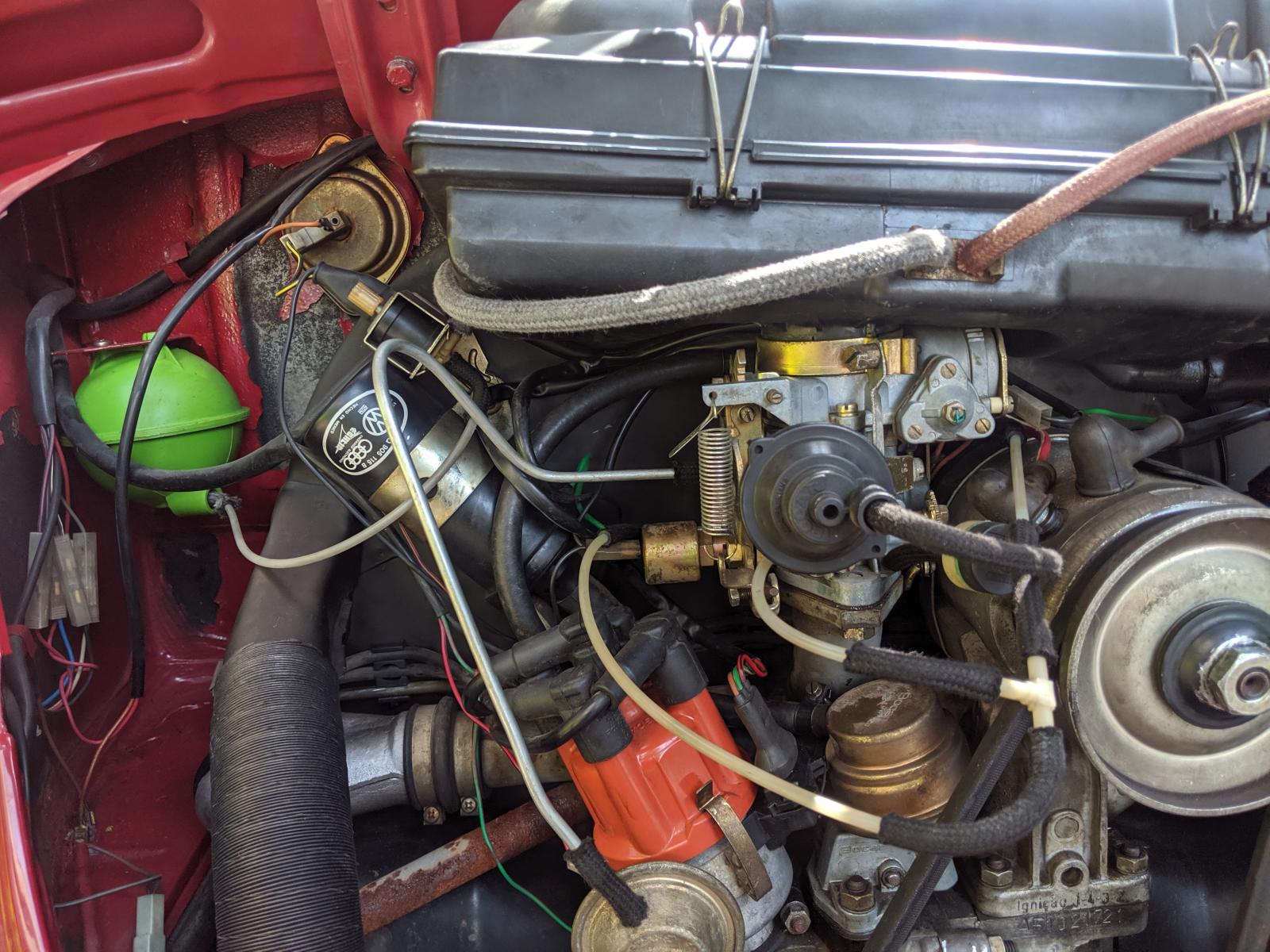

I tried finding diagrams or any information online, but I could not find anything on the correct hookup of the vacuum hoses for the sistema altimetrico. Perhaps you guys might be able to help me out or find the system interesting.
Its from a 1991 car from Puebla.
[/img] |
|
