 Posted: Fri Jan 03, 2020 1:04 pm Post subject: Heater hose rubbers? |
 |
|
I know I need a set of rubber seals between the accordion hose and body like these.
https://www2.cip1.com/ProductDetails.asp?ProductCode=VWC-111-819-945-PR

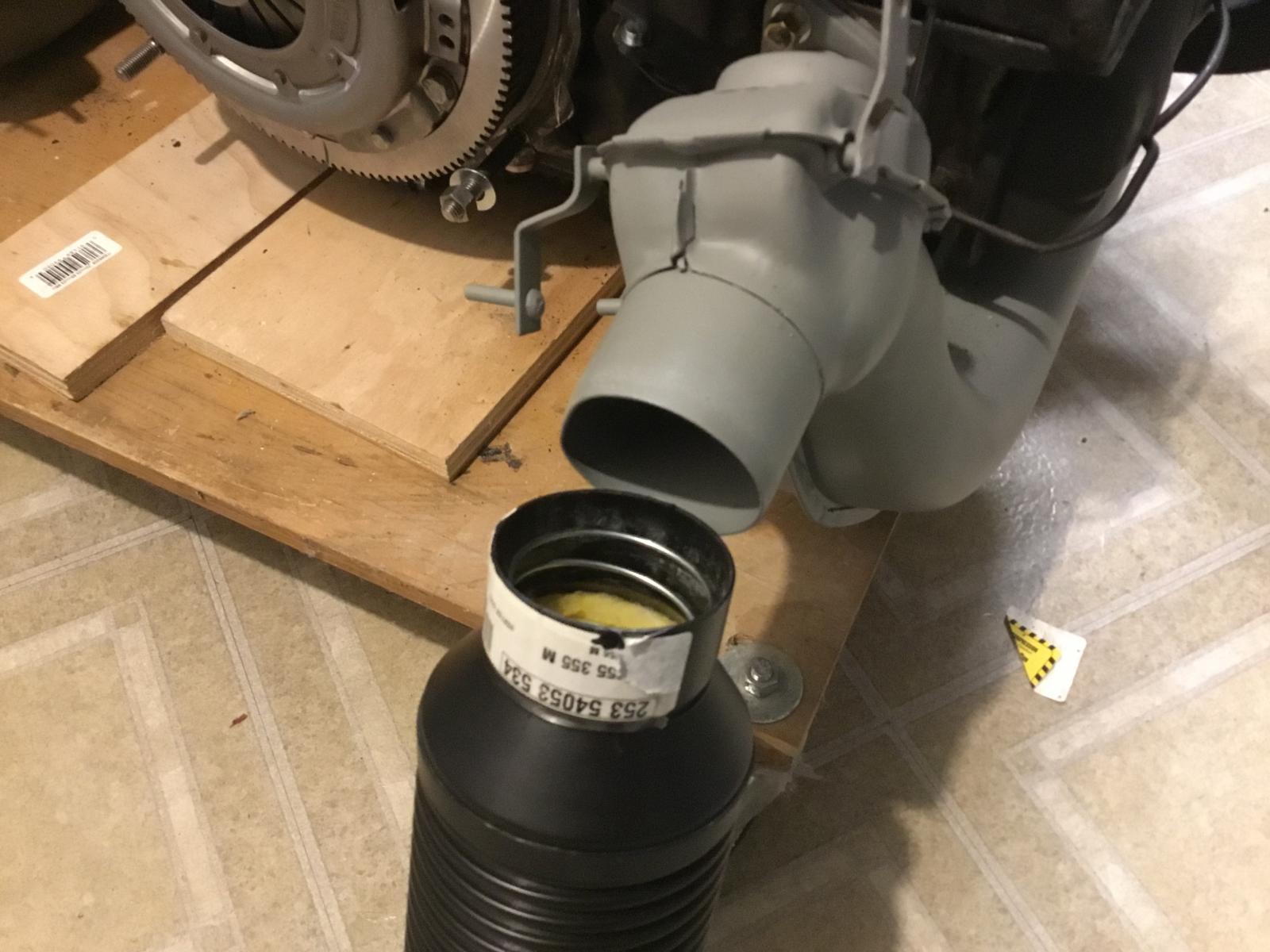

But do I need another set to keep the tubes from melting when I connect them straight to the heater box?
I just took off the original rusty asbestos tubes and I am installing new accordion tubes and heater boxes from bus depot.
[/img] |
|
| Back to top |
|
 |
ivwshane
Samba Member
Joined: May 19, 2011
Posts: 1920
Location: Sacramento ca
|
| Posted: Fri Jan 03, 2020 2:05 pm Post subject: Re: Heater hose rubbers? |
|
|
I’m guessing VW had the cuff there for a reason and it’s either to help seal the connection or to keep from melting the plastic or both. I made my own cuffs using high temp silicon mat I bought off of eBay.
https://www.ebay.com/itm/High-Temp-12-x-12-Black-S...1856876732
_________________
77 westy 2.0 FI
69 ghia coup 1600dp
70 single cab |
|
| Back to top |
|
|
Wildthings
Samba Member
Joined: March 13, 2005
Posts: 52255
|
| Posted: Fri Jan 03, 2020 2:14 pm Post subject: Re: Heater hose rubbers? |
|
|
| There is a set on each end of the tubes, you need four bushings total. |
|
| Back to top |
|
|
SGKent
Samba Member
Joined: October 30, 2007
Posts: 42364
Location: at the beach
|
| Posted: Fri Jan 03, 2020 9:56 pm Post subject: Re: Heater hose rubbers? |
|
|
To this day I still don't know why one of the bellows is supposed to be short and the other long. I'm using two the same length and they work fine. That said, those fellers get up to about 300F as I recall. Make sure nothing in them will melt at that temp. This is all that was left of an aftermarket part that was supposed to be a replacement.
Also the white stuff on the original metal inserts is asbestos. The vanagon cuffs are silicone. Some are grey and some orange. 251-255-393 d
_________________
"Most people don't know what they're doing, and a lot of them are really good at it." - George Carlin |
|
| Back to top |
|
|
airschooled
Air-Schooled
Joined: April 04, 2012
Posts: 13457
Location: West Coast, USA
|
| Posted: Fri Jan 03, 2020 11:34 pm Post subject: Re: Heater hose rubbers? |
|
|
| SGKent wrote: |
| To this day I still don't know why one of the bellows is supposed to be short and the other long. |
That's a Type 4 bus only thing… OP has a Type 1, which uses the same length on both sides. (211 255 387) As for why VW changed it? I have no idea. Similar lengths fit just fine, but a right (388) usually won't stretch to fit on a late bay left side.
Robbie
_________________
One-on-one tech help for your vintage Volkswagen:
www.airschooled.com
https://www.patreon.com/airschooled |
|
| Back to top |
|
|
Boesen
Samba Member
Joined: April 12, 2011
Posts: 541
Location: Iowa
|
|
| Back to top |
|
|
sebgi1
Samba Member
Joined: September 19, 2005
Posts: 171
Location: Quebec, Canada
|
| Posted: Sat Jan 04, 2020 7:14 am Post subject: Re: Heater hose rubbers? |
|
|
I use silicone hose reducer 51 to 60mm it will fit just fine. wall thickness is about 5mm
60mm hose cut to lenght will fit just fine too.
edit: this is for a 73 maybe the inner diameter will be different
_________________
SEB
Dogs are the most precious and valuable possession of mankind. VWs are second!
'73 Neptune blue safare camper
'71 Neptune blue tintop |
|
| Back to top |
|
|
madscientist
Samba Member
Joined: June 11, 2009
Posts: 60
|
| Posted: Sat Jan 04, 2020 1:36 pm Post subject: Re: Heater hose rubbers? |
|
|
| sebgi1 wrote: |
I use silicone hose reducer 51 to 60mm it will fit just fine. wall thickness is about 5mm
60mm hose cut to lenght will fit just fine too.
edit: this is for a 73 maybe the inner diameter will be different
|
I never thought of those..
I already put a set on my intakes since the s*&tty ethanol gas eats a pair about every 2 years.
I feel bad because when I see you are Quebec all I can think of LetteryKenny and all that “good fishing in Kyu bec....”
Thanks for the tip on the silicone boots. |
|
| Back to top |
|
|
SGKent
Samba Member
Joined: October 30, 2007
Posts: 42364
Location: at the beach
|
| Posted: Sat Jan 04, 2020 2:26 pm Post subject: Re: Heater hose rubbers? |
|
|
| asiab3 wrote: |
| SGKent wrote: |
| To this day I still don't know why one of the bellows is supposed to be short and the other long. |
That's a Type 4 bus only thing… OP has a Type 1, which uses the same length on both sides. (211 255 387) As for why VW changed it? I have no idea. Similar lengths fit just fine, but a right (388) usually won't stretch to fit on a late bay left side.
Robbie |
still don't get why one needs to be 2" shorter. The distance is about the same with a tape measure. I'll have to check it out again when I put the engine back in.
_________________
"Most people don't know what they're doing, and a lot of them are really good at it." - George Carlin |
|
| Back to top |
|
|
my59
Samba Member
Joined: August 13, 2003
Posts: 3966
Location: connecting the dots
|
| Posted: Sat Jan 04, 2020 3:09 pm Post subject: Re: Heater hose rubbers? |
|
|

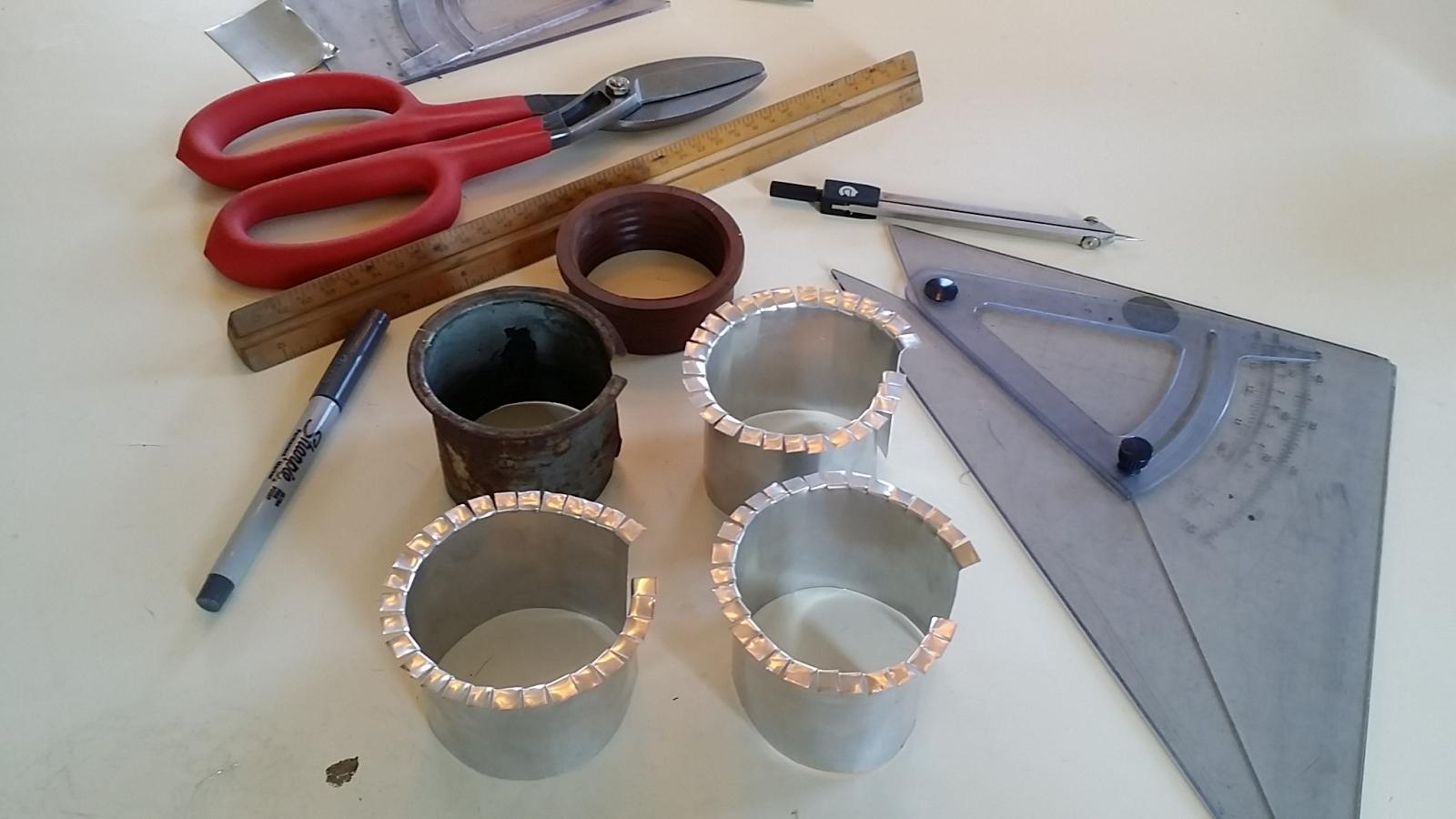

Without the insulation ends, the plastic pipe ends will melt. I swapped out the asbestos cuffs for vanagon silicone ones and made replacement liners.
_________________
my59: Well son, my grandfather died before I got to drive it, so does that answer your question?
our79: sunroof bus w/camper interior and 2.0 FI
Other:'12 Jetta, '77 Benz 300D, and a 74 MG Midget. |
|
| Back to top |
|
|
kreemoweet
Samba Member
Joined: March 13, 2008
Posts: 4087
Location: Seattle, WA
|
| Posted: Sat Jan 04, 2020 4:32 pm Post subject: Re: Heater hose rubbers? |
|
|
| madscientist wrote: |
| I know I need a set of rubber seals between the accordion hose and body like these ... |
Those short seals that CIP1 (and others) sell will not protect your accordian tubes from melting by themselves. They are just too short. You
can see that the outer black plastic is exposed to the hot air if that's all you use. If the engine gets really hot, you
could end up like the guy in this thread: https://www.thesamba.com/vw/forum/viewtopic.php?p=8023303
_________________
'67 bug: seized by the authorities
'68 bug: seized by the authorities
'71 kombi: not yet seized by the authorities
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 52699
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Sat Jan 04, 2020 5:24 pm Post subject: Re: Heater hose rubbers? |
|
|
| SGKent wrote: |
| asiab3 wrote: |
| SGKent wrote: |
| To this day I still don't know why one of the bellows is supposed to be short and the other long. |
That's a Type 4 bus only thing… OP has a Type 1, which uses the same length on both sides. (211 255 387) As for why VW changed it? I have no idea. Similar lengths fit just fine, but a right (388) usually won't stretch to fit on a late bay left side.
Robbie |
still don't get why one needs to be 2" shorter. The distance is about the same with a tape measure. I'll have to check it out again when I put the engine back in. |
It matters on a type 1, the offset of the cylinder banks (crank journals) makes the trip to the body longer on one side, most type 4 systems make up the difference with longer metal tubes on one side.
