 Posted: Wed Jan 29, 2020 12:48 pm Post subject: Wiring Connectors As Factory |
 |
|
So, I've been upgrading my wiring habits from the blue/red/yellow FLAPS connectors of yore..
Went to using these crimpers from a big box store,
but stripping the plastic off and using shrink-wrap.

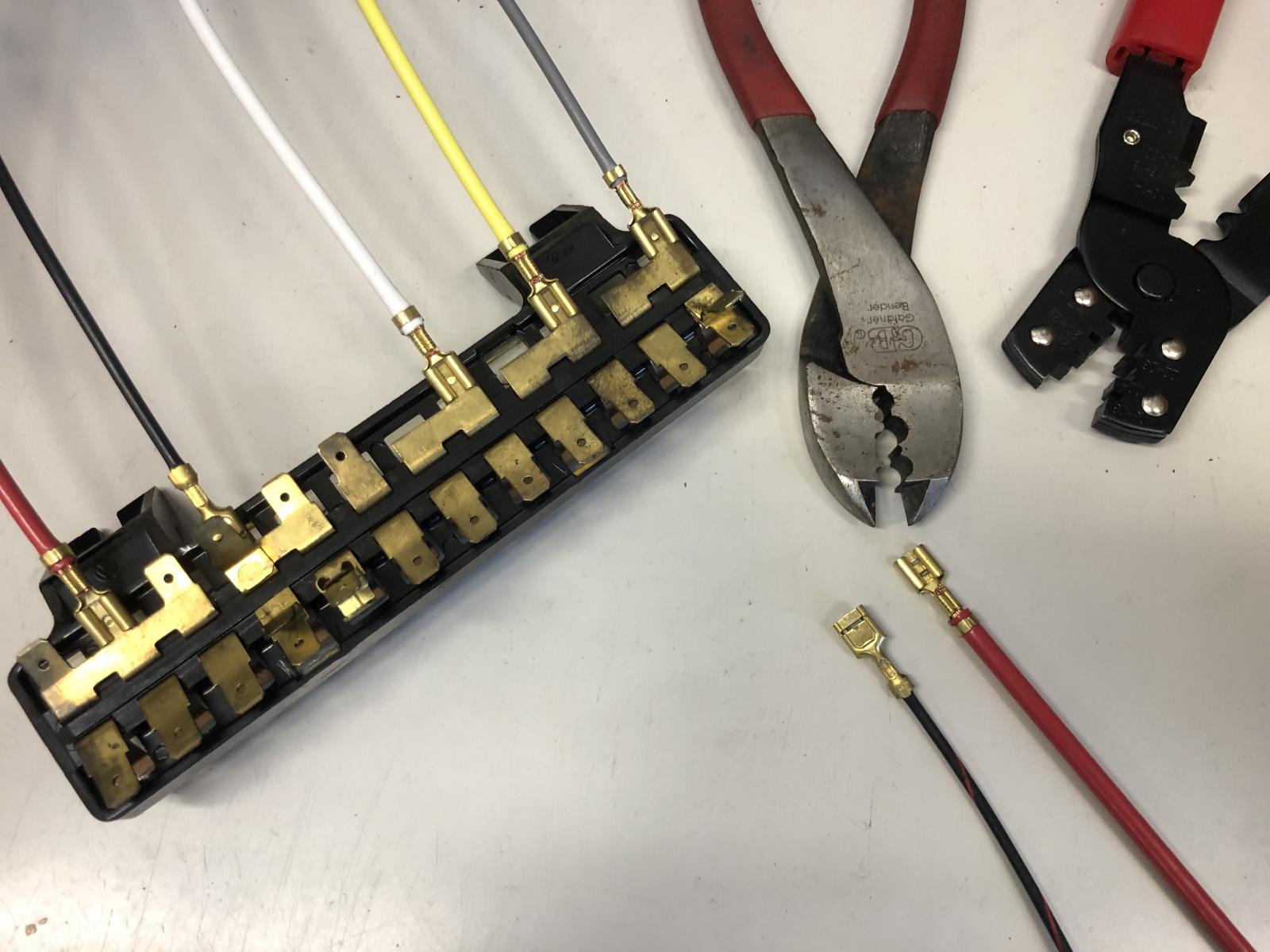

If you look at the wiring samples here,
These are the ends that Wiring Works sell these days,
And they seem to match factory.
The key is that the insulation is strain-relieved by a crimp.
Apparently, there are crimpers that will do these types of ends:
(Big thanks to Telford)
Got a set of 990168 crimpers on the way from here:
https://www.delcity.net
Also got sent here for terminals:
https://www.digikey.com/products/en/connectors-int...ageSize=25
Egad! a LOT of options!
Anybody know what's right for our vehicles?
Like, matches, not just 'close enough' or 'works'?

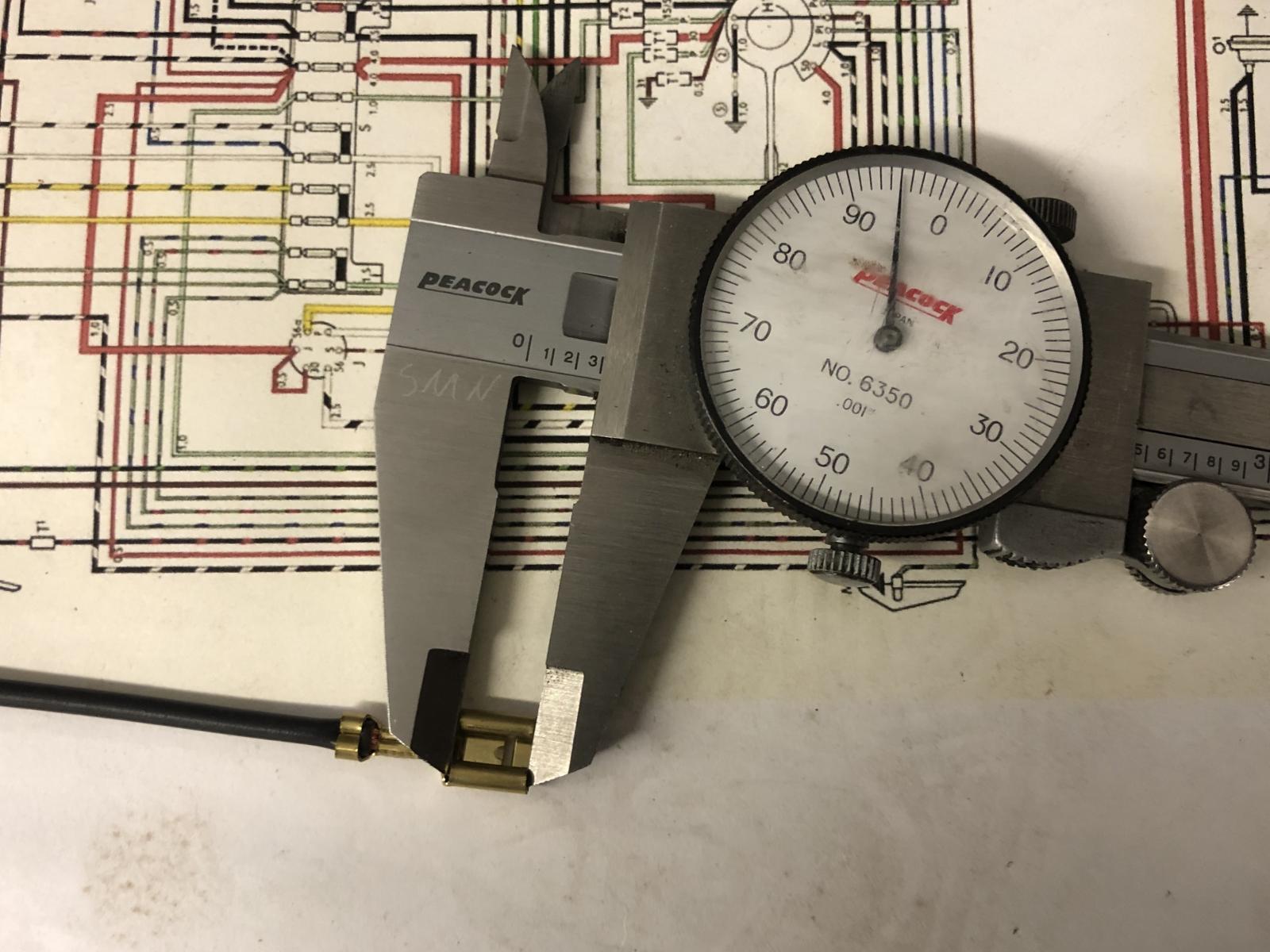

I measure the terminal ends and it doesn't line up with the options.
I.e. spade measures .244" wide and .027" thick,
And it's not an option.
Am I missing some metric thing, or measuring wrong, or..?
Even more confusing is Rhode Island Wiring.
http://www.riwire.com/
"Lucas Blades" "GM Blades"?
Huh?
Plus, no strain relief?
Also,
The ends say they work for 14-18 AWG wire.

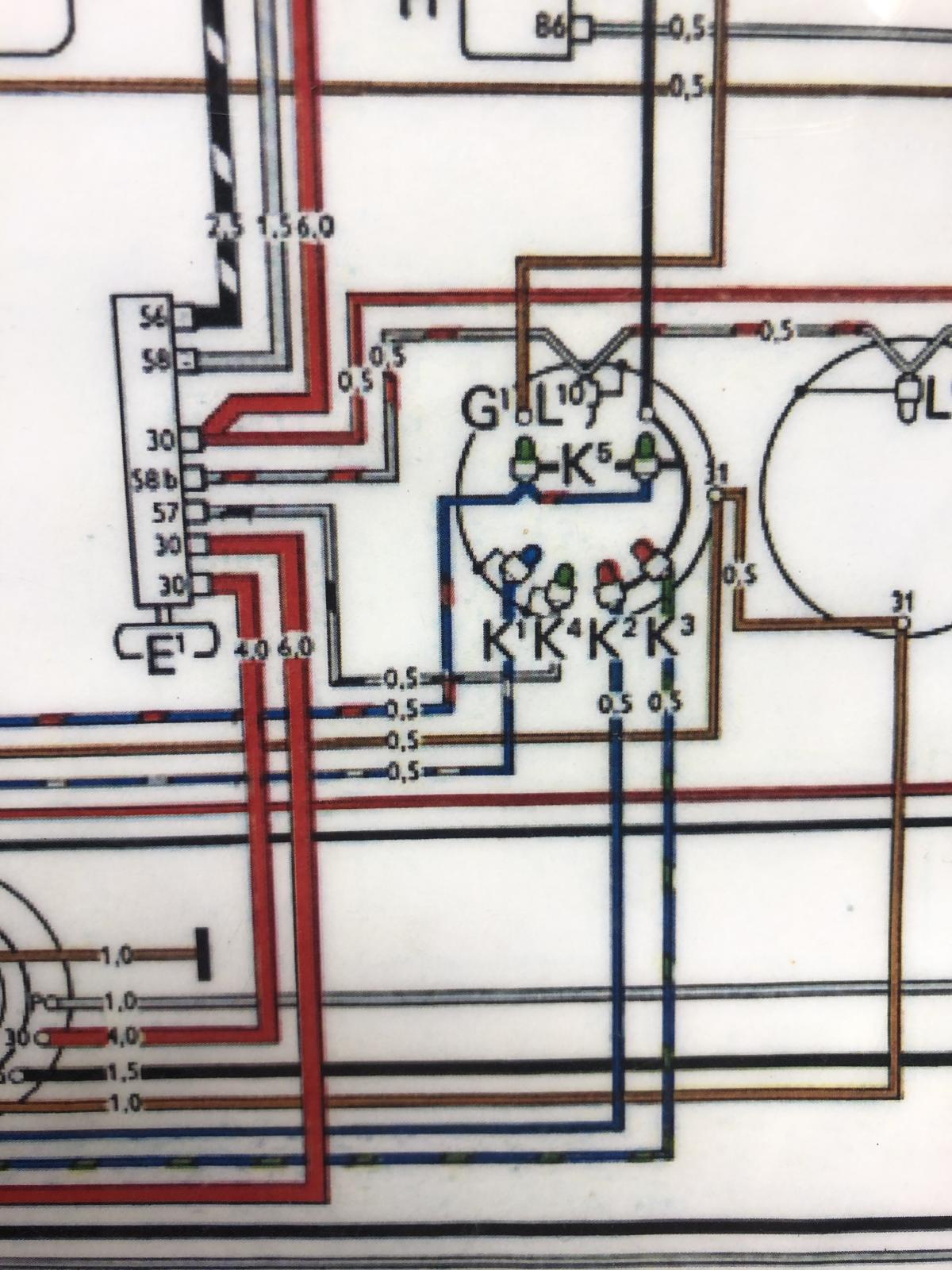

Is this the 1,5 or 0,5 etc. numbers shown on the diagram?
What works or overlaps?
If anyone could point me to the right termnals to duplicate the WW or factory ends,
i would be most grateful..
Many thanks.
_________________
Bus Motor Build
I have excellent news for the world...
There is no such thing as patina.
It does not exist! |
|
| Back to top |
|
 |
Xevin
Samba Member
Joined: January 08, 2014
Posts: 8952
|
|
| Back to top |
|
|
AlmostHeavenWV_VW
Samba Member
Joined: October 12, 2017
Posts: 1966
Location: WV
|
|
| Back to top |
|
|
Clatter
Samba Member
Joined: September 24, 2003
Posts: 7846
Location: Santa Cruz
|
| Posted: Wed Jan 29, 2020 2:41 pm Post subject: Re: Wiring Connectors As Factory |
|
|
Wow!
(Obviously  ) I'd never seen any of this stuff.
Beautiful!
I feel so much smarter here all of a sudden!
_________________
Bus Motor Build
I have excellent news for the world...
There is no such thing as patina.
It does not exist! |
|
| Back to top |
|
|
skills@eurocarsplus
Samba Peckerhead
Joined: January 01, 2007
Posts: 17925
Location: sticksville, ct.
|
|
| Back to top |
|
|
Xevin
Samba Member
Joined: January 08, 2014
Posts: 8952
|
| Posted: Wed Jan 29, 2020 3:39 pm Post subject: Re: Wiring Connectors As Factory |
|
|
| skills@eurocarsplus wrote: |
yea, you need metric
|
He needs a Doctor
Explain this Clatter
_________________
Keep on Busin'
| 67rustavenger wrote: |
| GFY's Xevin and VW_Jimbo! |
| Clatter wrote: |
| Damn that Xevin... |
| skills@eurocarsplus wrote: |
I respect Xevin and he's a turd  |
| SGKent wrote: |
| My God! Xevin and I 100% agree |
|
|
| Back to top |
|
|
Clatter
Samba Member
Joined: September 24, 2003
Posts: 7846
Location: Santa Cruz
|
| Posted: Wed Jan 29, 2020 3:51 pm Post subject: Re: Wiring Connectors As Factory |
|
|
Me likey shiny shiny…
Tin coated terminals might be more durable,
but brass is shiny!
Shiny!
Shiny!!
_________________
Bus Motor Build
I have excellent news for the world...
There is no such thing as patina.
It does not exist! |
|
| Back to top |
|
|
SGKent
Samba Member
Joined: October 30, 2007
Posts: 42911
Location: at the beach in Northern Wokistan
|
| Posted: Wed Jan 29, 2020 4:09 pm Post subject: Re: Wiring Connectors As Factory |
|
|
| Quote: |
| Me likey shiny shiny… |
good to know - if you are ever reported lost in a forest all we need to do is hang shiny objects in the trees with an arrow pointing to the next one...
_________________
 Canned Water - the new California approved parts cleaner (except in a drought in which case rub it with sand).
George Carlin:
"Most people don't know what they're doing, and a lot of them are really good at it."
Skills@EuroCarsPlus:
"never time to do it right but always time to do it twice" |
|
| Back to top |
|
|
raygreenwood
Samba Member
Joined: November 24, 2008
Posts: 23411
Location: Oklahoma City
|
| Posted: Wed Jan 29, 2020 4:23 pm Post subject: Re: Wiring Connectors As Factory |
|
|
If you are buying adjustable ratcheting crimpers....buy the Paladin/Greenlee crimper frames with replaceable dies. Also buy the Paladin dies as they are superior in wear and accuracy to just about anything on the market.
These three die sets will do everything in the car except the headlight flag terminal crimps. They make a specific die set for that.

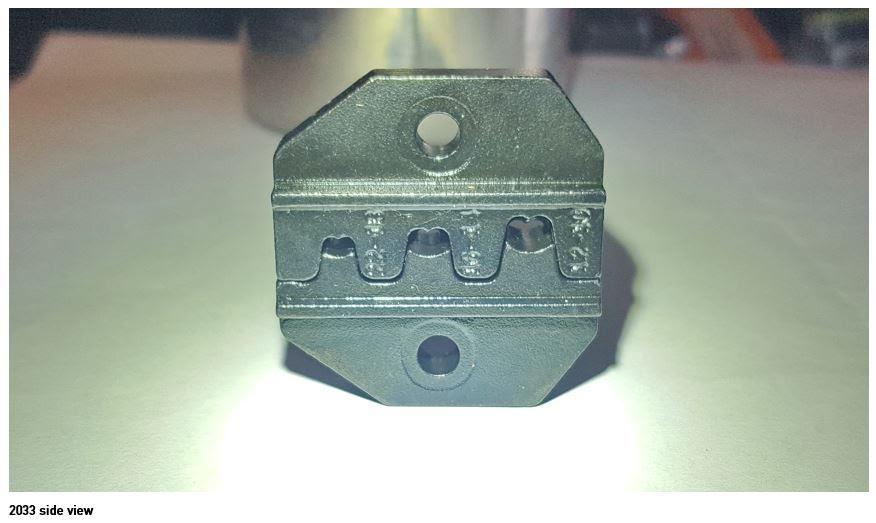

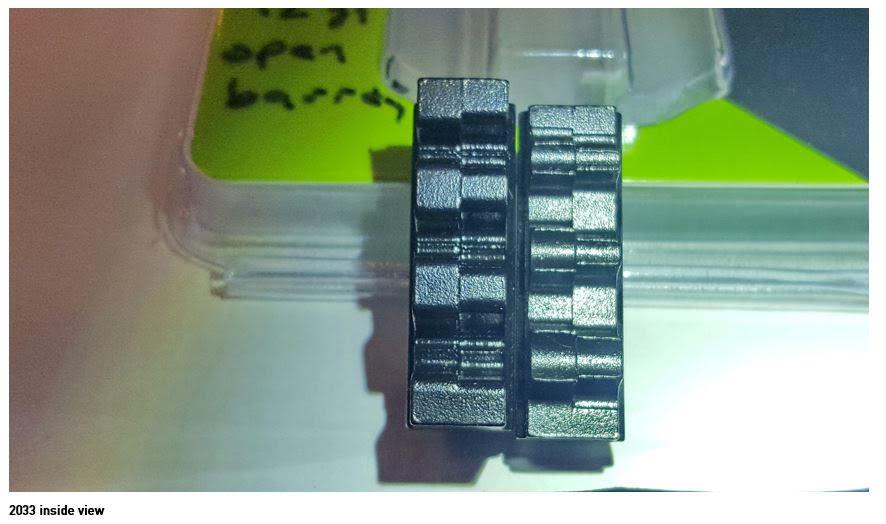

So...die set 2033 is important. It will do all of the Main terminals in your fuse block, on your coil, power hook ups to relays and even a few of the larger EFI female terminal that hold two wires.
This one is in a Greenlee package. It looks like the machine work/casting is of lower quality...but I'm pretty sure its just the anti-rust surface and should clean up in a few uses.

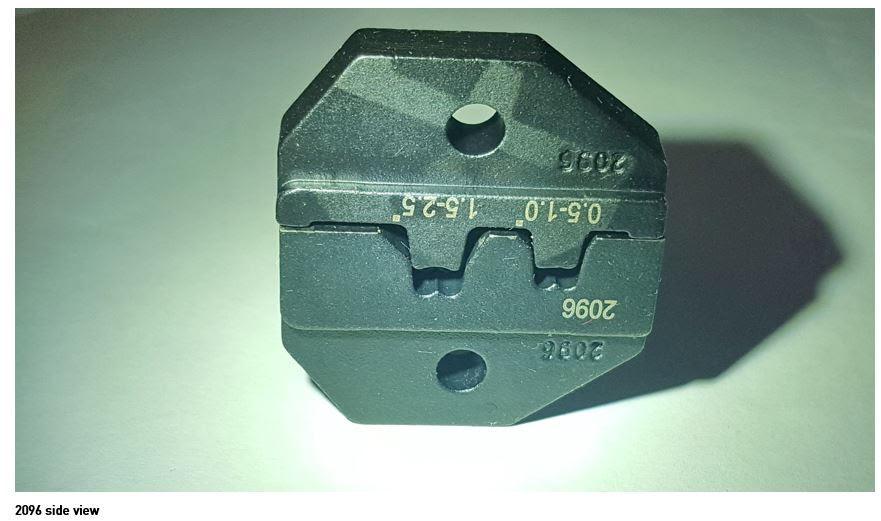

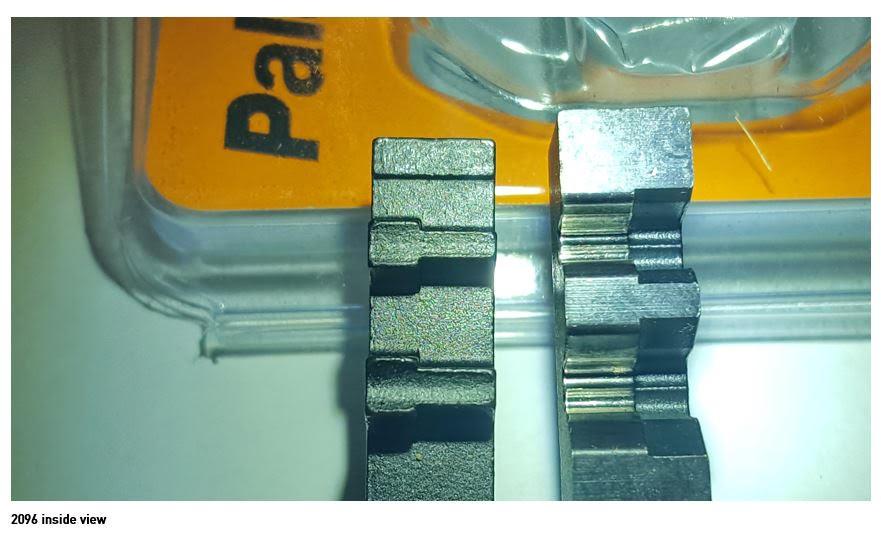

This is 2096.It does about half of what 2033 does...but has sharper reliefs....and does other crimps that 2033 cannot. Thicker female terminals or larger wires to normal and EFI female terminals.
Some straight headlight terminals...not flag style headlight terminals. This one is "almost" optional...but I have found a lot of use for it.

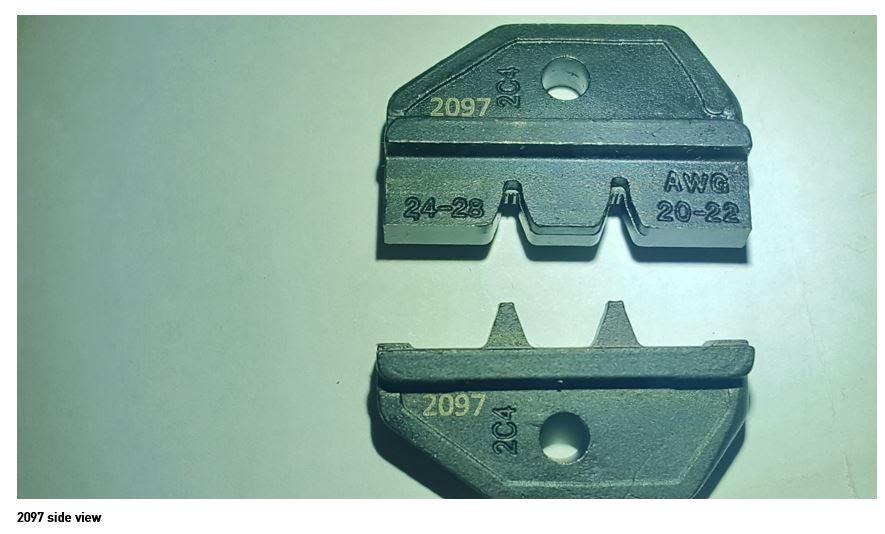

This is 2097. Very important. You will only find a few uses for this...mostly fuel injection ...but nothing else will do. This crimp "D-sub" connectors...meaning digital sub-miniature...or many computer pins.

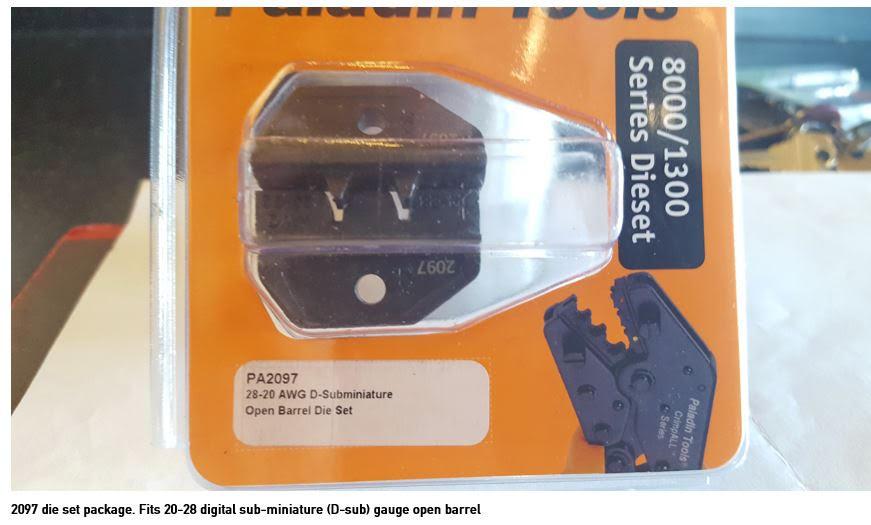

This does the small, narrow, single wire female connectors like for injectors, rear tail light and some of the female connectors inside of the steering column harness and in the brake light plugs and door light switches.

If you could only afford two die sets...I would say 2033 and 2097 would get 100% of it done.
This is just one of a zillion places you can find the Paladin 1300 series (this is 1302) for affordable. I just bought an extra one a month ago for about $30 on line.
https://www.altex.com/Paladin-1300-Series-Crimp-Frame-Only
The dies fit a whole range of paladin tools and a few more brands. Buy whatever ratcheting...ADJUSTABLE...must be adjustable pressure....crimper frame you want...but just be sure you can use Paladin/Greenlee dies.
Greenlee bought Paladin a few years back. Another Paladin owned company actually has made teh castings for a long time.
If money is tight...this basic crimper frame is both copied and produced by several companies.
Any of these are totally good but the Paladin is slightly better quality and fit. Greenlee is just about equal (they own Paladin) and Luna and Astro brands are also excellent copies.
Tempo communications...if you find tools made by them....are the company that actually manufactures the dies for Paladin/Greenlee
The Paladin crimper handle part # is PA-1302 (1300 series). It is also the same for Greenlee and Tempo.
This is a good overall look at what it is...also a good price...and B&H is the largest photo video dealer in the US...great service and very safe. You can visit the store in New York. I buy lots of stuff here.
You want to be careful to only buy the crimper handles in the 1300 series no matter the brand ...because there are MANY part numbers.
These part numbers describe not only a crimper handle with a set of dies you probably do not need for $40 more than you want to pay...some of them also are for crimpers that do not have the pressure adjustment wheel.
If the description says..."set at factory"and you do not see a small toothed wheel on the left side in the picture...its not what you want.
Ray
Last edited by raygreenwood on Wed Jan 29, 2020 4:30 pm; edited 1 time in total |
|
| Back to top |
|
|
Xevin
Samba Member
Joined: January 08, 2014
Posts: 8952
|
| Posted: Wed Jan 29, 2020 4:24 pm Post subject: Re: Wiring Connectors As Factory |
|
|
| Clatter wrote: |
| Me likey shiny shiny… |
So much he sent all his Fastback fasteners to Oregon to be specially treated because it’s not legal in CA.
"The devil is in the detail" Right Clatter?
Link
_________________
Keep on Busin'
| 67rustavenger wrote: |
| GFY's Xevin and VW_Jimbo! |
| Clatter wrote: |
| Damn that Xevin... |
| skills@eurocarsplus wrote: |
| I respect Xevin and he's a turd |
| SGKent wrote: |
| My God! Xevin and I 100% agree |
|
|
| Back to top |
|
|
raygreenwood
Samba Member
Joined: November 24, 2008
Posts: 23411
Location: Oklahoma City
|
| Posted: Wed Jan 29, 2020 4:43 pm Post subject: Re: Wiring Connectors As Factory |
|
|
| Xevin wrote: |
| Clatter wrote: |
| Me likey shiny shiny… |
So much he sent all his Fastback fasteners to Oregon to be specially treated because it’s not legal in CA.
"The devil is in the detail" Right Clatter?
Link
|
Why send it out? The original Hexavalent chrome I(chrome 6) for top sealing zinc...is factually not any better for basic items (unless you are going to sea with it)....than the newer non chrome 6 sealers.
Now if you REALLY like it shiny....and dead bang "no-rust".....and do not need that "gold" look from zinc top coats.....have them electroless zinc nickel plate them.
They will never rust or change or get chalky in your lifetime and they can be polished to near chrome level in a vibratory polisher.
Oh...and its more expensive....
Ray |
|
| Back to top |
|
|
Xevin
Samba Member
Joined: January 08, 2014
Posts: 8952
|
| Posted: Wed Jan 29, 2020 5:15 pm Post subject: Re: Wiring Connectors As Factory |
|
|
Thanks for the crimper post Ray.
Its cadmium plating. Ray, I have no idea how that plating compares to what you suggested. My head hurts just looking at that table.
_________________
Keep on Busin'
| 67rustavenger wrote: |
| GFY's Xevin and VW_Jimbo! |
| Clatter wrote: |
| Damn that Xevin... |
| skills@eurocarsplus wrote: |
| I respect Xevin and he's a turd |
| SGKent wrote: |
| My God! Xevin and I 100% agree |
|
|
| Back to top |
|
|
TomWesty
Samba Member
Joined: November 23, 2007
Posts: 3563
Location: Wyoming,USA
|
| Posted: Wed Jan 29, 2020 6:19 pm Post subject: Re: Wiring Connectors As Factory |
|
|
| Xevin wrote: |
Thanks for the crimper post Ray.
Its cadmium plating. Ray, I have no idea how that plating compares to what you suggested. My head hurts just looking at that table.
|
OH, TELL ME WHAT IT MEANS!! (Other than the refraction of sunlight through water droplets...umm and shiny metal chemically fused to not so shiny metal) WHAT DOES IT MEAN!
_________________
If you haven't bled on them, you haven't worked on them.
Visit: www.tomcoryell.com and check out my music! |
|
| Back to top |
|
|
Clatter
Samba Member
Joined: September 24, 2003
Posts: 7846
Location: Santa Cruz
|
| Posted: Wed Jan 29, 2020 8:20 pm Post subject: Re: Wiring Connectors As Factory |
|
|
http://www.precisionmetalfinishing.net/
It’s poison,
And therefore outlawed in CA.
But protects better than zinc,
And shines up super pretty..
The stuff on that table is the leftovers after i put away everything i knew where it went..
Oh, and thanks for the info, Ray.
Trying to justify paying for pro Paladin crimpers.
Keep thinking of this.. Have gun will travel.
Link
_________________
Bus Motor Build
I have excellent news for the world...
There is no such thing as patina.
It does not exist! |
|
| Back to top |
|
|
TomWesty
Samba Member
Joined: November 23, 2007
Posts: 3563
Location: Wyoming,USA
|
| Posted: Wed Jan 29, 2020 9:27 pm Post subject: Re: Wiring Connectors As Factory |
|
|
I didn’t think you were old enough to even know about that show.
_________________
If you haven't bled on them, you haven't worked on them.
Visit: www.tomcoryell.com and check out my music! |
|
| Back to top |
|
|
AlmostHeavenWV_VW
Samba Member
Joined: October 12, 2017
Posts: 1966
Location: WV
|
|
| Back to top |
|
|
SGKent
Samba Member
Joined: October 30, 2007
Posts: 42911
Location: at the beach in Northern Wokistan
|
| Posted: Mon Feb 03, 2020 11:32 am Post subject: Re: Wiring Connectors As Factory |
|
|
Steve - I have a can of Carnauba wax I can send your way if you run out of yours from frequently polishing that hardware.
_________________
Canned Water - the new California approved parts cleaner (except in a drought in which case rub it with sand).
George Carlin:
"Most people don't know what they're doing, and a lot of them are really good at it."
Skills@EuroCarsPlus:
"never time to do it right but always time to do it twice" |
|
| Back to top |
|
|
notchboy
Samba Member
Joined: April 27, 2002
Posts: 22681
Location: Escondido CA
|
| Posted: Mon Feb 03, 2020 12:11 pm Post subject: Re: Wiring Connectors As Factory |
|
|
| SGKent wrote: |
Steve - I have a can of Carnauba wax I can send your way if you run out of yours from frequently polishing that hardware. |
Good God, you have no idea - or maybe you do - how far this polish crazed man will go.
Im sure paste and polish donations will be accepted.
There isn't a way to polish the inside of bolts yet, but Steve is working on it I assure you
_________________
| t3kg wrote: |
OK, this thread is over. You win. |
Jason "notchboy" Weigel
1964 1500 S
1964 T34 S Convertible
1977 Westfalia Camper pop-top |
|
| Back to top |
|
|
raygreenwood
Samba Member
Joined: November 24, 2008
Posts: 23411
Location: Oklahoma City
|
| Posted: Mon Feb 03, 2020 12:41 pm Post subject: Re: Wiring Connectors As Factory |
|
|
| Xevin wrote: |
Thanks for the crimper post Ray.
Its cadmium plating. Ray, I have no idea how that plating compares to what you suggested. My head hurts just looking at that table.
|
Yes....its actually ZINC plating....with a cadmium coating. The common term is "cad plated"....but the "cadmium" is just a sacrificial protective layer for the zinc.
Cadmium itself...is a very weak poor plating.
But what most are looking for...for original stock finishes of plated parts is either that gold green looking (many colors) like you find on door lock strikers and on many brake cylinder parts....is called Zinc Chromate plating.
Others are expressed as cadmium plating. The vast majority of people who "think" they want cadmium plating are actually wanting zinc chromate plating. Virtually all of VW's hardware was zinc plated at a minimum.
The hexavalent chromium is mentioned...is NOT chrome plating. It is that top goldish green or pinkish gold color like I was talking about above.
Zinc is the worlds best anti-rust "sacrificial" plating. But...its starts its sacrificial oxidization minutes after its plated on. In short order...weeks or months....it gets that white dusty look to it. Thats fine...thats its job. Its supposed to oxidize so the steel/iron beneath does not rust.
Eventually though all of the zinc will oxidize away.....maybe years down the line...and the metal underneath will eventually start to rust. To slow this process down...and to improve the appearance....they coat the surface of zinc plate...with either cadmium or more often in the past...chromate.
The chromate...the gold/green stuff....acts like a plating for the zinc plating. Its called a passivate. The process is called passivation. It prevents for a long time...the sacrificial oxidization of the zinc. If air cannot reach the zinc...it will not begin to oxidize. The cad or chromate plating easily triples the anti-rust lifespan of zinc plated ferrous metals.
But...the active ingredient...until it was "largely" (but not totally) outlawed....was "hexavalent chrome" or "chrome 6".
Highly toxic carcinogen. A few plater's with a license still do it. Very expensive now.
But my point is that modern "passivates".....have come a long way and easily replace chrome 6 and have equal lifespan and effectiveness....for a fraction of the cost. Modern blends of Trivalent chrome can easily do the same thing for anything but maybe aerospace needs.
Ray |
|
