How to connect the Brake Warning Light?

[greenbeetle74]

I want to reconnect my Brake Warning Light on the Dashboard. I have a 1975 T2b Baywindow Bus.

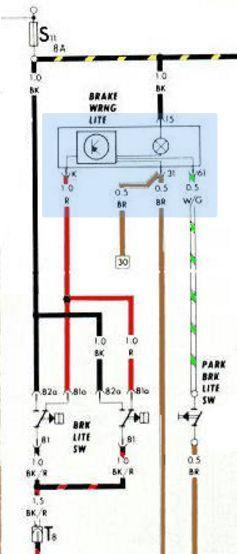

The wiring digram from Bentley Manual tells the red wire which comes from the master cylinder shall be connected to terminal "K" on the Brake Warning Light.
The red wire is also connected to connector "T1d" behind the dashboard.

But I couldn't find a red wire, nor the connector T1d.

Can anybody tell me where connector T1d is located and how it looks like?

Thanks in advance.

[/img]

[busdaddy]

Hmmm..., T1d says it's a single connector on the instrument cluster, the blue charge light wire also shows a T1d connection...

The red wire is found in the 3 or 4 wire small harness that leads up the nose from the master cylinder and horn, in along with it will be a black wire and a black/red wire. I do recall some slightly odd wiring or colors happening in 75 only on that circuit, but I can't recall all the details of it right now.
_________________
Rust NEVER sleeps and stock never goes out of style.

Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!

Слава Україні!

[Wildthings]

T1d is just a single connector plug. It shows as being in Current Track, #42 for the 75 bus electrical drawing. It is not involved with the brake lights. The power for the brake lights does come through T8 an eight pin connector.

[SGKent]

this is a 1977. Don't know if it is the same style as yours. There is an early and a late style.

_________________
"Most people don't know what they're doing, and a lot of them are really good at it." - George Carlin

[greenbeetle74]

Thanks guys for your replies.

@SGKent Indeed it’s the same style and setup.
Now I’m curious where the red wire on the 4 pin Brake Warning Light as seen on your picture is leading to? Which connector and which location?

[SGKent]

[Wildthings]

[greenbeetle74]

[kreemoweet]

This is what VW single wire connectors looked like:

The wiring diagram says T1d is "on the cluster of the instrument panel", but that would
be very odd if true. All other VW's with dual-circuit brakes I've seen have the wiring for the two brake
light switches spliced together near the master cylinder (under the vehicle on busses).

There may not actually be a T1d. The wiring on my own '71 bus did not match up exactly with that
shown in the Bentley wiring diagram, either. This goes x infinity if there's been PO's messing with the
wiring. In that case, pretty much anything is possible. I would suggest you physically trace that red
wire to see what's up.
_________________
'67 bug: seized by the authorities
'68 bug: seized by the authorities
'71 kombi: not yet seized by the authorities

Stop dead photo links! Post your photos to The Samba Gallery!

[SGKent]

[greenbeetle74]

[SGKent]

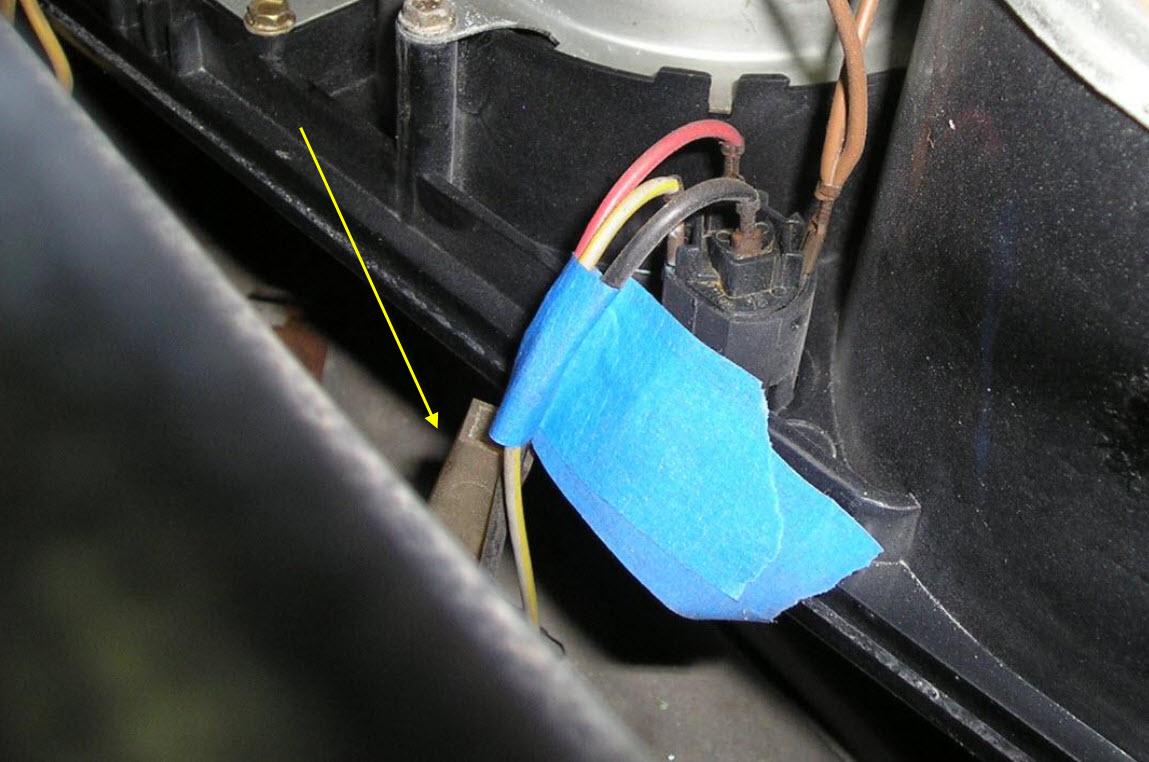

I really don't understand the question. Here is where that connector is on my 1977. If yours isn't there then maybe the PO cut it, or it is laying on the bottom of the dash. That looks to be 3 or 4 inches max from the switch.

_________________
"Most people don't know what they're doing, and a lot of them are really good at it." - George Carlin

[greenbeetle74]

Thanks again! The wiring is like Spaghetti.

[SGKent]

[greenbeetle74]

[SGKent]

[greenbeetle74]

Check. I found the connector between the VW Spaghetti. As expected the red wire was disconnected from the Brake Warning Light
