PostPosted: Sun Mar 25, 2018 2:48 pm    Post subject: The 1641 for my Detroit money pit Reply with quote

This thread will be all about the 1641 engine that I知 building. It will serve as one of two engines that I知 putting together for my bright orange money pit/sand rail/pleasure craft vehicle that I値l be towing around Michigan for the foreseeable future. Two threads for two engines. The other engine痴 crankshaft had to be fixed, so while I知 waiting on that, I thought I壇 put some time in on this one.

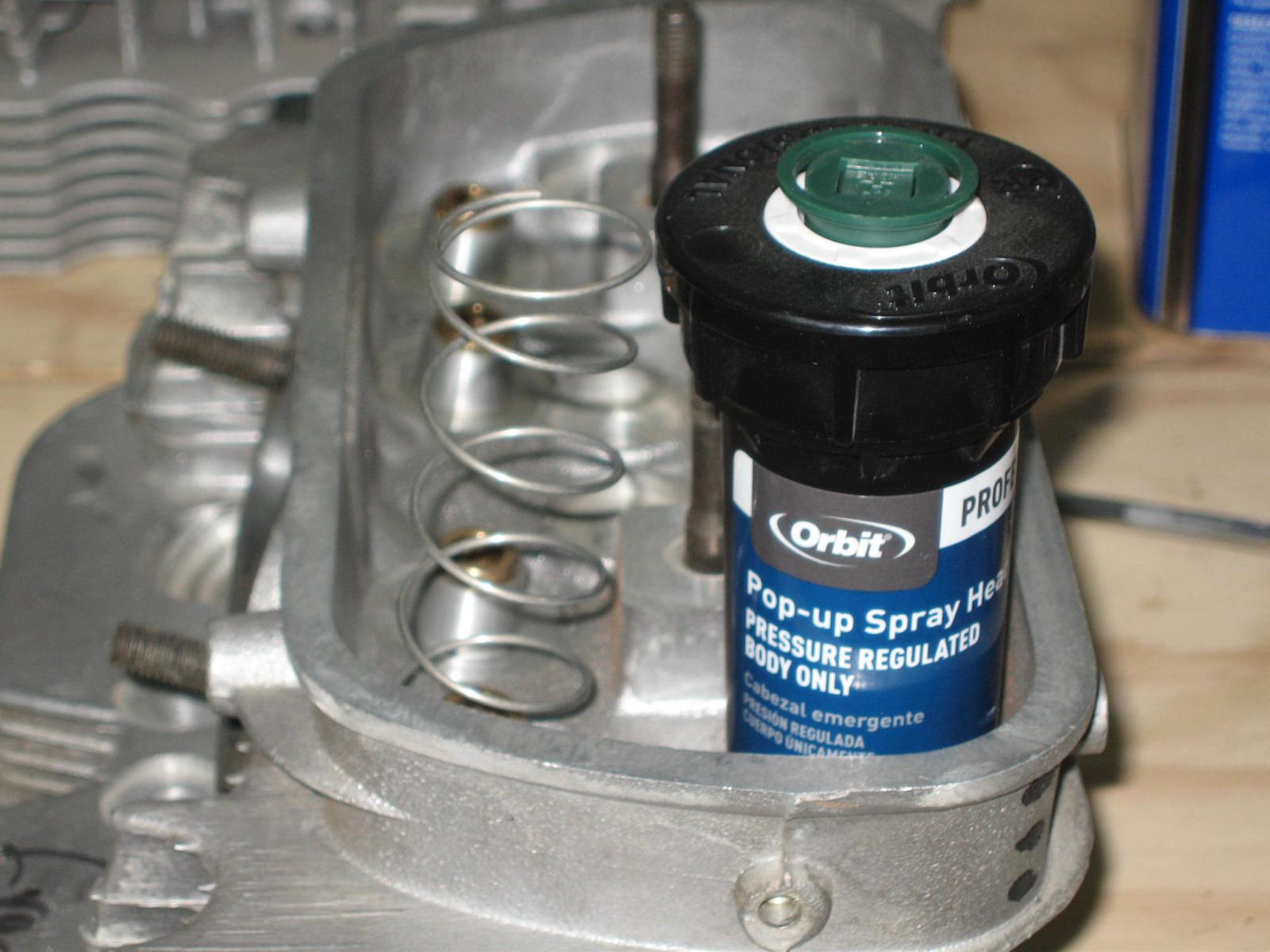

Here is a list of the innards (all pieces are brand new so far, including the case: 1) Scat 69mm cast counter weighted & balanced crank 2) 4140 I-Beam conn. rods 3) Eagle 田heater cam:2280 by C.B. Perf. 4) cast 87mm slip in Mahle P & C痴 5) AC.N痴 全TOCKER PLUS L3 heads (stock valves, 1.1 stock rockers, ported heads) 6) Pertronix Flame Thrower 叢ointless dizzy 7) center mount progressive 2 barrel (Weber/Holley 5200/Motorcraft DFV) Cool full flowed with a remote filter 9) and finally, used dual exhaust headers with cheap glass packs

I started the day by attempting to do some routine assembly procedures, but I didn't get very far. Out of the box, the ARP rod bolts were torqued down so much I had to put them in a vise to get them loose. I had that issue last week. Then I had to fight 粗m just to get the caps off the rods, .but I persevered, and I did it. ONLY TO DO THIS BONE HEADED MOVE!

Image may have been reduced in size. Click image to view fullscreen.


.... so this morning I decided to begin doing my plastigage 登il clearance checks, forgetting about how difficult it was to get the caps on and off. I put my plastigage on my first rod and rod journal, the lowest one, then torqued it down to 32 foot pounds. I was so concerned with not moving the rod and smearing the plastigage, I just forgot that it might be a problem getting the cap off. Now I知 stuck because I can稚 get the rod off the crank. I知 tapping on it and pulling and wiggling and tapping, and I don稚 even see an opening big enough in the crack to even consider sticking something in there and prying the cap off. WTH? Why do I do this to myself? Any suggestions on getting the rod and cap separated?

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
67rustavenger Premium Member
Samba Member


Joined: February 24, 2015
Posts: 5185
Location: Hillsboro, Or.
67rustavenger is offline

PostPosted: Sun Mar 25, 2018 2:55 pm    Post subject: Re: The 1641 for my Detroit money pit Reply with quote

Put the rod bolts back in the rods loosely leave space between the bolt and the rod and tap the heads of the bolts.
That will pop the rod cap loose.

Good Luck.
_________________
There's never enough time to do it right the first time. But there's always enough time to do it thrice.
GFY's Xevin and VW_Jimbo! Smile
Back to top
View user's profile Send private message Gallery Classifieds Feedback
modok
Samba Member


Joined: October 30, 2009
Posts: 22515
Location: Colorado Springs
modok is offline

PostPosted: Sun Mar 25, 2018 3:03 pm    Post subject: Re: The 1641 for my Detroit money pit Reply with quote

Yeah thread the bolts in halfway and use an aluminum or brass drift and a hammer to TAP them off.

GOOD IDEA to check the clearances, but sorry it looks like plastiguage probably isn't going to work, this time.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dennismcd707
Samba Member


Joined: October 09, 2017
Posts: 433
Location: Detroit
dennismcd707 is offline

PostPosted: Sun Mar 25, 2018 4:24 pm    Post subject: Re: The 1641 for my Detroit money pit Reply with quote

I'm gonna try that first thing in the morning. I'm sure it's gonna work. Thanks again theSamba for coming to the rescue. I tried to explain to my wife how things work on here, and she nodded, but I don't think she really understands how helpful this shared knowledge stuff really is to us hobbyists who find themselves 'STUCK' all the time! Rolling Eyes

Funny thing too. When I first ordered my rods through ACN, I didn't open up the box right away, so I didn't know what ARP bolts were for my connecting rods. Then, when I first saw my rod bolts, I panicked. I didn't have a special "ARP" socket (whatever that was, chuckle chuckle). I had never seen bolts that looked like that, so I assumed that these must be what ARP bolts are, and they need ARP sockets.

What was I thinking? I emailed John at ACN and said "Dude, you sold me bolts but didn't tell me I needed a special socket!" He explained that they're regular bolts, you just have to use a 12 point socket on there, (or whatever the number is). I felt pretty dumb, but you have to admit, it's kind of funny. Laughing
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dennismcd707
Samba Member


Joined: October 09, 2017
Posts: 433
Location: Detroit
dennismcd707 is offline

PostPosted: Mon Mar 26, 2018 9:06 am    Post subject: Re: The 1641 for my Detroit money pit Reply with quote

Success! As soon as it was suggested, I wondered why I didn't think of that. No problems, came right off. And ............... the plastigage was still intact. (thou and a half, or there abouts) I'm going to continue on, but no more plastigage tests!

So, since it's a new case, I had to buy all new hardware, including cylinder studs. I just opened up my package of new studs (8mm x std. length) and I'm about to install them. According to the Tom Wilson book, they go in finger tight, but not bottomed out. Also, he suggests I use permatex 3H on the threads to prevent oil leaks. Well, I'm about to follow directions, but I was just curious. Once they're in , they wiggle pretty good, as if they're not the right ones. Am I being paranoid, or are they supposed to wiggle up and down and side to side a bit?
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dennismcd707
Samba Member


Joined: October 09, 2017
Posts: 433
Location: Detroit
dennismcd707 is offline

PostPosted: Mon Mar 26, 2018 1:27 pm    Post subject: Re: The 1641 for my Detroit money pit Reply with quote

Got a few things done the last couple of days. After I watched a couple of videos and read up on how the full flow system all works, I drilled and tapped the new case for full flow, then I used my 4 ス inch angle grinder to grind down the boss right next to the new oil pathway. Now there痴 room for the 90 deg. fitting to be installed. Next, I washed it with dish soap and water, and made sure I left no chips or dirty sox behind.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


I finished the crank assembly once I got the rod and cap separated (from yesterday). Actually, I had that done before I even finished my 1st morning coffee. I was eager, to say the least. Then I moved on to the installation of my distributor痴 drive pinion and shims. Of course, I had to sand down the brand new pinion because it wouldn稚 fit in the hole.

Image may have been reduced in size. Click image to view fullscreen.


Before I started sanding though, I checked to see if the dizzy bore hole in the case was too small (since it痴 a brand new case). To check, I just tried using an old dizzy drive pinion that I had from another engine that I took apart, and sure enough, it dropped right into the case like it痴 supposed to. So .. I sanded and sanded until the new one fit.

According to the Tom Wilson VW engine book, now痴 the time to set the end play on the distributor drive shaft, not 疎fter the case is glued shut, and that makes sense to me. Right out of high school back in the 80痴, I dropped a washer down the hole and had to split the case to get it! That was my very first VW build! Ha ha, my buddy never let me forget that, I tell ya.

Anyway, it calls for a gap of .020 to .050, (should be .006 to .020, right?) and after 3 shims, my gap is still .090..and I知 out of shims. So guess what? I知 stuck again. I ordered some on Amazon and they値l be here in 2 days.

Image may have been reduced in size. Click image to view fullscreen.


Next, I installed my oil pressure relief valve and control valve, but again made the smart choice and replaced the old slotted type plugs with allen relief plugs. Man I love these things. Anyway, I was sure to lube up the little pistons with oil and white grease, then I oiled the springs, put a few drops of clean oil down the hole, then I sealed the plugs using just a smidge of permatex under the brass or copper washer (which is it?). I probably shouldn稚 have used anything with the washer, but I did anyway.

Then I switched gears and installed all of my new cylinder studs. Again, I read up on the installation process, and saw a bunch of conflicting 壮tuff, mostly here on theSamba. Right or wrong, this is what I did. I put a few drops of blue Loctite on the threads, screwed 粗m in till they bottomed out, backed 粗m out a few turns, then brushed the studs with permatex 3h and tightened them again, just hand tight. After 24hrs, they should be good to go. The Loctite keeps 粗m from moving (in theory) and the permatex 3h keeps 粗m from leaking (in a perfect world).

I think I might try my hand at rebuilding a carb tomorrow. I bought a kit, some carb cleaner, loud music, I should be good to go til my shims get here on Wed. Then I'll continue on and put the crank and cam in the case and slam 'er shut. I'm kidding. (This "IS" slow.)I've since learned that this end play tolerance is excessive, and should be .006 to .020.


Last edited by dennismcd707 on Tue Apr 03, 2018 5:51 pm; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dennismcd707
Samba Member


Joined: October 09, 2017
Posts: 433
Location: Detroit
dennismcd707 is offline

PostPosted: Wed Mar 28, 2018 5:38 am    Post subject: Re: The 1641 for my Detroit money pit Reply with quote

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Before inserting the cam bearings into the case, I got rid of the tab on one of the two cam thrust bearings. I used a small metal file and it took all of five minutes, but without doing this, it痴 impossible to install the thrust bearing. I didn稚 know this during an earlier build. I got angry and panicked. Then, in 3 simple sentences, I understood exactly why I had to alter the bearing to fit the case.

VW only used a thrust bearing in one side of the case. By installing a double thrust bearing, you are altering the design. The second thrust bearing was never meant to go in the second side of the case.

Anyway, I put the cam bearings in and they fit nice and snug. Next I measured the main bearing dowels, just to be sure they were all the same, and I put 粗m in their respective holes, 4 in one side of the case and 1 in the other. Now it痴 on to putting bearings #1, #2, and #4 into the case and torquing it down so I can take some measurements. I can't do #3 because it's already installed on my crank. (...sidenote: Having this installed on my crank also prevents me from being able to do a few quality checks, such as using the engine case instead of bench centers or vee blocks to check my run-out.)

I actually broke down and ordered a 1.4 to 6 dial bore gauge yesterday on Amazon. I figured that with all the time and money that I知 putting into these engines, it痴 easy to justify one more expense. Gonna do it, so I might as well do it right (or close to it). Life is short. I致e waited 30 years to build my second air cooled VW engine, so in my eyes, I知 gonna build it (and spend $$) the way I want to. See? Justification!

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.



I also wanted to add these last two photos. I was careful when I installed my new cylinder studs so as to not get any permatex on the case deck surface. This machined surface is clean and ding free, the way it痴 supposed to be. My earlier photo made it look like I was kinda sloppy. Normally true, but not here. Too important. I also had asked if my cyl. studs were supposed to wiggle once threaded all the way in. They did quite a bit, in my opinion, that's why I asked the question. (nobody replied) ...........anyway, they tightened up once the Loctite and permatex 3h hardened up.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dennismcd707
Samba Member


Joined: October 09, 2017
Posts: 433
Location: Detroit
dennismcd707 is offline

PostPosted: Fri Mar 30, 2018 10:08 am    Post subject: Re: The 1641 for my Detroit money pit Reply with quote

To check tolerances, I placed the cam in and then studied the pile of oil pumps I had sitting on the bench. After reading up on oil pumps this morning, I decided to go with a stock oil pump. Some guys use the bigger one, some guys just won't. Right or wrong, I want to mock this up, but to do so, I have to figure out my "lost hardware".
Image may have been reduced in size. Click image to view fullscreen.


It's a new case, and fat Performance in sunny CA didn't send me any hardware to go with it. I've since bought a case hardware kit, but which bolt, nut, and stud goes where, I don't know ....... yet. I'm figuring that out now.
Image may have been reduced in size. Click image to view fullscreen.


I tried searching, and just opened up more and more searches. The oil pump studs are 8mm, and from what I've read, won't thread in by hand. They're initially very tight. I think I can pick out the right ones for this, but since I'm using a special cover (by Empi....hooray Crying or Very sad ) for the full flow oil mod, I have to make sure the new studs will work with the oil pump cover, but it looks like they will.
Image may have been reduced in size. Click image to view fullscreen.


I also know which two are the bottom engine mounting studs, and the smallest one is for the oil cooler, but the others? Any help? (The alt/gen pedestal studs are already in, so these others are for.....?)

Once I get the oil pump studs in, I want to make sure everything looks and feels good (oil pump and cam), and I'll close up the case and torque it down for the first time. Maybe I'll use some plastigage. More to come ..... soon.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dustymojave
Samba Member


Joined: January 07, 2007
Posts: 4922
Location: Mojave Desert, California
dustymojave is offline

PostPosted: Tue Apr 03, 2018 3:01 pm    Post subject: Re: The 1641 for my Detroit money pit Reply with quote

One thing I want to point out at this time, is about the rotational position of the distributor pinion that the Wilson book tells you to use when assembling the engine. I haven't looked in the book lately, and all of my books of that sort are still stashed since the last house move, so I can't readily check it now.

IIRC, Wilson tells you to set the distributor drive pinion so the slot in the top is at right angle to the crank centerline/case split, then drop the crank assembly into the case with #1 rod at TDC and #2 rod at BDC. This will set the drive so the distributor rotor is off from its correct position of about 4:00 with the engine assembled. Again, IIRC, this will be about 1 tooth off from correct.
_________________
Richard
A.R.T.S. Tech Inspection MORE/MDR
Bajas, Fiberglass Buggies and Rails built in the Mojave Desert
SoCalBajas Member
Kicked Cancer's A$$...this match
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dennismcd707
Samba Member


Joined: October 09, 2017
Posts: 433
Location: Detroit
dennismcd707 is offline

PostPosted: Tue Apr 03, 2018 5:28 pm    Post subject: Re: The 1641 for my Detroit money pit Reply with quote

.....and wouldn't you know it? I dropped the crank and cam in it this morning, and then sealed the case. So .... It looks like my timing will be off a 'scosche'. (Skoshe?) That kinda blows!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dennismcd707
Samba Member


Joined: October 09, 2017
Posts: 433
Location: Detroit
dennismcd707 is offline

PostPosted: Tue Apr 03, 2018 5:43 pm    Post subject: Re: The 1641 for my Detroit money pit Reply with quote


Link
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dustymojave
Samba Member


Joined: January 07, 2007
Posts: 4922
Location: Mojave Desert, California
dustymojave is offline

PostPosted: Tue Apr 03, 2018 6:12 pm    Post subject: Re: The 1641 for my Detroit money pit Reply with quote

Well since skoshe is Japanese, the spelling in Romaji (Euro-based writing as we are using here as opposed to Japanese characters) is whatever you make it, I suppose.

You COULD at this point remove the shaft and re-set it, keeping in mind that it will twist out and back in. Turn the engine over on its side as you had it when you dropped the crank in when you do this so the thrust shims will fall out instead of into the sump.
_________________
Richard
A.R.T.S. Tech Inspection MORE/MDR
Bajas, Fiberglass Buggies and Rails built in the Mojave Desert
SoCalBajas Member
Kicked Cancer's A$$...this match
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dennismcd707
Samba Member


Joined: October 09, 2017
Posts: 433
Location: Detroit
dennismcd707 is offline

PostPosted: Tue Apr 03, 2018 6:51 pm    Post subject: Re: The 1641 for my Detroit money pit Reply with quote

I thought about re-doing that part, but I'm dragging my feet. But really, now is the time to fix it, if any, wouldn't you agree? But ................ I can talk myself out of it too
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
air-h2o-air
Samba Member


Joined: January 25, 2015
Posts: 542

air-h2o-air is offline

PostPosted: Tue Apr 03, 2018 7:35 pm    Post subject: Re: The 1641 for my Detroit money pit Reply with quote

wont hurt a thing but for possibly having plug wires in a different location on the dist cap....timing is still adjustable and can be set correctly
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dennismcd707
Samba Member


Joined: October 09, 2017
Posts: 433
Location: Detroit
dennismcd707 is offline

PostPosted: Sat Apr 07, 2018 1:46 pm    Post subject: Re: The 1641 for my Detroit money pit Reply with quote

Ok, so now after rereading what was initially going to be wrong with my timing, I'm confused. (Surprise!) I've followed directions from a couple of sources, and I think my timing should be good..... I think. Is it correct if the rotor points at 4 o'clock (with #1 at TDC) and incorrect (but runs fine) if the rotor points at 1 o'clock?

Is that my barometer on whether or not it was done correctly?

Mine is at 1, and it's gonna stay there. Vacuum can is in the right spot, hold down clamp holding down "AND" staying down. I think I'm good. I also have 5 shims under the drive gear, with probably no more than a ten to twelve THOU gap. Crank, cam, and oil pump are spinning freely, case is shut tight


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


.... now it's on to the recently painted breast plate tin. This has to be modified due to the 90 deg. fitting used for the full flow. Does anybody have any suggestions for this mod?


Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dennismcd707
Samba Member


Joined: October 09, 2017
Posts: 433
Location: Detroit
dennismcd707 is offline

PostPosted: Sun Apr 08, 2018 1:56 pm    Post subject: Re: The 1641 for my Detroit money pit Reply with quote

....and of course, the next step isn't going too smoothly. I'm trying to join my new Scat crank with my new Empi flywheel. Stop laughing ...... I'll eventually get it. I've already read ten diff. threads on the subject, so I should be good. No seriously, stop laughing.
_________________
(RIP: 1970 Beetle/Baja, 1986 GTI, 1999 Jetta, 2002 Jetta)
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
modok
Samba Member


Joined: October 30, 2009
Posts: 22515
Location: Colorado Springs
modok is offline

PostPosted: Sun Apr 08, 2018 7:27 pm    Post subject: Re: The 1641 for my Detroit money pit Reply with quote

We don't know if it was Karl Rabe or Dr. Porsche himself who decided to affix the crank with dowel pins, but whichever of them it was..... is surely burning in hell for it.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dennismcd707
Samba Member


Joined: October 09, 2017
Posts: 433
Location: Detroit
dennismcd707 is offline

PostPosted: Tue Apr 10, 2018 7:17 am    Post subject: Re: The 1641 for my Detroit money pit Reply with quote

....and speaking of Karl Rabe or Dr. Porsche burning in hell, that reminds me of a song. (In Hell I'll Be In Good Company, by The Dead South......)

So unless I'm talked out of it, I'm expecting in the mail today an 8mm 4 flute reamer, which will allow me to ream out the dowel holes in the new Empi flywheel. The holes appear to be a tad tight, using just my dial calipers. (not very accurate) My hope is to NOT MAKE THE HOLES TOO BIG....... but I'd sure like it to fit on the crank eventually. Laughing


Link

_________________
(RIP: 1970 Beetle/Baja, 1986 GTI, 1999 Jetta, 2002 Jetta)
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Clatter
Samba Member


Joined: September 24, 2003
Posts: 5005
Location: Santa Cruz
Clatter is online now

PostPosted: Tue Apr 10, 2018 7:38 am    Post subject: Re: The 1641 for my Detroit money pit Reply with quote

Hi,
Nice work. Thanks for sharing.

I'd be pulling a shim out of that distributor drive..
When you have a shiny-China distributor clamp,
It's not holding that tight of a tolerance itself,
Being all kind of taco-shaped, and not even seated all the way..


It might end up seating one day, and take out all of your clearance?

Better a few extra thou clearance, than tightened all the way up..

Image may have been reduced in size. Click image to view fullscreen.

_________________
Bus Motor Build
Fastback Build

What's That Noise??
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dennismcd707
Samba Member


Joined: October 09, 2017
Posts: 433
Location: Detroit
dennismcd707 is offline

PostPosted: Tue Apr 10, 2018 8:10 am    Post subject: Re: The 1641 for my Detroit money pit Reply with quote

You may be right. But the funny thing is, I actually used this new cheap chrome plated dist. hold down clamp because it was brand new and actually had a good shape. Of the 3 other used ones that I have (all OEM), they're shot. Bent, crooked, smashed.....whatever, they're mostly junk. I do have another brand new clamp, an aluminum billet style clamp, but I think the one I'm using now is working ok.

I've had it off and on so many times, I can see it's holding the dist. down pretty good, and sitting almost flush with the case. (the picture is deceiving) I think I'll leave the clamp ...... but still, too many shims you think? If I were take one out, the endplay will be approx. 35 to 40 THOU. Better too loose, I understand, but that's much too loose I think. I could split the case again and stare at it. Sometimes that does something. (seriously, one way or another) Think
_________________
(RIP: 1970 Beetle/Baja, 1986 GTI, 1999 Jetta, 2002 Jetta)
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Performance/Engines/Transmissions All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3 ... 12, 13, 14  Next
Jump to:
Page 1 of 14


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
