Problem with Grant piston rings.

[sweden]

I rebuild a 25 hp engine and have bought a set of new piston rings.

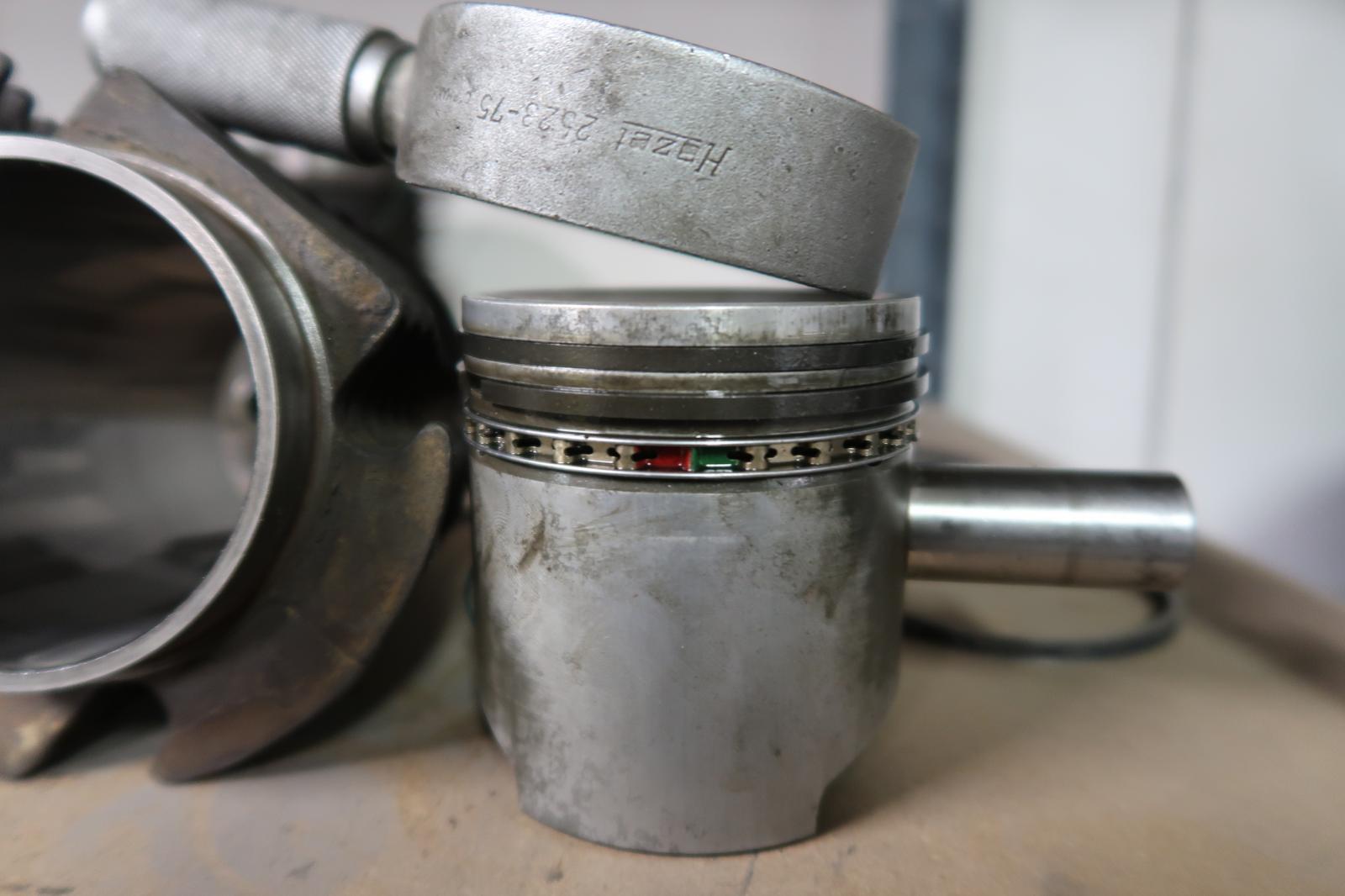

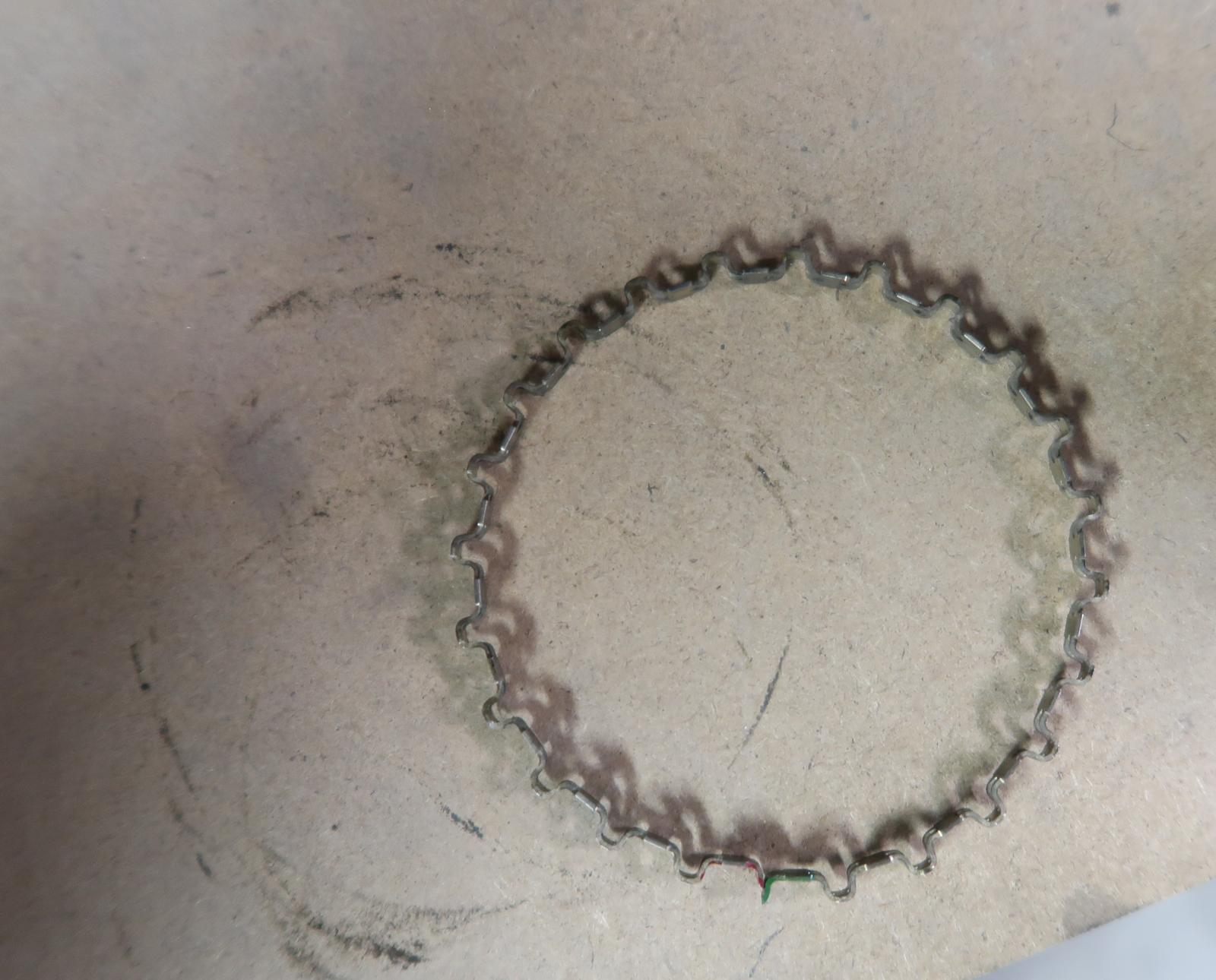

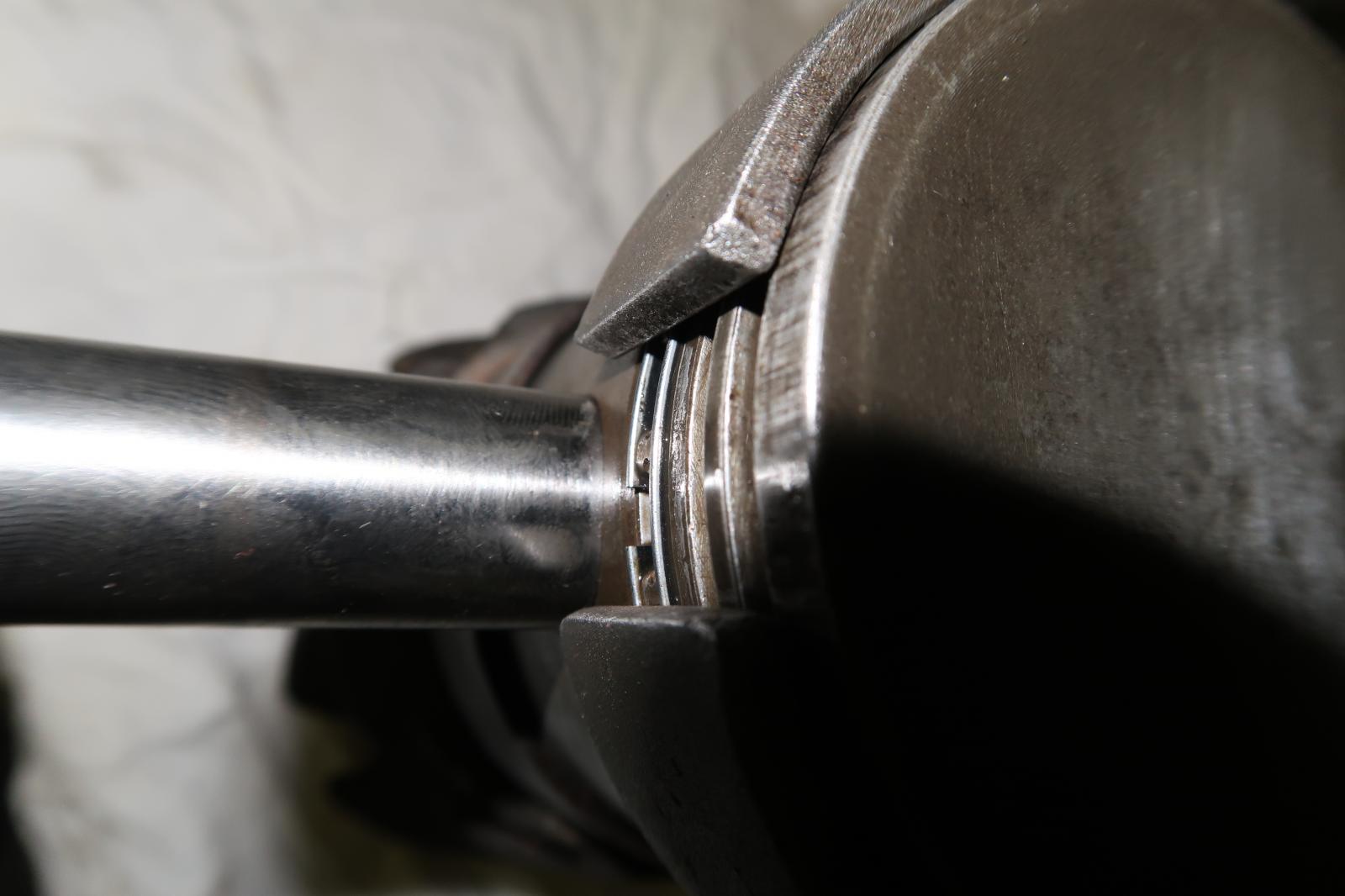

The oil control ring is made of 3 parts and the expander/spacer ring is soo hard, soo it´s impossible to get in the cylinder.
All other piston rings i have used before you can push easily together, but this model is hard as steel.

The piston is 74,96 and the piston rings are 75 mm.

Have any of you used this model before?

_________________
Me and my sons cars Typ1 -49 -50 -51 -52 -52 -53 -53 -54 -55 -55 -56 -56 -57 -58 cab -64 cab
T3 TriStar airride with Audi 1,8T engine and Porsche 996 gearbox.

[pastellgreen]

On the pictures it looks as if all the rings are too big in diameter. Have you checked the ring gap before, putting the rings in an empty cylinder, 5 mm from its downside??? They should have 0,3 to 0,45 mm, measured by feeler (thickness) gauge.

[sweden]

Hi Pastellgreen!

That is what i use to do with others piston rings.

But i have never seen any oil control ring like this before.

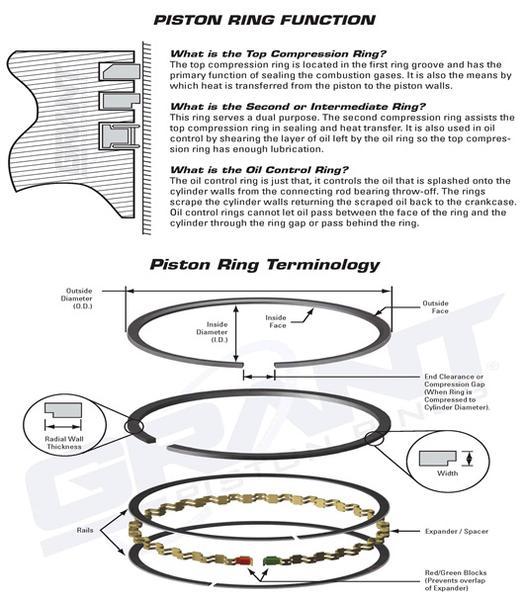

The ends are marked with red and green color and both ends should sit tight together and not overlap, tells the manual.
When everything is mounted you should see both the red and green ends. Should i grind on the green end, the small edge will disappear and then nothing will hold up anymore and it will be able to slip under the red end.

_________________
Me and my sons cars Typ1 -49 -50 -51 -52 -52 -53 -53 -54 -55 -55 -56 -56 -57 -58 cab -64 cab
T3 TriStar airride with Audi 1,8T engine and Porsche 996 gearbox.

[sweden]

Iam in contact with the manufacter now.
But i don´t have all information to them until tomorrow.
But the first anwser was.....PLEASE DO NOT GRIND OR MESS WITH THE OIL RINGS
_________________
Me and my sons cars Typ1 -49 -50 -51 -52 -52 -53 -53 -54 -55 -55 -56 -56 -57 -58 cab -64 cab
T3 TriStar airride with Audi 1,8T engine and Porsche 996 gearbox.

[pastellgreen]

looking forward their answer. Had installed new piston rings from them on my 1200 40hp without any problems. The only thing is, that I am "trained" on installing the piston rings with their gaps in direction as the VW manual says. With the oil retaining ring from Grant, it changes all the directions, as their gaps are showing to the side and not upside as usual.

[sweden]

[Bengt H]

If I remember correct Hans Landelius here in Sweden had the same problem as you lateley.

[sweden]

[sweden]

Now i have been in contact with Hans and he had exacly same problem as me!!!!
Soo now we are two with same problem.
Iam still in contact with Grant and they want more measure from me.
Inside the piston box there is an date stamp 16 february 2017. But i bought them for 14 days ago.
_________________
Me and my sons cars Typ1 -49 -50 -51 -52 -52 -53 -53 -54 -55 -55 -56 -56 -57 -58 cab -64 cab
T3 TriStar airride with Audi 1,8T engine and Porsche 996 gearbox.

[sweden]

It was wrong piston oil rings from Grant in the box.
I had very good mailcontact with the manufacter Grant and they solved the problem in best way.

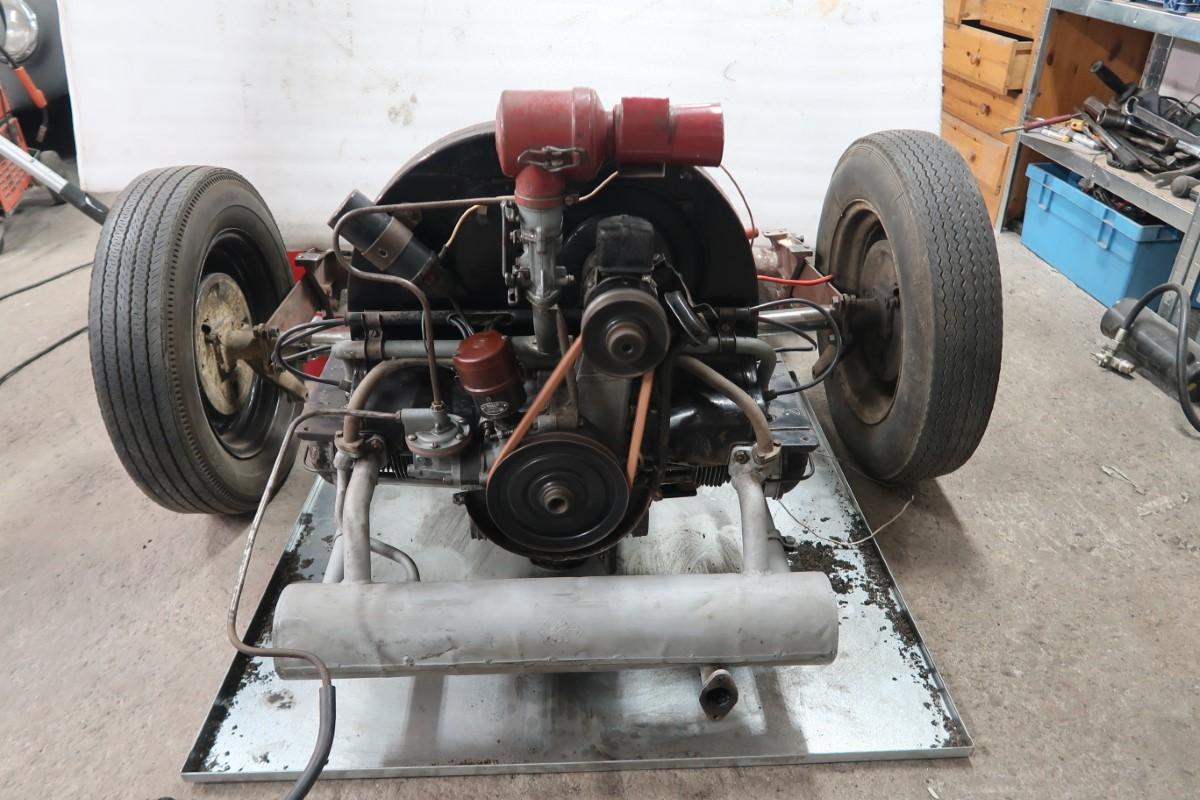

Now the engine is done and runing.

_________________
Me and my sons cars Typ1 -49 -50 -51 -52 -52 -53 -53 -54 -55 -55 -56 -56 -57 -58 cab -64 cab
T3 TriStar airride with Audi 1,8T engine and Porsche 996 gearbox.

[pastellgreen]

Congrats on the running engine and you could solve the problem!

[sweden]

[Manfred58sc]

I had same problem with 85.5 Grants, too big and won't fit. I only use Hastings now.
_________________
Fat chick owner/operator
