 Posted: Sat Nov 29, 2025 1:53 pm Post subject: The Frankenfilter |
 |
|

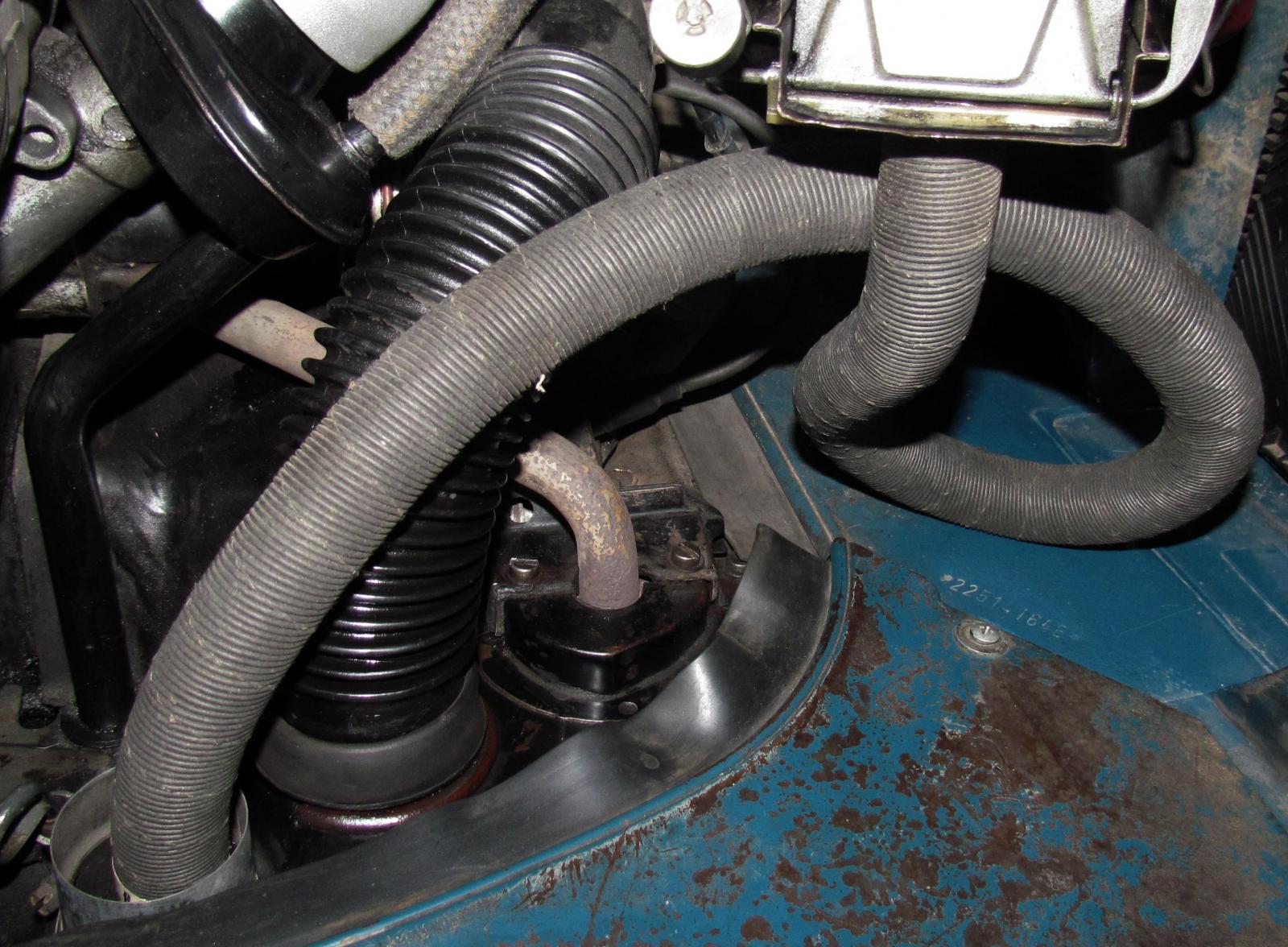

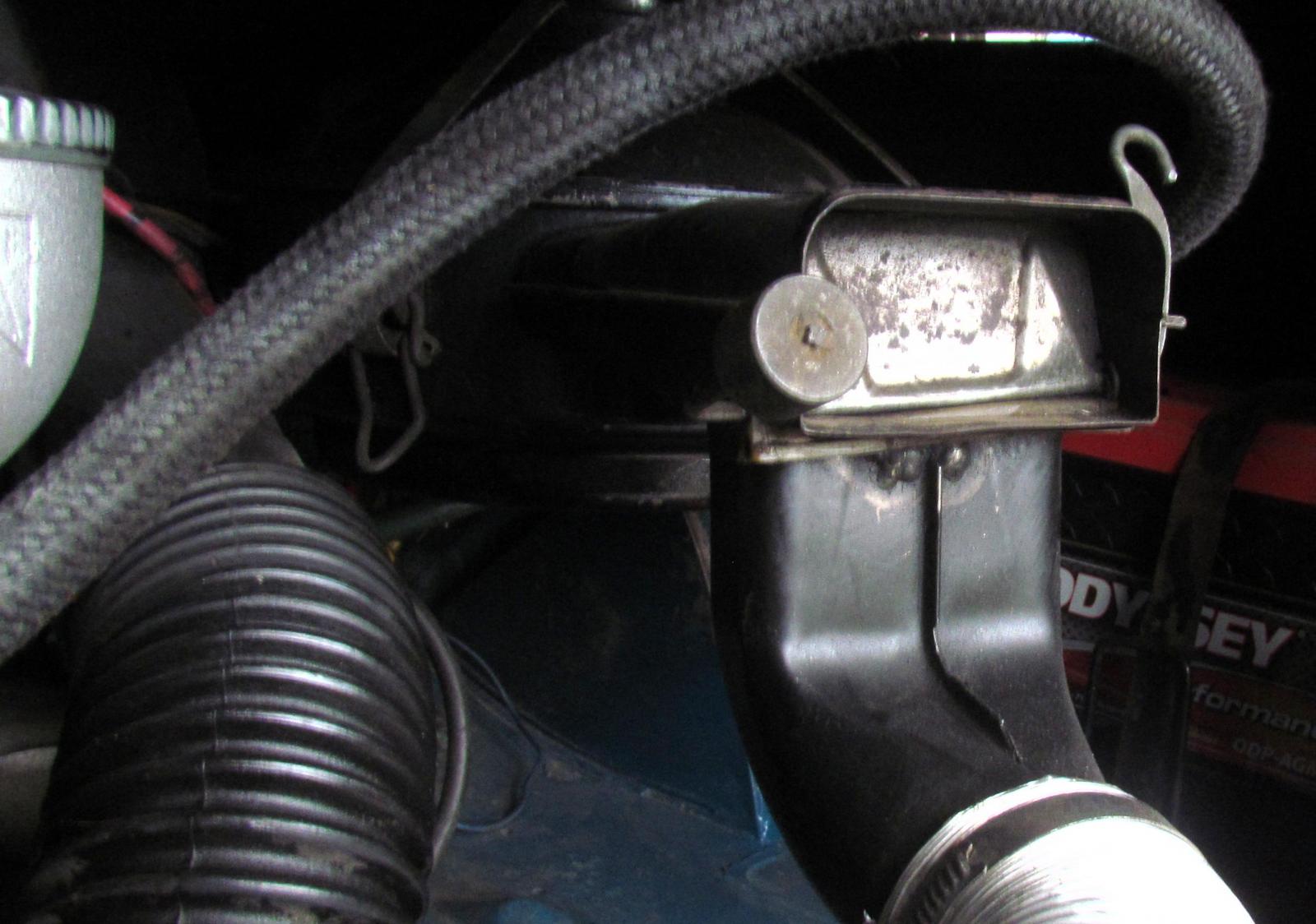

This may be one of those never ass-u-me situations: Fifteen years ago I came across this oddity and installed it expecting the best of all worlds with the warmest clean air heading down the carburetor intake. It is a late split air cleaner welded to an early bay warm air flow. The mistake made was I didn't check to see if the flap worked. Most of the time the flap lives in the up position for three warm seasons. Working on the winter priorities I finally said to myself finally be certain this flap works. Revved the engine and it was still. Couldn't be. Curiously every couple days I rechecked. The only way it moved was if I poked it and the flap moved freely as any other ever seen. One last time [yesterday] I revved the engine and the flap stared at me like a lead zeppelin.
Went to storage and found the one remaining oil bath I thought I'd never need. Installed it, without oil yet, and found the flap repeatedly worked as it should. Now I'm with perplexity. 1] Why would the first flap not work upon acceleration? 2] If staying with the stock bath how am I going to plumber this thing with the traditional rear tin for 1600? Do I find new rear tin, move the hose to the left, and find the left side preheat widget, or leave it on the right and adapt it to the existing stove pipe? I"m leaning toward keeping the later stove pipe which keeps the narrow hose to a minimum. Thoughts, suggestions?
_________________
When you cross an Irishman, they never forget. I mean, never. |
|
| Back to top |
|
 |
Who.Me?
Samba Member
Joined: July 14, 2014
Posts: 2595
Location: UK (South)
|
| Posted: Sat Nov 29, 2025 2:06 pm Post subject: Re: The Frankenfilter |
|
|
If the flap flips down when you push on it, you just need to tweak the position of the balancing bob weight so it *just* keeps the flap upright, then the vacuum of the engine will pull it open when you accelerate.
_________________
Andy
Looking for info on my truck's history. Are you from Campbell California or nearby. Do you recognise it? ... http://www.thesamba.com/vw/forum/viewtopic.php?t=636786 |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 53179
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Sat Nov 29, 2025 4:20 pm Post subject: Re: The Frankenfilter |
|
|
Te flap visible in the pic is for preheat, it doesn't move and should stay where you set the lever on the right. The bobber should lift when you open the throttle, it's downstream of the preheat hose and creates vacuum for the crank case vent.
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
stevo
Samba Member
Joined: January 22, 2004
Posts: 1008
Location: the eugeniverse
|
| Posted: Sat Nov 29, 2025 4:48 pm Post subject: Re: The Frankenfilter |
|
|
| busdaddy wrote: |
| Te flap visible in the pic is for preheat, it doesn't move and should stay where you set the lever on the right. The bobber should lift when you open the throttle, it's downstream of the preheat hose and creates vacuum for the crank case vent. |
When I opened throttle on the frankenfilter it's flap never opened. So very strange: perhaps there is an adjustment on the left side "balancing bob weight" afterall? I'd like to give adjustment a try rather than change out parts. I'm uncertain which way to tweak the bob though supposing it will become apparent once that fussing begins. I didn't realize adjustment happens there.
_________________
When you cross an Irishman, they never forget. I mean, never. |
|
| Back to top |
|
|
Who.Me?
Samba Member
Joined: July 14, 2014
Posts: 2595
Location: UK (South)
|
| Posted: Sun Nov 30, 2025 3:27 am Post subject: Re: The Frankenfilter |
|
|
| stevo wrote: |
| perhaps there is an adjustment on the left side "balancing bob weight" afterall? I'd like to give adjustment a try rather than change out parts. I'm uncertain which way to tweak the bob though supposing it will become apparent once that fussing begins.. |
The axle that the bob weight is on is bendy. It's not much stronger than a stiff wire coat hanger. Just grab the hooked end that sticks up out the other side of the snout and bend the bob weight end up or down.
Bending it up will make the flap tend to tip open more easily, bending it down will make it tend to stay shut.
It's a balancing act (literally).
If it flips open and stays there, you've gone too far. Tweak it back until it only just stays closed.
_________________
Andy
Looking for info on my truck's history. Are you from Campbell California or nearby. Do you recognise it? ... http://www.thesamba.com/vw/forum/viewtopic.php?t=636786 |
|
| Back to top |
|
|
stevo
Samba Member
Joined: January 22, 2004
Posts: 1008
Location: the eugeniverse
|
| Posted: Sun Nov 30, 2025 6:12 pm Post subject: Re: The Frankenfilter |
|
|
Thank you, thank you for the clear guidance and advice. Reinstalled the Frankenfilter with oil before messing with the bob. Messing included cleaning each corner where the oil and dirt accumulate on and around where the wire meets the plastic bar. Added a tiniest spot of tri-flo. Then the bending: got to the point where flap fell forward and didn't want to return so I used that as the limit. Didn't realize the revs needed for the flap to flip. Must be at least 2000 rpms. Happy having that ugly filter returned where it belongs.
