assembling snow flake tail lights

[nightowlhid]

hi I think I have all the parts to assemble these but Im confused how they go together..

have bezels
Chrome ring with the 4 tabs..
lamp
clips
bulb holder

doesnt make sense when I try putting them together. put the ring on the outside and tried to put the lamp assy from the inside and it doesnt seem to fit without bending out the little tabs on the chrome ring (new)

couldnt find directions.... any help?

thanks!

[wayne1230cars]

http://www.wolfsburgwest.com/wolfsburg_new/electrical/front_and_rear_blinker.cfm
When you remove the tailight housing from the car, the rubber seal, mounting bracket and bulb holder remain attached to the car. The reflector, lens and seal are held in with the clip. The bezel with the 4 tabs is attached to the housing at the front. The tabs will have to be carefully bent. Also, if you have separated the lens from the reflector, those little tangs or tabs will have to be bent to keep the lens tight. The seal, lens and reflector are installed as a unit and inserted from the back and held in place with the clip. Do this after you have installed the chrome bezel. You may also find a dark plastic liner that sits up inside of the lens. Sometimes these have been removed to have brighter taillights.

[VOLKSWAGNUT]

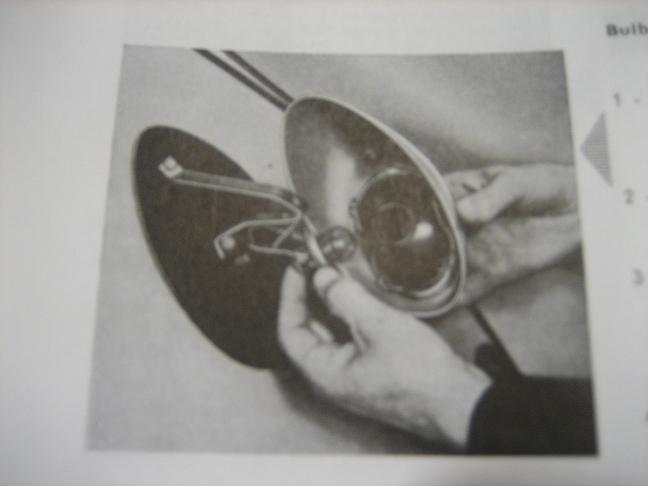

I couldn't find a good photo reference for you, so I created some for you and others that may need it.

_________________
aka Ken {o\!/o}
Its your vehicle- stop askin' for approval-do what YOU like for cryin' out loud
Better to roll em' how you want and wear em' out-than lettin' em' rot out
Its about the going not the showing
Rebuilt to drive not decorate
WANTED: Local Eatin' Joints, Triple D for TheSamba contributions here http://www.thesamba.com/vw/forum/viewtopic.php?t=570510
Search "VOLKSWAGNUT" on YouTube since you cant watch a "certain" BELT change video round here
Usually and often edited

[nightowlhid]

thanks guys..well I know I have the wrong clips for one..
when I put the lense assy in the back its almost like Im forcing it into the trim ring (installed from front)..

I bought this
clips
http://www.eisparts.com/111945245.html
trim ring
http://www.eisparts.com/111945219.html

thanks for the pics as well.

[wayne1230cars]

The fit on reproduction parts is not always the best. I don't know if you still have the original parts to compare. I was able to use my original 1960 taillights and except for the rubber seals, everything else was OK. Is the lens original or has the taillight housing been worked on? Good luck!

[nightowlhid]

[/img]

thanks for the pics.. so here's my dilemma this is aabout as far as I can put this on with out teaking the tabs back. like allot. is this right?

Also this ring goes on the outside of the bezel correct? I think so but the above photos confused me a bit on this.,

[fluxcap]

The tabs have to be bent over and up. Search for snowflakes in the classifieds. Lots of pictures of the housings from the inside in the classifieds pictures. Here's a good one showing how the tabs need to be bent.

Here is just the bezel, you can see the bend needed here. With this picture though, it has been "unbent" in order to remove it from the housing. Once back in the housing the tab will need to be bent outward a little.

_________________
Eric - 1966 camper bus

"It's like, how much more black could this be, and the answer is none.......none more black."

[57 Zwitter?]

Is there a seal between thr chrome bezel and housing? Another seal between red lens and chrome. I cannot find these listed anywhere and without them water can come right in.
