 Posted: Tue Feb 18, 2025 3:08 pm Post subject: 1958 dome light wiring |
 |
|

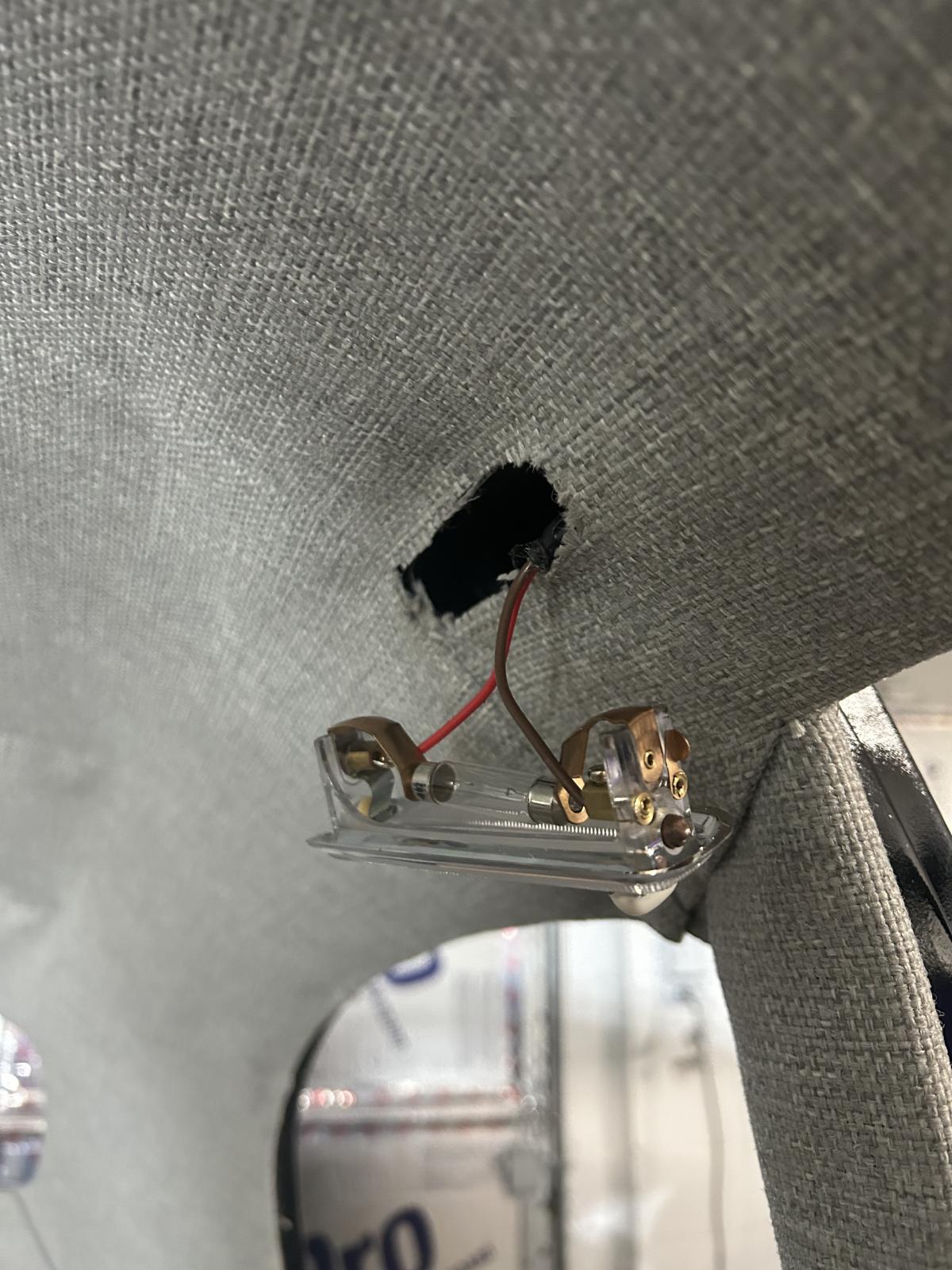

Not sure if this is wired correctly, I may have the wires reversed. I was trying to figure it out. My question is on one side of the actual light switch. There is a little brass lever that swivels and makes contact. What position is that supposed to be in I’m trying to get a good ground on the body, but I really don’t want to cut my headliner too short. Is there any other way to get a another ground because those two tabs on each end don’t seem to sit tight against the body for a ground.
|
|
| Back to top |
|
 |
my59
Samba Member
Joined: August 13, 2003
Posts: 3977
Location: connecting the dots
|
| Posted: Tue Feb 18, 2025 3:47 pm Post subject: Re: 1958 dome light wiring |
|
|
One end should have metal contact to the metal of the roof, as that's the ground connection. You will need to play with the headliner to get enough out of the way for contact.
The wiring diagram shows the red goes to one end, brown to switch end, and the switch end is where the ground contact to roof metal is.
Years ago I replaced my original fixture and had to trim a bit of the OG headliner to make contact for the replacement switch.
_________________
my59: Well son, my grandfather died before I got to drive it, so does that answer your question?
our79: sunroof bus w/camper interior and 2.0 FI
Other:'12 Jetta, '77 Benz 300D, and a 74 MG Midget. |
|
| Back to top |
|
|
Dan2973
Samba Member
Joined: April 12, 2019
Posts: 484
Location: NJ
|
| Posted: Tue Feb 18, 2025 5:35 pm Post subject: Re: 1958 dome light wiring |
|
|
| my59 wrote: |
One end should have metal contact to the metal of the roof, as that's the ground connection. You will need to play with the headliner to get enough out of the way for contact.
The wiring diagram shows the red goes to one end, brown to switch end, and the switch end is where the ground contact to roof metal is.
Years ago I replaced my original fixture and had to trim a bit of the OG headliner to make contact for the replacement switch. |
What is with the brass lever that swivels on the one side of the switch? What position should be in? |
|
| Back to top |
|
|
my59
Samba Member
Joined: August 13, 2003
Posts: 3977
Location: connecting the dots
|
| Posted: Tue Feb 18, 2025 6:36 pm Post subject: Re: 1958 dome light wiring |
|
|
Off the top of my head ( its too dark and cold to go poke around in the barn or go get the shop manual) there are 2 position switches
(on with door open, or turn on manually when doors were closed) or i think 3 position (the switch can be manually on with doors closed, or set to be on when the doors are opened. Or off completely) I may not be right here.
Maybe the swivel tab grounds to the roof? Maybe the bullet tip on the end is the ground point once the light is popped into place? I'd get a wire with alligator clips on the end and fart around with the thing to see what does what when connected to ground.
_________________
my59: Well son, my grandfather died before I got to drive it, so does that answer your question?
our79: sunroof bus w/camper interior and 2.0 FI
Other:'12 Jetta, '77 Benz 300D, and a 74 MG Midget. |
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 25979
Location: Olympia Wash Rinse & Repeat
|
| Posted: Tue Feb 18, 2025 6:51 pm Post subject: Re: 1958 dome light wiring |
|
|
| my59 wrote: |
Off the top of my head ( its too dark and cold to go poke around in the barn or go get the shop manual) there are 2 position switches
(on with door open, or turn on manually when doors were closed) or i think 3 position (the switch can be manually on with doors closed, or set to be on when the doors are opened. Or off completely) I may not be right here. |
