 Posted: Tue Aug 18, 2020 10:55 pm Post subject: What is this spring that came out of my gearbox? |
 |
|

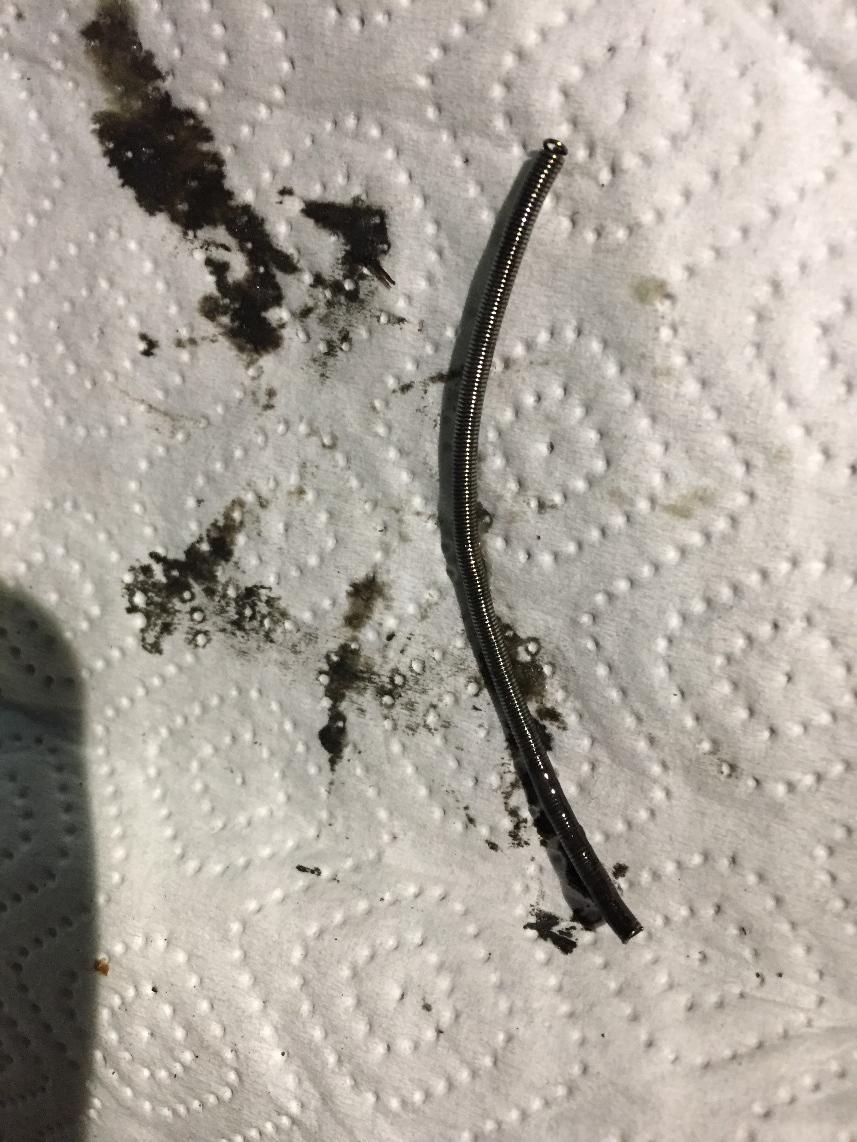

This spring came out of my 1961 Beetle´s gearbox yesterday during a routine gearbox oil change yesterday.
It is about 9 cm (3.5 inches) long and 2 mm (0.07 inches) thick. It was held firmly by the magnetic screw. No (for me) visible damages. Any ideas? Should I worry?
Thanks in advance.
|
|
| Back to top |
|
 |
mukluk
Samba Member
Joined: October 18, 2012
Posts: 7452
Location: Clyde, TX
|
| Posted: Tue Aug 18, 2020 11:01 pm Post subject: Re: What is this spring that came out of my gearbox? |
|
|
Looks like the coil (garter spring) from the input shaft seal.
_________________
1960 Ragtop w/Semaphores "Inga" |
|
| Back to top |
|
|
alex857
Samba Member
Joined: December 26, 2010
Posts: 781
Location: Stuttgart/Germany
|
| Posted: Thu Aug 20, 2020 1:42 am Post subject: Re: What is this spring that came out of my gearbox? |
|
|
| Thx that makes sense! Damn, engine has to go out... |
|
| Back to top |
|
|
Cusser
Samba Member
Joined: October 02, 2006
Posts: 33478
Location: Hot Arizona
|
| Posted: Thu Aug 20, 2020 6:38 am Post subject: Re: What is this spring that came out of my gearbox? |
|
|
| alex857 wrote: |
| Thx that makes sense! Damn, engine has to go out... |
Maybe that spring is from an earlier seal, has been in the transaxle for a decade???
But I understand: might be better to be pro-active and ensure that the current transmission shaft seal is OK, rather than risk oil leak and potential transaxle and/or clutch problems.
_________________
1970 VW (owned since 1972) and 1971 VW Convertible (owned since 1976), second owner of each. The '71 now has the 1835 engine, swapped from the '70. Second owner of each. 1988 Mazda B2200 truck, 1998 Frontier, 2014 Yukon, 2004 Frontier King Cab. All manual transmission except for the Yukon. http://www.thesamba.com/vw/forum/album_page.php?pic_id=335294 http://www.thesamba.com/vw/forum/album_page.php?pic_id=335297 |
|
| Back to top |
|
|
alex857
Samba Member
Joined: December 26, 2010
Posts: 781
Location: Stuttgart/Germany
|
| Posted: Fri Aug 21, 2020 11:57 am Post subject: Re: What is this spring that came out of my gearbox? |
|
|
Hi Cusser,
I wish you were right, but... no: I ve owned this Bug since 1987! I know that with this, I am still no match for you, but I changend the gear box oil three times in all those years and this was the first unpleasant find ever.
But thx for the idea anyway! |
|
