electrical issue -rt turn signal fast, all other blinking normal
Forum Index -> Beetle - Late Model/Super - 1968-up Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
b15605
Samba Member


Joined: February 24, 2009
Posts: 361
Location: Central GA
b15605 is offline

PostPosted: Wed Sep 23, 2020 12:00 pm    Post subject: electrical issue -rt turn signal fast, all other blinking normal Reply with quote

Got a weird one I am not sure of. My right turn signals blink really quickly. Left turn signals are normal and the emergency flashers are normal. This would indicate the usual suspects of flasher relay and emergency light switch are good I would think? Any other ideas?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
halfassleatherworks
Samba Member


Joined: December 09, 2018
Posts: 648
Location: Reno NV
halfassleatherworks is offline

PostPosted: Wed Sep 23, 2020 12:39 pm    Post subject: Re: electrical issue -rt turn signal fast, all other blinking normal Reply with quote

bad bulb, shorting internally to park light
_________________
Halfass Leatherworks*****GOT LEATHER Made to order Leather crafts, you can find us on that face book thing

Belts, wallets, mouse pads, drink coasters, Engraving, most things made in leather.

personal items if you want it in leather in Reno Nv, *****
Back to top
View user's profile Send private message Send e-mail Facebook Gallery Classifieds Feedback
ashman40
Samba Member


Joined: February 16, 2007
Posts: 16036
Location: North Florida, USA
ashman40 is offline

PostPosted: Wed Sep 23, 2020 1:11 pm    Post subject: Re: electrical issue -rt turn signal fast, all other blinking normal Reply with quote

Stock 3-prong flasher relay will "quick flash" as an indicator that one of the corner bulbs have burnt out. Wattage for two bulbs is 42W+ (normal flash). When one bulb blows wattage drops to 21W and flasher relay will quick flash. This is all based on the load the bulbs have on the flasher relay. Four corner lamps (E-Flashers ON) is 84W. Even with one of the corner lamps burnt out (21W x3 = 63W) you are well above the 42W needed to get normal flashing.

If the wrong bulb (5W parking lamp) is installed or installed backwards so the turn signal circuit powers the parking light filament, the load drops and the flasher relay thinks a bulb has burnt out, so it quick flashes.

This is the same reason stock VW flasher relays don't like LED bulbs (2.5W /bulb). The 5W load is too low for the relay.

Easy way to check this is look at how bright the front and rear turn signal bulbs are. Both should be 21W or 25W bulbs and be noticeably brighter than the 5W parking light filaments.


Interesting side note... I just recently discovered that the stock VW 4-prong flasher relays will stop flashing the speedometer indicator lamp to tell the driver a bulb has burnt out (load is too low).
_________________
AshMan40
---------------------------
'67 Beetle #1 {project car that never made it to the road Sad }
'75 Beetle 1200LS (RHD Japan model) {junked due to frame rot}
'67 Beetle #2 {2019 project car - Wish me luck!}
Back to top
View user's profile Send private message Gallery Classifieds Feedback
b15605
Samba Member


Joined: February 24, 2009
Posts: 361
Location: Central GA
b15605 is offline

PostPosted: Wed Sep 23, 2020 4:55 pm    Post subject: Re: electrical issue -rt turn signal fast, all other blinking normal Reply with quote

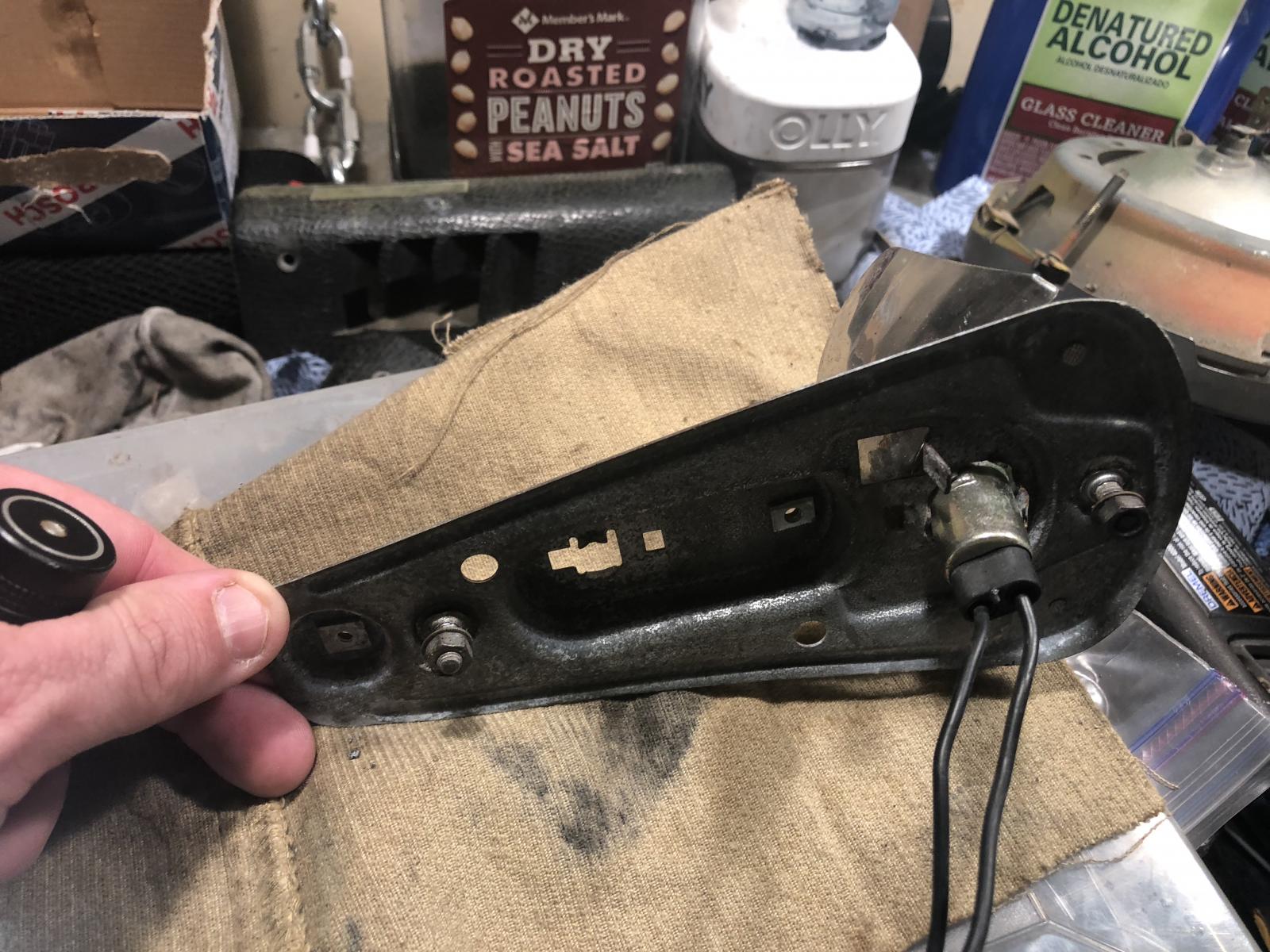

None of the bulbs were out, but I was thinking along the same lines as not enough load as well. My front right light fixture seems a little different than what I think a stock one would be (my left looks stock) so I swapped them from side to side. When I did this, the fast blinking followed the 'aftermarket' fixture, so this has narrowed down the issue. Here a few pics of the fixture:
