Just saw a dual carb kit that looks like dual 34 PICT3s
Forum Index -> Performance/Engines/Transmissions Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
andk5591 Premium Member
Samba Member


Joined: August 29, 2005
Posts: 16579
Location: State College, PA
andk5591 is offline

PostPosted: Tue Oct 06, 2020 5:15 am    Post subject: Just saw a dual carb kit that looks like dual 34 PICT3s Reply with quote

Stopped by to help a guy out with his linkage on an 1835(?) Got a hex bar that is for 34 icts, so its not gonna work and gonna give him a kad linkage to see if he can adapt it.

BUT looking at the carbs, they really look like just a pair of no name 34PICT3s that he got on Ebay as a dual carb kit. Have never seen anything like that before, have you? And does it work OK?

Not looking for "well, you should buy this or buy that". Just wondering if any of you have used this and if it works so I can tell the guy to not waste his time or at least jetting and set up instructions. Assuming the usual 34PICT set up, but these usually come with 127.5 (don't know what is in these) and if these were something like Kads, I would start around a 137.5 main.
_________________
D-Dubya Manx clone - 63 Short pan,1914.
Rosie 65 bug - My mostly stock daily driver.
Woodie 69 VW woodie (Hot VWs 7/12).
"John's car" 64 VW woodie - The first ever
Maxine 61 Cal-look bug - Cindy's daily driver.
Max - 73 standard Beetle hearse project - For sale
66 bug project - Real patina & Suby conversion
There's more, but not keeping them...
Back to top
View user's profile Send private message Send e-mail AIM Address Gallery Classifieds Feedback
Lingwendil
Samba Member


Joined: February 25, 2009
Posts: 2301
Location: Oakley, California as the state burns down
Lingwendil is offline

PostPosted: Tue Oct 06, 2020 6:04 am    Post subject: Re: Just saw a dual carb kit that looks like dual 34 PICT3s Reply with quote

I've never seen a kit for dual 34PICT-3 carbs, but I've been considering modifying a pair and running them on modified ICT or Kadron manifolds for years. I'd be interested to see some pictures or get more details! I would think that they could be made to work well.

Maybe he bought someone else's project, where the last owner was trying something similar?
_________________
73 super beetle thread http://www.thesamba.com/vw/forum/viewtopic.php?t=649622 ENGINE IS IN!

Modify your Kadrons for SVDA http://www.thesamba.com/vw/forum/viewtopic.php?p=8115884#8115884

Cast iron VJU4BR8 SVDA reference thread- https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0

Need replacement filters for original Kadron aircleaners? WIX #42087 is a perfect fit, as is Napa Gold #2087!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
turbotype1
Samba Member


Joined: April 30, 2005
Posts: 474
Location: seacoast
turbotype1 is offline

PostPosted: Tue Oct 06, 2020 6:14 am    Post subject: Re: Just saw a dual carb kit that looks like dual 34 PICT3s Reply with quote

https://www.cbperformance.com/product-p/3285.htm
_________________
117harv wrote:
This new fad of get it the lowest, or run it with the worst looks, (patina) isn't cool, it's for the hey everyone look at me crowd, i'm driving a beat down ratty, unsafe, VW, how cool am I ???...your not....




Pissing off the purists since 1997

Wanted: Boyd Motors plate frame

57 Turbo Oval Sliding rag
67 13 window delux walk-thru
64 all original for the misses
Back to top
View user's profile Send private message Gallery Classifieds Feedback
oprn
Samba Member


Joined: November 13, 2016
Posts: 6095
Location: Canada
oprn is offline

PostPosted: Tue Oct 06, 2020 6:25 am    Post subject: Re: Just saw a dual carb kit that looks like dual 34 PICT3s Reply with quote

turbotype1 wrote:
https://www.cbperformance.com/product-p/3285.htm

Now that to me looks like just the ticket for my 1641 single port instead of these Kadrons!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
turbotype1
Samba Member


Joined: April 30, 2005
Posts: 474
Location: seacoast
turbotype1 is offline

PostPosted: Tue Oct 06, 2020 6:37 am    Post subject: Re: Just saw a dual carb kit that looks like dual 34 PICT3s Reply with quote

oprn wrote:
turbotype1 wrote:
https://www.cbperformance.com/product-p/3285.htm

Now that to me looks like just the ticket for my 1641 single port instead of these Kadrons!


I'm running these on a 74 x 88 singleport I built for my wife's 64... Very nice driving motor. Took a bit of tinkering with the help from John Connelly at AC.net to get them in tune, but they've been working awesome for 10k miles so far...
And getting 28-30 mpg too!

Pete
_________________
117harv wrote:
This new fad of get it the lowest, or run it with the worst looks, (patina) isn't cool, it's for the hey everyone look at me crowd, i'm driving a beat down ratty, unsafe, VW, how cool am I ???...your not....




Pissing off the purists since 1997

Wanted: Boyd Motors plate frame

57 Turbo Oval Sliding rag
67 13 window delux walk-thru
64 all original for the misses
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Lingwendil
Samba Member


Joined: February 25, 2009
Posts: 2301
Location: Oakley, California as the state burns down
Lingwendil is offline

PostPosted: Tue Oct 06, 2020 6:52 am    Post subject: Re: Just saw a dual carb kit that looks like dual 34 PICT3s Reply with quote

oprn wrote:
turbotype1 wrote:
https://www.cbperformance.com/product-p/3285.htm

Now that to me looks like just the ticket for my 1641 single port instead of these Kadrons!


The single port kits are much more cost effective than Kadrons, that's for sure. Have you priced single port Kadron manifolds lately Shocked

I'm fairly certain these aren't what the OP saw, as they are a much different carb than a 34-3.
_________________
73 super beetle thread http://www.thesamba.com/vw/forum/viewtopic.php?t=649622 ENGINE IS IN!

Modify your Kadrons for SVDA http://www.thesamba.com/vw/forum/viewtopic.php?p=8115884#8115884

Cast iron VJU4BR8 SVDA reference thread- https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0

Need replacement filters for original Kadron aircleaners? WIX #42087 is a perfect fit, as is Napa Gold #2087!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
turbotype1
Samba Member


Joined: April 30, 2005
Posts: 474
Location: seacoast
turbotype1 is offline

PostPosted: Tue Oct 06, 2020 8:28 am    Post subject: Re: Just saw a dual carb kit that looks like dual 34 PICT3s Reply with quote

Lingwendil wrote:


I'm fairly certain these aren't what the OP saw, as they are a much different carb than a 34-3.


I'm not sure what exactly the OP saw, but these are 34 pdsit's.... not 34 pict's... my mistake.

Pete
_________________
117harv wrote:
This new fad of get it the lowest, or run it with the worst looks, (patina) isn't cool, it's for the hey everyone look at me crowd, i'm driving a beat down ratty, unsafe, VW, how cool am I ???...your not....




Pissing off the purists since 1997

Wanted: Boyd Motors plate frame

57 Turbo Oval Sliding rag
67 13 window delux walk-thru
64 all original for the misses
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Alstrup
Samba Member


Joined: July 12, 2007
Posts: 5066
Location: Videbaek Denmark
Alstrup is offline

PostPosted: Tue Oct 06, 2020 11:43 am    Post subject: Re: Just saw a dual carb kit that looks like dual 34 PICT3s Reply with quote

oprn wrote:
turbotype1 wrote:
https://www.cbperformance.com/product-p/3285.htm

Now that to me looks like just the ticket for my 1641 single port instead of these Kadrons!

Kadrons actually work quite well on a sgl port, but the 34´s will handle most normal sgl port builds. I have pulled 94 hp & 160 Nm torque through a set of 34 Solexés on a 1904 sgl port. I´m sure you can pull 100 if you want, but I wanted decent idle qualities too.
_________________
https://www.thesamba.com/vw/forum/viewtopic.php?t=435993
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Rome
Samba Member


Joined: June 02, 2004
Posts: 7167
Location: Pearl River, NY
Rome is offline

PostPosted: Tue Oct 06, 2020 2:07 pm    Post subject: Re: Just saw a dual carb kit that looks like dual 34 PICT3s Reply with quote

Quote:
they really look like just a pair of no name 34PICT3s

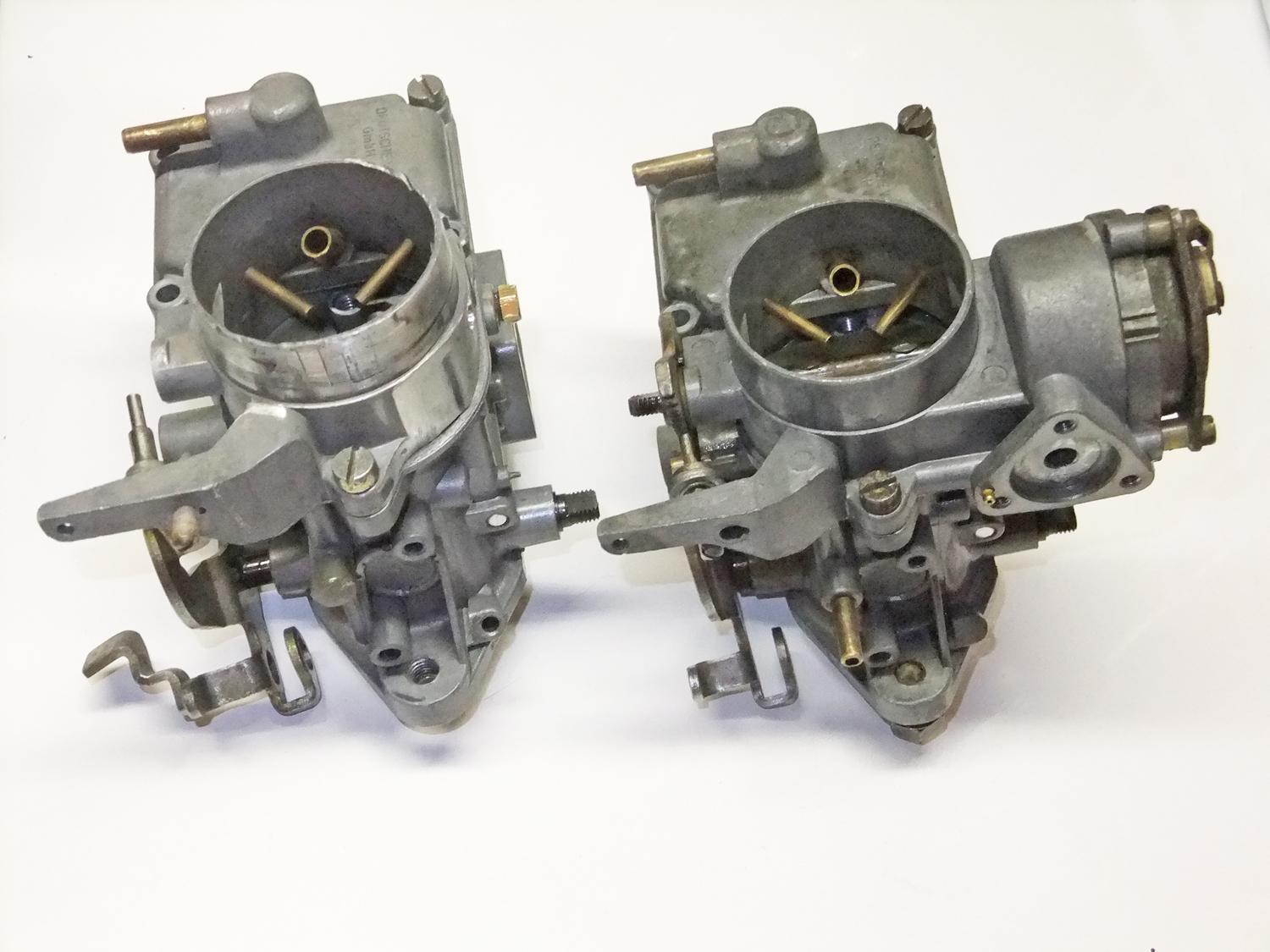

Andy, were these carbs oriented sideways ("transverse") so that the throttle arms rotate CW to open? Or were they in the original "longitudinal" position but on the left and right sides of the engine? If longitudinal, the right carb's throttle arm would be directly adjacent to the fan shroud side. You would not be able to (or barely) reach the 2 mixture/volume adjustment screws. Such a setup would need a GeneBerg linkage to push the throttle levers down. The overall width of the carb including the choke housing on the right side, and the fuel cutoff solenoid on the left side will require very carefully made manifolds to keep the carb between the fan shroud and the engine compartment side. Now if you cut off the choke housing and put a plug in place of the solenoid, you narrow the carb width substantially*...

If the carbs were transverse, a Kadron-style linkage could work, but the carb bodies are so long that moving them transversely would result in no free room between the shroud and the engine compartment side. Those could work in a Ghia with its wide engine compartment but barely in a Beetle. DongKG built up a dual-carb setup for his Beetle with some older Beetle carbs where he set the two stock carbs transverse.

*
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
andk5591 Premium Member
Samba Member


Joined: August 29, 2005
Posts: 16579
Location: State College, PA
andk5591 is offline

PostPosted: Wed Oct 07, 2020 8:30 am    Post subject: Re: Just saw a dual carb kit that looks like dual 34 PICT3s Reply with quote

Yes - these look exactly like a standard 34 PICT3 mounted 90 degrees from normal. I advised the guy that he may need to plug the idle solenoid port to clear the linkage.

This set up it totally new to me. (not mine) I am also concerned about his jetting as mentioned. Like I said this is an 1835 and if they have the 127.5 mains, I suspect they will be way too small or is there something magical about the 34 PICT3 that lets is llive with small mains, which I doubt. Thinking he should start with 135, then possible end up with 137.5 or 140s....
_________________
D-Dubya Manx clone - 63 Short pan,1914.
Rosie 65 bug - My mostly stock daily driver.
Woodie 69 VW woodie (Hot VWs 7/12).
"John's car" 64 VW woodie - The first ever
Maxine 61 Cal-look bug - Cindy's daily driver.
Max - 73 standard Beetle hearse project - For sale
66 bug project - Real patina & Suby conversion
There's more, but not keeping them...
Back to top
View user's profile Send private message Send e-mail AIM Address Gallery Classifieds Feedback
Rome
Samba Member


Joined: June 02, 2004
Posts: 7167
Location: Pearl River, NY
Rome is offline

PostPosted: Wed Oct 07, 2020 3:10 pm    Post subject: Re: Just saw a dual carb kit that looks like dual 34 PICT3s Reply with quote

You DID take a photo of the guy's engine, so we can see that carb setup? Wink

Was the fan shroud a 36 hp style, or a stock fresh air? If a 36 hp one such as a repro, the narrower width could result in just enough room to have the 34 PICTs transversely. Manifolds would need to be carefully fabricated to maximize the free space alongside the carbs.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Lingwendil
Samba Member


Joined: February 25, 2009
Posts: 2301
Location: Oakley, California as the state burns down
Lingwendil is offline

PostPosted: Wed Oct 07, 2020 5:40 pm    Post subject: Re: Just saw a dual carb kit that looks like dual 34 PICT3s Reply with quote

Pictures, man! We need pics!

I've long time coming wanted to do what it sounds like the guy has. My take on it would be to make an adapter plate to run the carbs in the stock orientation, use DIY Berg style carb linkage, ICT manifolds, and a simple stock layout exhaust like a Vintage Speed sport or a Tri-mil hot dog. Keeping it all VW would give me a stuffy Razz
_________________
73 super beetle thread http://www.thesamba.com/vw/forum/viewtopic.php?t=649622 ENGINE IS IN!

Modify your Kadrons for SVDA http://www.thesamba.com/vw/forum/viewtopic.php?p=8115884#8115884

Cast iron VJU4BR8 SVDA reference thread- https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0

Need replacement filters for original Kadron aircleaners? WIX #42087 is a perfect fit, as is Napa Gold #2087!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
andk5591 Premium Member
Samba Member


Joined: August 29, 2005
Posts: 16579
Location: State College, PA
andk5591 is offline

PostPosted: Fri Oct 09, 2020 7:10 am    Post subject: Re: Just saw a dual carb kit that looks like dual 34 PICT3s Reply with quote

Doing the guy a favor by running out to his house once in a while to help him sort it out. No pics and I just gave him the Kad linkage to help him out. It is a 36 horse style shroud. No clearance issues except, as mentioned, concerned about his passenger side idle cut off.
_________________
D-Dubya Manx clone - 63 Short pan,1914.
Rosie 65 bug - My mostly stock daily driver.
Woodie 69 VW woodie (Hot VWs 7/12).
"John's car" 64 VW woodie - The first ever
Maxine 61 Cal-look bug - Cindy's daily driver.
Max - 73 standard Beetle hearse project - For sale
66 bug project - Real patina & Suby conversion
There's more, but not keeping them...
Back to top
View user's profile Send private message Send e-mail AIM Address Gallery Classifieds Feedback
Lingwendil
Samba Member


Joined: February 25, 2009
Posts: 2301
Location: Oakley, California as the state burns down
Lingwendil is offline

PostPosted: Fri Oct 09, 2020 7:51 am    Post subject: Re: Just saw a dual carb kit that looks like dual 34 PICT3s Reply with quote

As luck would have it you posted this thread while I was gathering the parts to make a DIY linkage similar to the berg style, and I think something similar could be made to work well, even with the idle cutoff solenoid present. I'd be interested to see how his setup works out
_________________
73 super beetle thread http://www.thesamba.com/vw/forum/viewtopic.php?t=649622 ENGINE IS IN!

Modify your Kadrons for SVDA http://www.thesamba.com/vw/forum/viewtopic.php?p=8115884#8115884

Cast iron VJU4BR8 SVDA reference thread- https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0

Need replacement filters for original Kadron aircleaners? WIX #42087 is a perfect fit, as is Napa Gold #2087!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
thetravman
Samba Member


Joined: February 16, 2006
Posts: 499
Location: Pounding out center main . . .
thetravman is offline

PostPosted: Mon Oct 12, 2020 12:12 am    Post subject: Re: Just saw a dual carb kit that looks like dual 34 PICT3s Reply with quote

Almost as coveted as the single ICT Weber setup. Dual ICTs would be better. Bigger 29mm versus the 26mm 34pict venturi.
_________________
Have your car serviced at your local aircooled repair shop today.
/=O=\ good ole swing axles
Back to top
View user's profile Send private message Gallery Classifieds Feedback
andk5591 Premium Member
Samba Member


Joined: August 29, 2005
Posts: 16579
Location: State College, PA
andk5591 is offline

PostPosted: Tue Oct 13, 2020 7:55 am    Post subject: Re: Just saw a dual carb kit that looks like dual 34 PICT3s Reply with quote

Will see if I can post after he gets it done.
_________________
D-Dubya Manx clone - 63 Short pan,1914.
Rosie 65 bug - My mostly stock daily driver.
Woodie 69 VW woodie (Hot VWs 7/12).
"John's car" 64 VW woodie - The first ever
Maxine 61 Cal-look bug - Cindy's daily driver.
Max - 73 standard Beetle hearse project - For sale
66 bug project - Real patina & Suby conversion
There's more, but not keeping them...
Back to top
View user's profile Send private message Send e-mail AIM Address Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Performance/Engines/Transmissions All times are Mountain Standard Time/Pacific Daylight Savings Time
Page 1 of 1


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
