Front seats
Forum Index -> HBB Off-Road Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Ksmit258
Samba Member


Joined: November 12, 2020
Posts: 82

Ksmit258 is offline

PostPosted: Sun Dec 06, 2020 1:36 pm    Post subject: Front seats Reply with quote

Anyone have any pictures or suggestion on material for floor where seats will be installed...should I put cross bracing under floor to help support seats...if so should I bolt to tubing or weld and so one...thanks
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ksmit258
Samba Member


Joined: November 12, 2020
Posts: 82

Ksmit258 is offline

PostPosted: Sun Dec 06, 2020 1:37 pm    Post subject: Re: Front seats Reply with quote

Guess I should have states sand rail
Back to top
View user's profile Send private message Gallery Classifieds Feedback
thesatelliteguy
Samba Member


Joined: January 06, 2007
Posts: 1491
Location: Santa Rosa CA
thesatelliteguy is offline

PostPosted: Sun Dec 06, 2020 4:47 pm    Post subject: Re: Front seats Reply with quote

Can you provide a pic of your tail and where you want to have the seats?
_________________
Toyotas are so bumpy it makes me sick, literally.

My build Page http://www.thesamba.com/vw/forum/viewtopic.php?t=383878
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dustymojave
Samba Member


Joined: January 07, 2007
Posts: 5327
Location: Lake LA, Mojave Desert, SoCal
dustymojave is offline

PostPosted: Sun Dec 06, 2020 6:36 pm    Post subject: Re: Front seats Reply with quote

The floor of a buggy should be like 16 gauge aluminum, preferably 6061 T6 or steel sheet of 18-20 ga. Some like to let sand fall out using 16 ga expanded steel.

The floor should NEVER be used to mount seats, pedals, belts, etc. There should be frame structure, such as 1" 065 wall tube to mount seats to. That's what the seats are mounted to in my Hi Jumper that you see in my avatar. Plenty strong enough for offroad racing.
_________________
Richard
A.R.T.S. Tech Inspection MORE/MDR
Bajas, Fiberglass Buggies and Rails built in the Mojave Desert
SoCalBajas Member
Kicked Cancer's A$$...this match
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
cbeck
Samba Member


Joined: January 14, 2014
Posts: 2053
Location: high ridge, mo
cbeck is offline

PostPosted: Sun Dec 06, 2020 7:48 pm    Post subject: Re: Front seats Reply with quote

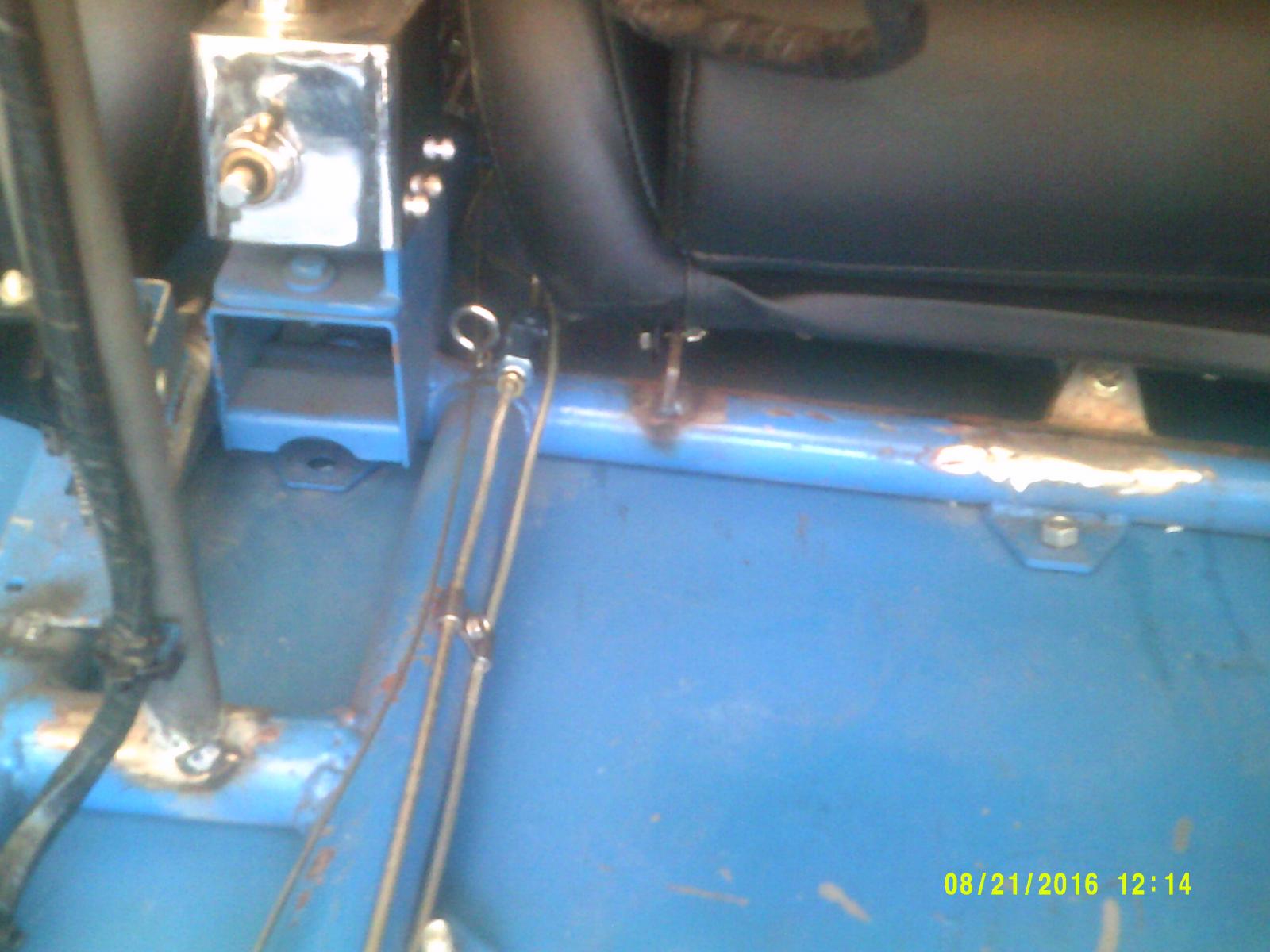

First pic shows the tabs for the front of the seat mounts and a double shear tab for the crotch belt whoch points straight to the hole in the seat for that belt.
Second pic shows the bar ( tube) and tabs for the rear seat mounts.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
My cut in half and rebuild thread
www.thesamba.com/vw/forum/viewtopic.php?t=647779
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ksmit258
Samba Member


Joined: November 12, 2020
Posts: 82

Ksmit258 is offline

PostPosted: Tue Dec 08, 2020 2:34 pm    Post subject: Re: Front seats Reply with quote

Thanks for the pictures and someone said post some pics.

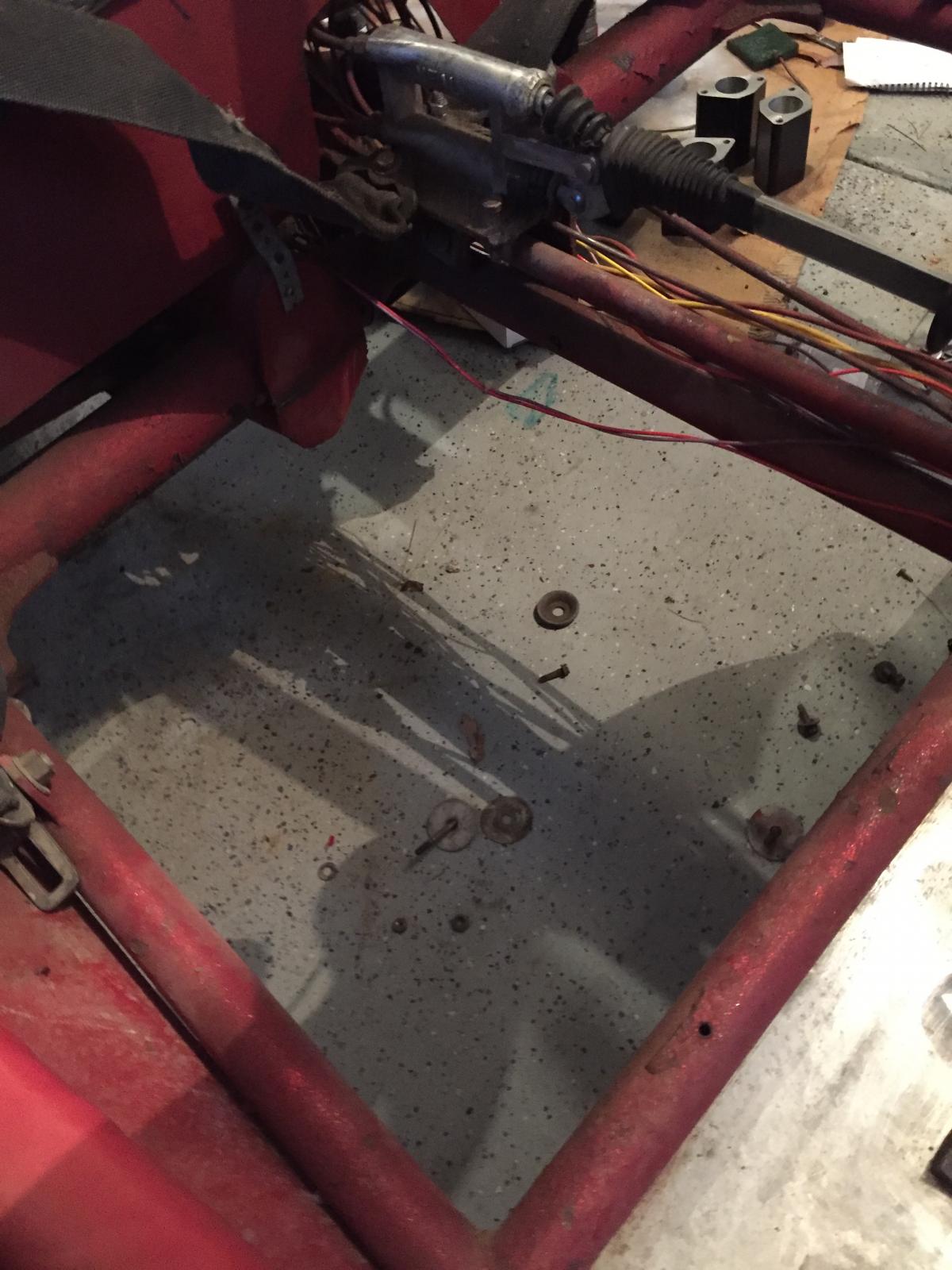

I would like secure these brackets some how...the mrs want be able to drive so was going to put a slider in...thinking about the floor and gage that was mention and maybe some cross members supports all the way across.
Donít have really any good idea to tie floor to back near Torsion bar going across
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ksmit258
Samba Member


Joined: November 12, 2020
Posts: 82

Ksmit258 is offline

PostPosted: Tue Dec 08, 2020 2:35 pm    Post subject: Re: Front seats Reply with quote

Also think you can see from picture belts or already tied in frame good
Back to top
View user's profile Send private message Gallery Classifieds Feedback
thesatelliteguy
Samba Member


Joined: January 06, 2007
Posts: 1491
Location: Santa Rosa CA
thesatelliteguy is offline

PostPosted: Tue Dec 08, 2020 3:49 pm    Post subject: Re: Front seats Reply with quote

Weld some square tube in there.
_________________
Toyotas are so bumpy it makes me sick, literally.

My build Page http://www.thesamba.com/vw/forum/viewtopic.php?t=383878
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dustymojave
Samba Member


Joined: January 07, 2007
Posts: 5327
Location: Lake LA, Mojave Desert, SoCal
dustymojave is offline

PostPosted: Tue Dec 08, 2020 8:56 pm    Post subject: Re: Front seats Reply with quote

No need to add extra tubes or stress what to mount the back edge of the floor to.

My Hi Jumper never had any square tube to mount the floor. No angle stock. Never had any tubes on the torsion housing. Tabs on the side tubes and on the center tube near the torsion housing takes care of the back edge of the floor panel.
_________________
Richard
A.R.T.S. Tech Inspection MORE/MDR
Bajas, Fiberglass Buggies and Rails built in the Mojave Desert
SoCalBajas Member
Kicked Cancer's A$$...this match
