 Posted: Wed Dec 23, 2020 5:34 pm Post subject: Treatment of edges of repair panels welded into pan |
 |
|
I had to weld in some quarter pans. I drilled holes around the edges of the patches and made some spot or puddle welds there. The patches were laid on top of the pans and overlap a bit. My question is how to handle the edges. Should I prime and brush on seam sealer then paint or would the metalized epoxy like USC all metal work well there? That could be sanded smooth and would look better but I’m afraid it would crack. It’s my first time doing this. Thanks.
_________________
I got a fever, and the only prescription is more beetles!
http://www.thesamba.com/vw/forum/viewtopic.php?t=604918&postdays=0&postorder=asc&start=0
https://www.thesamba.com/vw/forum/viewtopic.php?t=759868&highlight= |
|
| Back to top |
|
 |
VW_Jimbo
Samba Member
Joined: May 22, 2016
Posts: 11070
Location: Huntington Beach, CA
|
| Posted: Wed Dec 23, 2020 7:41 pm Post subject: Re: Treatment of edges of repair panels welded into pan |
|
|
A butt joint there would have been best. It would naturally keep moisture from gaining access. In lieu of that, a seam sealer is the alternative. Gob it on there, prime it and paint.
_________________
Jimbo
There is never enough time to do it right the first time, but all the time necessary the second time!
| TDCTDI wrote: |
| Basically, a whole bunch of fuckery to achieve a look. |
| 67rustavenger wrote: |
GFY's Xevin and VW_Jimbo!  |
|
|
| Back to top |
|
|
RLFD213
Samba Member
Joined: January 21, 2009
Posts: 478
|
| Posted: Thu Dec 24, 2020 8:40 am Post subject: Re: Treatment of edges of repair panels welded into pan |
|
|
| I load up the areas with master series on both sides. Then epoxy prime. When I did my floor pans I didn’t bother doing seam sealer either. I used a lot of master series and then bed liner. |
|
| Back to top |
|
|
67ctbug
Samba Member
Joined: January 24, 2016
Posts: 3670
Location: CT
|
| Posted: Thu Dec 24, 2020 10:57 am Post subject: Re: Treatment of edges of repair panels welded into pan |
|
|
Grind the edges, master series, seam sealer both sides, then paint.
_________________
'67 Beetle L41
'74 Westfalia
'69 Plymouth "Adam-12"
'63 Ragtop
'73 914
'72 Dodge Wrecker
Go Cubs!
World Series Champions 2016
| KentPS wrote: |
...or the PO envied the terrorists' bus in "Back to the Future".  |
| mukluk wrote: |
| He's fine, just waiting for the dragon in winklepickers to move out of his lane. |
|
|
| Back to top |
|
|
anthracitedub
Samba Member
Joined: June 20, 2007
Posts: 3241
Location: Michigan
|
| Posted: Thu Dec 24, 2020 11:09 am Post subject: Re: Treatment of edges of repair panels welded into pan |
|
|
| POR patch is some great product for this as well. Comes in a tube, squeezes out like paste and you can finger it (wear gloves) or brush it on each side of the seam. Drys harder than mummy’s nuts yet remains a bit flexible. Has a hundred different uses as well. |
|
| Back to top |
|
|
Weezle
Samba Member
Joined: February 07, 2014
Posts: 687
Location: ORLANDO
|
|
| Back to top |
|
|
Weezle
Samba Member
Joined: February 07, 2014
Posts: 687
Location: ORLANDO
|
| Posted: Thu Oct 14, 2021 10:59 am Post subject: Re: Treatment of edges of repair panels welded into pan |
|
|

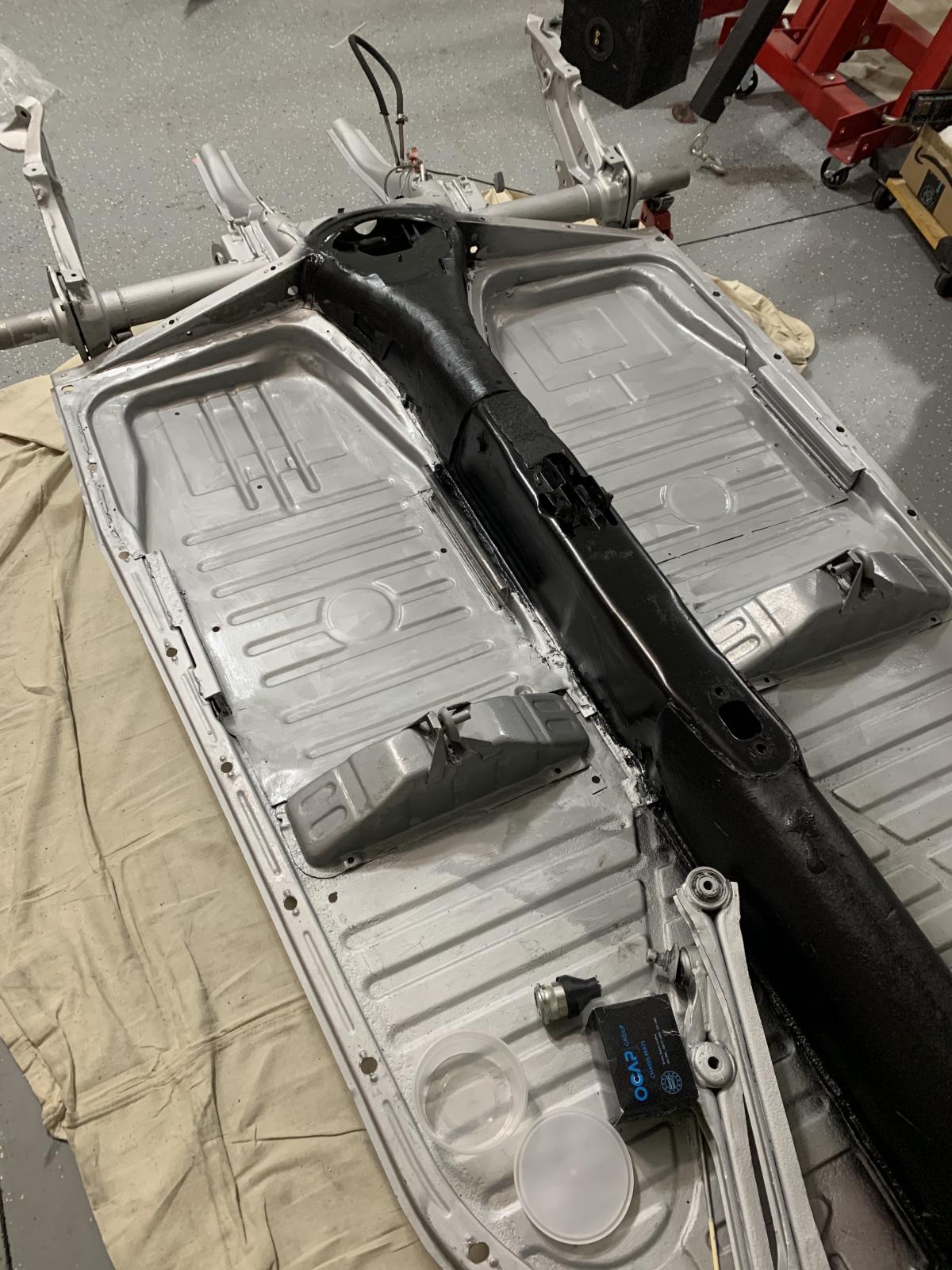

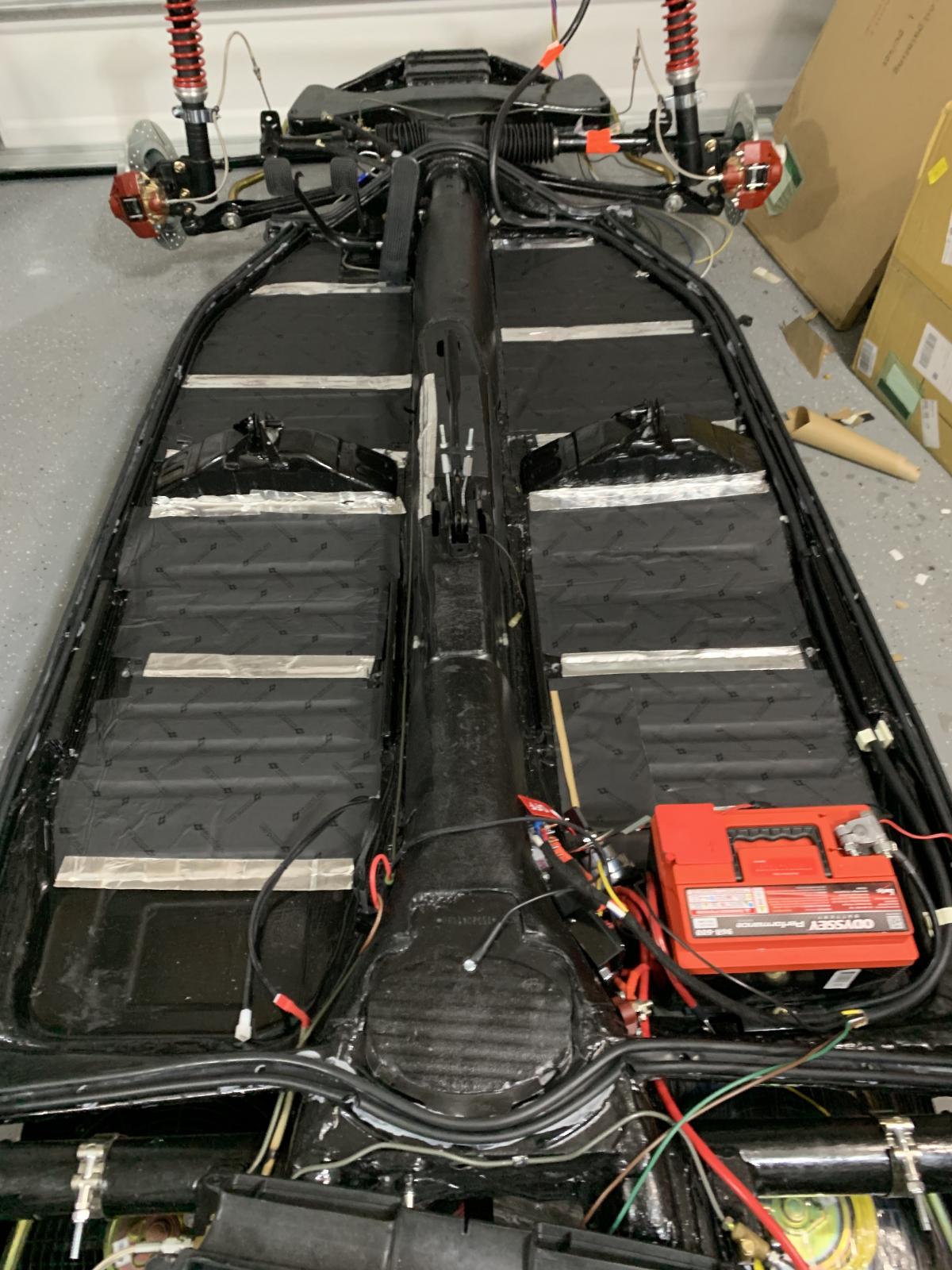

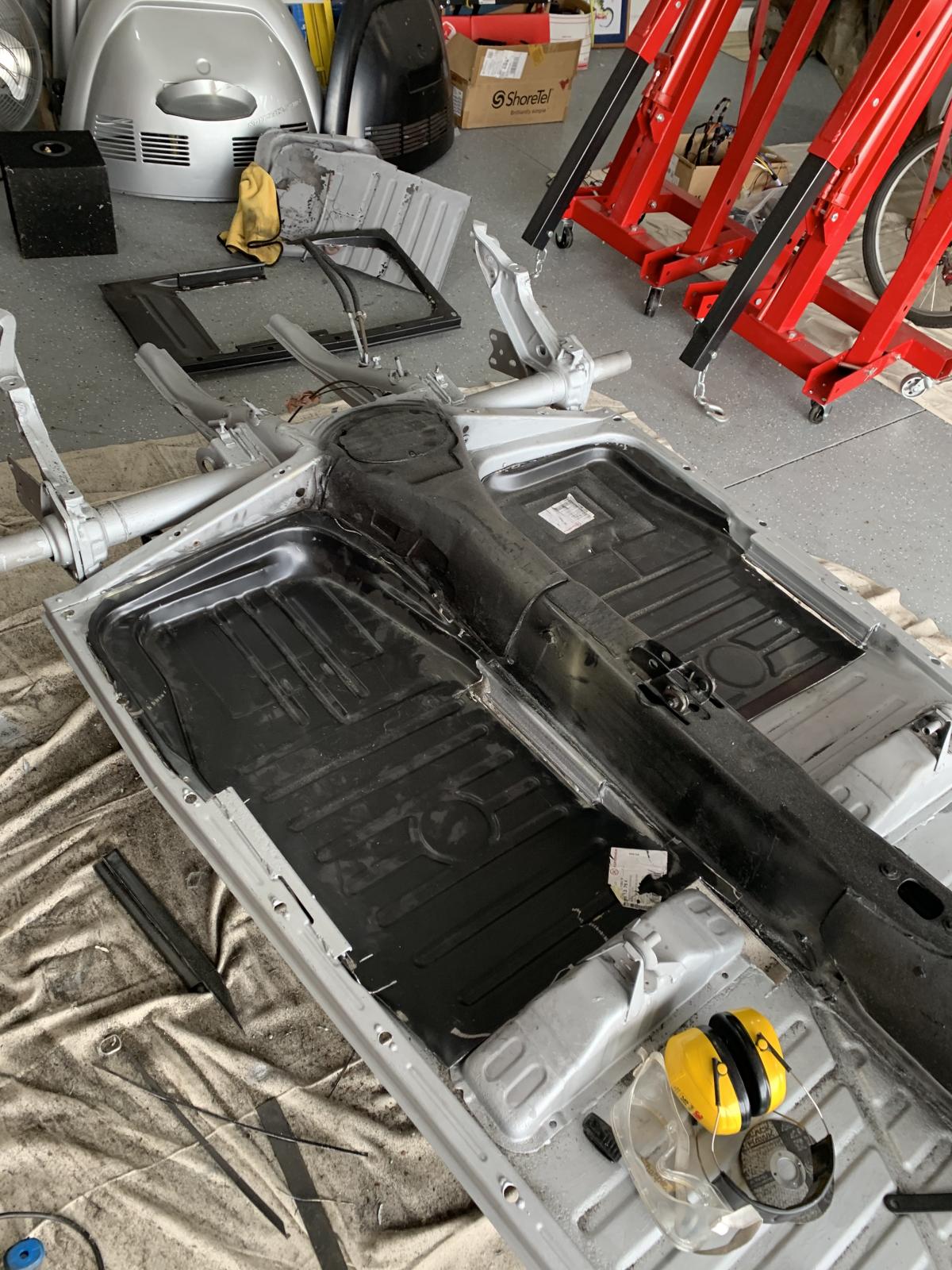

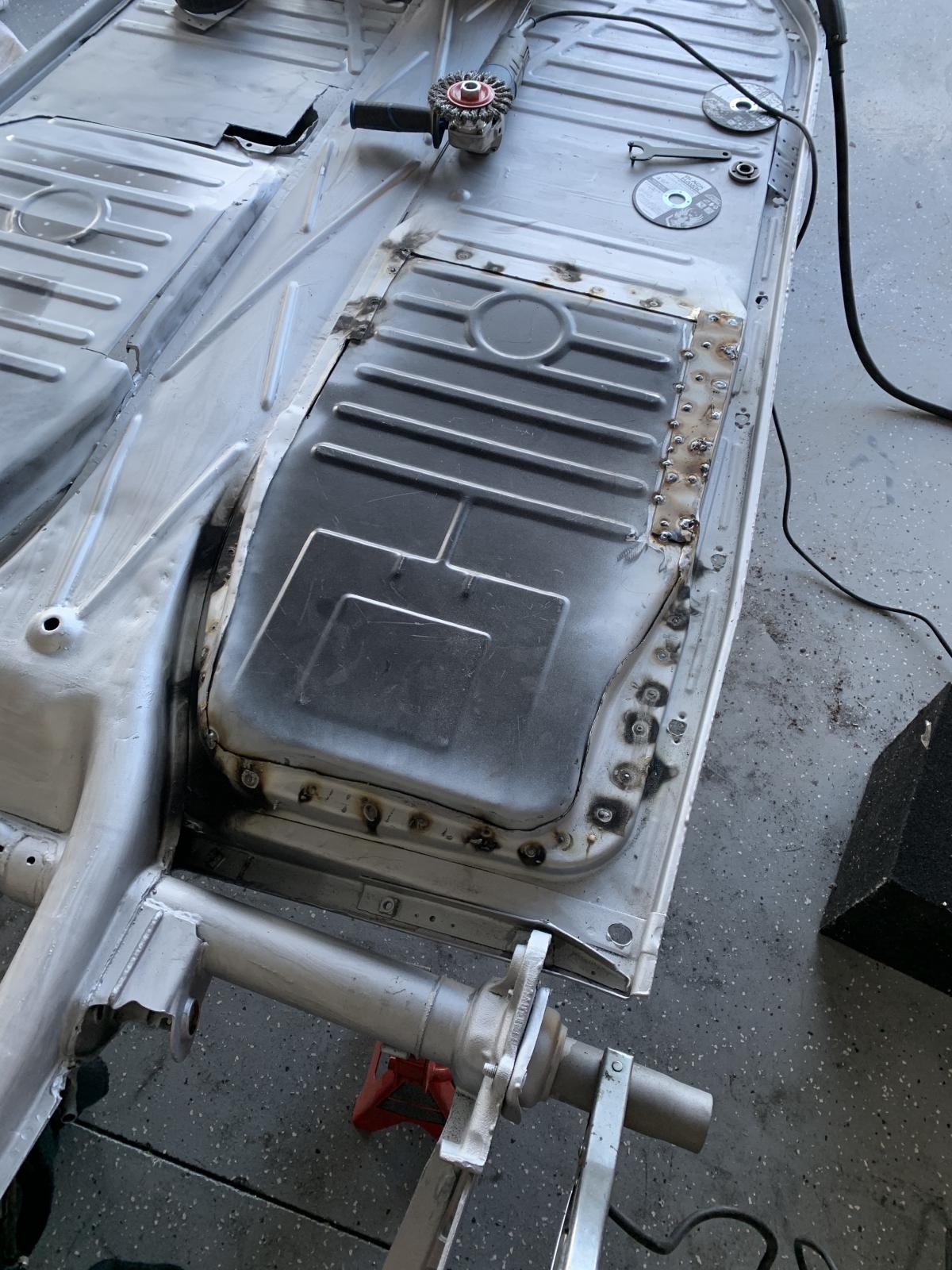

Update. I did the pan repairs mentioned in this thread earlier. I cut out the cancer. I place the repair panels on top of the cut outs, overlapping a bit where possible for extra strength. I don't have the skill to cut and butt weld all this nicely. I sprayed weld through primer on all the edges involved, welded patches in. On the bottom I used steel reinforced epoxy, ground it flat, master series silver, then herculiner. On the top, master series silver, then seam sealer, then master series black epoxy, then sound deadener. Pictures in sequence below:
