PostPosted: Wed Jun 10, 2020 4:12 am    Post subject: DeVerde - Hoodrat Project Reply with quote

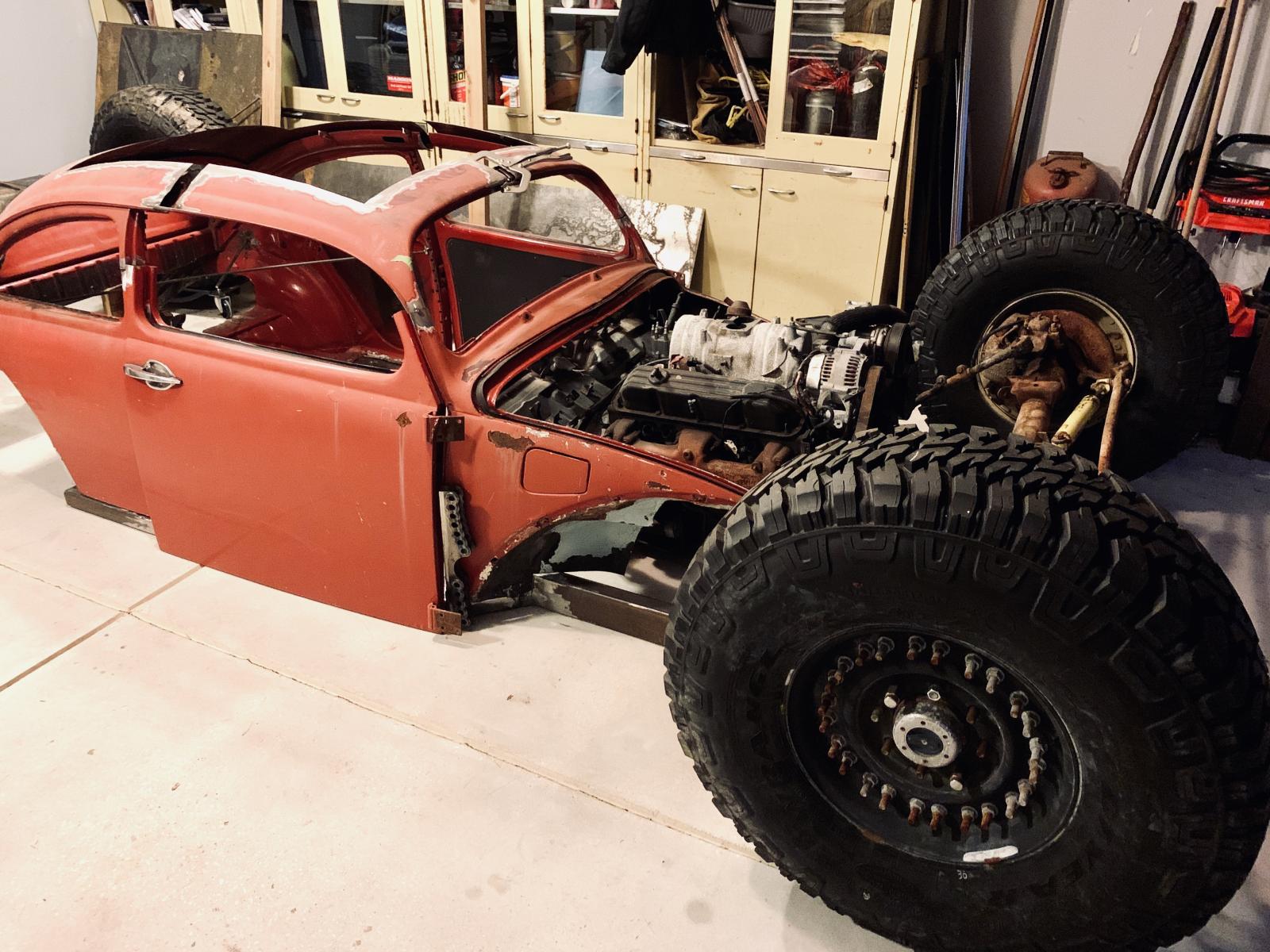

Guess we will start here with documenting a build that Iíve had going on for a few years now. The short of it all is a 1969 standard beetle, chopped, sectioned, slammed, front engine V8, airbags, cantilever front and rear suspension, and a completion date that is constantly being kicked down the road. So far, we have a half completed body, a half completed frame, an engine, tires, axles, transmission, transfer case, and a whole lot of welding. Enjoy!


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Kafer_Mike
Samba Member


Joined: June 23, 2004
Posts: 69
Location: Noblesville, IN
Kafer_Mike is offline

PostPosted: Wed Jun 10, 2020 11:01 am    Post subject: Re: DeVerde - Hoodrat Project Reply with quote

DeVerde wrote:
Image may have been reduced in size. Click image to view fullscreen.


Good Gawd... Shocked
_________________
Kafer_Mike
Build 'em fast...or let 'em sit.
Back to top
View user's profile Send private message Classifieds Feedback
DeVerde
Samba Member


Joined: June 09, 2020
Posts: 46
Location: Sneads Ferry, NC
DeVerde is offline

PostPosted: Wed Jun 10, 2020 4:58 pm    Post subject: Re: DeVerde - Hoodrat Project Reply with quote

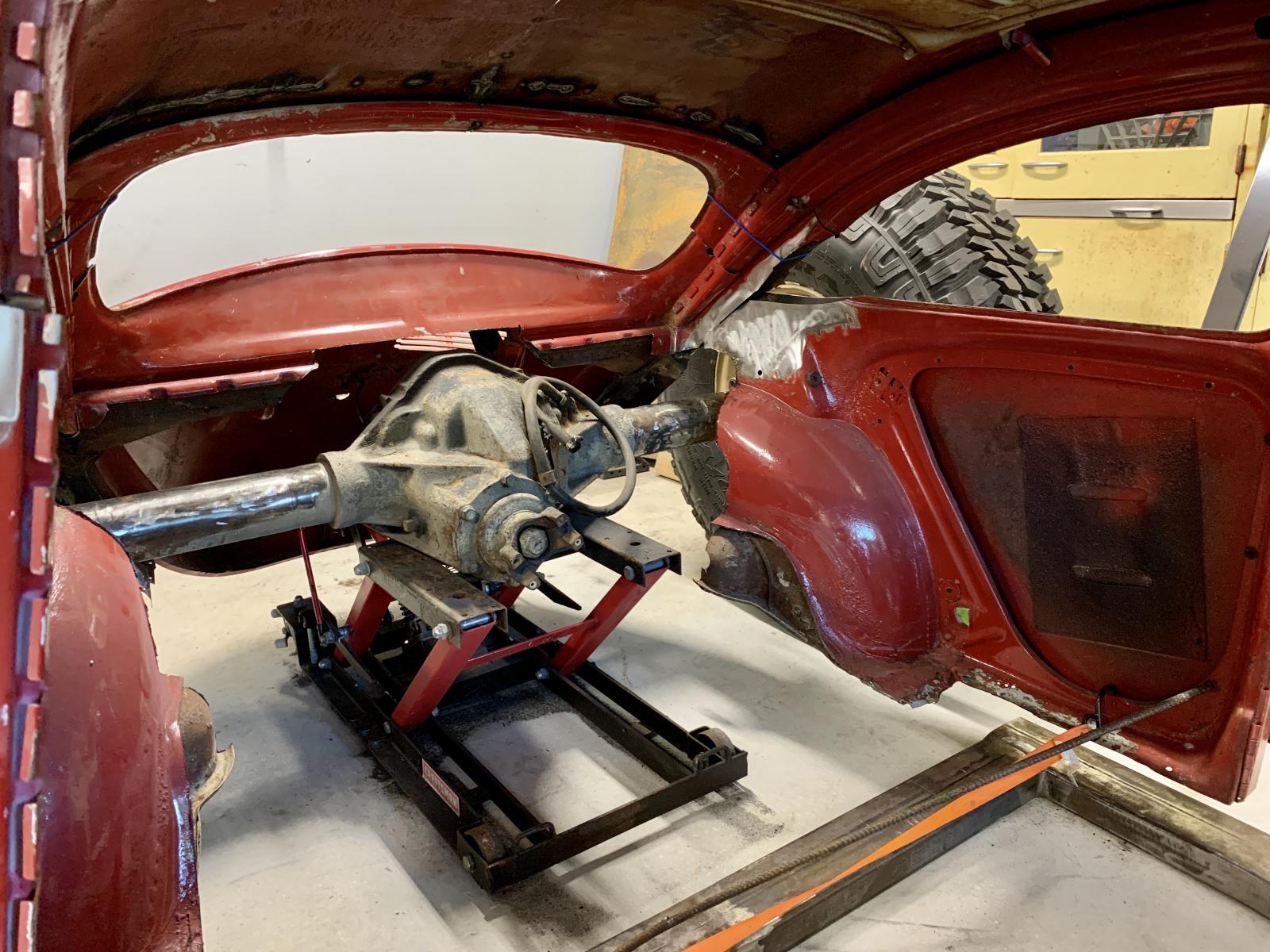

Not much progress today but I got the rear axle spring pads and shock mounts cut off, the rear axle body channels roughed out, and the body lowered a bit. It still needs to come down about 3 more inches but I still need to clearance for the differential. Itís slowly coming along.

Still need to clearance here
Image may have been reduced in size. Click image to view fullscreen.


Sitting pretty close to where itíll be
Image may have been reduced in size. Click image to view fullscreen.

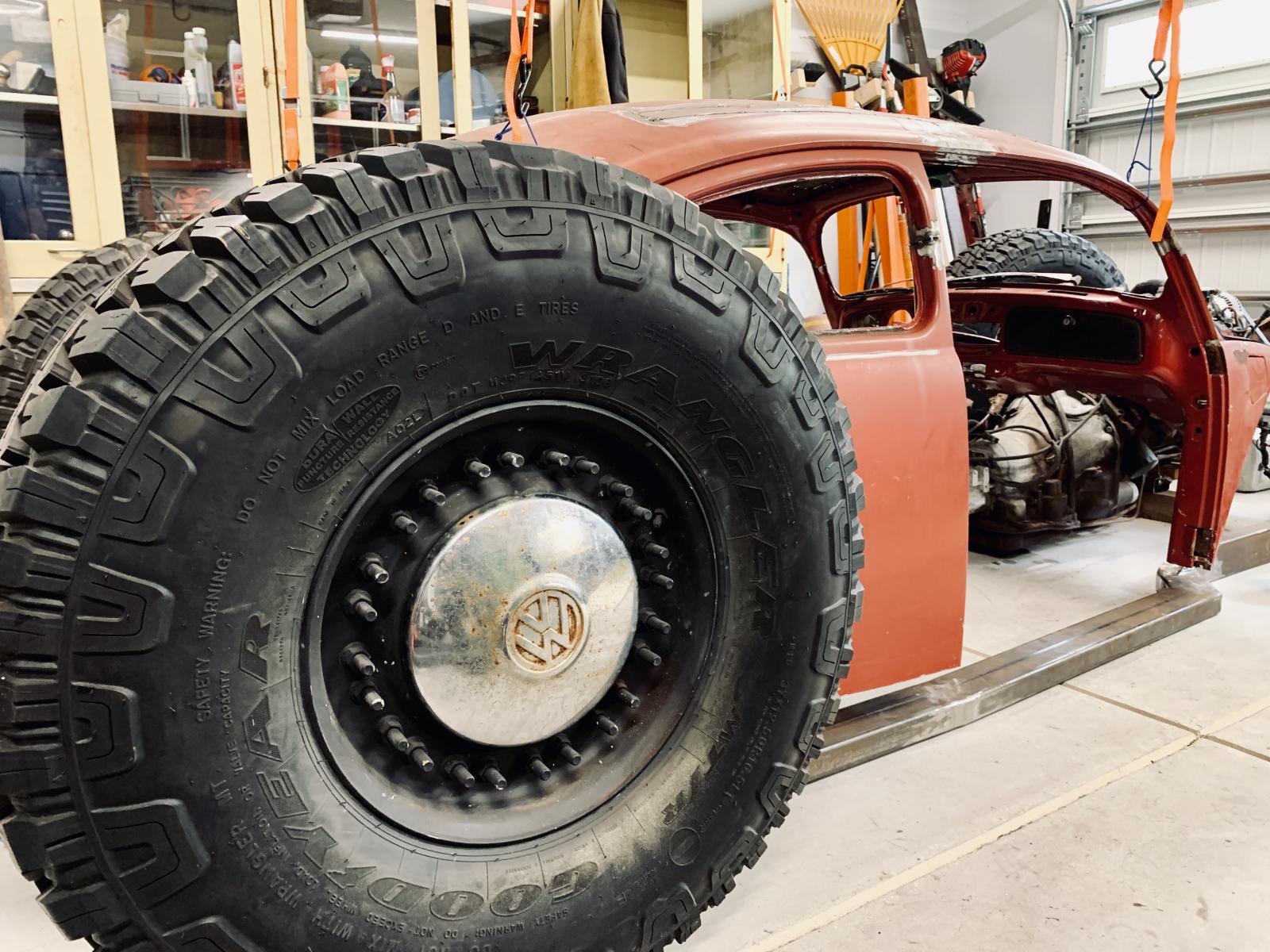

Sheís tight but itíll fit no issues with the bags completely deflated
Image may have been reduced in size. Click image to view fullscreen.

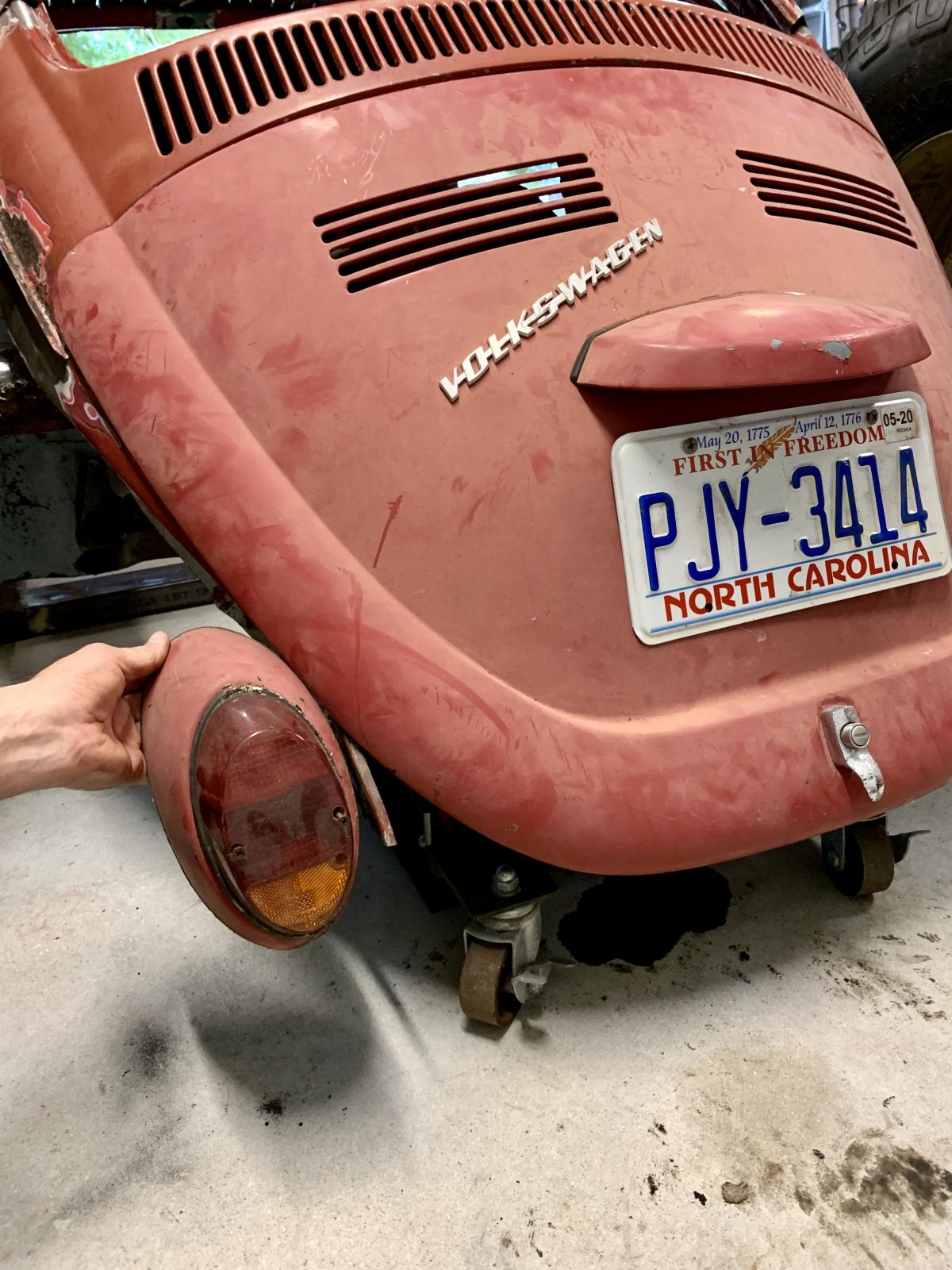

Iím thinking Iíll reuse the stock brake lights...thoughts?
Image may have been reduced in size. Click image to view fullscreen.


Plenty of room for a rear radiator and fan
Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
DeVerde
Samba Member


Joined: June 09, 2020
Posts: 46
Location: Sneads Ferry, NC
DeVerde is offline

PostPosted: Wed Jun 10, 2020 5:01 pm    Post subject: Re: DeVerde - Hoodrat Project Reply with quote

Kafer_Mike wrote:
DeVerde wrote:
Image may have been reduced in size. Click image to view fullscreen.


Good Gawd... Shocked


37ís just LOOK big....the 4Ē chop and 5Ē section gives it a different perspective too. Iím shooting for about a 4-6Ē ride height so itíll look different slammed than driving down the road. However, I want it drivable completely slammed as well. I plan Iím running 1/4Ē angle on the frame rails as scrape pads....so it should be a fun ride as well!!


Last edited by DeVerde on Sun Jun 14, 2020 6:23 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
DeVerde
Samba Member


Joined: June 09, 2020
Posts: 46
Location: Sneads Ferry, NC
DeVerde is offline

PostPosted: Sat Jun 13, 2020 7:13 pm    Post subject: Re: DeVerde - Hoodrat Project Reply with quote

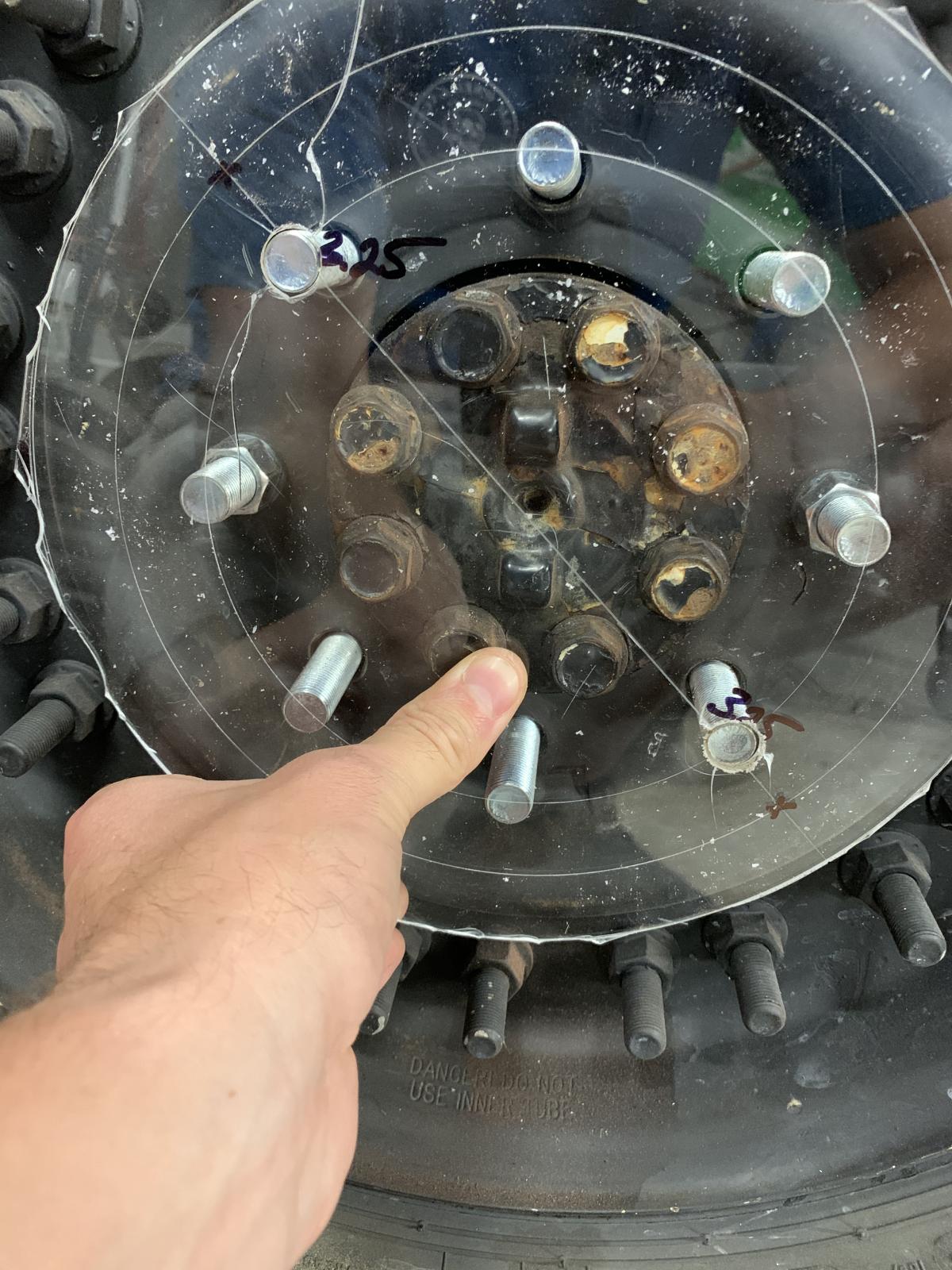

Worked on a bit of the hubcap idea today. Not much progress made and more thoughts than answers but I have flat style hubcaps from a 1972 beetle. I want to figure out a way to use early model (1965 beetle to be exact) hubcap clips to hold them onto an H1 rim. They clear my wheel studs without issue, I just need to locate spots to drill and rivet the clips onto. I went to Loweís and got some plexiglass and held the clips to the hubcaps with magnets. They look like they will fit without issues if I can find a way to get the clips onto the H1 rims. I made a template for the 8x6.5Ē bolt pattern, the radius of the hubcap and the radius of the hubcap clips. And thatís where Iím at. Thoughts? I figure I might be able to make a bracket to fit or a circle out of sheet metal that bolts on and holds the hubcap in place. More to come.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
TDCTDI
Samba Advocatus Diaboli


Joined: August 31, 2013
Posts: 10928
Location: North Carolina
TDCTDI is offline

PostPosted: Mon Jun 15, 2020 4:27 pm    Post subject: Re: DeVerde - Hoodrat Project Reply with quote

ďThank you Alex, Iíll take ďBlind spotsĒ for $400 please!Ē


Iím not real sure how you plan to fit between the door & that spinning tube of death.
_________________
Everybody born before 1975 has a story, good, bad, or indifferent, about a VW.


GOFUNDYOURSELF, quit asking everyone to do it for you!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
DeVerde
Samba Member


Joined: June 09, 2020
Posts: 46
Location: Sneads Ferry, NC
DeVerde is offline

PostPosted: Mon Jun 15, 2020 7:59 pm    Post subject: Re: DeVerde - Hoodrat Project Reply with quote

TDCTDI wrote:
ďThank you Alex, Iíll take ďBlind spotsĒ for $400 please!Ē


Iím not real sure how you plan to fit between the door & that spinning tube of death.


Lmao, sure, if I drive around completely slammed, itíll be hard to see corvettes or a miata but you know, like I do, how terrible NC roads are so itíll be a bit taller at itís driving ride height.

Not sure what you mean....Iím not an 800lb gorilla so perhaps in a bomber seat with the driveshaft tunnel as an arm rest. 🤷🏿‍♂️ The tunnel will be a skinned driveshaft hoop so not much different than any other front engine, low profile car.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
DeVerde
Samba Member


Joined: June 09, 2020
Posts: 46
Location: Sneads Ferry, NC
DeVerde is offline

PostPosted: Tue Jun 16, 2020 7:33 pm    Post subject: Re: DeVerde - Hoodrat Project Reply with quote

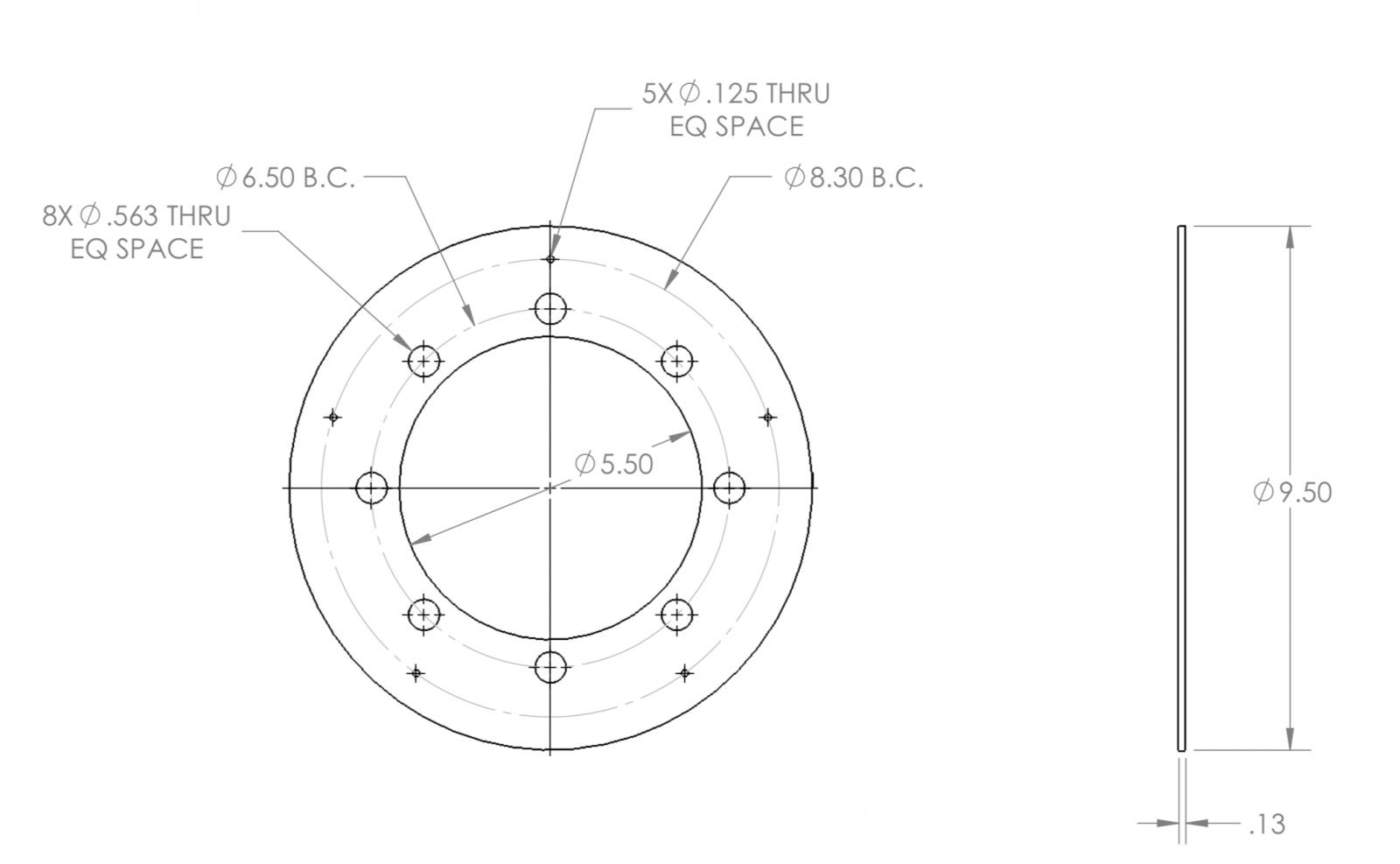

Came up with a company that will cut out some plates for me about the same price that the steel would cost. So, off to the water jet the design goes!

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
DeVerde
Samba Member


Joined: June 09, 2020
Posts: 46
Location: Sneads Ferry, NC
DeVerde is offline

PostPosted: Thu Jun 18, 2020 2:01 pm    Post subject: Re: DeVerde - Hoodrat Project Reply with quote

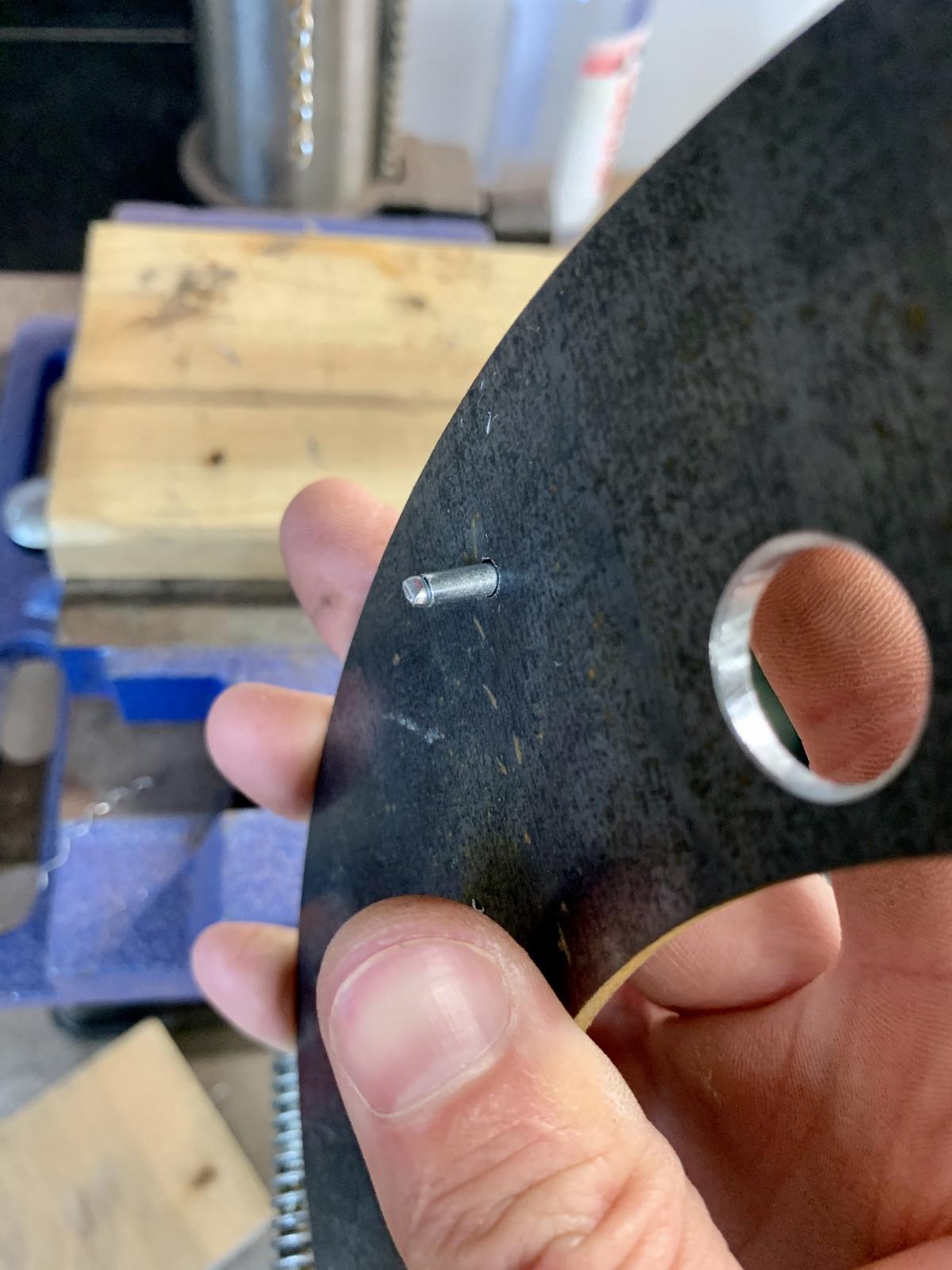

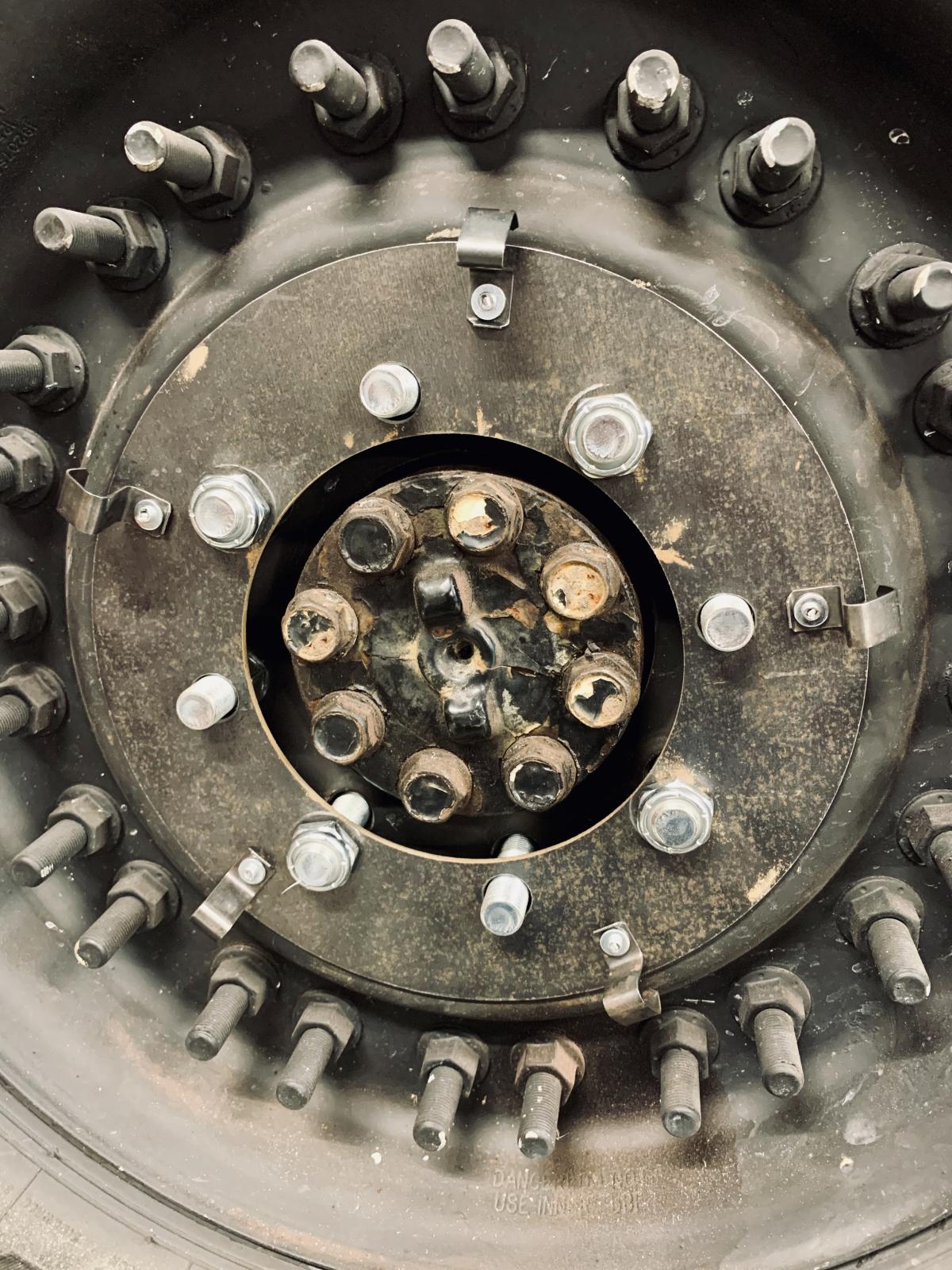

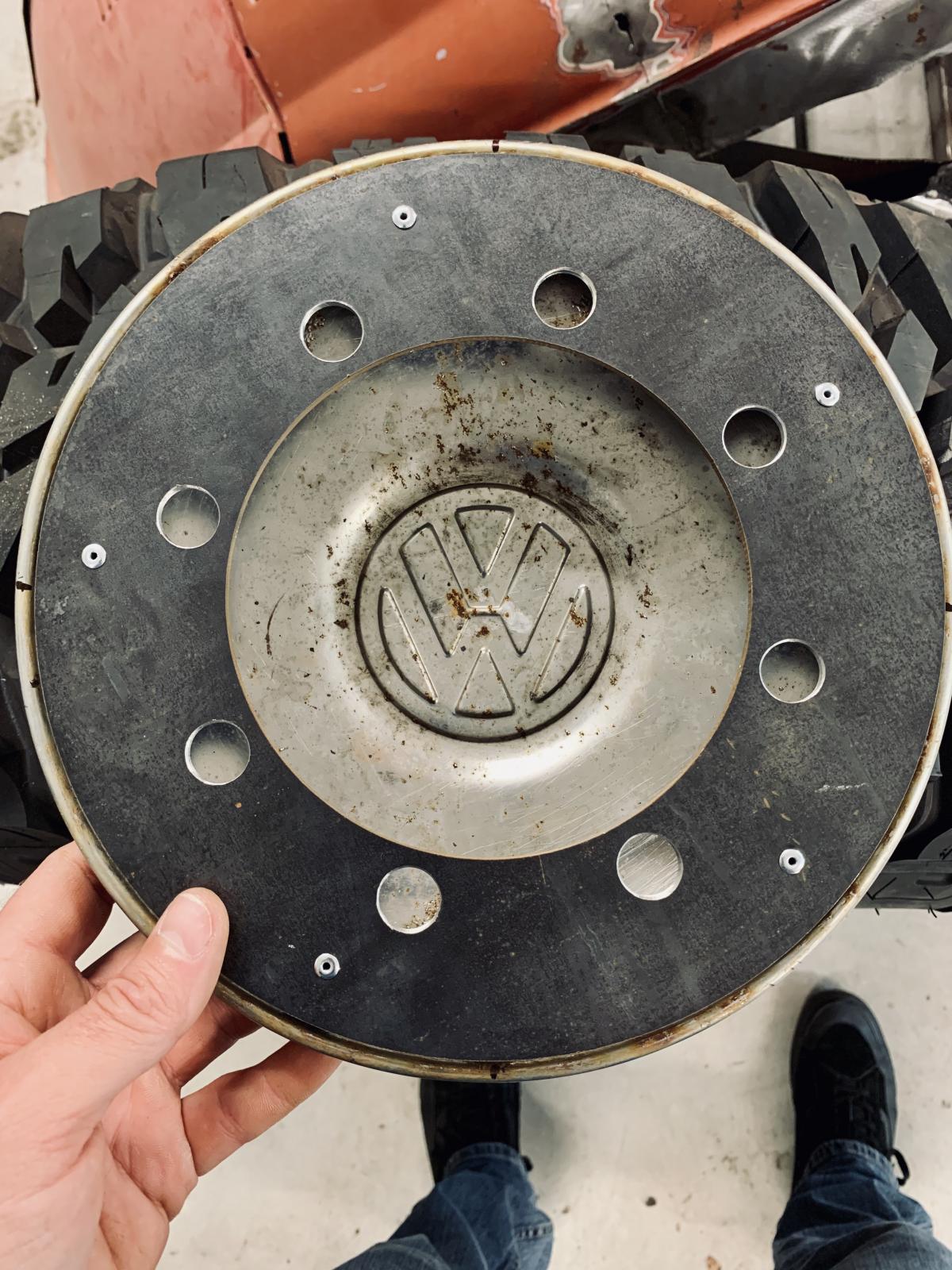

Got the hubcap adapters back from production and they worked like a charm. Now we have H1ís with VW flat hubcaps!! 🤘🏿🤘🏿🤘🏿

This is what they looked like from production

Image may have been reduced in size. Click image to view fullscreen.

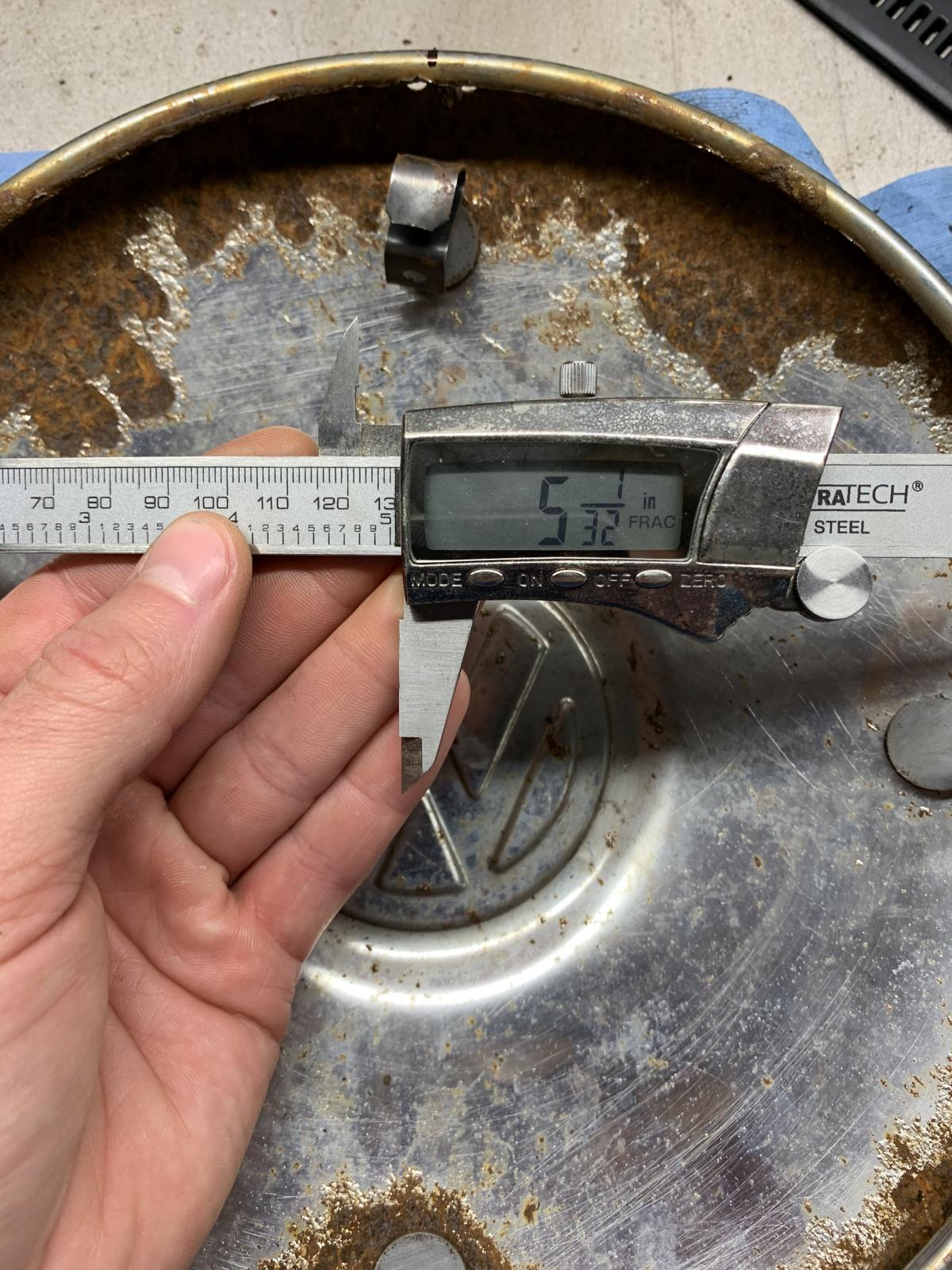

I undersized all the cuts because I wasnít confident on the tolerances of their waterjet or my own measurements so I needed to drill the rivet holes and wheel stud holes to the final sizes.

Image may have been reduced in size. Click image to view fullscreen.


I used 1/8Ē blind rivets instead of the rivets that come with the VW hubcap clips. That lets me keep the position holes under sized and able to drill them out easier if they ever need to be replaced.

Image may have been reduced in size. Click image to view fullscreen.

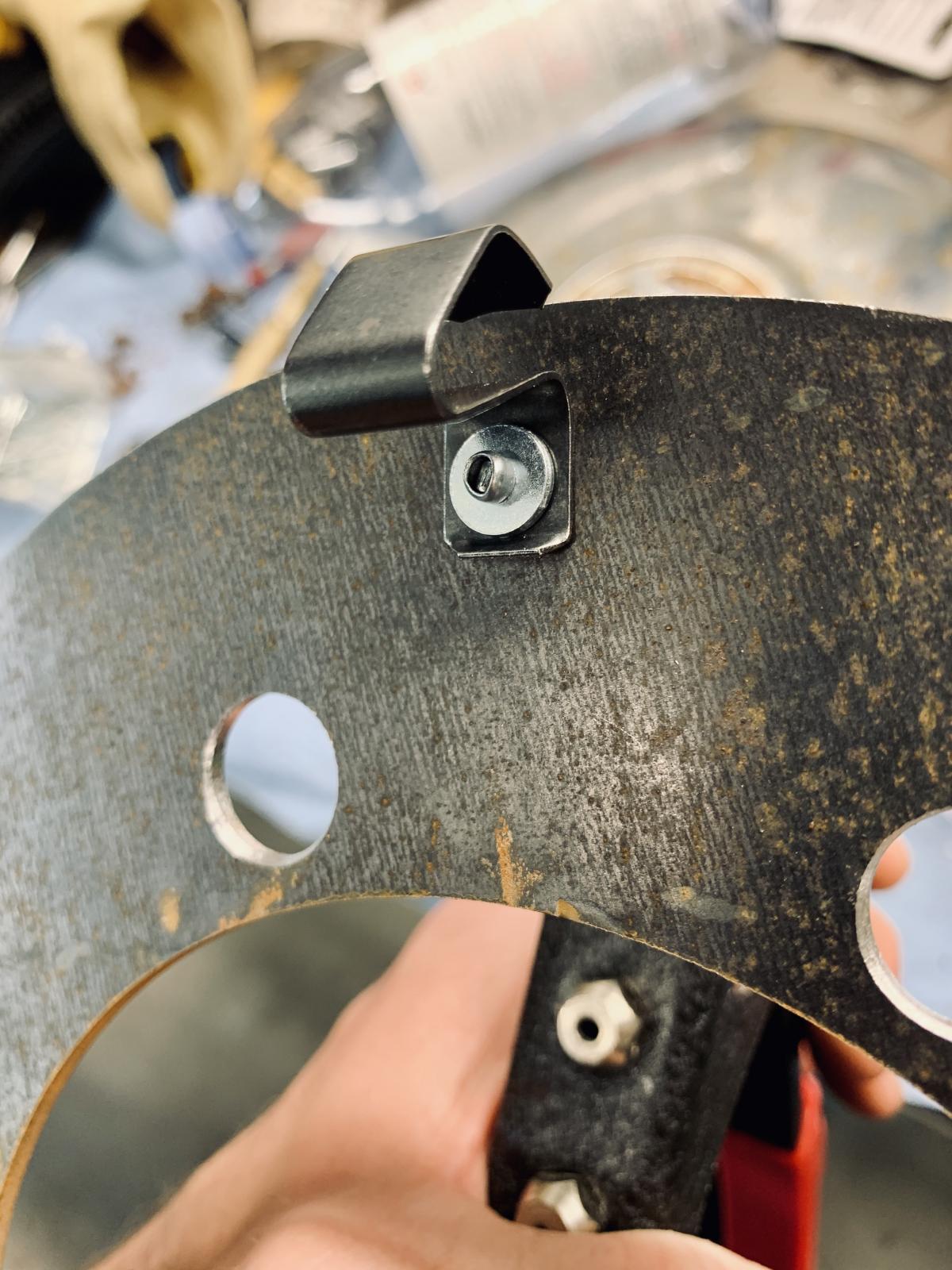

I positioned the clips, used a backing washer for the rivets because the clips use almost a 3/16Ē rivet and Iím using 1/8Ē. This allowed me to tweak the locations slightly if necessary based on the wheel stud hole locations...ie, if the hub caps are ever not centered, I can adjust the clip locations so it doesnít look all cattywompas driving down the road.

Image may have been reduced in size. Click image to view fullscreen.


Test fitted on the hubcap to check for figment of the clips. They needed to be bent slightly to grab securely but that was a simple fix.

Image may have been reduced in size. Click image to view fullscreen.


All riveted on.

Image may have been reduced in size. Click image to view fullscreen.


Bolted up to the wheel.

Image may have been reduced in size. Click image to view fullscreen.


Gangster time! 😎 Not sure how sacrilegious this is but I think it looks damn nice!

Image may have been reduced in size. Click image to view fullscreen.


Last edited by DeVerde on Fri Jun 19, 2020 5:29 am; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
finefettle
Samba Member


Joined: October 13, 2006
Posts: 600
Location: Shelburne,Vermont
finefettle is offline

PostPosted: Fri Jun 19, 2020 4:51 am    Post subject: Re: DeVerde - Hoodrat Project Reply with quote

Ok, that looks pretty bad ass.
Water jets are spot on so next time save yourself some labor and just put the holes you want in the cut file.
Nice job.
_________________
1979 Bug project
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
DeVerde
Samba Member


Joined: June 09, 2020
Posts: 46
Location: Sneads Ferry, NC
DeVerde is offline

PostPosted: Fri Jun 19, 2020 5:22 am    Post subject: Re: DeVerde - Hoodrat Project Reply with quote

finefettle wrote:
Ok, that looks pretty bad ass.
Water jets are spot on so next time save yourself some labor and just put the holes you want in the cut file.
Nice job.


Thanks a ton! I was not doing the programming or there for production so it did cost a me a bit of labor. To be fair, I spit balled the measurements as well so the tolerances could have absolutely been off on my part too, which was a bit of the worry. They werenít so thatís a plus and next time Iíll trust the guy a bit more. Really dig the water jet work though, super clean and quick turnaround, 10/10 would recommend.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
finefettle
Samba Member


Joined: October 13, 2006
Posts: 600
Location: Shelburne,Vermont
finefettle is offline

PostPosted: Fri Jun 19, 2020 11:26 am    Post subject: Re: DeVerde - Hoodrat Project Reply with quote

Oh yes. Water jetting sounds like a nightmare but it is super cool how close to to tollerences they can get. I dont do it but have had it done many times.
Most cars have a blind spot Cool
_________________
1979 Bug project
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
EVfun
Samba Member


Joined: April 01, 2012
Posts: 4275
Location: Seattle
EVfun is offline

PostPosted: Sat Jun 20, 2020 2:49 pm    Post subject: Re: DeVerde - Hoodrat Project Reply with quote

DeVerde wrote:

Iím thinking Iíll reuse the stock brake lights...thoughts?
Image may have been reduced in size. Click image to view fullscreen.


Just scrolling by I had a thought about that. See where you have the tail lights touching the deck lid? How about a curved cut in the tail light housings so the inside edge lays along the outer bulge of the deck lid. That would give you a pretty long curved weld to secure them, and they would open and close with (now being a part of) the deck lid.
_________________
Wildthings wrote:
As a general rule, cheap parts are the most expensive parts you can buy.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
finefettle
Samba Member


Joined: October 13, 2006
Posts: 600
Location: Shelburne,Vermont
finefettle is offline

PostPosted: Sun Jun 21, 2020 5:55 pm    Post subject: Re: DeVerde - Hoodrat Project Reply with quote

Cool idea. Only downside is if you are stuck on side of road oncoming cars canít see the hazards but... just carry flares I guess😬
_________________
1979 Bug project
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
DeVerde
Samba Member


Joined: June 09, 2020
Posts: 46
Location: Sneads Ferry, NC
DeVerde is offline

PostPosted: Tue Jun 23, 2020 2:32 am    Post subject: Re: DeVerde - Hoodrat Project Reply with quote

EVfun wrote:
DeVerde wrote:

Iím thinking Iíll reuse the stock brake lights...thoughts?
Image may have been reduced in size. Click image to view fullscreen.


Just scrolling by I had a thought about that. See where you have the tail lights touching the deck lid? How about a curved cut in the tail light housings so the inside edge lays along the outer bulge of the deck lid. That would give you a pretty long curved weld to secure them, and they would open and close with (now being a part of) the deck lid.


That might be a cool idea...Iíll almost have to push the light into the deck lid half way to make the curves line up right though. Iíll for sure take a look at it and see what I can come up with. Maybe take just the lenses and light plate part, cut off the flared sheet metal, and bend up something custom all the way around that fits the deck lid? 🤔
Back to top
View user's profile Send private message Gallery Classifieds Feedback
DeVerde
Samba Member


Joined: June 09, 2020
Posts: 46
Location: Sneads Ferry, NC
DeVerde is offline

PostPosted: Tue Jun 23, 2020 2:39 am    Post subject: Re: DeVerde - Hoodrat Project Reply with quote

finefettle wrote:
Cool idea. Only downside is if you are stuck on side of road oncoming cars canít see the hazards but... just carry flares I guess😬


True...I also carry road triangles in all my cars because a battery will die eventually and I have a bunch of them. Theyíre foldable and come in a box that I can fit a flare or two in. Gotta get it driving first to worry about being stranded!! 🤣🤣
Back to top
View user's profile Send private message Gallery Classifieds Feedback
DeVerde
Samba Member


Joined: June 09, 2020
Posts: 46
Location: Sneads Ferry, NC
DeVerde is offline

PostPosted: Tue Jun 23, 2020 2:58 am    Post subject: Re: DeVerde - Hoodrat Project Reply with quote

So in the non-linear way of thinking I have, the concept of seats has been on my mind. Iíd like to keep the seats VW of some sort and I think VW CC executive seats might cut the mustard. Over the years Iíve messed my back up a lot between parachuting, crashes, Afghanistan, etc so I canít sit too long on something hard without my lower lumbar area seizing up and making my legs lose sensation...so I need a cushion. I think by themselves, the seats are too big but the lower seat cushion in a bomber seat would be pretty slick if I can pull it off. Plus theyíre heated and ventilated and pretty cheap from Craigslist!

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Thinking about something similar to these:

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
finefettle
Samba Member


Joined: October 13, 2006
Posts: 600
Location: Shelburne,Vermont
finefettle is offline

PostPosted: Wed Jun 24, 2020 5:25 am    Post subject: Re: DeVerde - Hoodrat Project Reply with quote

I like the last picture of idea seats. Keep the back and comfort. that black stitching looks cool. Wrap in aluminum, loose the head rest and they would look great
_________________
1979 Bug project
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
DeVerde
Samba Member


Joined: June 09, 2020
Posts: 46
Location: Sneads Ferry, NC
DeVerde is offline

PostPosted: Sun Jun 28, 2020 5:02 pm    Post subject: Re: DeVerde - Hoodrat Project Reply with quote

finefettle wrote:
I like the last picture of idea seats. Keep the back and comfort. that black stitching looks cool. Wrap in aluminum, loose the head rest and they would look great


So the idea I have now is to make some faux bomber seats. I want to keep the power adjustment in the seats so Iíll dimple die some aluminum, rivet up some skins that hug the leather seats much tighter than the plastic covers and wrap around the top, and relocate the controls to the center console. Aluminum skins and factory comfort...best of both worlds.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
DeVerde
Samba Member


Joined: June 09, 2020
Posts: 46
Location: Sneads Ferry, NC
DeVerde is offline

PostPosted: Sun Jun 28, 2020 5:09 pm    Post subject: Re: DeVerde - Hoodrat Project Reply with quote

Got the seats today. A bunch of work ahead of me. Yes, I know it looks tight. There is a LOT of wasted space in the factory skins and seat rails so Iíll pull the plastic, make aluminum dimple died skins, and modify the seat brackets so theyíre narrower. Enjoy and hate away.

What I got from the craigslist guy...$280 for both seats? Meh, itís not that great but itís ok.

Image may have been reduced in size. Click image to view fullscreen.


In the bug...obviously not their permanent home.

Image may have been reduced in size. Click image to view fullscreen.


Damn, these are COMFORTABLE and will fit great with a bit of effort.

Image may have been reduced in size. Click image to view fullscreen.


The outer skins waste a ton of space so Iíll relocate the switches to the center console and move the seats outboard and make room for the center console and driveshaft.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Other VW Vehicles/Volksrods All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3  Next
Page 1 of 3


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
