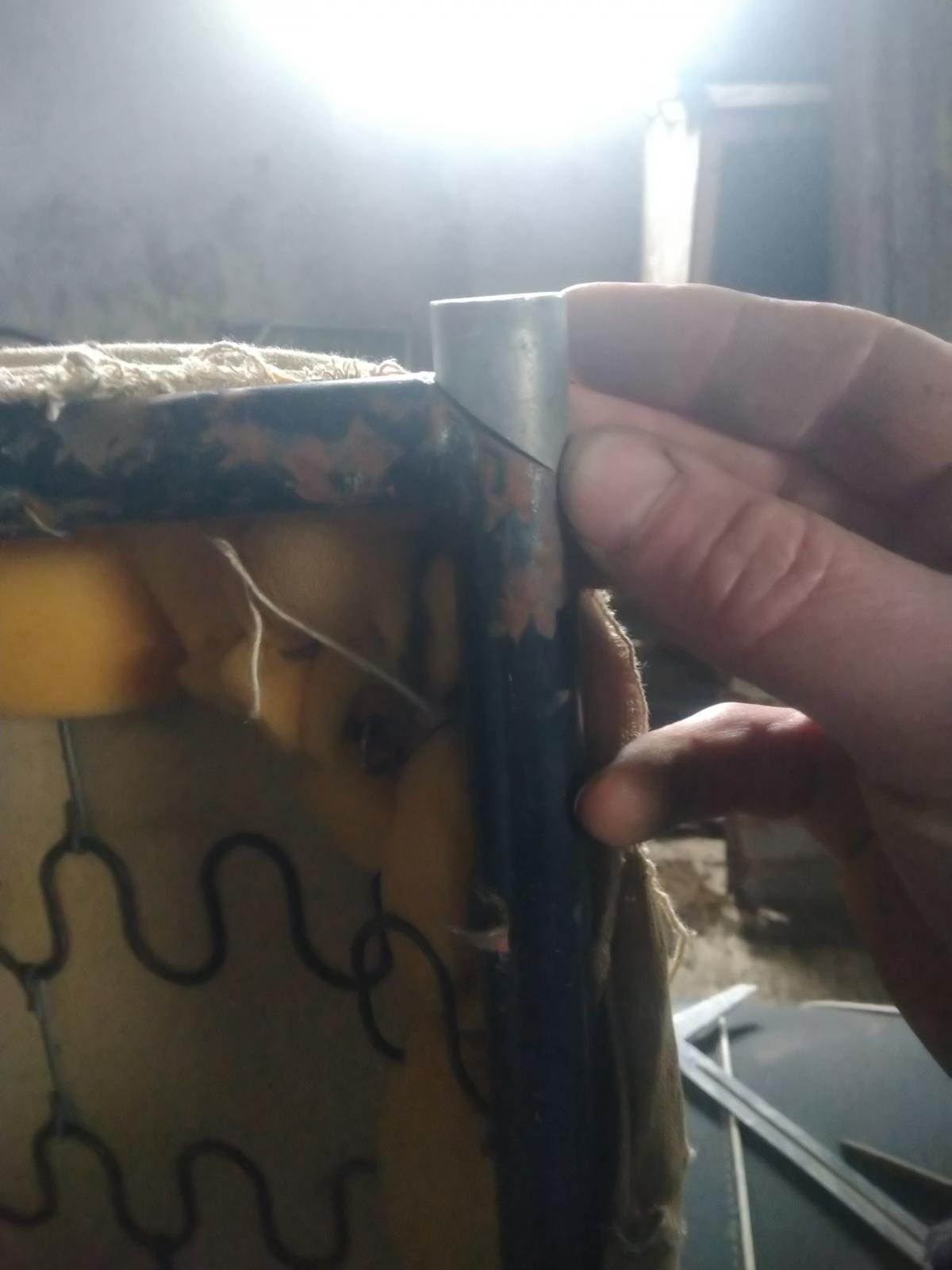

Hoping someone can help me repair my seat frame, can anybody help with some measurements for repairing this? The brackets are missing from my bulkhead so I've no reference to measure from.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
baz76
Samba Member


Joined: October 13, 2010
Posts: 851
Location: IRELAND
baz76 is offline
PostPosted: Fri Apr 16, 2021 12:23 pm    Post subject: Re: Bench seat frame help Reply with quote
Nobody got a curved back seat back they can take a quick measurement from? Need to know how far the tube sticks out and how far the pivot bar sticks out of tube.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
BarryL Premium Member
Samba Member


Joined: November 01, 2004
Posts: 12947
Location: Casa de Oro, California
BarryL is offline
PostPosted: Fri Apr 16, 2021 6:22 pm    Post subject: Re: Bench seat frame help Reply with quote
Somebody cut that 45 degree? If so why? Hope someone can help you.
Here's a long shot from the gallery. Click on it then click again.
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
EverettB Premium Member
Administrator


Joined: April 11, 2000
Posts: 65888
Location: Phoenix, AZ
EverettB is offline
PostPosted: Fri Apr 16, 2021 10:07 pm    Post subject: Re: Bench seat frame help Reply with quote
1.25" from the start of the pipe to the edge
The tab sticks out 0.5":
Image may have been reduced in size. Click image to view fullscreen.


A couple other random pics of the crimping:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Instagram Gallery Classifieds Feedback
baz76
Samba Member


Joined: October 13, 2010
Posts: 851
Location: IRELAND
baz76 is offline
PostPosted: Sat Apr 17, 2021 12:55 am    Post subject: Re: Bench seat frame help Reply with quote
Excellent thanks Everett. Should be relatively easy to fix now I have the correct measurements.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
baz76
Samba Member


Joined: October 13, 2010
Posts: 851
Location: IRELAND
baz76 is offline
PostPosted: Mon Apr 19, 2021 2:35 am    Post subject: Re: Bench seat frame help Reply with quote
Managed to find something genuine vw to fix this, I don't have any spare seat frames to cut up so went looking in my shed for something that would work.

Image may have been reduced in size. Click image to view fullscreen.


Skoda octavia wheel brace Cool
