Problems fitting heat exchangers Type 4
Forum Index -> Performance/Engines/Transmissions Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
orwell84
Samba Member


Joined: May 14, 2007
Posts: 1959
Location: Plattsburgh, New York
orwell84 is offline

PostPosted: Wed May 05, 2021 5:27 am    Post subject: Problems fitting heat exchangers Type 4 Reply with quote

I am trying to fit heat exchangers on my Type 4 2.0 engine that I am rebuilding (for a bus). I am using 2l AMC Ham heads

Among 3 sets of heat exchangers I have one good set.

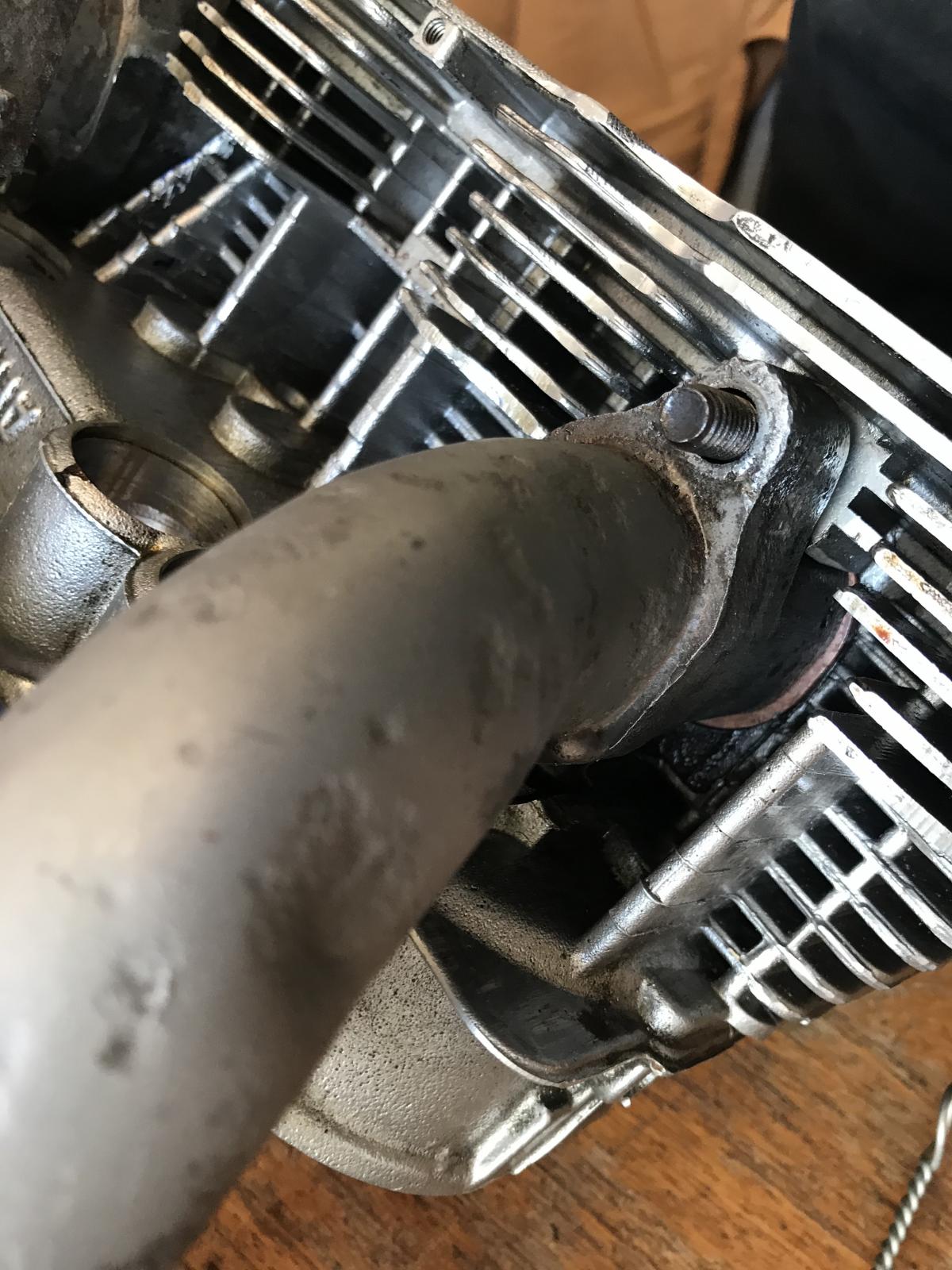

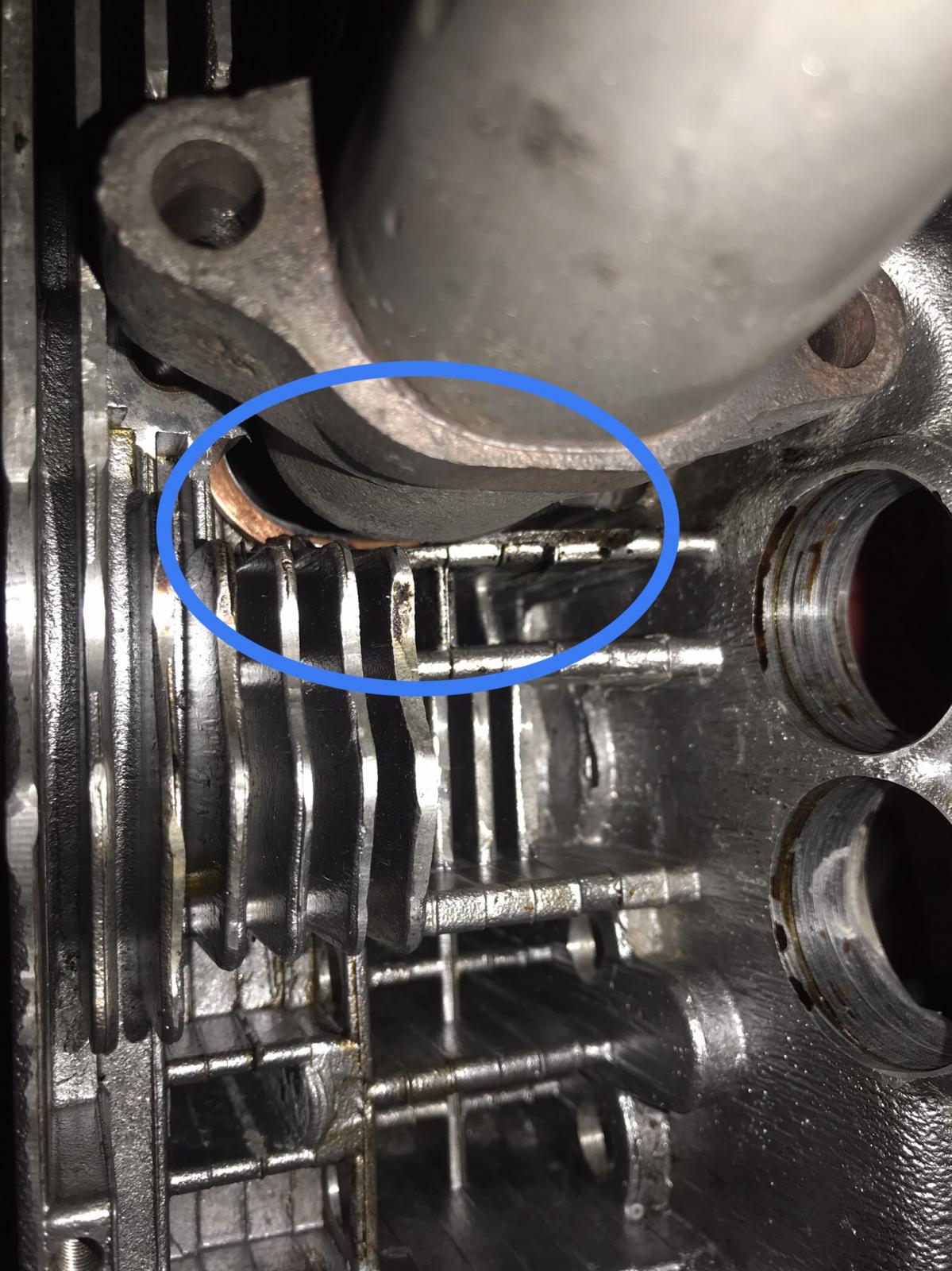

On the 1/2 side, the exhaust flanges foul of n the casting even with the studs removed.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


The exchanger did fit on an old 1700 head. The exchanger isnít bent.

One of my junk exchangers fit perfectly. The flanges and tubing sizes appear to be different. They are both OG VW. Itís hard to see the differences in the photo.

Image may have been reduced in size. Click image to view fullscreen.


I have never read anywhere of differences in this type of heater boxes and was under the impression that they were pretty much interchangeable as the oval exhaust ports remained the same until he square port heads came out.

I was wondering if anyone else has dealt with this problem. It looks like clearancing the casting a little would allow it to fit.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
nextgen
Samba Member


Joined: August 19, 2004
Posts: 5204
Location: CONGERS, N.Y.
nextgen is offline

PostPosted: Wed May 05, 2021 6:24 am    Post subject: Re: Problems fitting heat exchangers Type 4 Reply with quote

I have had problems with the studs fitting the holes.

All I did was elongate the holes in the header.

The only heads I ever worked with were stock.

Ray will be on this one soon I am sure and will have some answers.
_________________
site: www.nextgen-usa.com
email: [email protected]
or
[email protected]
The Type IV Upright Conversion Manual
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
orwell84
Samba Member


Joined: May 14, 2007
Posts: 1959
Location: Plattsburgh, New York
orwell84 is offline

PostPosted: Wed May 05, 2021 7:15 am    Post subject: Re: Problems fitting heat exchangers Type 4 Reply with quote

nextgen wrote:
I have had problems with the studs fitting the holes.

All I did was elongate the holes in the header.

The only heads I ever worked with were stock.

Ray will be on this one soon I am sure and will have some answers.


Thanks. The studs are often a tight fit and it gets worse when they get dinged up. Mine are in good shape and came out of the heads easily. I used to install the heat exchangers after the engine was installed which often results in a bad seal. Glad I am checking them on the bench this time.

I have run these heads before with EMW j-tubes. The lugs for the studs have larger holes and are more forgiving to install.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
raygreenwood
Samba Member


Joined: November 24, 2008
Posts: 18797
Location: Oklahoma City
raygreenwood is offline

PostPosted: Wed May 05, 2021 5:38 pm    Post subject: Re: Problems fitting heat exchangers Type 4 Reply with quote

orwell84 wrote:
I am trying to fit heat exchangers on my Type 4 2.0 engine that I am rebuilding (for a bus). I am using 2l AMC Ham heads

Among 3 sets of heat exchangers I have one good set.

On the 1/2 side, the exhaust flanges foul of n the casting even with the studs removed.


The exchanger did fit on an old 1700 head. The exchanger isnít bent.

One of my junk exchangers fit perfectly. The flanges and tubing sizes appear to be different. They are both OG VW. Itís hard to see the differences in the photo.

Image may have been reduced in size. Click image to view fullscreen.


I have never read anywhere of differences in this type of heater boxes and was under the impression that they were pretty much interchangeable as the oval exhaust ports remained the same until he square port heads came out.

I was wondering if anyone else has dealt with this problem. It looks like clearancing the casting a little would allow it to fit.

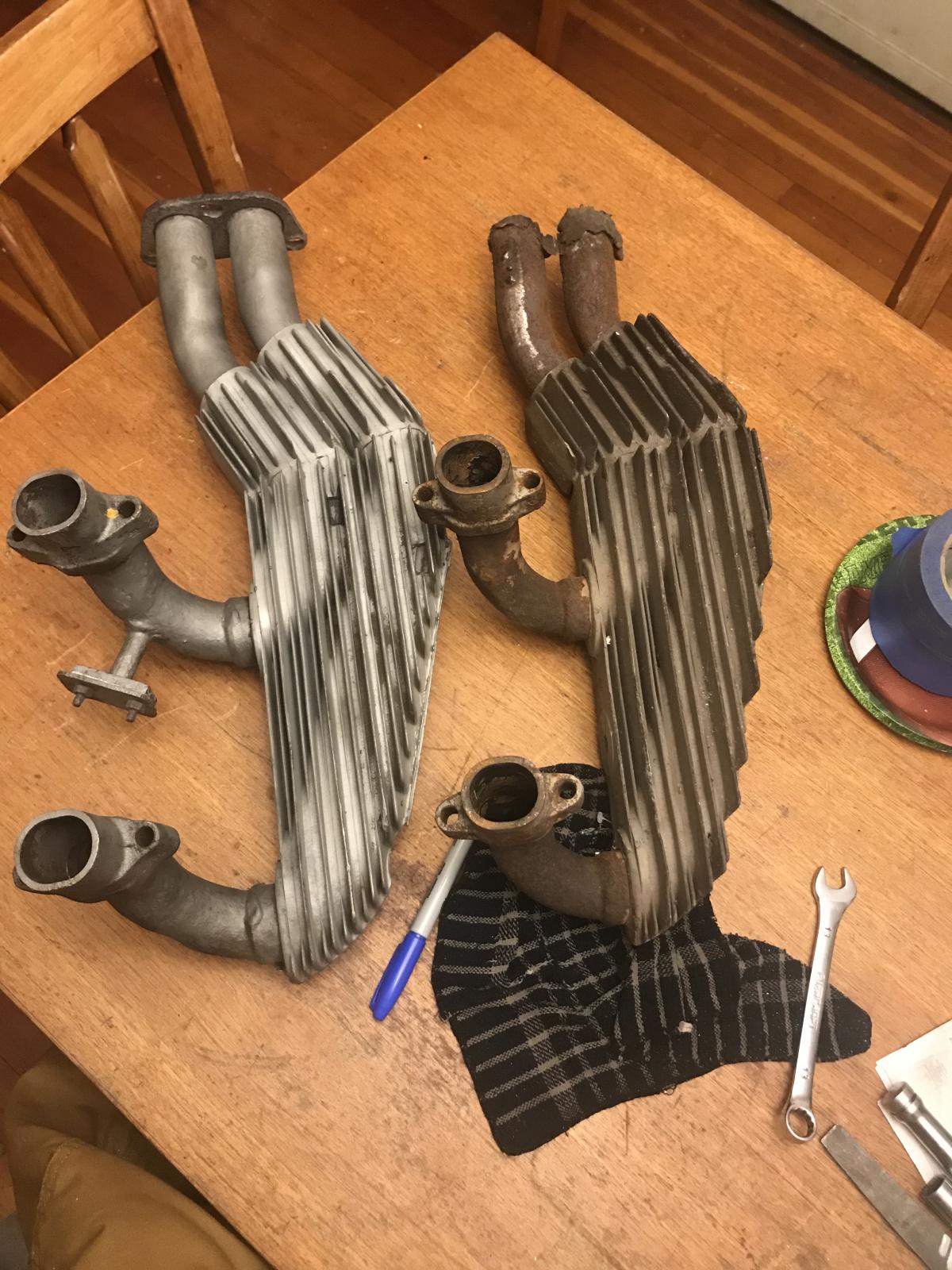

Not really hard to see at all. The exchanger laying on top is a wider oval with fatter castings. The one on the bottom is a narrower oval...and looks more like a 1.7L heat exchanger.

What are the part numbers of the exhcangers you have? What are they from?

Ray
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
orwell84
Samba Member


Joined: May 14, 2007
Posts: 1959
Location: Plattsburgh, New York
orwell84 is offline

PostPosted: Wed May 05, 2021 7:56 pm    Post subject: Re: Problems fitting heat exchangers Type 4 Reply with quote

I couldnít find a part number on them.
They are both marked 4 L on the side.


Image may have been reduced in size. Click image to view fullscreen.


I know that they are both off buses and have the exact same tin for 73-74 buses. Everything I have read has said all the oval port exhaust systems are interchangeable. The other side fits without any issues. I can see that the flanges and tubing are slightly larger.

I thought that clearancing the heads would be ok. I havenít finished but they just about fit. Never knew that there were differences in sizes between the same style of exchanger and tin.


Image may have been reduced in size. Click image to view fullscreen.


Is doing this ok? I have been taping up a copper gasket to avoid nicking the port.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
orwell84
Samba Member


Joined: May 14, 2007
Posts: 1959
Location: Plattsburgh, New York
orwell84 is offline

PostPosted: Thu May 06, 2021 3:47 am    Post subject: Re: Problems fitting heat exchangers Type 4 Reply with quote

The exchangers that donít fit are stamped 021 286 B and C as well as GE.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
orwell84
Samba Member


Joined: May 14, 2007
Posts: 1959
Location: Plattsburgh, New York
orwell84 is offline

PostPosted: Thu May 06, 2021 4:10 am    Post subject: Re: Problems fitting heat exchangers Type 4 Reply with quote

The exchangers that donít fit are stamped 021 286 B and C as well as GE.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Clatter
Samba Member


Joined: September 24, 2003
Posts: 5640
Location: Santa Cruz
Clatter is offline

PostPosted: Fri May 07, 2021 6:57 am    Post subject: Re: Problems fitting heat exchangers Type 4 Reply with quote

Whoo.. Welcome to the club..!

Not sure if it's AMC heads or what.. But i could swear they have a different center-to-center measurement between the exhaust ports sometimes.

Check my 'cheap junk' thread again - there's a bunch of details about this..
Sometimes multiple solutions are required.


The two different size port flanges in this pic..
Could you measure them?
What do they look like if you set the same gasket on each?
Image may have been reduced in size. Click image to view fullscreen.


I do know that the 411/412 small 'pre-heater' boxes came in a small and a large.

Perhaps that smaller set is from one of the early early 1.7s?
Notice no EGR port..
_________________
Bus Motor Build
Fastback Build

modok wrote:
if you have the expectation that you can put mexican taxi bearings, in a brazil engine case, and put a chinese crank in it and have the right clearance...
Time to change your expectations.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
raygreenwood
Samba Member


Joined: November 24, 2008
Posts: 18797
Location: Oklahoma City
raygreenwood is offline

PostPosted: Fri May 07, 2021 9:46 am    Post subject: Re: Problems fitting heat exchangers Type 4 Reply with quote

Clatter wrote:
Whoo.. Welcome to the club..!

Not sure if it's AMC heads or what.. But i could swear they have a different center-to-center measurement between the exhaust ports sometimes.

Check my 'cheap junk' thread again - there's a bunch of details about this..
Sometimes multiple solutions are required.


The two different size port flanges in this pic..
Could you measure them?
What do they look like if you set the same gasket on each?
Image may have been reduced in size. Click image to view fullscreen.


I do know that the 411/412 small 'pre-heater' boxes came in a small and a large.

Perhaps that smaller set is from one of the early early 1.7s?
Notice no EGR port..


AS far as I know....no 411 or 412 ever came with internal cast fins on the HE's. The external sheet metal on 411/412 HE's is far too small for those finned castings.

I say I have not "SEEN" any. But.....there are no less six part numbers in my book.

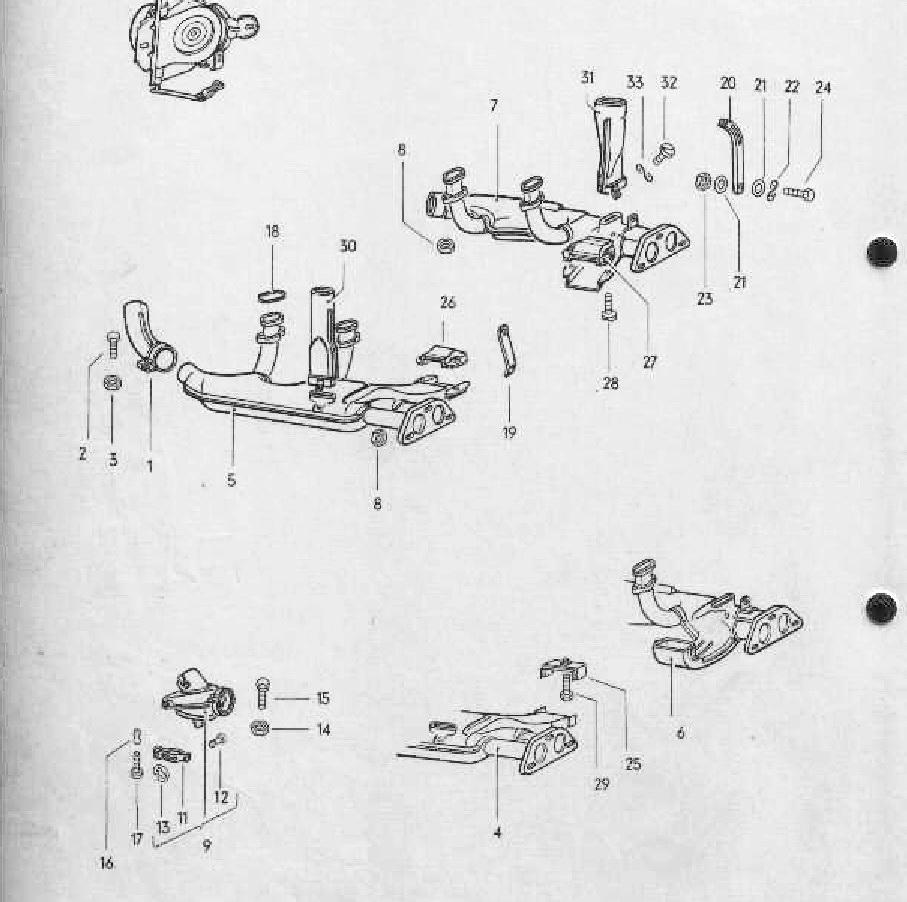

411 and 412 through August of 1972 (as far as my parts book goes) had a few different part #'s.

(figure #5) 021 256 091 B -left hand ...to engine # V 0 100 000
021 256 091 C- left hand....FROM engine #'s W/Z/EA 0 000 001
(figure #4) 021 256 091 H- left hand....listed a M202 which is increased warm air heating from the fan shroud. So...its possible this one had internal work but it has a different shroud connection.

(figure #7) 021 256 092 B-right hand...to engine # V 0 100 000
021 256 092 C- right hand ....FROM engine #'s W/Z/EA 0 000 001
(figure #6) 021 256 092H- right hand....listed as M202

Image may have been reduced in size. Click image to view fullscreen.



I also think that the 021 286 part number marks it as bus or vanagon.

When I google 021 286 091B....I dont get any HE's...so I think his part # may be wrong.

Ray
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
orwell84
Samba Member


Joined: May 14, 2007
Posts: 1959
Location: Plattsburgh, New York
orwell84 is offline

PostPosted: Fri May 07, 2021 10:06 am    Post subject: Re: Problems fitting heat exchangers Type 4 Reply with quote

Clatter wrote:
Whoo.. Welcome to the club..!

Not sure if it's AMC heads or what.. But i could swear they have a different center-to-center measurement between the exhaust ports sometimes.

Check my 'cheap junk' thread again - there's a bunch of details about this..
Sometimes multiple solutions are required.


The two different size port flanges in this pic..
Could you measure them?
What do they look like if you set the same gasket on each?
Image may have been reduced in size. Click image to view fullscreen.


I do know that the 411/412 small 'pre-heater' boxes came in a small and a large.

Perhaps that smaller set is from one of the early early 1.7s?
Notice no EGR port..


Thanks Clatter,

I did find my way back your cheap junk build (I often do). The outer diameter of the flange Iím trying to fit is like 1.25mm wider longways and .25mm short ways.

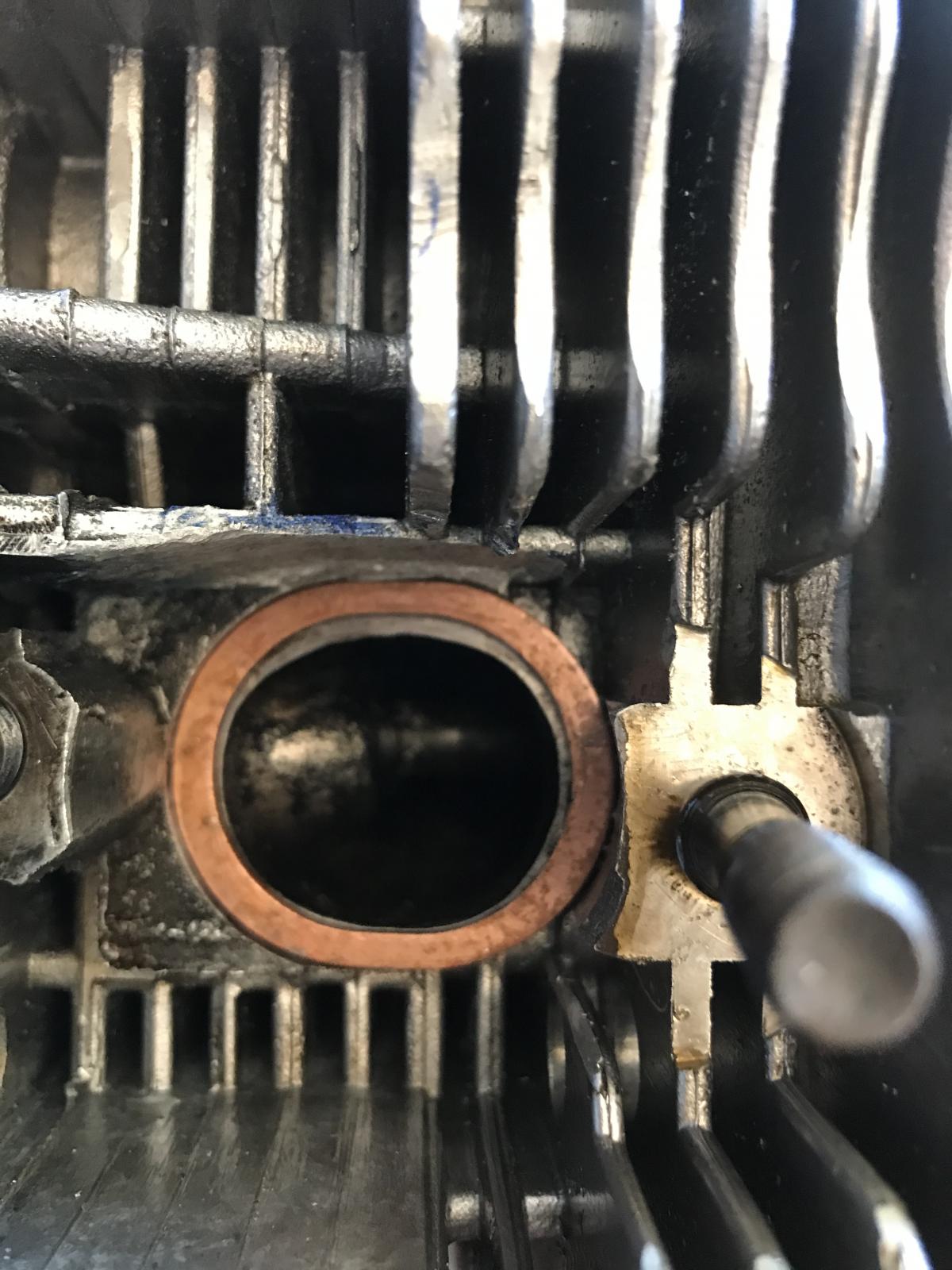

I have been clearancing the heads with a taped gasket in the exhaust port...just sneaking up on it; grind, check repeat. I have kind of gotten over my fear of modifying stuff to make it fit. Canít avoid it unless you donít care if it fits.

I found an old gasket that is thicker and rounder. There is wiggle room with both. Stock heads might have had more clearance but who knows really. Like body panels from different manufacturers; theyíre just not gonna fit without some dicking around.

Anyway, Iím just about there. Gonna schmeer some grease in there and see how it squishes, grind accordingly using the CH standard.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
nextgen
Samba Member


Joined: August 19, 2004
Posts: 5204
Location: CONGERS, N.Y.
nextgen is offline

PostPosted: Fri May 07, 2021 10:26 am    Post subject: Re: Problems fitting heat exchangers Type 4 Reply with quote

I have found the T-4 manifolds to be superior the T-1, once installed correctly.

I also like the bottom mounting locations vs the T-1 coming out each end.

Are you going to use them for heat?? Or just mounting them with the fins attached????

Recently there was post on removing the heavy fins. I was lucky mine were stock straight headers no fins..

Image may have been reduced in size. Click image to view fullscreen.

_________________
site: www.nextgen-usa.com
email: [email protected]
or
[email protected]
The Type IV Upright Conversion Manual
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
orwell84
Samba Member


Joined: May 14, 2007
Posts: 1959
Location: Plattsburgh, New York
orwell84 is offline

PostPosted: Fri May 07, 2021 10:35 am    Post subject: Re: Problems fitting heat exchangers Type 4 Reply with quote

Yes, Iím using them for heat. I thought it would be ďfunĒ to get the stock heat working again. I already have j pipes. I have repaired or replaced a lot of the tubes, heater tins and parts.
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
nextgen
Samba Member


Joined: August 19, 2004
Posts: 5204
Location: CONGERS, N.Y.
nextgen is offline

PostPosted: Fri May 07, 2021 12:58 pm    Post subject: Re: Problems fitting heat exchangers Type 4 Reply with quote

OK very nice job--- I am in Rockland County 35 north of NYC on the Hudson River.

Plattsburgh, Yes if you are driving in the winter, ha!!!! You are up near Canada.

I ripped out my heater channels and used 2" ( If I remember correctly ) Galvanized pipe bolted to the frame just for extra support.

Looks like you are going to run some heat thru yours??
_________________
site: www.nextgen-usa.com
email: [email protected]
or
[email protected]
The Type IV Upright Conversion Manual
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
orwell84
Samba Member


Joined: May 14, 2007
Posts: 1959
Location: Plattsburgh, New York
orwell84 is offline

PostPosted: Fri May 07, 2021 6:25 pm    Post subject: Re: Problems fitting heat exchangers Type 4 Reply with quote

I donít drive in the winter and really donít need the heat as I have a gas heater but I have been slowly finding all the pieces and thought it would be nice to have. Btw, I grew up in Rhinebeck and a lot of my family are from Poughkeepsie... both still considered upstate.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
udidwht
Samba Member


Joined: March 06, 2005
Posts: 3662
Location: Seattle, WA./ HB, Ca./ Shizuoka, Japan
udidwht is offline

PostPosted: Sun May 09, 2021 9:15 pm    Post subject: Re: Problems fitting heat exchangers Type 4 Reply with quote

I drill out the flange holes 1 size or so. Then check their fit. If pipes need tweaking heat and a cheater pipe (appropriate size).

Once I'm sure they are straight. I use Loctite 518 on each side of the copper gasket. Then mate up the exchanger. Apply liberal amount of copper seize to studs.

After each heat cycle I'll check the torque ( (4-5 good cycles)

After that resist any temptation at re-torqueing them or risk pulling a stud/s.
_________________
1972 Westy Hardtop/Type-4 2056cc
96mm Biral AA P/C's~7.8:1CR
Headflow Masters New AMC 42x36mm heads w/Porsche swivel adjusters
71mm Stroke
73 Web Cam w/Web solids
Dual 40mm IDF Webers - LM-2 - 47.5 idles/125 mains/190 air corr./F11 tubes/28mm Vents - Float height 10.45mm/Drop 32mm
Bosch SVDA w/Pertronix module (7.5 initial 28 total @ 3400rpm)
NGK BP6ET plugs
Pertronix Flamethrower 40K coil
S&S 4-1 w/Walker QP 17862
3 rib 002 Trans
185R14 Hankook tires
Back to top
View user's profile Send private message Gallery Classifieds Feedback
nextgen
Samba Member


Joined: August 19, 2004
Posts: 5204
Location: CONGERS, N.Y.
nextgen is offline

PostPosted: Mon May 10, 2021 7:15 am    Post subject: Re: Problems fitting heat exchangers Type 4 Reply with quote

I believe if you are going to use anti seize, it is on the exhaust heads studs. Breaking a stud off on a head with the engine in the car, can go from simple to engine removal and on from there.
_________________
site: www.nextgen-usa.com
email: [email protected]
or
[email protected]
The Type IV Upright Conversion Manual
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Performance/Engines/Transmissions All times are Mountain Standard Time/Pacific Daylight Savings Time
Page 1 of 1


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
