 Posted: Wed Feb 10, 2021 1:54 pm Post subject: Cluster 14 pin connector terminal source |
 |
|
folks, can anyone point me to a source, or even just the ID (TE? AMP?), of the spring terminals found in the 14 pin dash cluster connector?
brickwerks apparently had them:
https://www.brickwerks.co.uk/electrical-terminal-t3-instrument-panel-electric-mirror-switch.html
But that VW part number only gives me a wire repair set - I want bare connectors.
Unless I need to buy them by the 100...
Thanks! |
|
| Back to top |
|
 |
Finagon
Samba Member
Joined: May 14, 2007
Posts: 55
Location: Portland, OR
|
| Posted: Fri Mar 15, 2024 7:48 am Post subject: Re: Cluster 14 pin connector terminal source |
|
|
Bumping this back to the top.
Also interested in locating these terminals. They also appear to be used in the brake indicator connector in the dash.
_________________
85 tintop. FAS 2.0 Gen V install in process....overthinking it as usual. |
|
| Back to top |
|
|
ZsZ
Samba Member
Joined: December 11, 2010
Posts: 1735
Location: Budapest Hungary, Europe
|
| Posted: Fri Mar 15, 2024 8:18 am Post subject: Re: Cluster 14 pin connector terminal source |
|
|
It was some kind of the AMP twin leaf IIRC
You might find it in te.com if it is still made
_________________
Zoltan
1.9 MTdi 2wd Multivan (ex Caravelle)
Van since 2006, engine since 2008 |
|
| Back to top |
|
|
Corwyn
Samba Member
Joined: December 29, 2009
Posts: 2429
Location: Olympia, Washington
|
|
| Back to top |
|
|
t3 kopf
Samba Member
Joined: October 22, 2012
Posts: 1125
Location: over by 'der
|
| Posted: Fri Mar 15, 2024 9:01 am Post subject: Re: Cluster 14 pin connector terminal source |
|
|
They can be cannibalized from the seat belt warning light.
_________________
'90 Carat w/ '95 phase 1 EJ22 OBD2 conversion |
|
| Back to top |
|
|
kamzcab86
Samba Moderator
Joined: July 26, 2008
Posts: 8462
Location: Arizona
|
|
| Back to top |
|
|
Finagon
Samba Member
Joined: May 14, 2007
Posts: 55
Location: Portland, OR
|
| Posted: Fri Mar 15, 2024 12:56 pm Post subject: Re: Cluster 14 pin connector terminal source |
|
|
Yep, that's what I found on Mouser and Digi-Key as well. Just the 17mil size. In closer examination of the twin leaf connectors from AMP/TE, the ones used in our connector housings are slightly different in that there appears to be a supplemental support "spring" of sorts, making me think that there is a similar version out there.
And a thank you goes out to ZsZ for giving me a name to these types of terminals. Also "card edge connectors"
Bottom line though, I don't have time to research these at the moment more than the 3 hours I already have. My hope was the use a new connector so that I can duplex a wire set out of the seat belt/brake light on the dash to tap into circuit 15. I really, really would rather not splice or cut into the middle of the two wires between the ign. switch either.
Any other suggestions?
_________________
85 tintop. FAS 2.0 Gen V install in process....overthinking it as usual. |
|
| Back to top |
|
|
Hammy1
Samba Member
Joined: May 08, 2012
Posts: 220
Location: OTTAWA, ON
|
| Posted: Fri Mar 15, 2024 2:25 pm Post subject: Re: Cluster 14 pin connector terminal source |
|
|

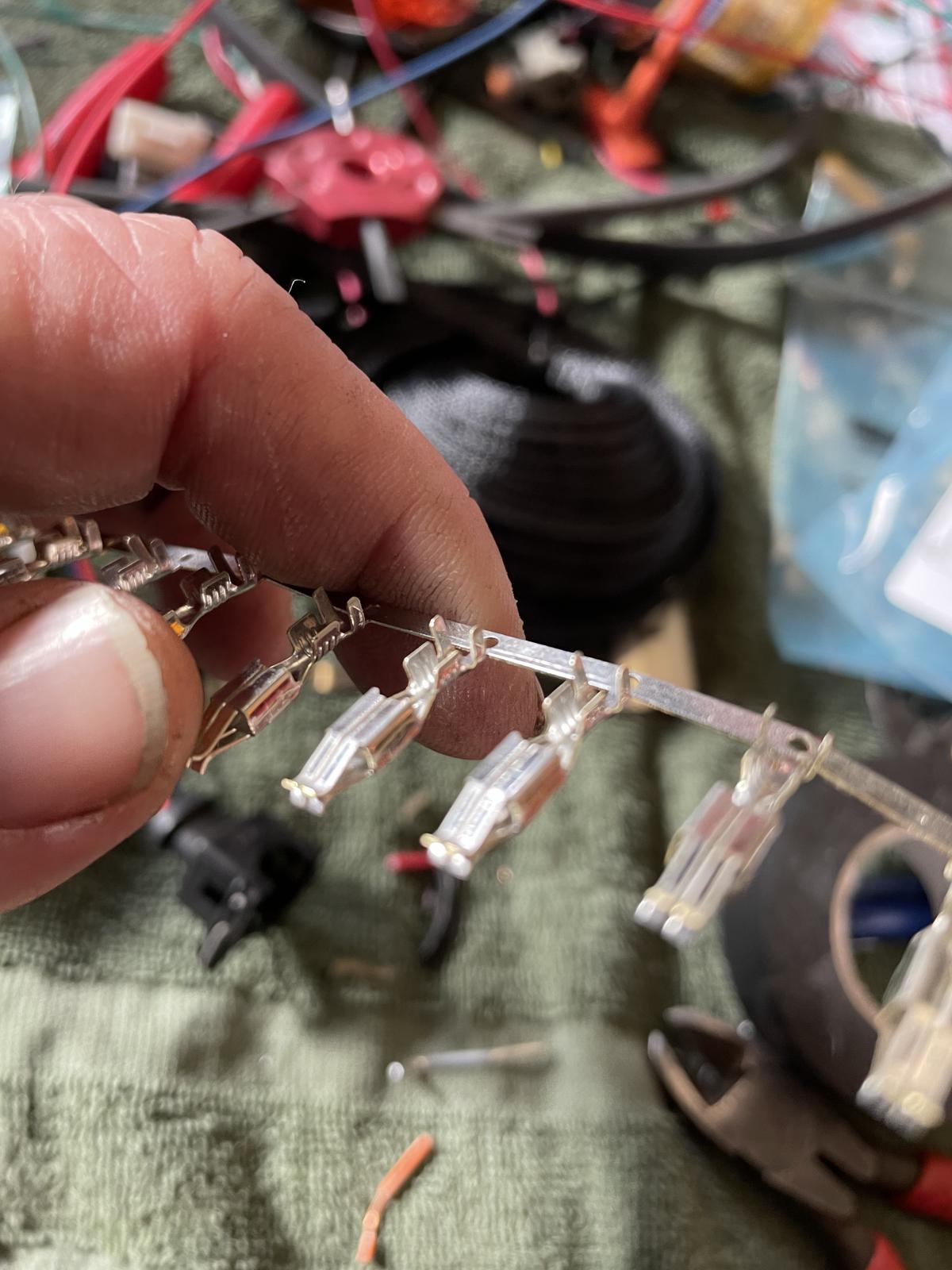

Is it these pins? I’m currently building a harness for a vw 16v and these are the pins for the amp connectors…….
These are 13-17 gauge. I got them from digikey……and all my connectors
If it’s the ones I’ll dig up the part#
I got them two days ago…….they have 1000’s
Regards,
Jon h. |
|
| Back to top |
|
|
ZsZ
Samba Member
Joined: December 11, 2010
Posts: 1735
Location: Budapest Hungary, Europe
|
| Posted: Sat Mar 16, 2024 12:22 am Post subject: Re: Cluster 14 pin connector terminal source |
|
|
Once I did find the right data sheet for the originals. I might have it somewhere on my old computer.
The Brickwerks one is for sure the same as the originals.
I assume with time the US vendors will also have some in stock
_________________
Zoltan
1.9 MTdi 2wd Multivan (ex Caravelle)
Van since 2006, engine since 2008 |
|
| Back to top |
|
|
ALIKA T3
Samba Member
Joined: July 30, 2009
Posts: 7215
Location: Honolulu,Hawaii and France
|
|
| Back to top |
|
|
do.dah
Samba Member
Joined: August 27, 2015
Posts: 804
Location: Washington
|
| Posted: Sat Mar 16, 2024 7:32 am Post subject: Re: Cluster 14 pin connector terminal source |
|
|
| I think DanHoug has the info that was recently mentioned in another thread... |
|
| Back to top |
|
|
Finagon
Samba Member
Joined: May 14, 2007
Posts: 55
Location: Portland, OR
|
| Posted: Sun Mar 17, 2024 7:46 am Post subject: Re: Cluster 14 pin connector terminal source |
|
|

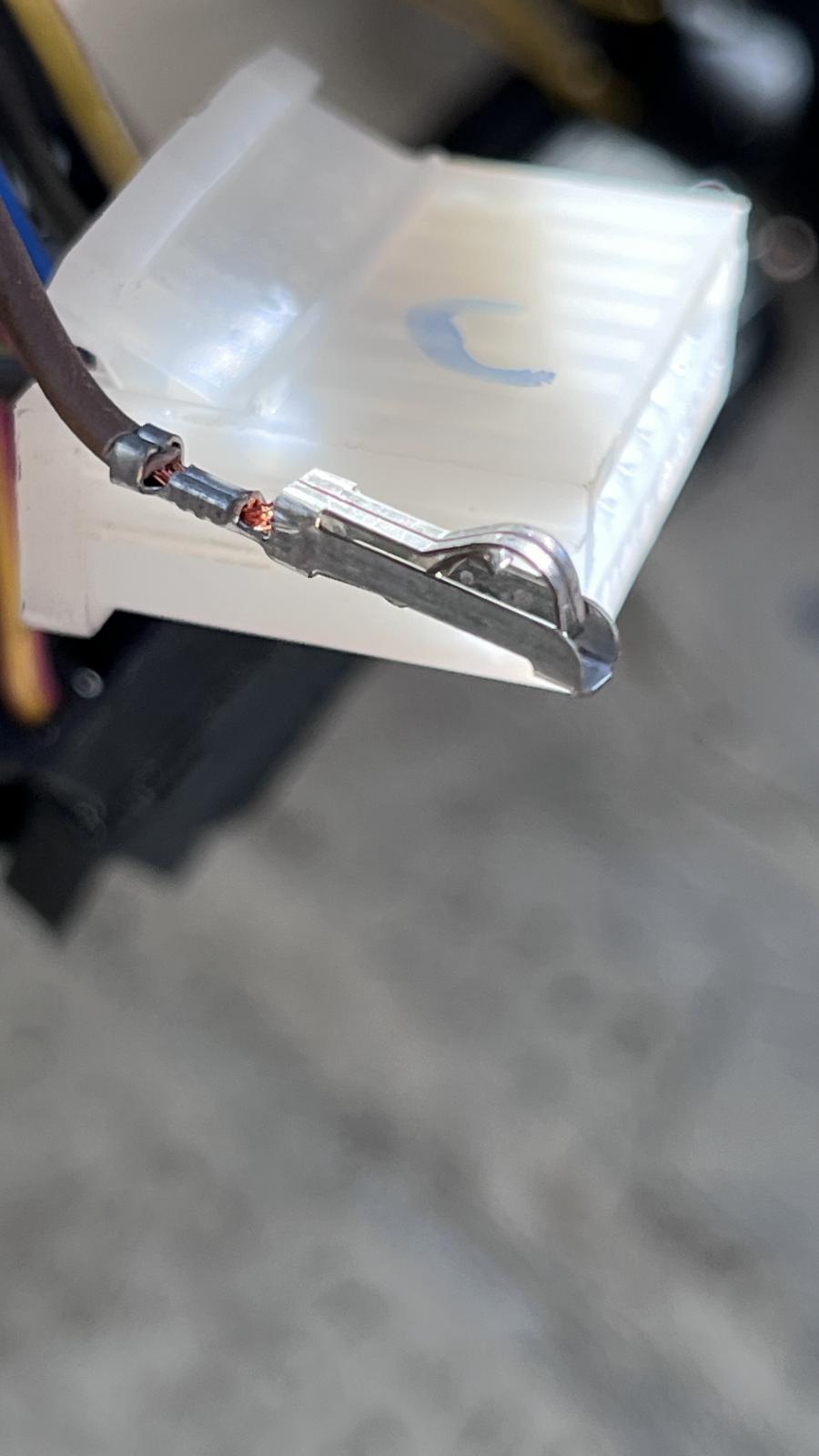

This is the terminal…
It’s approximately an inch / 25mm from end to end.
_________________
85 tintop. FAS 2.0 Gen V install in process....overthinking it as usual. |
|
| Back to top |
|
|
Geato
Samba Member
Joined: June 11, 2021
Posts: 97
Location: Vancouver Island
|
| Posted: Sun Mar 17, 2024 10:12 am Post subject: Re: Cluster 14 pin connector terminal source |
|
|
| If you google N0171914 you will get a lot of European hits that appear to have stock |
|
| Back to top |
|
|
Finagon
Samba Member
Joined: May 14, 2007
Posts: 55
Location: Portland, OR
|
| Posted: Mon Mar 18, 2024 7:02 pm Post subject: Re: Cluster 14 pin connector terminal source |
|
|
| Geato wrote: |
| If you google N0171914 you will get a lot of European hits that appear to have stock |
Thanks so much for that part #!
_________________
85 tintop. FAS 2.0 Gen V install in process....overthinking it as usual. |
|
| Back to top |
|
|
coastdog
Samba Member
Joined: September 24, 2012
Posts: 93
|
|
| Back to top |
|
|
panzer
Samba Member
Joined: November 12, 2008
Posts: 48
Location: San Antonio, TX.
|
| Posted: Tue Mar 19, 2024 9:00 am Post subject: Re: Cluster 14 pin connector terminal source |
|
|
These were on BMW E30 models back in the day
part # 61 13 1 355 488 |
|
