 Posted: Sat Jun 29, 2024 9:15 am Post subject: Defogger Indicator Light Terminal K |
 |
|
Where does Terminal K on the defogger indicator light get wired to?
Terminal 15: positive feed to Fuse 10
Terminal 31: Ground

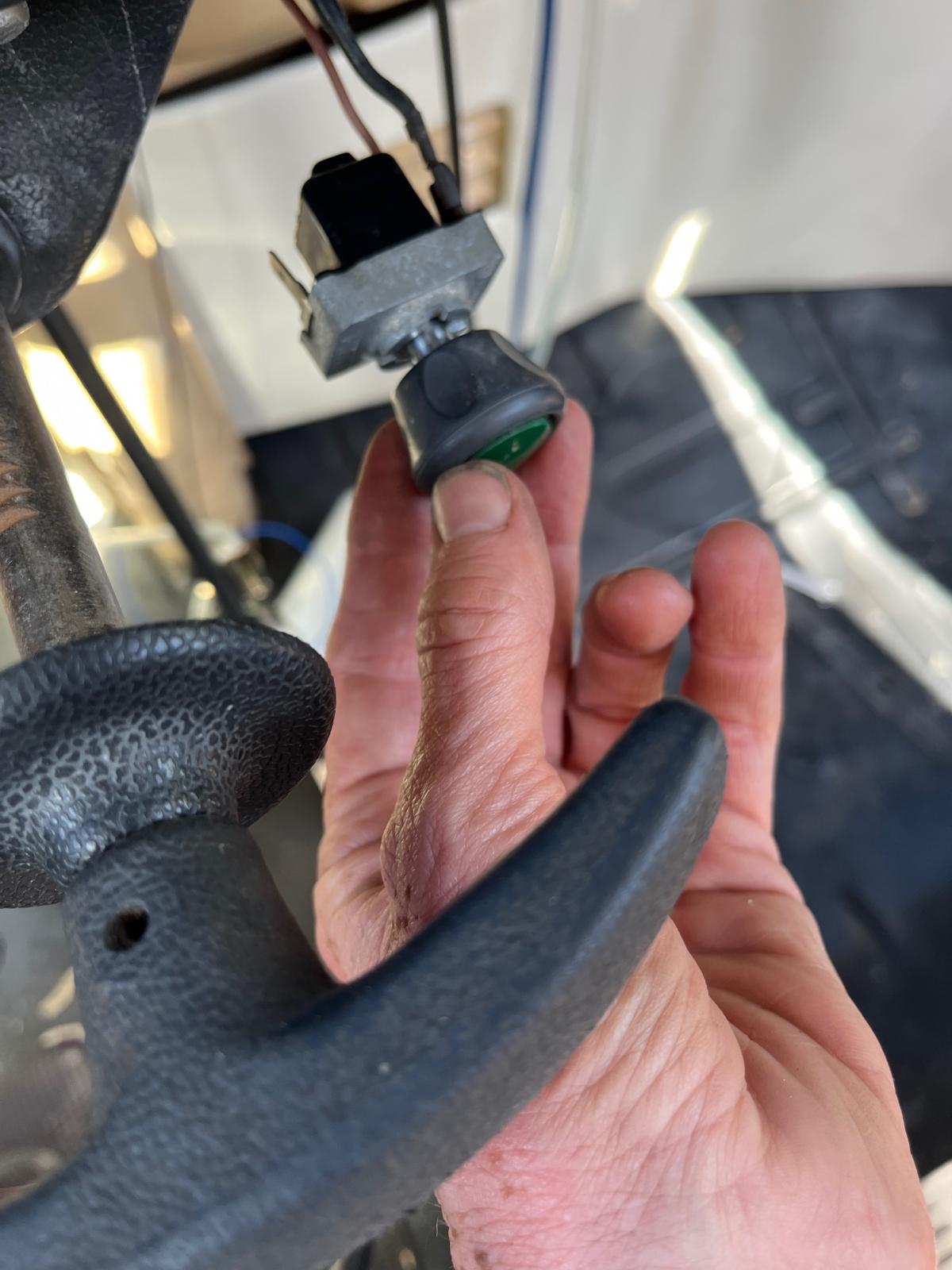

Terminal K: ? (please see picture)
_________________
1979 VW Transporter (Type 2) |
|
| Back to top |
|
 |
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 53172
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Sat Jun 29, 2024 9:53 am Post subject: Re: Defogger Indicator Light Terminal K |
|
|
| trivezzo wrote: |
| Where does Terminal K on the defogger indicator light get wired to? |
The single black wire hanging out of the base of the RH windshield pillar.
