| Author |
Message |
EverettB
Administrator
Joined: April 11, 2000
Posts: 71471
Location: Phoenix 602
|
|
| Back to top |
|
 |
///Mink
Samba Member
Joined: May 03, 2000
Posts: 5051
Location: Fair Oaks, CA
|
 Posted: Mon Sep 26, 2005 9:29 am Post subject: |
 |
|
| Gag. Why do people do crap like that??? Good luck, I'm sure you'll be able to find one easily enough. |
|
| Back to top |
|
|
TeamSpatula
Samba In The Rain
Joined: February 03, 2004
Posts: 5221
Location: WNC
|
| Posted: Mon Sep 26, 2005 12:58 pm Post subject: |
|
|
Might as well go ahead and make it a walkthrough...that doesn't hurt anything right? Then you can add those Camaro seats...
_________________
<---Air Cooled Search & Rescue Team - STICKERS & T-shirts for sale!
1981 Diesel Rabbit
I NEED A CAMPER!!!! (1971 is ideal but will consider other years)
http://www.TeamSpatula.com |
|
| Back to top |
|
|
Clara
Samba Member
Joined: June 14, 2003
Posts: 12595
|
| Posted: Mon Sep 26, 2005 5:35 pm Post subject: |
|
|
On 30 July, 1962, at VIN 971 550
The spare wheel recess was deepened
The driver's seat became split 1/3 2/3
The front and rear wheel arches were changed.
_________________
The Obsolete Air-Cooled Documentation Project http://oacdp.org/ |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71471
Location: Phoenix 602
|
|
| Back to top |
|
|
splitpile
Samba's Worst Speller
Joined: May 03, 2000
Posts: 5927
Location: back to living where hell meets the suface
|
| Posted: Mon Sep 26, 2005 9:32 pm Post subject: |
|
|
| EverettB wrote: |
Yes, it's 1963-up as several people emailed. (basically '63 model year)
I have corrected my ad.
Thank you to everyone for the responses so far.
I would be interested to know if it changed again at a later date. |
EB, why don't you stop by here on your way to or from vegas, I have about every year bus (non walkthrough) from 59 to 67, you're more then welcome to take pics and you can even cut out the spare tire well you need if I have one out of one of my parts busesor I allready might have a couple bulkheads cut. Have sawzall and plasma cutter.
_________________
Stocking distributor of "The Funky Green Panels"
www.BUSTORATION.com metal and more for your bus
"no more hacking my sig line" |
|
| Back to top |
|
|
Kommercial
Samba Moderator
Joined: December 28, 2000
Posts: 1174
Location: San Tan Valley, Arizona
|
| Posted: Tue Sep 27, 2005 5:19 am Post subject: |
|
|
Hey Everett
I believe jul62 and later non panel is all the same AFAIK. Has anyone ever mapped out how many full bulkheads there are?
I know of at least 8 different full bulkheads (not counting barndoor).
2 of each type, panel and non-panel
late 50s to Oct 60
rising sun, bench seat, no tire bracket.
http://www.thesamba.com/vw/forum/album_page.php?pic_id=212702
Oct 60 to Jan 62
rising sun, 3 position bench, no tire bracket
Jan 62 -June 62
rising sun, 3 position bench, with tire bracket
June 62-up to 67.
Full sun, split bench, w/tire holder bracket, Deeper recess
http://www.thesamba.com/vw/forum/album_page.php?pic_id=5073
Am I missing any?
I just happen to have a grey back/pearl white front bulkhead, I don't remember if it's panel or non panel, I'll look. Mmmm nothin like repairing og buses with og paint parts. |
|
| Back to top |
|
|
derv
Samba Member
Joined: October 12, 2005
Posts: 2601
Location: Oak Park (Chicago), IL
|
| Posted: Tue Nov 01, 2005 8:56 am Post subject: |
|
|
Pertaining to the bulkhead discussion, I have a '67 OG paint nice Kombi non-walk thru. It looks as if the PO was trying to 'tow' something behind the bus by opening the rear hatch and running a rope or chain thru the cabin and hooked it up to the bulkhead - and let er rip.
The result is a nice 6-8" bend in the whole bulkhead from the center toward the rear of the bus. The seats still line up ok, but it is the first thing you notice when looking at the bus.
Is this something I should worry about repairing? Perhaps trying to 'bend' the whole bulkhead back into shape the other direction? Or just not worth the hassle?
This is a very nice bus and am not certain major surgery like replacing with a doner would be a good idea.
Thoughts? |
|
| Back to top |
|
|
von_hansel
Samba Member
Joined: June 12, 2006
Posts: 805
Location: Inland Empire
|
| Posted: Mon Dec 16, 2024 4:20 pm Post subject: Re: Spare tire well question |
|
|

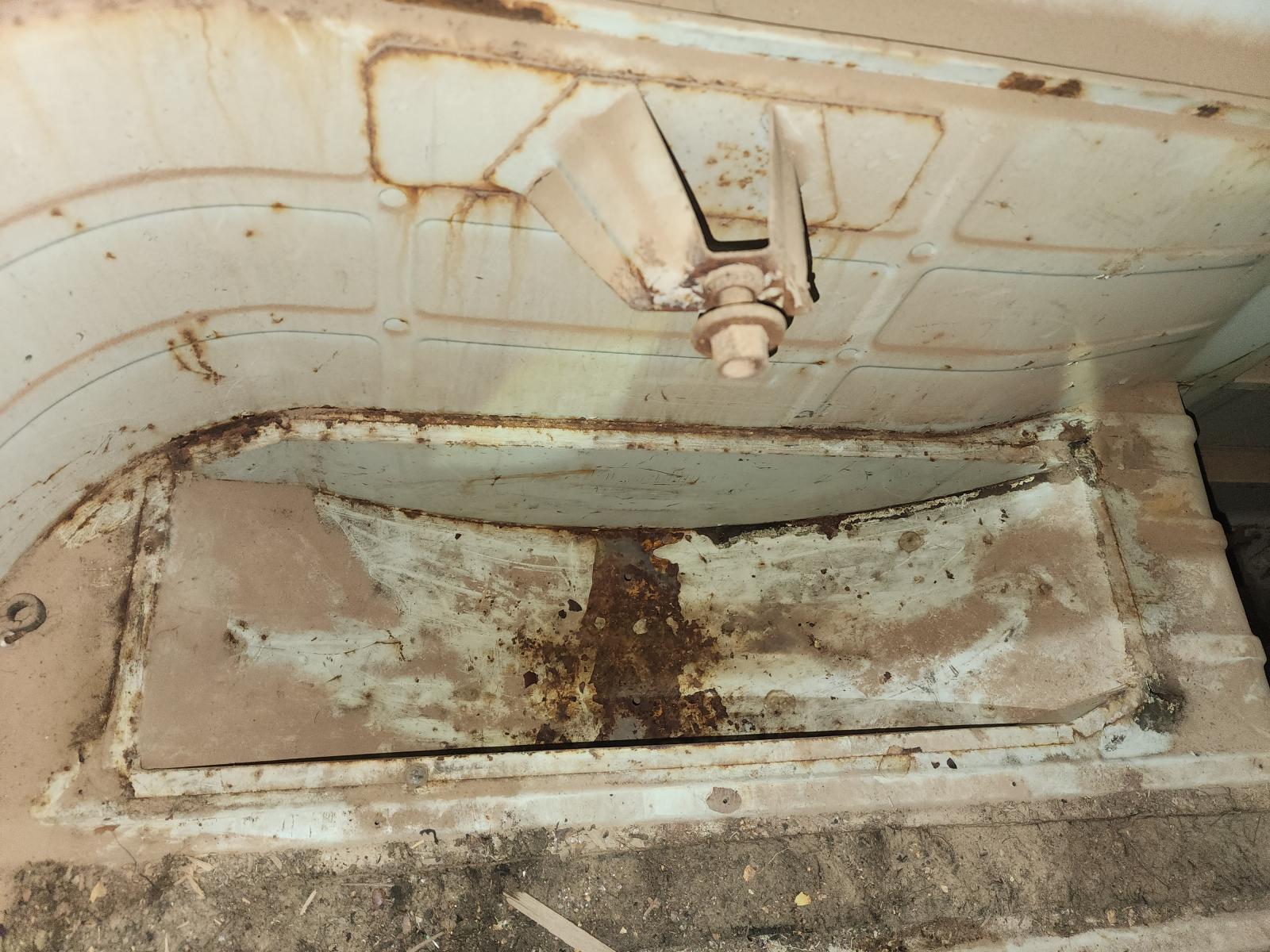

Old thread but I couldn't find the info anywhere..... Does anyone know when the spare tire well on a walk through bus went from one drain hole to two?
April '61 with one drain hole
Late '63 with the bumps with two drain holes
Can someone with a '62 walk through post a pic of their spare tire well and provide the build month?
_________________
| Mugatu wrote: |
| von_hansel is still so hot right now |
|
|
| Back to top |
|
|
Kommercial
Samba Moderator
Joined: December 28, 2000
Posts: 1174
Location: San Tan Valley, Arizona
|
| Posted: Mon Dec 16, 2024 8:34 pm Post subject: Re: Spare tire well question |
|
|
My March 3rd 63. 2 drain holes, no side bumps.
|
|
| Back to top |
|
|
von_hansel
Samba Member
Joined: June 12, 2006
Posts: 805
Location: Inland Empire
|
| Posted: Thu Dec 19, 2024 1:12 pm Post subject: Re: Spare tire well question |
|
|
| Kommercial wrote: |
| My March 3rd 63. 2 drain holes, no side bumps. |
Thank you for the response Kommercial! This helps us narrow it down.
Can someone with a 1962 Walk-Through bus please let us know if your bus's spare tire well has one drain hole or two drain holes?
Thanks
_________________
| Mugatu wrote: |
| von_hansel is still so hot right now |
|
|
| Back to top |
|
|
Kommercial
Samba Moderator
Joined: December 28, 2000
Posts: 1174
Location: San Tan Valley, Arizona
|
| Posted: Sun Dec 22, 2024 2:43 pm Post subject: Re: Spare tire well question (Bulkhead) |
|
|

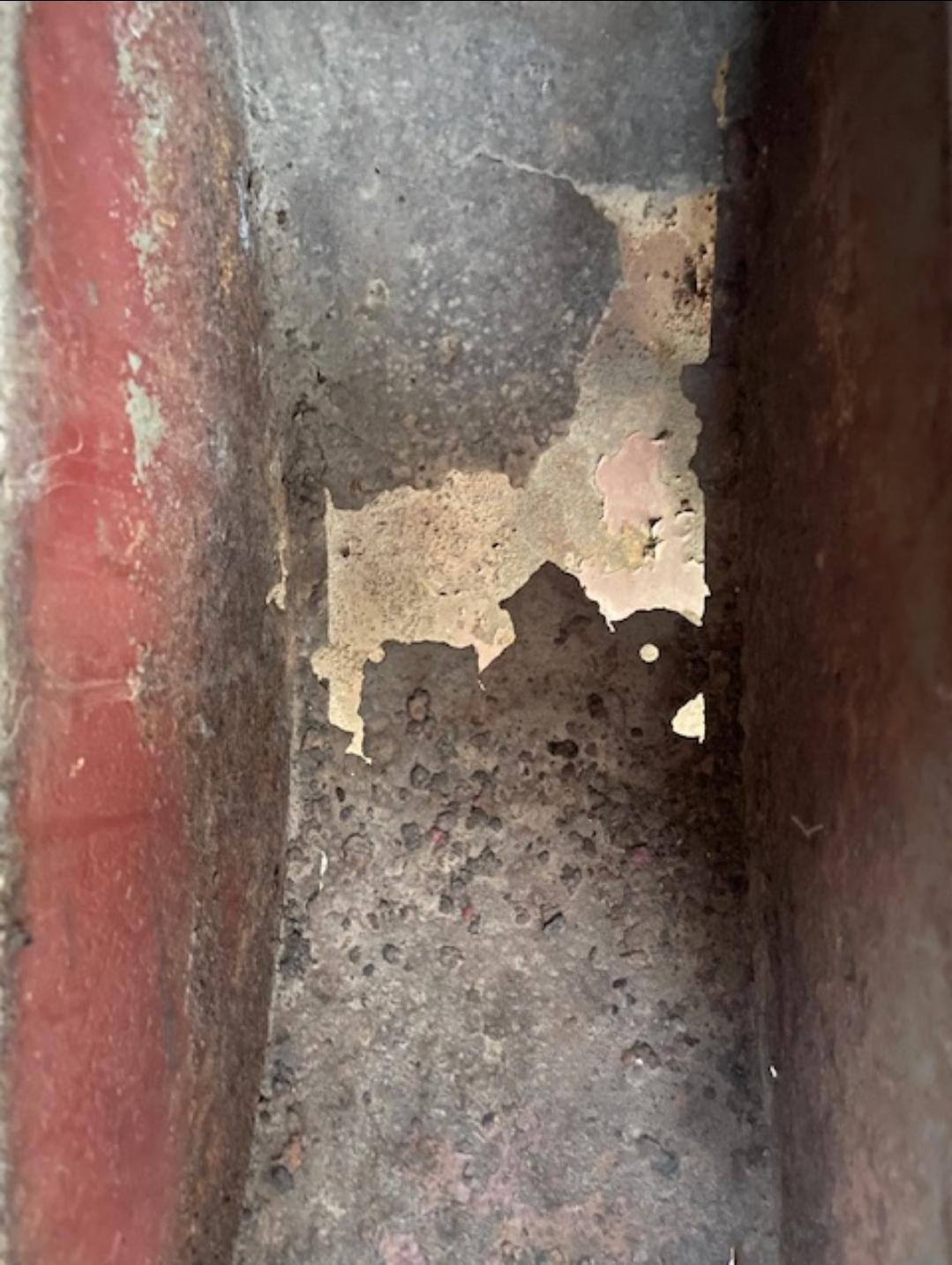

June62- 2 drain holes. (And factory pad?)
January, 30th, 62- 2 drain holes, if the judges will accept the half arc hole before it is lost to time.
Seems like it's pushing it into the 61 year change... |
|
| Back to top |
|
|
von_hansel
Samba Member
Joined: June 12, 2006
Posts: 805
Location: Inland Empire
|
| Posted: Sun Dec 22, 2024 4:14 pm Post subject: Re: Spare tire well question (Bulkhead) |
|
|
Thank you so much Kommercial! With your information, we have now narrowed it down between April '61- January '62
Lind: Can you let us know how many drain holes your mouse grey flipseat has in the spare tire well?
_________________
| Mugatu wrote: |
| von_hansel is still so hot right now |
|
|
| Back to top |
|
|
Lind
Samba Member
Joined: November 06, 2000
Posts: 10205
Location: idaho
|
| Posted: Mon Dec 23, 2024 5:00 pm Post subject: Re: Spare tire well question (Bulkhead) |
|
|
| von_hansel wrote: |
Thank you so much Kommercial! With your information, we have now narrowed it down between April '61- January '62
Lind: Can you let us know how many drain holes your mouse grey flipseat has in the spare tire well? |
June 22 1961 one drain hole
now between June 1961 and Jan 1962.
_________________
.
Wanted:
Idaho VW license plate frames or other dealership items.
VWoA literature and early dealership or distributor literature/pictures/information
. |
|
| Back to top |
|
|
von_hansel
Samba Member
Joined: June 12, 2006
Posts: 805
Location: Inland Empire
|
| Posted: Thu Dec 26, 2024 3:09 pm Post subject: Re: Spare tire well question (Bulkhead) |
|
|
| Lind wrote: |
June 22 1961 one drain hole
now between June 1961 and Jan 1962. |
Thank you Lind. We are getting closer to narrowing this down.
If you have a '62 walk thru built between July 1961 and December 1961, can you let us know how many drain holes you have in your spare tire well?
_________________
| Mugatu wrote: |
| von_hansel is still so hot right now |
|
|
| Back to top |
|
|
campingbox
Samba Member
Joined: November 14, 2000
Posts: 10248
Location: Petaluma, CA
|
| Posted: Fri Dec 27, 2024 7:34 am Post subject: Re: Spare tire well question (Bulkhead) |
|
|
| von_hansel wrote: |
| Lind wrote: |
June 22 1961 one drain hole
now between June 1961 and Jan 1962. |
Thank you Lind. We are getting closer to narrowing this down.
If you have a '62 walk thru built between July 1961 and December 1961, can you let us know how many drain holes you have in your spare tire well? |
Have you been looking at flipseats westies too? |
|
| Back to top |
|
|
von_hansel
Samba Member
Joined: June 12, 2006
Posts: 805
Location: Inland Empire
|
| Posted: Fri Dec 27, 2024 8:13 am Post subject: Re: Spare tire well question (Bulkhead) |
|
|
| campingbox wrote: |
| von_hansel wrote: |
| Lind wrote: |
June 22 1961 one drain hole
now between June 1961 and Jan 1962. |
Thank you Lind. We are getting closer to narrowing this down.
If you have a '62 walk thru built between July 1961 and December 1961, can you let us know how many drain holes you have in your spare tire well? |
Have you been looking at flipseats westies too? |
Hi Greg,
The April '61 pic posted above is Clara's flipseat and Lind's June '61 is a flipseat as well. My assumption is whether it is a flipseat, swivel seat, or walk through, it would have the same number of drain holes depending on the year, which is either one or two.
For the record, I have not looked at a '58 walk through to confirm if it has a drain hole.
_________________
| Mugatu wrote: |
| von_hansel is still so hot right now |
|
|
| Back to top |
|
|
Lind
Samba Member
Joined: November 06, 2000
Posts: 10205
Location: idaho
|
| Posted: Fri Dec 27, 2024 12:20 pm Post subject: Re: Spare tire well question (Bulkhead) |
|
|
| von_hansel wrote: |
| campingbox wrote: |
| von_hansel wrote: |
| Lind wrote: |
June 22 1961 one drain hole
now between June 1961 and Jan 1962. |
Thank you Lind. We are getting closer to narrowing this down.
If you have a '62 walk thru built between July 1961 and December 1961, can you let us know how many drain holes you have in your spare tire well? |
Have you been looking at flipseats westies too? |
Hi Greg,
The April '61 pic posted above is Clara's flipseat and Lind's June '61 is a flipseat as well. My assumption is whether it is a flipseat, swivel seat, or walk through, it would have the same number of drain holes depending on the year, which is either one or two.
For the record, I have not looked at a '58 walk through to confirm if it has a drain hole. |
my april '58 walkthrough has two smaller holes spaced further apart than the later holes.
Also, I would speculate that the first use of these holes was to drain primer out of the spare tire well after they dunked the body in a vat of primer.
_________________
.
Wanted:
Idaho VW license plate frames or other dealership items.
VWoA literature and early dealership or distributor literature/pictures/information
. |
|
| Back to top |
|
|
|
