| Author |
Message |
Brendos74panelvan
Samba Member
Joined: May 21, 2022
Posts: 2
Location: Sydney Australia
|
 Posted: Sat May 21, 2022 2:42 am Post subject: Engine ID please |
 |
|
I thought there was a complete vw list here somewhere but couldn’t find it
It looks like a 1600 upright but not sure?
|
|
| Back to top |
|
 |
creative native
Samba Member
Joined: October 20, 2007
Posts: 1229
Location: WNC
|
| Posted: Sat May 21, 2022 6:50 am Post subject: Re: Engine ID please |
|
|
It is possibly a Volkswagen replacement engine. https://www.aircooled.net/vw-engine-codes/
_________________
"The holy land is everywhere." ~ Black Elk
1979 Westfalia P27, California FI emissions spec. 100% VW fleet: '79 Westfalia, 2019 VW Atlas SEL Premium (Terra Brown/Shetland Beige), 2005 Passat GLX.
Last edited by creative native on Sat May 21, 2022 11:54 am; edited 1 time in total |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 52708
Location: Surrey B.C. Canada, but thinking of Ukraine
|
|
| Back to top |
|
|
SGKent
Samba Member
Joined: October 30, 2007
Posts: 42375
Location: at the beach
|
| Posted: Sat May 21, 2022 10:34 am Post subject: Re: Engine ID please |
|
|

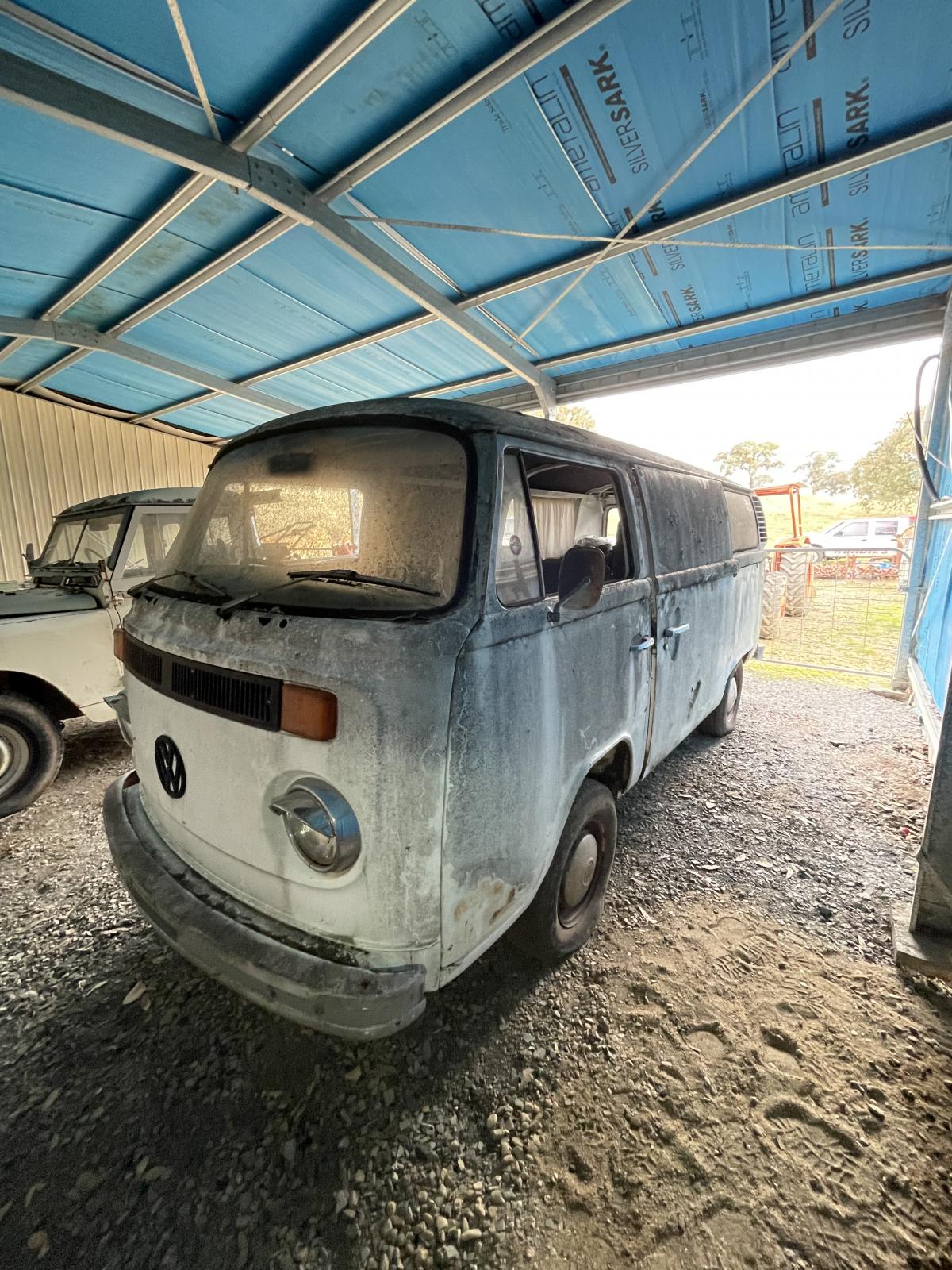

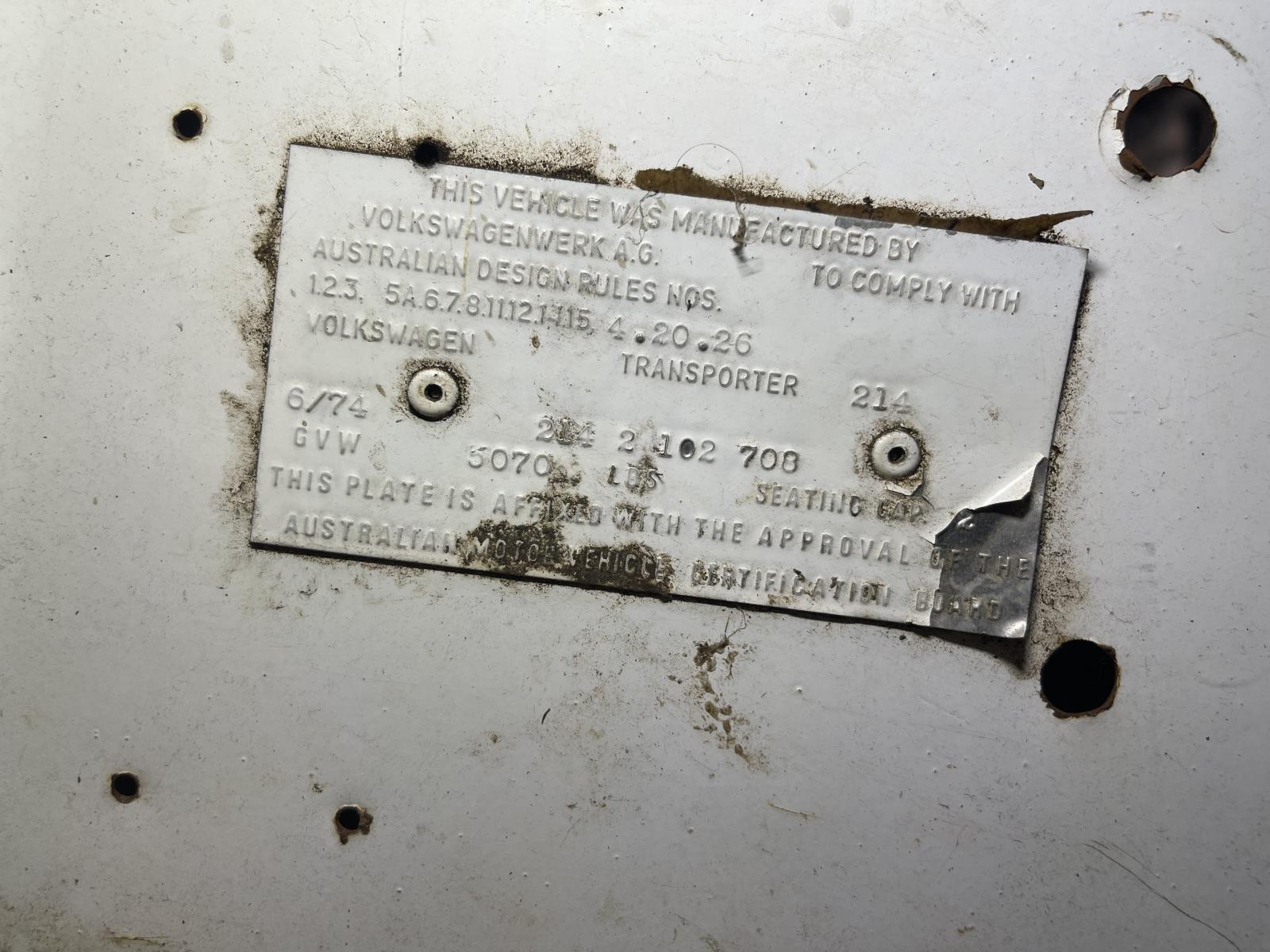

Bus was made in 6/74 for the Australian market. From the list Mark linked, the AS code is 1974. Looks like it was an upright 1600 engine. If you want to know if it is the original engine, search birth certificate. You can pay to have the serial number researched, along with the engine number, and they will give you info on the bus and confirm if that is the original engine number. They will not give you the original engine number, just a yes that is it or no it is not.
_________________
"Most people don't know what they're doing, and a lot of them are really good at it." - George Carlin |
|
| Back to top |
|
|
Brendos74panelvan
Samba Member
Joined: May 21, 2022
Posts: 2
Location: Sydney Australia
|
| Posted: Sat May 21, 2022 2:36 pm Post subject: Re: Engine ID please |
|
|
Thanks all!
That would be amazing if it is matching and there’s a good chance it should be!
Fingers crossed,
Would be the first time in all the 10 plus Vw’s I’ve owned. |
|
| Back to top |
|
|
RIX70Bay
Samba Member
Joined: June 14, 2017
Posts: 47
Location: moved to Iowa
|
| Posted: Sun Jun 15, 2025 10:39 am Post subject: Re: Engine ID please |
|
|
I am reviving this older thread because have somewhat the same question.
I searched the response from Busdaddy in the archives and not sure how i'm reading it.
My engine s/n is: B5077047. My bus is a 6/70 manufacture date.
My understanding is by reading the list, it is show a 8/1/68 5050174 to 12/1/68 5079928. Am I reading this correctly?
Also, if the engine was manufactured at that time, it is probably not original ,right
Thanks
_________________
Rick
1970 7 Passenger Bus (Rose)
1968 Square back (Baby Huey)
1970 Standard Bug
1951 Crosley Super
1968 Camaro (Gifted to my son) |
|
| Back to top |
|
|
molenari
Samba Member
Joined: March 28, 2004
Posts: 127
Location: Groningen, The Netherlands
|
| Posted: Sun Jun 15, 2025 1:23 pm Post subject: Re: Engine ID please |
|
|
| RIX70Bay wrote: |
My engine s/n is: B5077047. My bus is a 6/70 manufacture date.
My understanding is by reading the list, it is show a 8/1/68 5050174 to 12/1/68 5079928. Am I reading this correctly?
Also, if the engine was manufactured at that time, it is probably not original ,right |
You mention the manufacture date of your bus. Only on buses produced for the USA and Canada the manufacture date is mentioned on the vehicle itself: on the vehicle safety certificate sticker in the door jam on the drivers side. So I presume your bus has US or Canadian specifications.
This means it came with M157: Exhaust emission control system.
1970-buses for the USA and Canada have a 1600cc single port engine. If such an engines was made with M157 then the engine codes starts with "B5" for the 1968, 1969 and 1970 model years.
You are right that engine code B5 077 047 appears to be from december 1968. So the engine type (1600cc single port engine with M157) is original for your bus, but the number shows this one is from an earlier date.
My guess is that the original enginenr for your bus is around B5 200 000.
_________________
currently starring in my fleet:
'68 panelvan, '70 kombi, '71 panelvan, '76 crew cab (German army), '77 panelvan, '78 kombi, '78 microbus (Champagne Edition II), '78 highroof panelvan (German mail, parting out), '79 panelvan automatic, '79 panelvan (armoured money transporter), '68 Karmann Ghia type 34. |
|
| Back to top |
|
|
RIX70Bay
Samba Member
Joined: June 14, 2017
Posts: 47
Location: moved to Iowa
|
| Posted: Mon Jun 16, 2025 10:04 am Post subject: Re: Engine ID please |
|
|
Thanks, I didn’t think my engine was original. The engine I have is a duel port. I was just wondering what I had and when it was built
_________________
Rick
1970 7 Passenger Bus (Rose)
1968 Square back (Baby Huey)
1970 Standard Bug
1951 Crosley Super
1968 Camaro (Gifted to my son) |
|
| Back to top |
|
|
SGKent
Samba Member
Joined: October 30, 2007
Posts: 42375
Location: at the beach
|
| Posted: Mon Jun 16, 2025 12:11 pm Post subject: Re: Engine ID please |
|
|
| RIX70Bay wrote: |
| Thanks, I didn’t think my engine was original. The engine I have is a duel port. I was just wondering what I had and when it was built |
no way of knowing unless you ask the guy who put it together with a mix of parts. The case number is a single port and not a dual port.
_________________
"Most people don't know what they're doing, and a lot of them are really good at it." - George Carlin |
|
| Back to top |
|
|
|
