Rebuilding buggy front end and saw this

[Bikerndiver]

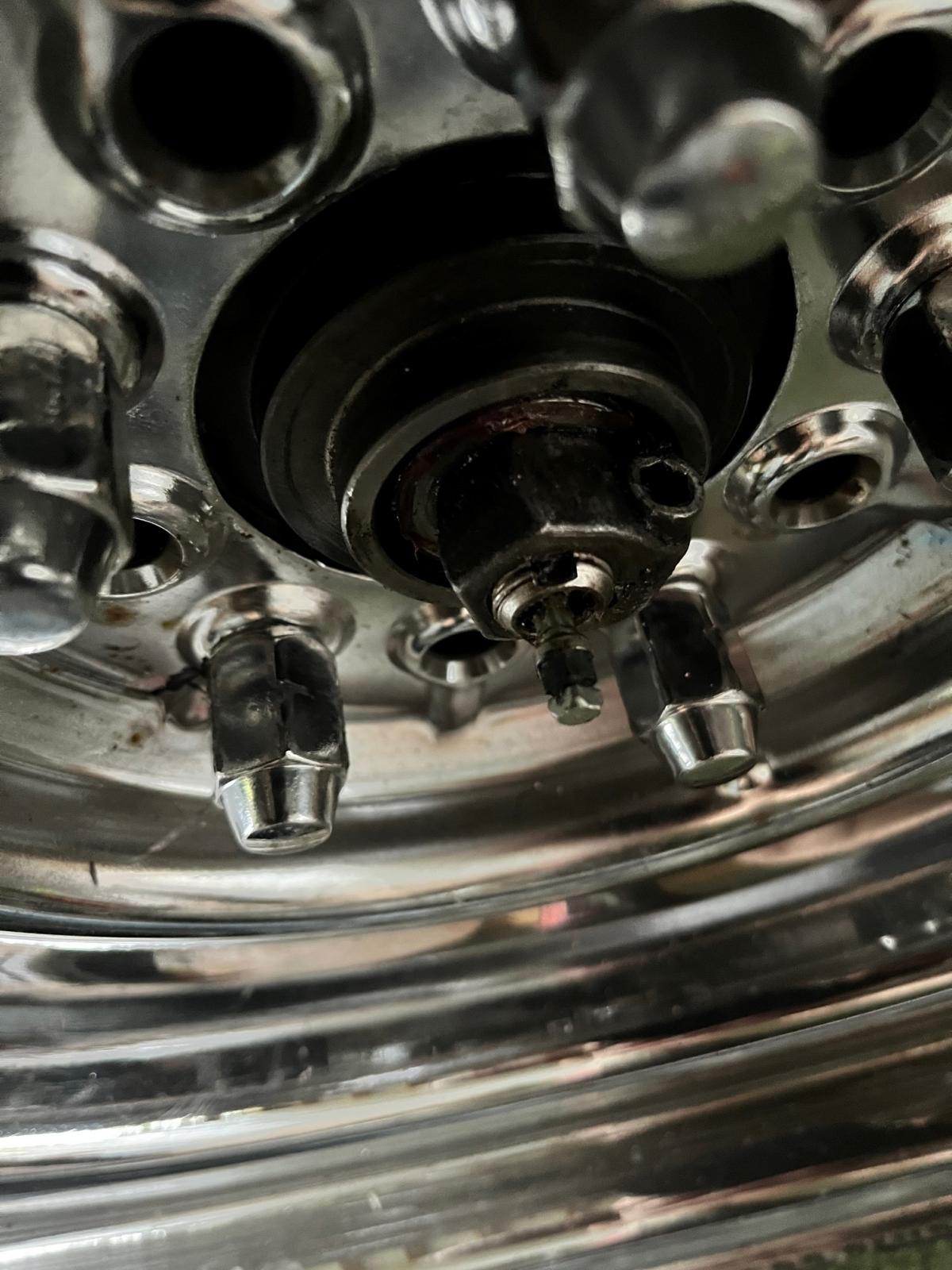

Took hubcap off drivers side front wheel and saw the bearing cap with the speedo hole in it.
Protruding from it was the end of the speedo cable. But, there did not seem to be anything holding the cable from coming out further into the cap or pulling back behind the disk brakes. Is there supposed to be some type of clamp to hold the speedo cable in the correct position? If so, where do I find this clamp and what is it called?

_________________
1966 Manx clone (possibly a Joe Poty Enterprises) named SANDY. '70 to '73 1300 cc w/1600 DP heads, twin carbs and headers

[Letterman7]

Just a C-clip over the end of the cable, the slot right at the "square" at the end.

[NJ John]

The cable tends to stay in place without the C-clip. But, I would get one on there for good measure.
_________________
1973 standard, yellow, lowered, 3” narrowed front, 1600 blo-thru turbo w/single dell 15.4@86, so far
11.41 et buggy. Long gone
Let’s go O’s! Let’s go O’s!
https://www.youtube.com/@AirSpooledGarage

[EverettB]

Yes, from the Gallery (not the best pic):

For reference, I believe it's a 4mm E-clip, not a "C" clip.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!

[Dale M.]

Over the years I remember seeing one with a cotter pin through end to keep cable in cap...
_________________
“Fear The Government That Wants To Take Your Guns"
"Kellison Sand Piper Roadster" For Street & Show.
"Joe Pody Sandrover" Buggy with 2180 for Autocross (Sold)
============================================================
All suggestions and advice are purely my own opinion. You are free to ignore them if you wish ...

[Bikerndiver]

OK, thanks!
I'm ordering a clip now from Jbugs now.
_________________
1966 Manx clone (possibly a Joe Poty Enterprises) named SANDY. '70 to '73 1300 cc w/1600 DP heads, twin carbs and headers

[Dangib]

On my buggy I had an issue with the sheath or the outside pulling out of the spindle so i drilled and tapped a little set screw to hold it snug worked great

[Dale M.]

[Bikerndiver]

Well, I had to order the rest of the front end parts I needed anyway, so I just added a couple of those in.
By the end of next week, I'll have completely replaced every part in the front end from side to side!

That should last a long, long time!
