 Posted: Mon May 26, 2025 8:16 am Post subject: Shifter Problem and Question |
 |
|
Hey Guys:

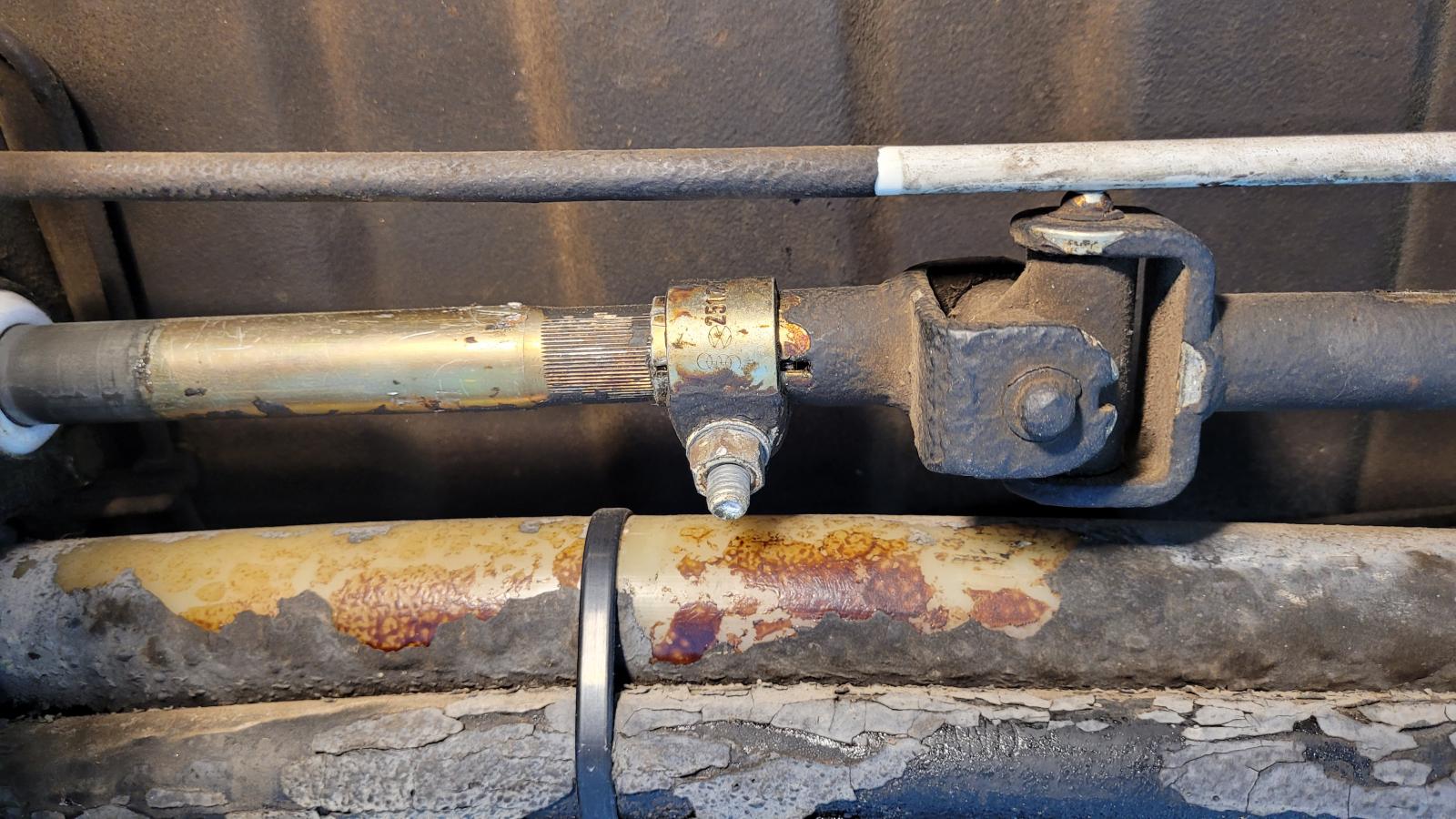

I'm a split bus guy lost in a Vanagon right now. It's an '85 and the current problem (of several) is the shifter- getting into first gear requires pushing slightly into the reverse gate lockout. I'm thinking the shift rod needs to be moved over one spline in the photo below. Supposedly someone else was messing with the shifter lately and may have caused this.
Is this spline non-indexed? Can I slide these apart, turn the rod one spline, and reinstall it?
Thanks!
_________________
'66 Deluxe Bus
'65 Standard Bus
Build threads:
'66- http://www.leakoil.net/forum/viewtopic.php?f=23&t=2888&sid=54d8dedfb3822f99c7f2ea430cb4e856
'65- http://leakoil.net/forum/viewtopic.php?f=23&t=4263 |
|
| Back to top |
|
 |
Franklinstower
Samba Member
Joined: September 21, 2006
Posts: 1994
Location: PNW
|
| Posted: Mon May 26, 2025 8:35 am Post subject: Re: Shifter Problem and Question |
|
|
Yes, you can index it over. But I would follow the Bentley for shifter adjustment procedures.
In the box up front, do you still have the plastic ears on the guides?
To me, it looks like the shift rod should be further into the splines, like something else is not aligned correctly.
_________________
'89 Westy - EJ25/22 Frank 4.44 5mt
'75 Miami Blue Sunroof FI Standard Bug
YITB |
|
| Back to top |
|
|
Christopher Schimke
Samba Member
Joined: August 03, 2005
Posts: 5528
Location: PNW
|
| Posted: Mon May 26, 2025 8:42 am Post subject: Re: Shifter Problem and Question |
|
|
Those are just knurls, not splines. The female portion of that joint is smooth. The knurling is simply to add grip to the joint so it doesn't slip.
_________________
"Sometimes you have to build a box to think outside of." - Bruce (not Springsteen)
*Custom wheel hardware for Audi/VW, Porsche and Mercedes wheels - Urethane Suspension Bushings*
T3Technique.com or contact me at [email protected] |
|
| Back to top |
|
|
fxr
Samba Member
Joined: December 07, 2014
Posts: 2649
Location: Bay area CA
|
| Posted: Mon May 26, 2025 9:18 am Post subject: Re: Shifter Problem and Question |
|
|
The front-to back distance looks fine, and someone has recently installed a new bushing - so it may well be that some adjustment is needed. Just loosen the clamp, and using vise-grips turn the two parts of the shifter rod relative to each other.
_________________
Jim Crowther
1984 1.9l EJ22 Westy Wolfsburg Edition
Vespa GTS 300 |
|
