| Author |
Message |
mynameismud
Samba Member
Joined: October 23, 2002
Posts: 5937
Location: Middle of a corn field
|
 Posted: Mon Sep 18, 2006 8:23 am Post subject: Cargo Door Check Strap Screws |
 |
|
Who sells them? or better yet- who has them in stock? WBW never has them in stock and I only need 2..
_________________
Even YOU can prevent FIRES!
Click to view image |
|
| Back to top |
|
 |
BUCIOBATISTI
Samba Member
Joined: April 17, 2002
Posts: 6969
Location: San Diego, California, USA
|
| Posted: Mon Sep 18, 2006 12:21 pm Post subject: Re: Cargo Door Check Strap Screws |
|
|
| mynameismud wrote: |
| Who sells them? or better yet- who has them in stock? WBW never has them in stock and I only need 2.. |
Paul- Your best bet is finding originals. I have never seen any "suppliers" that have the proper screws. They might work but the heads are different and I believe a friend got some from WW and the threads were a different size as well from what I recall.
_________________
Please check us out on Instagram at @holygrailgarage
That's the best place to see the latest things we are up to as well as catch an occasional sneak peek of our latest car and parts listings! |
|
| Back to top |
|
|
mynameismud
Samba Member
Joined: October 23, 2002
Posts: 5937
Location: Middle of a corn field
|
| Posted: Mon Sep 18, 2006 12:27 pm Post subject: |
|
|
hmmmm- great-
anyone have any early ones?
_________________
Even YOU can prevent FIRES!
Click to view image |
|
| Back to top |
|
|
Scotts 63 23
Samba Member
Joined: March 09, 2002
Posts: 1280
Location: Somewhere in my mind... The Real er Laguna Beach :)
|
| Posted: Tue Sep 19, 2006 4:14 pm Post subject: |
|
|

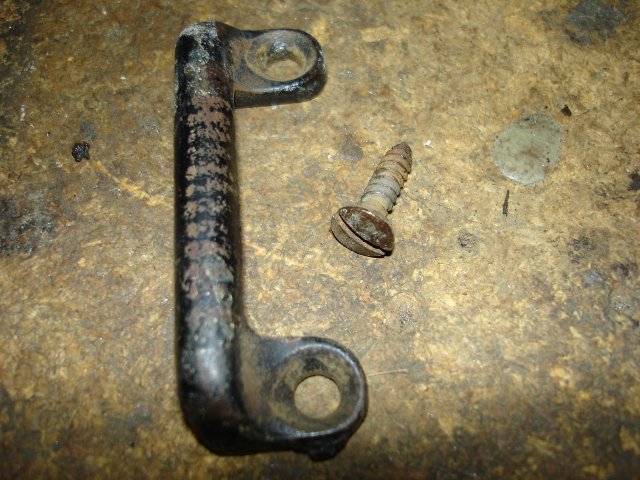

This photo was posted by Everett. It's original stuff. I used his info to get my strap screws bact to 'correct'...
_________________
'63 23 Daily Driver
www.scottmooreart.com |
|
| Back to top |
|
|
mynameismud
Samba Member
Joined: October 23, 2002
Posts: 5937
Location: Middle of a corn field
|
| Posted: Tue Sep 19, 2006 4:21 pm Post subject: |
|
|
dave m- has a pair for me..
_________________
Even YOU can prevent FIRES!
Click to view image |
|
| Back to top |
|
|
hazetguy
Samba Member
Joined: April 06, 2001
Posts: 10801
Location: the past
|
| Posted: Tue Sep 19, 2006 4:30 pm Post subject: |
|
|
| Scott's '63 23 wrote: |
This photo was posted by Everett. It's original stuff. I used his info to get my strap screws bact to 'correct'...
|
scott, that pic is of the later style screw. the early busses use dome topped, philips headed, machine screws, not self tapping ones like in that pic.
Last edited by hazetguy on Tue Sep 19, 2006 4:45 pm; edited 1 time in total |
|
| Back to top |
|
|
DaveM
Mad Samba Scientist
Joined: June 11, 2002
Posts: 3010
Location: Dry side of Oregon
|
| Posted: Tue Sep 19, 2006 4:33 pm Post subject: |
|
|
I agree with hazetguy's comment on the use of machine screws... which is what my 59 double cab uses, and which is what I pulled for Paul, however, all the screws I have that match the thread and length are phillips head, not slotted.
_________________
Sounding like a broken record as to why You should be measuring protein during harvest in order to better your agronomic practices. |
|
| Back to top |
|
|
mynameismud
Samba Member
Joined: October 23, 2002
Posts: 5937
Location: Middle of a corn field
|
| Posted: Tue Sep 19, 2006 4:41 pm Post subject: |
|
|
no biggie- i'll use those for the time being- i wont be picky
_________________
Even YOU can prevent FIRES!
Click to view image |
|
| Back to top |
|
|
Lind
Samba Member
Joined: November 06, 2000
Posts: 10226
Location: idaho
|
| Posted: Tue Sep 19, 2006 4:43 pm Post subject: |
|
|
| DaveM wrote: |
| I agree with hazetguy's comment on the use of machine screws... which is what my 59 double cab uses, and which is what I pulled for Paul, however, all the screws I have that match the thread and length are phillips head, not slotted. |
so are the ones that you have for paul slotted or phillips? I have some spare slotted ones if yours are phillips. they should be slotted for that application.
_________________
.
Wanted:
Idaho VW license plate frames or other dealership items.
VWoA literature and early dealership or distributor literature/pictures/information
. |
|
| Back to top |
|
|
DaveM
Mad Samba Scientist
Joined: June 11, 2002
Posts: 3010
Location: Dry side of Oregon
|
| Posted: Tue Sep 19, 2006 4:44 pm Post subject: |
|
|
I'm sending you the two phillips screws tomorrow... I'm poking Jon on the phillips vs slotted issue. My 59 had the phillips head screws.
Lind, you also say slotted.... hmmm.
I'll check the march 59 firebus and see what it has this evening.
_________________
Sounding like a broken record as to why You should be measuring protein during harvest in order to better your agronomic practices.
Last edited by DaveM on Tue Sep 19, 2006 4:46 pm; edited 2 times in total |
|
| Back to top |
|
|
hazetguy
Samba Member
Joined: April 06, 2001
Posts: 10801
Location: the past
|
| Posted: Tue Sep 19, 2006 4:44 pm Post subject: |
|
|
| well dave, you may be right on the slottted/phillips. i went to check on my 56's, and neither of them had brackets on the doors. so i checked my 59, and they are indeed a phillips. initial post edited. |
|
| Back to top |
|
|
splitpile
Samba's Worst Speller
Joined: May 03, 2000
Posts: 5928
Location: back to living where hell meets the suface
|
| Posted: Tue Sep 19, 2006 4:47 pm Post subject: |
|
|
| hazetguy wrote: |
| well dave, you may be right on the slottted/phillips. i went to check on my 56's, and neither of them had brackets on the doors. so i checked my 59, and they are indeed a phillips. initial post edited. |
My 60 23 has slotted
_________________
Stocking distributor of "The Funky Green Panels"
www.BUSTORATION.com metal and more for your bus
"no more hacking my sig line" |
|
| Back to top |
|
|
hazetguy
Samba Member
Joined: April 06, 2001
Posts: 10801
Location: the past
|
| Posted: Tue Sep 19, 2006 4:48 pm Post subject: |
|
|
| splitpile wrote: |
| My 60 23 has slotted |
but are they machine screws or self tapping screws? |
|
| Back to top |
|
|
Lind
Samba Member
Joined: November 06, 2000
Posts: 10226
Location: idaho
|
| Posted: Tue Sep 19, 2006 4:49 pm Post subject: |
|
|
they must have used both. I will have to check my hardware stash. I seem to only remember pulling slotted ones off of cars.
_________________
.
Wanted:
Idaho VW license plate frames or other dealership items.
VWoA literature and early dealership or distributor literature/pictures/information
. |
|
| Back to top |
|
|
DaveM
Mad Samba Scientist
Joined: June 11, 2002
Posts: 3010
Location: Dry side of Oregon
|
| Posted: Tue Sep 19, 2006 4:49 pm Post subject: |
|
|
the parts manual says 4.8 x 19mm self tapping, with no mention of a change. My 59 dc is definately a machine screw.
_________________
Sounding like a broken record as to why You should be measuring protein during harvest in order to better your agronomic practices. |
|
| Back to top |
|
|
mynameismud
Samba Member
Joined: October 23, 2002
Posts: 5937
Location: Middle of a corn field
|
| Posted: Tue Sep 19, 2006 4:52 pm Post subject: |
|
|

unfort. my '56 had no strap bracket screws at all..so i will trust everyone...
_________________
Even YOU can prevent FIRES!
Click to view image |
|
| Back to top |
|
|
Lind
Samba Member
Joined: November 06, 2000
Posts: 10226
Location: idaho
|
| Posted: Tue Sep 19, 2006 4:52 pm Post subject: |
|
|
| DaveM wrote: |
| the parts manual says 4.8 x 19mm self tapping, with no mention of a change. My 59 dc is definately a machine screw. |
is there a weldnut that it screws into on the door?
_________________
.
Wanted:
Idaho VW license plate frames or other dealership items.
VWoA literature and early dealership or distributor literature/pictures/information
. |
|
| Back to top |
|
|
hazetguy
Samba Member
Joined: April 06, 2001
Posts: 10801
Location: the past
|
| Posted: Tue Sep 19, 2006 4:55 pm Post subject: |
|
|
| DaveM wrote: |
| the parts manual says 4.8 x 19mm self tapping, with no mention of a change. My 59 dc is definately a machine screw. |
you need to consult an earlier parts book.

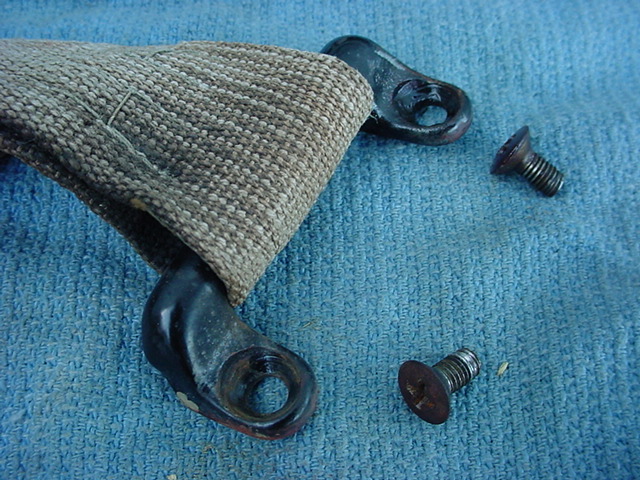

the machine screws in my 59 are 5 x .8 x 10 dome top, phillips head, and i am pretty certain they are original to the bus. that size screw by the way, should not be a very difficult fastener to find at a hardware store or metric harware supplier like www.metricmcc.com

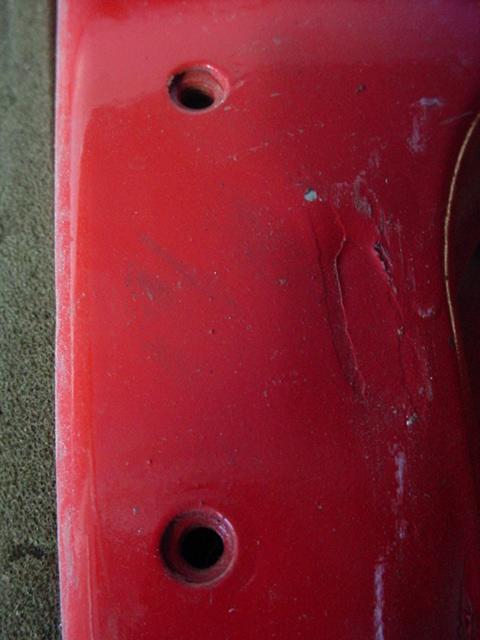

yes Lind, there seems to be a threaded nut or plate in the door. the stamping for the door has a larger hole than the threaded part behind it.
Last edited by hazetguy on Tue Sep 26, 2006 10:02 am; edited 1 time in total |
|
| Back to top |
|
|
Scotts 63 23
Samba Member
Joined: March 09, 2002
Posts: 1280
Location: Somewhere in my mind... The Real er Laguna Beach :)
|
| Posted: Tue Sep 19, 2006 5:26 pm Post subject: |
|
|
hazetguy wrote:
| Quote: |
| scott, that pic is of the later style screw. the early busses use dome topped, philips headed, machine screws, not self tapping ones like in that pic. |
Sorry, didn't see mynameismud's tag of "56 Kombi". Hope I didn't 'screw' him around...
_________________
'63 23 Daily Driver
www.scottmooreart.com |
|
| Back to top |
|
|
mynameismud
Samba Member
Joined: October 23, 2002
Posts: 5937
Location: Middle of a corn field
|
| Posted: Tue Sep 19, 2006 5:32 pm Post subject: |
|
|
| Scott's '63 23 wrote: |
hazetguy wrote:
| Quote: |
| scott, that pic is of the later style screw. the early busses use dome topped, philips headed, machine screws, not self tapping ones like in that pic. |
Sorry, didn't see mynameismud's tag of "56 Kombi". Hope I didn't 'screw' him around... |
naw...i'm use to getting the screw
_________________
Even YOU can prevent FIRES!
Click to view image |
|
| Back to top |
|
|
|
