 Posted: Tue Aug 22, 2023 2:35 am Post subject: Westy PopTop roof dimensions, blueprints, CAD etc. |
 |
|
Heya,
i am currently in process of manufacturing a custom poptop, so, does anybody has any CAD files, blueprints or measurements for any of the poptop elements - hinges, mechanisms, the whole fiber roof perhaps..?  Anything would help, as i've only seen, aside from internet pictures, the poptop roof on a bypassing vanagon on the road..
I have a clear picture on how everything works and looks, i would just need the numbers for everything so i could do it as close to original as i could (with few luxury mods, naturally)
Thank you in advance!
_________________
God of rust, have mercy.
WIP - Offroad Spec Syncro - 1.9 TDI AFN - Build Thread
https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0
IG: syncro_brothers |
|
| Back to top |
|
 |
mikemtnbike
Samba Member
Joined: March 26, 2015
Posts: 2931
Location: North Carolina
|
|
| Back to top |
|
|
TinyPickle
Samba Member
Joined: December 15, 2021
Posts: 190
Location: Slovenia, Europe
|
| Posted: Tue Aug 22, 2023 11:26 pm Post subject: Re: Westy PopTop roof dimensions, blueprints, CAD etc. |
|
|
Thank you, that helps, but regarding dimensions of the mechanisms, i guess i'll just have to wing it
_________________
God of rust, have mercy.
WIP - Offroad Spec Syncro - 1.9 TDI AFN - Build Thread
https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0
IG: syncro_brothers |
|
| Back to top |
|
|
RoryGirl
Samba Member
Joined: October 14, 2016
Posts: 986
Location: WestWorld Nanaimo BC
|
| Posted: Tue Aug 22, 2023 11:51 pm Post subject: Re: Westy PopTop roof dimensions, blueprints, CAD etc. |
|
|
https://www.thesamba.com/vw/forum/viewtopic.php?t=630622
| xoo00oox wrote: |
I just found my old templates I used to make the ones for the CHC roofs that lift up like the Westy roofs. I can post these up a little later.
Andrew- |
| xoo00oox wrote: |

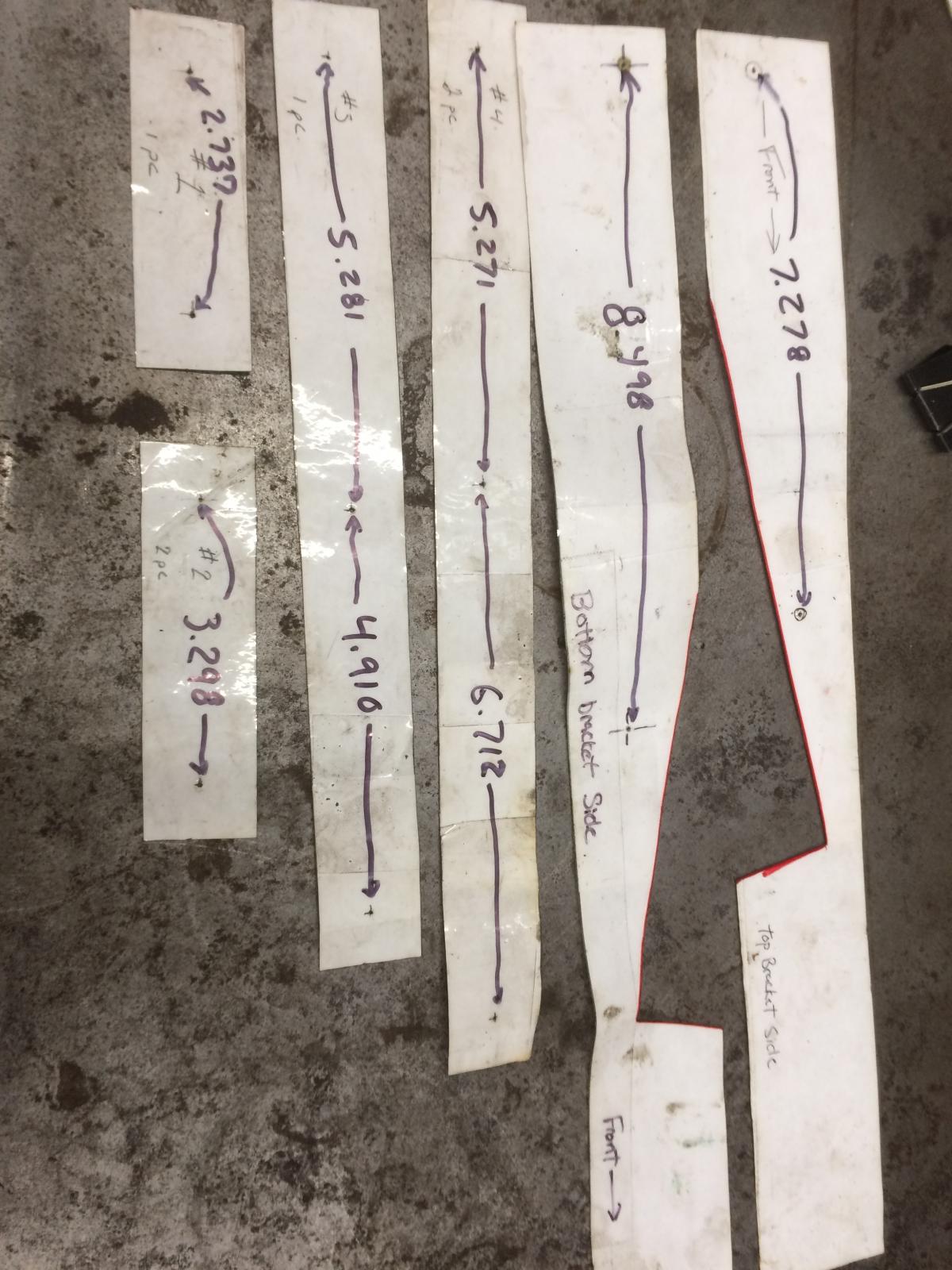

This is what I used. The skinny pieces were made to be put on a piece of 1.25 flat stock and I would center punch where the holes needed to be then drill the holes and round the ends. In making these, I just copied the dimensions of the Westy hinges and changed the mounting pieces to work with my roofs. The wider pieces where made to be set on a piece of 2" angle iron steel. Hope this helps
Does anyone know what type of a hinge this is called? |
