 Posted: Thu Jul 13, 2023 10:14 pm Post subject: Karmann Ghia Sea Cross Brace Template (Free to use) |
 |
|
Hi Guys, If any of you are restoring floorpans and seat rails, You might find the cross brace section between the rails hard to come by?
I've made up a drawing for a 1966 Ghia which I printed onto paper and used as a template to make my own cross member.
(The only difficulty the home user might have is accessing a press to make the 4 main creases?)
I've included the files in this post that anybody can download and use them.
It should be a perfect match for your old one and I've even got the fold ups on the ends for spot welding.
These photo's show how I made mine, sorry I don't have a decent end shot showing the rails in place, but you'll get the idea
Cheers
RT

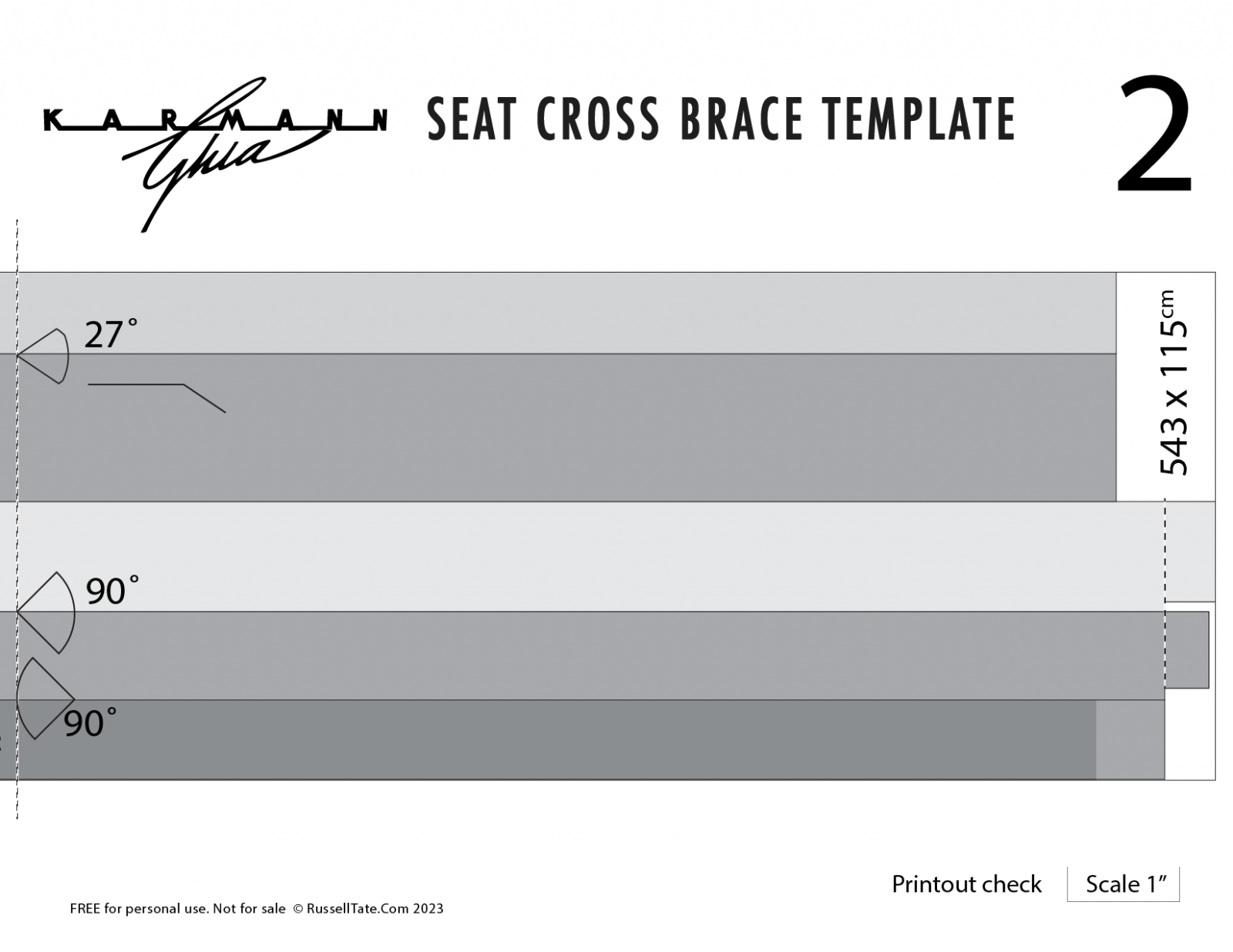

Print out these 2 sheets and stick together end to end so the template is 21.37" long

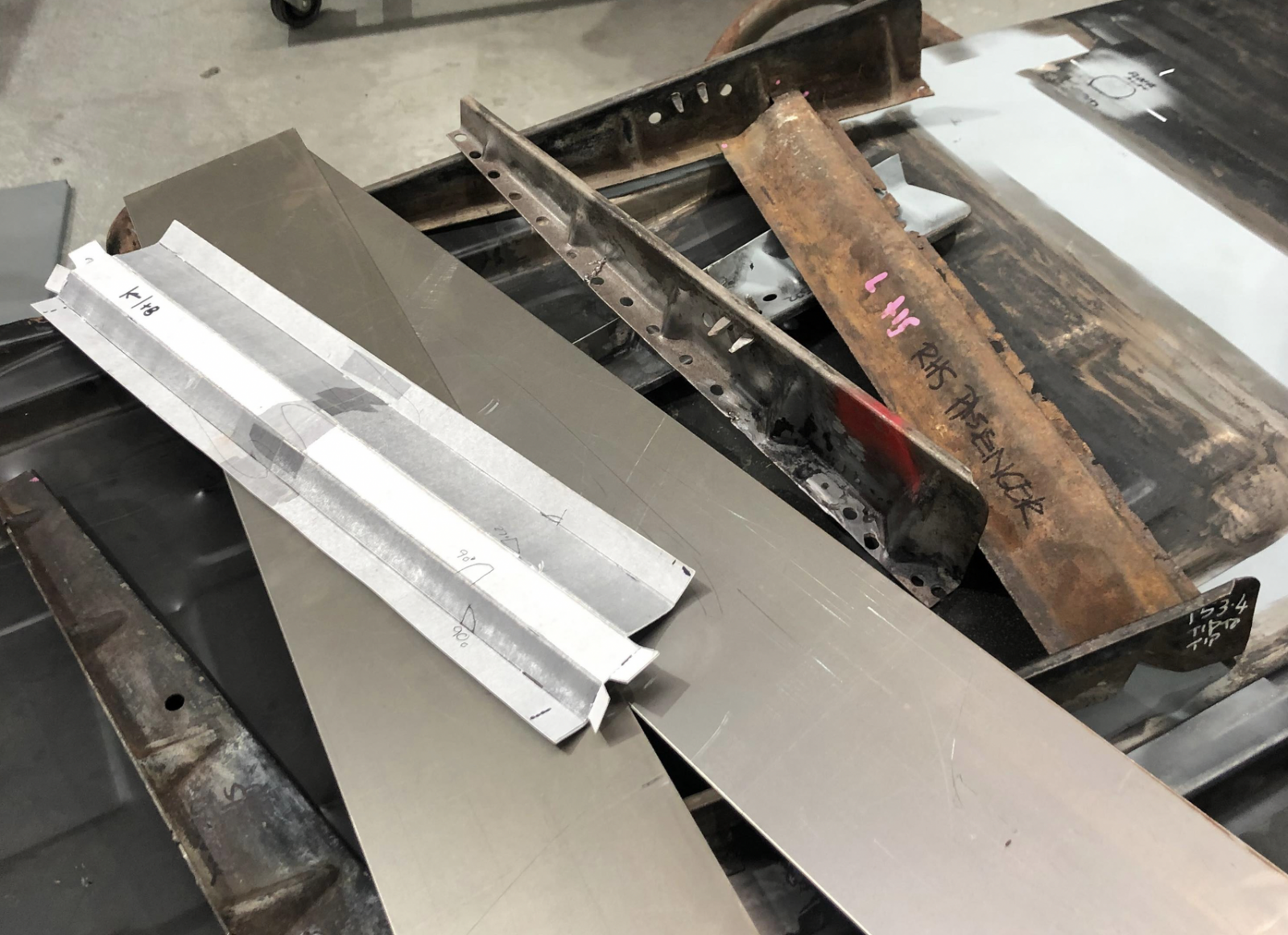

Cut out the template and add the creases.
Transfer to a sheet of mild steel
Cut out the end sections
Bend in a press.

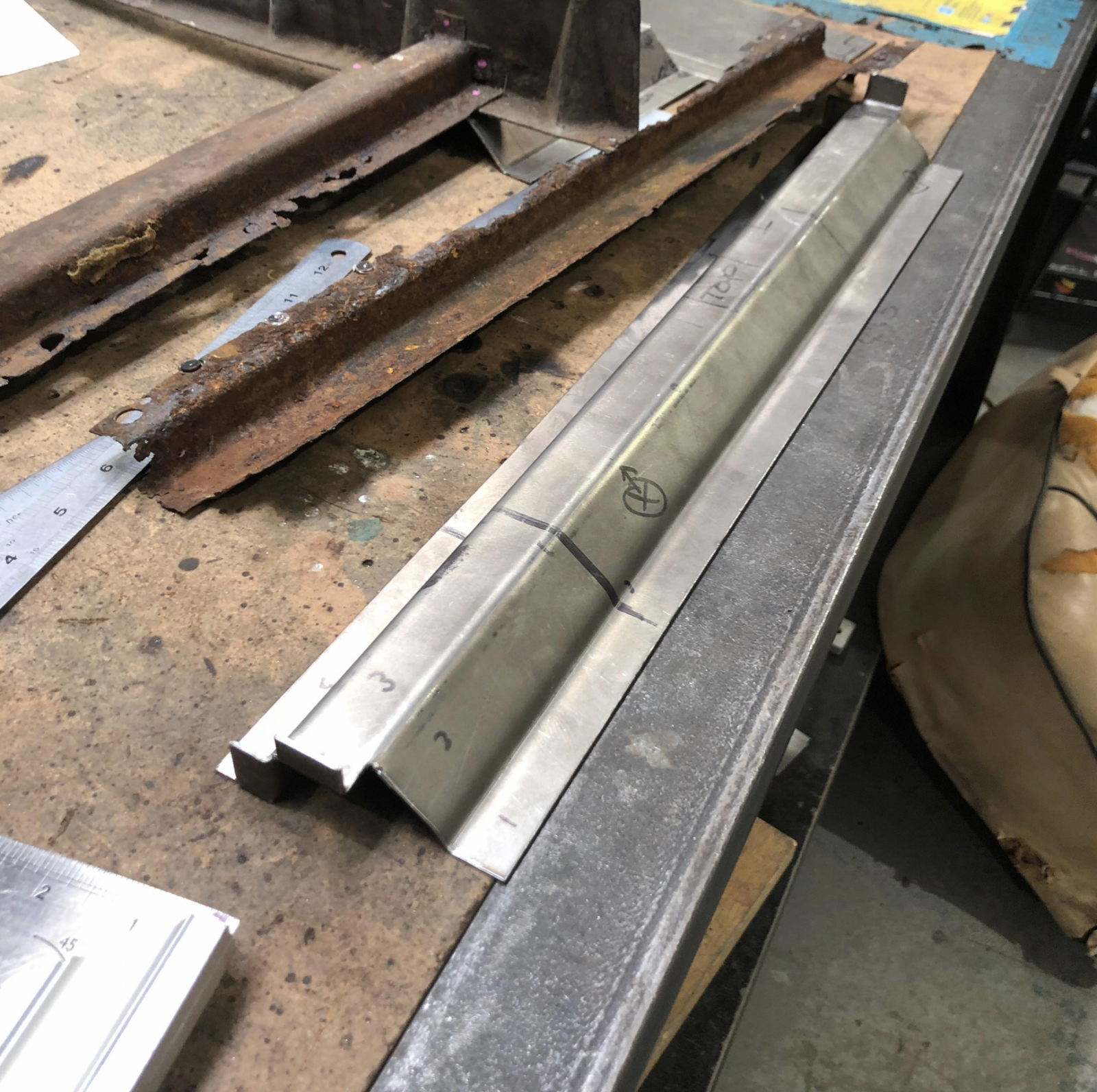

Compare against original!
Mark up your position on the pan and spot weld to rails and floor
Last edited by russelltatedotcom on Fri Jul 14, 2023 5:31 am; edited 2 times in total |
|
| Back to top |
|
 |
John Moxon
Samba Moderator
Joined: March 07, 2004
Posts: 14202
Location: Southampton U.K.
|
|
| Back to top |
|
|
Era Vulgaris
Samba Member
Joined: August 22, 2012
Posts: 1920
Location: Raleigh, NC
|
| Posted: Fri Jul 14, 2023 4:14 am Post subject: Re: Karmann Ghia Sea Cross Brace Template (Free to use) |
|
|
Nicely done! Keep in mind there were two different widths of seat rail. I forget the year change offhand (68 maybe? ). It would be good to include both measurements.
Another forum member VWLIFER64 was making these a few years back. Not sure if he still is.
https://www.thesamba.com/vw/forum/viewtopic.php?t=740538&highlight=seat
_________________
Currently own:
66 Karmann Ghia, L390 Gulf Blue, under construction, here: www.thesamba.com/vw/forum/viewtopic.php?t=760505&highlight=
99 Mazda MX-5 10AE, Sapphire Blue Mica, 6 speed, LSD
Previously owned:
98 Porsche Boxster, silver, 2.5L -- 67 Karmann Ghia, Black, 1500sp -- 98 BMW Z3, Atlanta Blue Metallic, 2.8L I6 -- 75 Porsche 914, Laguna Blue, 2270cc -- 72 Porsche 914, Signal Orange, 1.7 FI -- 74 Karmann Ghia, Black, 1600dp -- 74 Triumph TR6 with O.D., sapphire blue |
|
| Back to top |
|
|
russelltatedotcom
Samba Member
Joined: May 16, 2020
Posts: 208
Location: Sydney
|
| Posted: Fri Jul 14, 2023 5:20 am Post subject: Re: Karmann Ghia Sea Cross Brace Template (Free to use) |
|
|
| Ah, I was not aware of different widths. Mine was based on a 1966 model |
|
| Back to top |
|
|
Evil_Fiz
Samba Member
Joined: May 06, 2011
Posts: 1111
Location: Jacksonville, FL
|
| Posted: Sat Jul 15, 2023 11:53 am Post subject: Re: Karmann Ghia Sea Cross Brace Template (Free to use) |
|
|
I made a similar drawing based on my 1970 Ghia. I will dig it up and add it to this thread when get a few spare moments.
-----
Emil
