Where does the clip go? Brake

Frodge · Posted: Wed May 29, 2024 8:14 am Post subject: Where does the clip go? Brake

Im assuming this clip goes where the brake Return spring is. Does it go to the left or right of that spring hook and what orientation? Found it under the pedals.

Image may have been reduced in size. Click image to view fullscreen.

KTPhil · Posted: Wed May 29, 2024 8:26 am Post subject: Re: Where does the clip go? Brake

_________________
Current Fleet:
- '71 Fastback
- '69 Westfalia
Retired:
- '67 Beetle
- '65 Beetle (x2)
- '65 Bus
- '71 Squareback

Frodge · Posted: Wed May 29, 2024 8:44 am Post subject: Re: Where does the clip go? Brake

Thanks, so the flat edge sits over the top of the Return spring. Where can one find these odd clips? Does this clip come off when changing a master cylinder? Or did this just pop off on its own?

KTPhil · Posted: Wed May 29, 2024 8:49 am Post subject: Re: Where does the clip go? Brake

https://www.google.com/search?q=vw+beetle+brake+pu...mp;vssid=l
Out of stock on some online stores.
_________________
Current Fleet:
- '71 Fastback
- '69 Westfalia
Retired:
- '67 Beetle
- '65 Beetle (x2)
- '65 Bus
- '71 Squareback

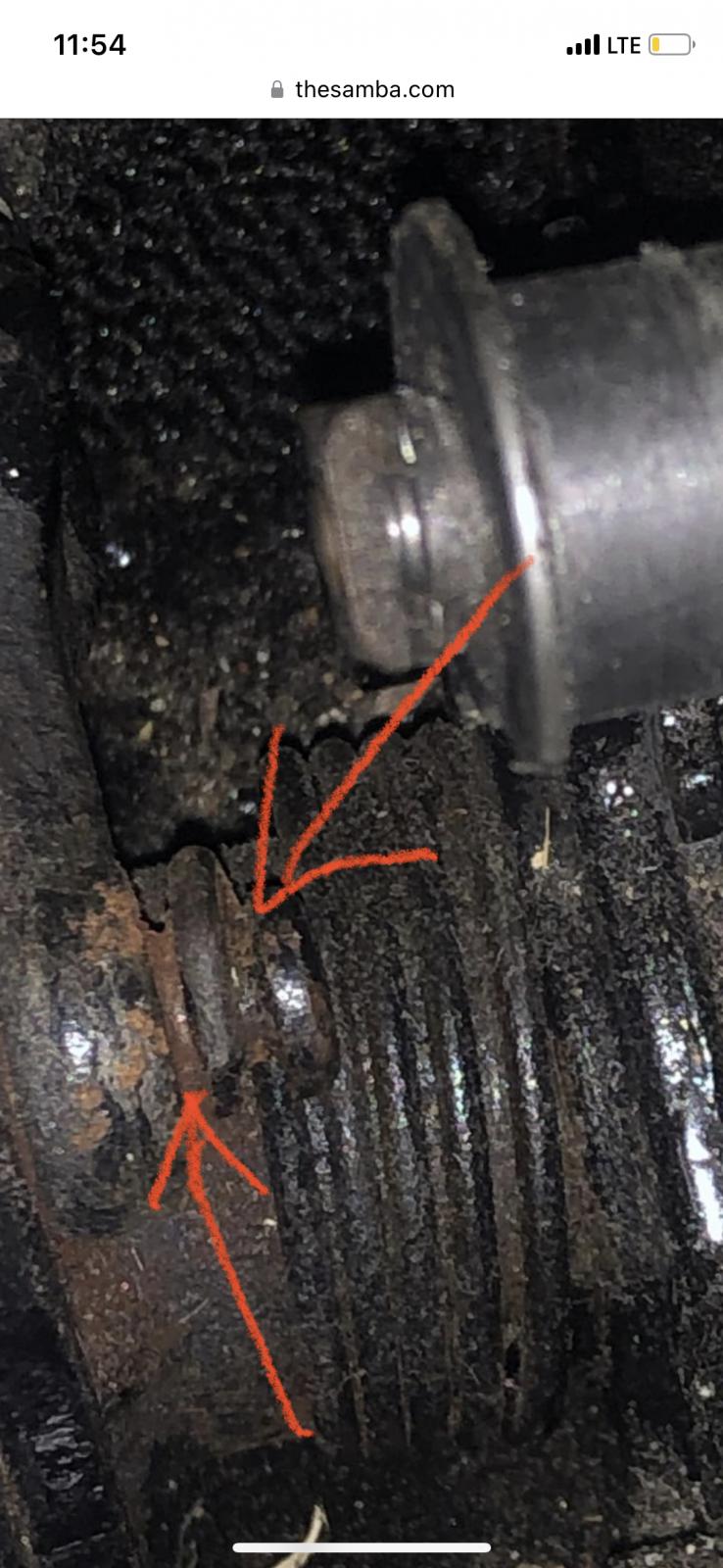

Frodge · Posted: Wed May 29, 2024 8:57 am Post subject: Re: Where does the clip go? Brake

The left arrow?

KTPhil · Posted: Wed May 29, 2024 9:42 am Post subject: Re: Where does the clip go? Brake

Yes. It is to retain the pushrod. The spring stays in its groove without any additional ‘help’.
_________________
Current Fleet:
- '71 Fastback
- '69 Westfalia
Retired:
- '67 Beetle
- '65 Beetle (x2)
- '65 Bus
- '71 Squareback

Frodge

Thanks very much.
