 Posted: Fri Jul 28, 2017 4:46 pm Post subject: Rear axle removal |
 |
|
Is it possible to remove the rear axles from the swing axle tranny without removing the bearings before hand?
Thanks for the help! |
|
| Back to top |
|
 |
Dougy Dee
Samba Member
Joined: August 21, 2004
Posts: 1765
Location: Niagara Region, CANADA
|
| Posted: Fri Jul 28, 2017 5:42 pm Post subject: Re: Rear axle removal |
|
|
| No. |
|
| Back to top |
|
|
nmills9
Samba Member
Joined: February 20, 2017
Posts: 7
|
| Posted: Fri Jul 28, 2017 5:46 pm Post subject: Re: Rear axle removal |
|
|
That's what I thought but wanted to ask just in case I was wrong.
Thanks Dougy. |
|
| Back to top |
|
|
MrGoodtunes
Samba Member
Joined: May 14, 2012
Posts: 1037
Location: South Florida
|
|
| Back to top |
|
|
Dougy Dee
Samba Member
Joined: August 21, 2004
Posts: 1765
Location: Niagara Region, CANADA
|
| Posted: Fri Aug 16, 2024 5:26 am Post subject: Re: Rear axle removal |
|
|
| You may have missed it but the axle tubes have bearings that need removing in order to remove the axle... They are visible in the video... |
|
| Back to top |
|
|
MrGoodtunes
Samba Member
Joined: May 14, 2012
Posts: 1037
Location: South Florida
|
| Posted: Fri Aug 16, 2024 8:48 am Post subject: Re: Rear axle removal |
|
|

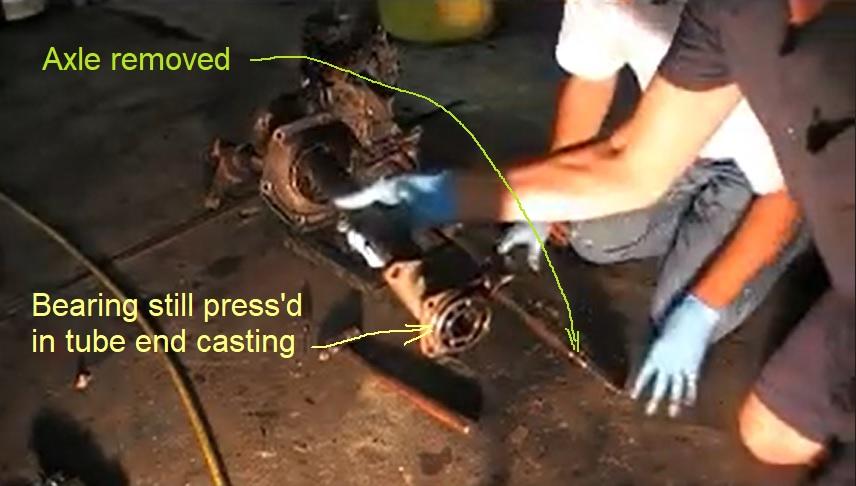

It looks to me that axle can be removed withOUT removing bearing from tube end casting:
Or, is there some other bearing I'm not seeing? |
|
| Back to top |
|
|
rcooled
Samba Member
Joined: September 20, 2008
Posts: 2782
Location: Santa Cruz, CA
|
| Posted: Fri Aug 16, 2024 11:23 am Post subject: Re: Rear axle removal |
|
|
| MrGoodtunes wrote: |
| It looks to me that axle can be removed withOUT removing bearing from tube end casting: Or, is there some other bearing I'm not seeing? |
No, you've got it right...there's no other bearing to deal with. Removing the axles while the trans is still in the car is a bit trickier though. The frame horns get in the way of removing the axle tube retainers.
Being that the rear wheel bearing is press-fit onto the axle, a 3-jaw puller will help in removing the bearing housing/axle tube assembly, together with the bearing, from the axle before removing the axle shaft from the transmission.
_________________
'63 Ragtop (current)
'65 Ghia coupe (totaled)
'67 Ghia convertible (current)
'69.5 Ghia convertible and
'62, '63, '65, '69 Bugs (all long gone) |
|
| Back to top |
|
|
Busstom
Samba Member
Joined: November 23, 2014
Posts: 4582
Location: San Jose, CA
|
| Posted: Fri Aug 16, 2024 12:17 pm Post subject: Re: Rear axle removal |
|
|
I actually like that method shown in the video because it pulls concentrically on the axle tube retainer as it breaks it free from the side cover, thus no prying around the sides later on.
_________________
My name's Steve and it's pronounced "Bust 'em" (cuz people think I'm Tom)
| cory464 wrote: |
| if you aren't perfectly centered in the hole you will have issues when you tap it. |
|
|
| Back to top |
|
|
ppilotmike
Samba Member
Joined: December 10, 2019
Posts: 88
Location: Oscoda Mi
|
| Posted: Sun Aug 18, 2024 5:28 am Post subject: Re: Rear axle removal |
|
|
| He never actually got the axle out during that video, he fought with the snap ring without success. I can’t imagine trying to do this while still in the car. |
|
| Back to top |
|
|
MrGoodtunes
Samba Member
Joined: May 14, 2012
Posts: 1037
Location: South Florida
|
| Posted: Sun Aug 18, 2024 4:12 pm Post subject: Re: Rear axle removal |
|
|
| ppilotmike wrote: |
| He never actually got the axle out during that video, he fought with the snap ring without success ... |
Yeah, that huge C-clip is daunting! Maybe they cut the video short there due to the language he may have used for venting frustration? He does have a continuation video which starts with the axle shaft already out loose.
| ppilotmike wrote: |
| ... I can’t imagine trying to do this while still in the car. |
And yet, that's my intention (Plan A) because it's probably not as big a job as taking apart the web of structural steel supports for my buggy's rear bumper, fiberglass, and gas tank. Those things would all need removal for entire drive train to come out together. I'll do it (Plan B) if it comes to that.
Tranny won't stay in 4th, but I still get to use the buggy for short trips. So I'm putting off transaxle job until daily high temperatures are well below the ~95°F we have here now.
BTW huge thanks's @rcooled & @Busstom for your words of wisdom. We are so lucky in this forum to have experienced people who are willing share their knowledge with such excellent communication skills.
| rcooled wrote: |
| ... frame horns get in the way of removing the axle tube retainers ... |
I'm hoping to find enough wiggle room after removing all 3 mounts and raising gearbox. |
|
| Back to top |
|
|
MrGoodtunes
Samba Member
Joined: May 14, 2012
Posts: 1037
Location: South Florida
|
| Posted: Tue Dec 17, 2024 4:48 pm Post subject: Re: Rear axle removal |
|
|
| MrGoodtunes wrote: |
| ppilotmike wrote: |
| He never actually got the axle out during that video, he fought with the snap ring without success ... |
Yeah, that huge C-clip is daunting! Maybe they cut the video short there due to the language he may have used for venting frustration? He does have a continuation video which starts with the axle shaft already out loose.
| ppilotmike wrote: |
| ... I can’t imagine trying to do this while still in the car. |
And yet, that's my intention (Plan A) because it's probably not as big a job as taking apart the web of structural steel supports for my buggy's rear bumper, fiberglass, and gas tank. Those things would all need removal for entire drive train to come out together. I'll do it (Plan B) if it comes to that.
Tranny won't stay in 4th, but I still get to use the buggy for short trips. So I'm putting off transaxle job until daily high temperatures are well below the ~95°F we have here now.
BTW huge thanks's @rcooled & @Busstom for your words of wisdom. We are so lucky in this forum to have experienced people who are willing share their knowledge with such excellent communication skills.
| rcooled wrote: |
| ... frame horns get in the way of removing the axle tube retainers ... |
I'm hoping to find enough wiggle room after removing all 3 mounts and raising gearbox. |
As can be seen in the following picture, there is indeed plenty of wiggle room:
Got the axle tube, that monsterous snap ring, axle shaft, fulcrums, and all. Didn't actually need to jack gearbox as high up as in pic. My kitcar has room to jack higher, not sure if a Beetle body would allow this. |
|
