 Posted: Tue Apr 12, 2022 12:29 pm Post subject: Differential Check Valve |
 |
|
So... this may seem like a basic question but can't find the answer even in schematics. The check valve coming off of the main vacuum line which goes into the Y connector for the diffs... which way is the vacuum supposed to stop? Should the air flow INTO or OUT OF the air reservoir? Check valve is number 9 in this linked diagram. Should the air flow go INTO the diff system off of the vacuum pump? That's what I'm assuming. https://www.gowesty.com/images/cms/sized/sized_Difflock%20&%20Decoupler%20Vacuum%20System.jpg
_________________
Chris
1989 T3 Vanagon 16" Syncro
1967 Squareback
https://vwvandiesel.com
Instagram @VW_VanDiesel |
|
| Back to top |
|
 |
Pchill2
Samba Member
Joined: November 19, 2021
Posts: 410
Location: Georgia
|
| Posted: Tue Apr 12, 2022 12:59 pm Post subject: Re: Differential Check Valve |
|
|
Air is pulled out of the reservoir. The check valve prevents it from re-entering.
_________________
87 Syncro Westy
Honda K24 swap |
|
| Back to top |
|
|
chrismsnt
Samba Member
Joined: March 06, 2018
Posts: 259
Location: Cumming, GA
|
| Posted: Tue Apr 12, 2022 1:27 pm Post subject: Re: Differential Check Valve |
|
|
| Pchill2 wrote: |
| Air is pulled out of the reservoir. The check valve prevents it from re-entering. |

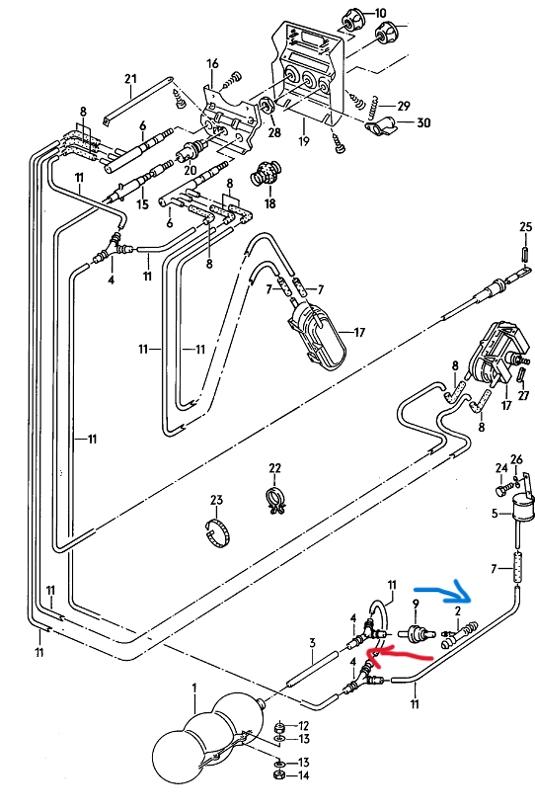

Just because I'm dense... which arrow should air be flowing? Blue or red arrow?
_________________
Chris
1989 T3 Vanagon 16" Syncro
1967 Squareback
https://vwvandiesel.com
Instagram @VW_VanDiesel |
|
| Back to top |
|
|
MarkWard
Samba Member
Joined: February 09, 2005
Posts: 18578
Location: Retired South Florida
|
| Posted: Tue Apr 12, 2022 1:50 pm Post subject: Re: Differential Check Valve |
|
|
| The tank holds a reserve of vacuum. The check valve should close when the engine is off retaining vacuum in the tank. If you draw on the valve with your mouth, one way you can suck air. The other you can’t. The end you can’t draw on goes towards the tank. |
|
| Back to top |
|
|
StefDS
Samba Member
Joined: July 14, 2010
Posts: 56
Location: Brussels
|
| Posted: Wed May 14, 2025 2:15 pm Post subject: Re: Differential Check Valve |
|
|
Does somebody has a picture laying around of the check valve near the reservoir? I don't find the checkvalve on my syncro.
Also, what is nr 5 on the above diagram? |
|
| Back to top |
|
|
ALIKA T3
Samba Member
Joined: July 30, 2009
Posts: 7108
Location: Honolulu,Hawaii and France
|
| Posted: Thu May 15, 2025 12:07 am Post subject: Re: Differential Check Valve |
|
|
| StefDS wrote: |
Does somebody has a picture laying around of the check valve near the reservoir? I don't find the checkvalve on my syncro.
Also, what is nr 5 on the above diagram? |
It's an air filter for the atmosphere line.
I've personally never seen it, but saw it for sale which prompted me to look into it.
_________________
Silicone Steering Boots and 930 Cv boots for sale in the classifieds.
Syncro transmission upgrade parts in the Classifieds.
Subaru EJ22+UN1 5 speed transmission
http://www.thesamba.com/vw/forum/viewtopic.php?t=416343
Syncro http://www.thesamba.com/vw/forum/viewtopic.php?t=4...num+gadget |
|
| Back to top |
|
|
MsTaboo
Samba Member
Joined: June 02, 2006
Posts: 4509
Location: East Kootenay, British Columbia
|
| Posted: Sat May 17, 2025 3:27 pm Post subject: Re: Differential Check Valve |
|
|
| chrismsnt wrote: |
| Pchill2 wrote: |
| Air is pulled out of the reservoir. The check valve prevents it from re-entering. |
Just because I'm dense... which arrow should air be flowing? Blue or red arrow?
|
Keep in mind; that's an early, pre-production diagram. The production Syncros did not have the Bowden cable (#15), it was part of the "selectable 4x4" system (solid shaft) which VW dropped in favor of the VC (simpler, cheaper, and full time AWD).
I believe #5 air filter was part of that system (lines #16 on page 26-27 below). Stock Syncros don't have. All vacuum lines are driven off the same vacuum source as the power brakes.
Here's an early service manual showing the "selectable 4x4" setup (pages 26, 27, 38, and 40)
Ours shown on pages 34, 35, and 37.
https://www.thesamba.com/vw/archives/manuals/1986_vw_syncro_service_manual.php
| StefDS wrote: |
Does somebody has a picture laying around of the check valve near the reservoir? I don't find the checkvalve on my syncro.
Also, what is nr 5 on the above diagram? |

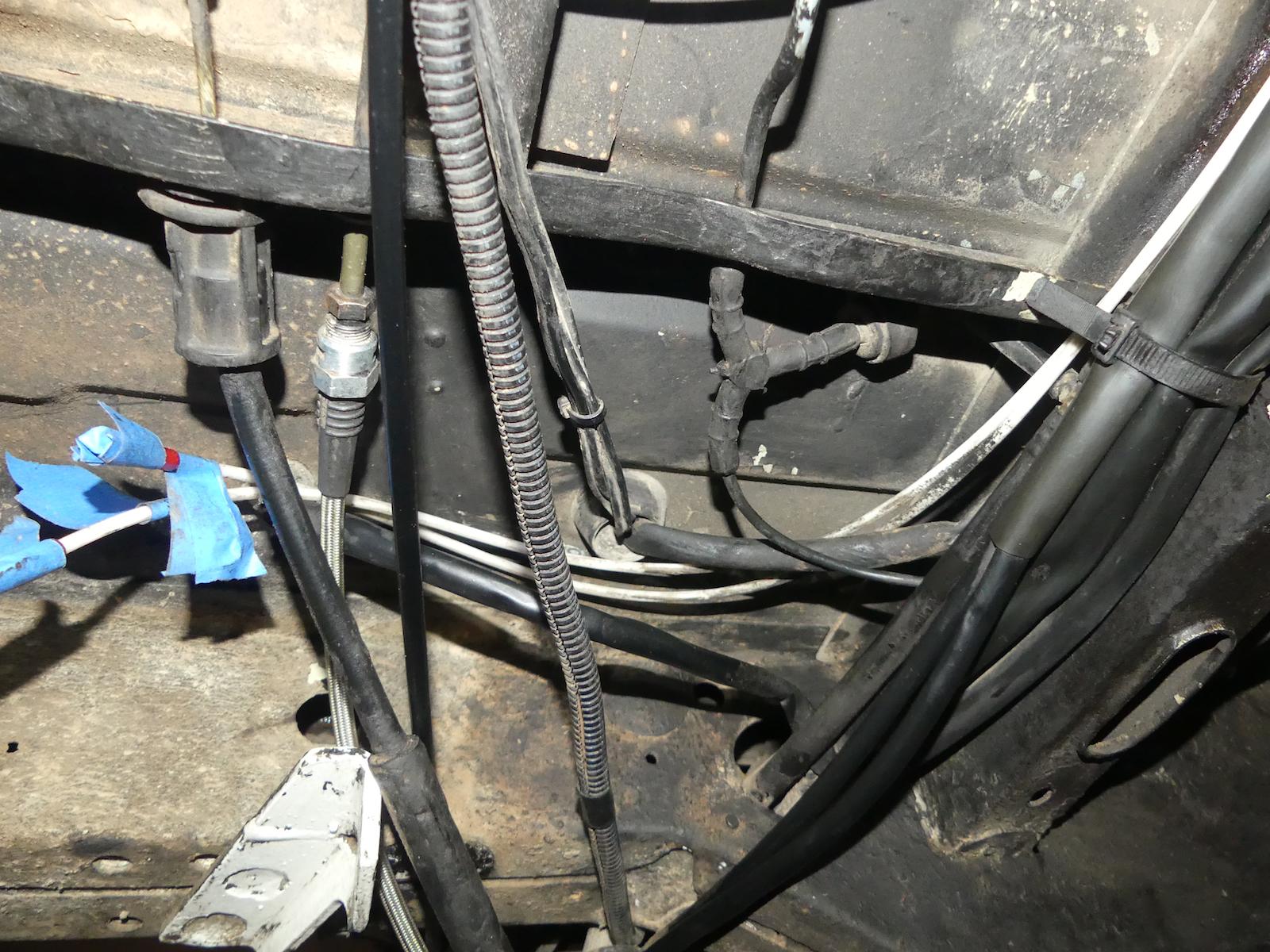

Here's the only pic I have of the check valve area, you can just see it at the end of the Y connector.
Line going to right is connection with vac line to brake booster, bottom line goes up front to diff lock panel, top line to three globe vac reservoir bottle.
All lines are vacuum. Air suction is being drawn into main vac line and into engine intake manifold.
(white lines are for my decoupler)
