| Author |
Message |
anniewyo
Samba Member
Joined: December 06, 2024
Posts: 29
Location: Sheridan, WY
|
 Posted: Mon Dec 16, 2024 10:07 am Post subject: 6V LED Headlight Bulbs? Taillight? |
 |
|
| ARE there any LED replacement bulbs for a 6V VW that can be "plug and play"? Headlights and taillights in particular that would improve the lumens and appear to be a vintage color of light? Or perhaps a halogen that is safe to use? |
|
| Back to top |
|
 |
56Cabrio
Samba Member
Joined: May 22, 2008
Posts: 2059
Location: San Fernando Valley, CA
|
|
| Back to top |
|
|
anniewyo
Samba Member
Joined: December 06, 2024
Posts: 29
Location: Sheridan, WY
|
| Posted: Mon Dec 16, 2024 11:41 am Post subject: Re: 6V LED Headlight Bulbs? Taillight? |
|
|
| I have a 1956 - thanks for the links. |
|
| Back to top |
|
|
esde
Samba Member
Joined: October 20, 2007
Posts: 6359
Location: central rust belt
|
| Posted: Wed Dec 18, 2024 7:51 pm Post subject: Re: 6V LED Headlight Bulbs? Taillight? |
|
|

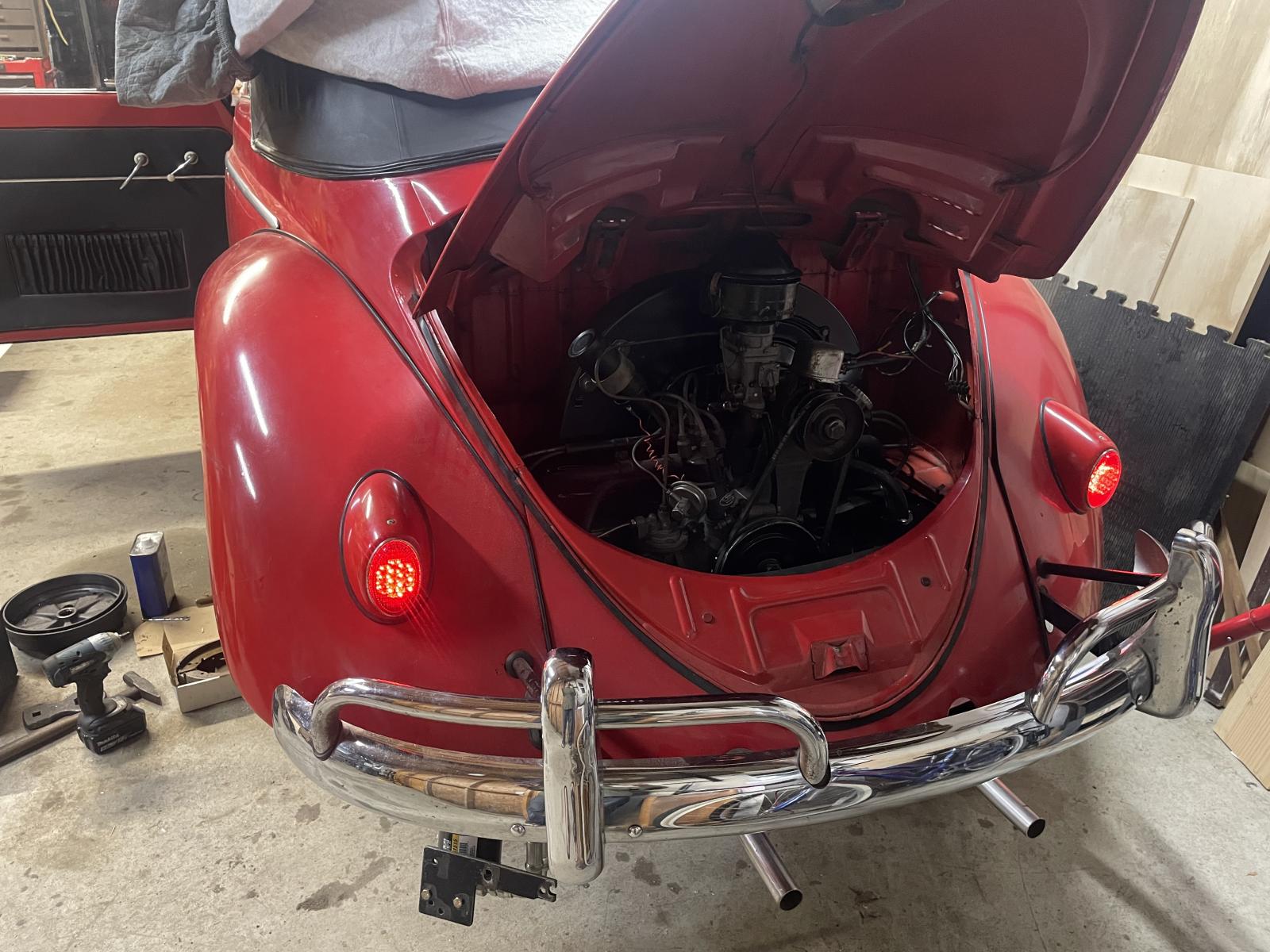

Here are some of Chips lights in action, on 6 volts
EXCELLENT lights, I've installed many sets
_________________
modok wrote:
Bent cranks are silent but gather no moss. I mean, ah, something like that. |
|
| Back to top |
|
|
obus
Samba Member
Joined: March 08, 2001
Posts: 11673
Location: just off Garden State Parkway Exit 81
|
|
| Back to top |
|
|
sunroof
Samba Member
Joined: October 06, 2006
Posts: 2044
Location: Winnipeg
|
|
| Back to top |
|
|
obus
Samba Member
Joined: March 08, 2001
Posts: 11673
Location: just off Garden State Parkway Exit 81
|
|
| Back to top |
|
|
esde
Samba Member
Joined: October 20, 2007
Posts: 6359
Location: central rust belt
|
| Posted: Sat Aug 30, 2025 4:58 am Post subject: Re: 6V LED Headlight Bulbs? Taillight? |
|
|
| obus wrote: |
| Seth i am looking to add those to my 56. I dont want to destroy the original lights though. So should i order Chips 6volt LEDS. and then find other lenses and older inner housings so i dont ruin the original ones? Whats the best way not to hack the original wiring etc? |
You could find others, but you don't ruin the original parts.. the originals are a glass lens stuck to the reflector with some butyl goop, and there is a plastic diffuser in the middle. I carefully separated them, and put the LED board where the plastic diffuser was, and passed the wires out the bulb opening in the reflector. Stuck it back together with a few drops of clear silicone and done! Chip includes some nice set screw connectors so you won't have to cut stock wiring...
I'll look back in my pics to see if I have some that show the install better.
_________________
modok wrote:
Bent cranks are silent but gather no moss. I mean, ah, something like that. |
|
| Back to top |
|
|
sunroof
Samba Member
Joined: October 06, 2006
Posts: 2044
Location: Winnipeg
|
| Posted: Sat Aug 30, 2025 5:09 am Post subject: Re: 6V LED Headlight Bulbs? Taillight? |
|
|
| Quote: |
Thanks sunroof but at the top of their page it says they have stopped shipping to the USA Crying or Very sad
_ |
That's too bad because they make a great product
Don
_________________
Better and better mistakes! |
|
| Back to top |
|
|
obus
Samba Member
Joined: March 08, 2001
Posts: 11673
Location: just off Garden State Parkway Exit 81
|
| Posted: Sat Aug 30, 2025 8:33 pm Post subject: Re: 6V LED Headlight Bulbs? Taillight? |
|
|
| esde wrote: |
| obus wrote: |
| Seth i am looking to add those to my 56. I dont want to destroy the original lights though. So should i order Chips 6volt LEDS. and then find other lenses and older inner housings so i dont ruin the original ones? Whats the best way not to hack the original wiring etc? |
You could find others, but you don't ruin the original parts.. the originals are a glass lens stuck to the reflector with some butyl goop, and there is a plastic diffuser in the middle. I carefully separated them, and put the LED board where the plastic diffuser was, and passed the wires out the bulb opening in the reflector. Stuck it back together with a few drops of clear silicone and done! Chip includes some nice set screw connectors so you won't have to cut stock wiring...
I'll look back in my pics to see if I have some that show the install better. |
thanks for that info!!!
_________________
July 1959 Mango Standard Bus aka Obus https://www.thesamba.com/vw/forum/viewtopic.php?t=256592&highlight=
June 1973 Pumpkin Orange Thing aka Othing
https://www.thesamba.com/vw/forum/viewtopic.php?t=711775&highlight=
1960 Paprika Red Karmann Ghia Convertible aka Schatze built 5/20/60
https://www.thesamba.com/vw/forum/viewtopic.php?t=...highlight=
March 1956 Beetle convertible https://www.thesamba.com/vw/forum/viewtopic.php?p=10419731&highlight=#10419731 |
|
| Back to top |
|
|
obus
Samba Member
Joined: March 08, 2001
Posts: 11673
Location: just off Garden State Parkway Exit 81
|
|
| Back to top |
|
|
esde
Samba Member
Joined: October 20, 2007
Posts: 6359
Location: central rust belt
|
| Posted: Mon Sep 01, 2025 4:21 am Post subject: Re: 6V LED Headlight Bulbs? Taillight? |
|
|
If I wanted to, I could have this returned to a stock bulb holder in 10 minutes.
_________________
modok wrote:
Bent cranks are silent but gather no moss. I mean, ah, something like that. |
|
| Back to top |
|
|
6T5 square
Samba Member
Joined: September 15, 2005
Posts: 1105
Location: Dover, DE
|
| Posted: Mon Sep 01, 2025 6:58 am Post subject: Re: 6V LED Headlight Bulbs? Taillight? |
|
|
I've had the same set up from Chip for about 5 years now. Excellent product. Yes you do have to remove the diffuser but other than that, it's easy. And yes, you could convert them back to original in about 20 minutes if you had to.
_________________
John
65 square 1500S (weezer) sold but always on my mind
60 beetle (Ned)
Quoting John Muir -- Open the rear boot. Get out the stool and sit down. Contemplate the air-cooled beauty before you. - How to Keep Your Volkswagen Alive -- Step-By-Step Procedures for the Compleat Idiot |
|
| Back to top |
|
|
obus
Samba Member
Joined: March 08, 2001
Posts: 11673
Location: just off Garden State Parkway Exit 81
|
|
| Back to top |
|
|
anniewyo
Samba Member
Joined: December 06, 2024
Posts: 29
Location: Sheridan, WY
|
| Posted: Thu Sep 04, 2025 9:15 am Post subject: Re: 6V LED Headlight Bulbs? Taillight? |
|
|
| Don, can you post a link to the LED headlights you got from an Ebay seller? Are they 6 V plug and play? |
|
| Back to top |
|
|
|
