PostPosted: Mon Dec 30, 2024 11:31 pm    Post subject: 321919039 - Bulb & Socket for Dash Vent Control/Heater Switch Reply with quote
From the Part List cross reference topic - https://www.thesamba.com/vw/forum/viewtopic.php?p=10326494#10326494

321919039 - Bulb & Socket for Dash Vent Control/Heater Switch
321-919-039-AM
(1) https://www.ilcats.ru/vw/?function=getParts&ma...anguage=en

https://www.thesamba.com/vw/forum/viewtopic.php?p=10326490#10326490
Robsmaze wrote:
Rear heater and climate control lamps had burnt out. New ones are $10 at GoWesty each, plus shipping. Ughhh. Instead I purchased:

Nanpoku T5 LED Bulbs 74 73 37 2721 LED Bulb for Auto Car Dashboard Dash Instrument Panel Gauge Cluster Indicator Lights Lamp(White)

https://a.co/d/iYkaWnB

Modengzhe 10 Pcs T5 Twist Socket Car Dashboard Wiring Harness, Panel Cluster Plug LED Bulb Wedge Light Base Cable for Automobiles

https://a.co/d/6odHE1I

And a pack of little spade connectors:

Glarks 315Pcs Quick Splice 2.8mm 4.8mm 6.3mm Male and Female Wire Spade Connector Wire Crimp Terminal Block with Insulating Sleeve Assortment Kit

https://a.co/d/cjd4YdC

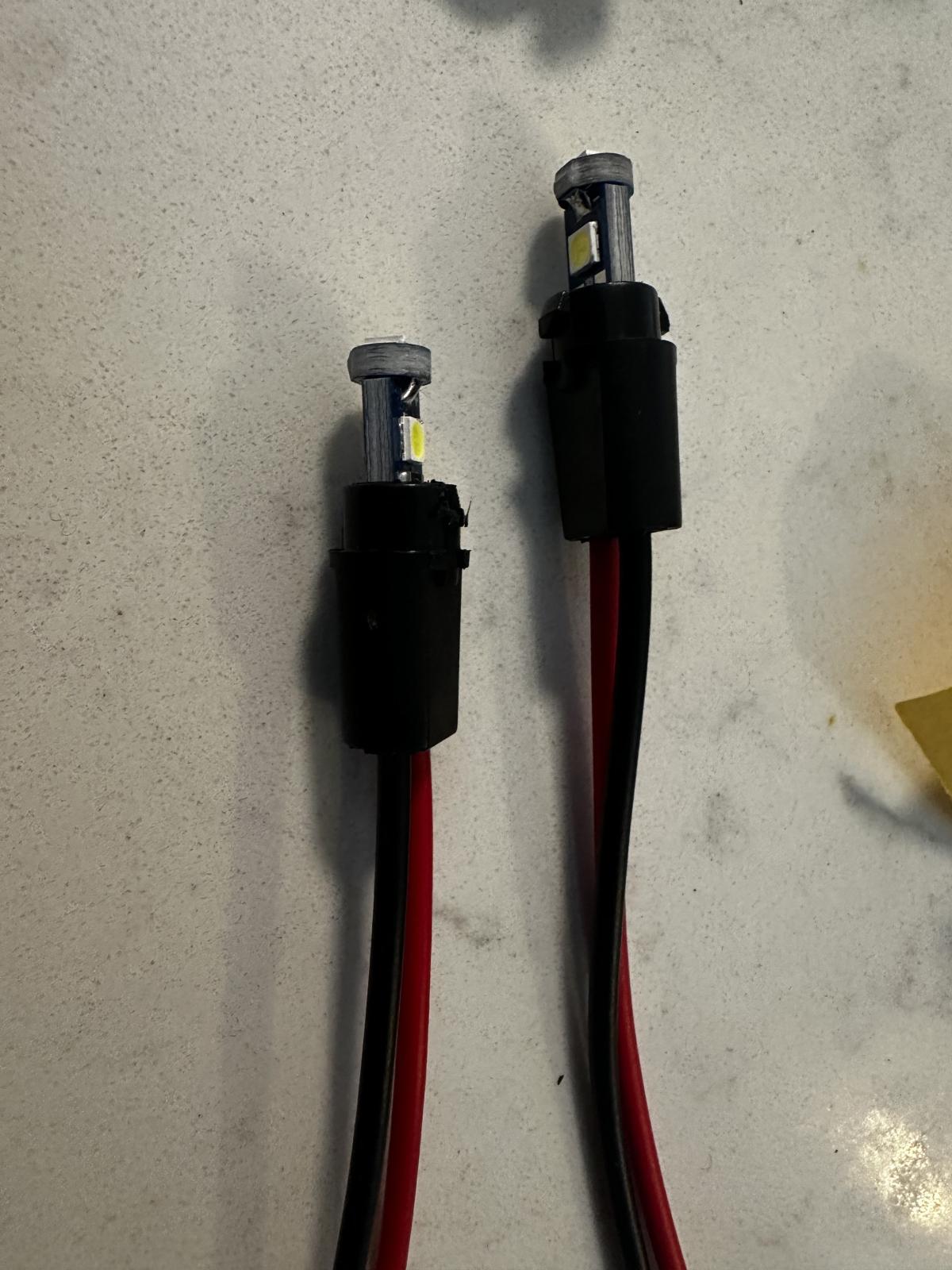

Total cost, presumably less than two bulbs and shipping. Crimped the male spades on the end of each wire and trimmed the tiny twist lock nub off the black connector off with a dremel.

They fit nice and they are perfectly bright and even dim…


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.


Now I have an extra eight setups….


GoWesty $10.74 https://gowesty.com/products/bulb-socket-dash-vent...6640830629
BusLab $6.95 https://www.buslab.com/product-p/321919039.htm

Other topics discussing this part number
https://www.thesamba.com/vw/forum/viewtopic.php?p=9957511#9957511
https://www.thesamba.com/vw/forum/viewtopic.php?p=9619874#9619874
_________________
83.5 Westy with Subaru 2.5, 4 spd manual, center seat, COLD A/C on 134a!, Winter camp heated with an Espar B4 gasoline furnace

www.SuperVanagon.com - some stuff I make
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ALIKA T3
Samba Member


Joined: July 30, 2009
Posts: 7208
Location: Honolulu,Hawaii and France
ALIKA T3 is offline
PostPosted: Tue Dec 31, 2024 8:50 am    Post subject: Re: 321919039 - Bulb & Socket for Dash Vent Control/Heater Switch Reply with quote
That is a nice info, thank you!

I've been saving the white sockets over the years , now NLA, that allow to replace the bulb vs the black sockets. Swap in LED, golden, but they're rare!
_________________
Silicone Steering Boots and 930 Cv boots for sale in the classifieds.
Syncro transmission upgrade parts in the Classifieds.
Subaru EJ22+UN1 5 speed transmission
http://www.thesamba.com/vw/forum/viewtopic.php?t=416343
Syncro http://www.thesamba.com/vw/forum/viewtopic.php?t=4...num+gadget
Back to top
View user's profile Send private message Gallery Classifieds Feedback
pathao
Samba Member


Joined: November 01, 2012
Posts: 335
Location: Montreal, Canada
pathao is offline
PostPosted: Tue Dec 31, 2024 11:59 am    Post subject: Re: 321919039 - Bulb & Socket for Dash Vent Control/Heater Switch Reply with quote
That's the nicest cleanest retrofitable unmodified solution I've ever seen.

Nice Work


Beats , by miles, what I did 10 years ago https://www.thesamba.com/vw/forum/viewtopic.php?p=7898973&highlight=#7898973 (but still working)
_________________
1982 AC P27 - 2.0 FI FED - 091 - BA6


English is a second language to me
